The machining accuracy of shelf columns and beams is the primary prerequisite for ensuring the stability and load-bearing safety of shelf assembly. Due to technological limitations, traditional production equipment produces large deviations in column hole positions and inaccurate beam sizes, which not only makes it difficult to assemble shelves, but may also pose safety hazards such as shaking and deformation when carrying goods. Our shelf column crossbeam equipment, with top-notch precision control technology, eliminates precision issues from the source.

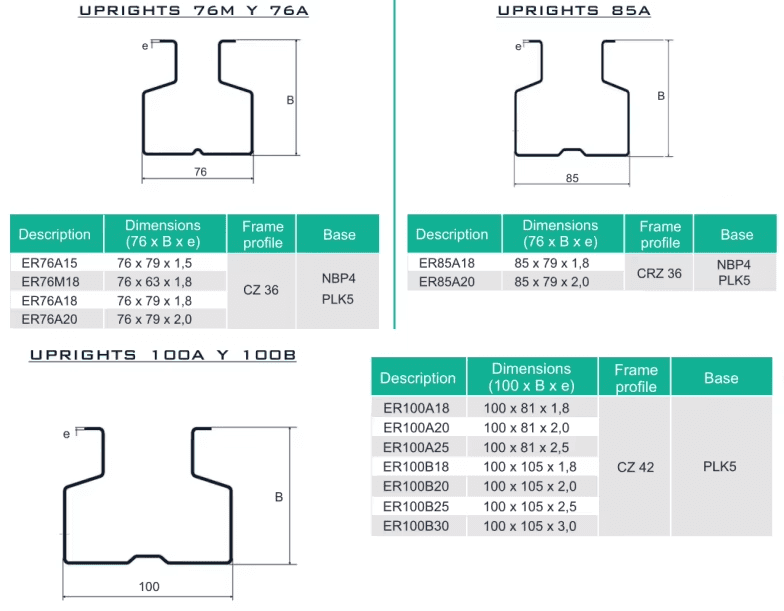

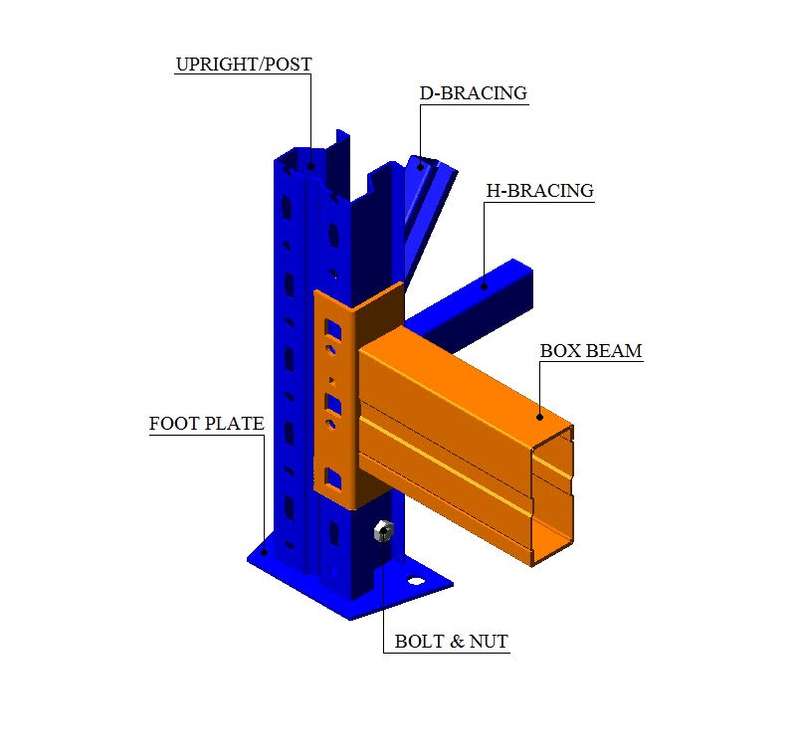

Pattern diagram:
Main advantages:
- Stability and safety
The column adopts a three column design (such as heavy-duty shelving with sheet metal), which can evenly distribute the weight of goods, avoid the risk of tilting or collapsing, and ensure operational safety. The crossbeam is designed with a specially cold-rolled P-type closed beam structure to achieve the characteristics of light weight and strong bearing capacity, with a load-bearing capacity of 1-5 tons per layer. - Bearing capacity
Heavy duty crossbeam shelves are designed with thickened columns and specially designed crossbeams, with a load-bearing capacity of several tons, suitable for storing drum/canned chemicals in petrochemical enterprises. The crossbeam of the tire rack can be flexibly installed with mesh or wooden boards to prevent tires from rolling off and ensure storage safety. - Space utilization efficiency
The combination of columns and beams can fully utilize vertical space and increase warehouse storage density. For example, tire racks save space by stacking and are suitable for small warehouses or dealers. - Universality and flexibility
Cross beam shelves support pallet storage and are compatible with various sizes of goods. The distance between the columns and beams can be adjusted (75mm or 50mm step distance) to meet different scene requirements.
Product Attributes ：
| 1.Formed Material | GI,AI | Thickness:2 to 3mm | ||
| 2.Decoiler | Automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 20 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | Gcr12mov | |||
| Machine body frame | 500 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 9500*1600*1600(customize) | |||
| Weight | 6T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system | 7.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

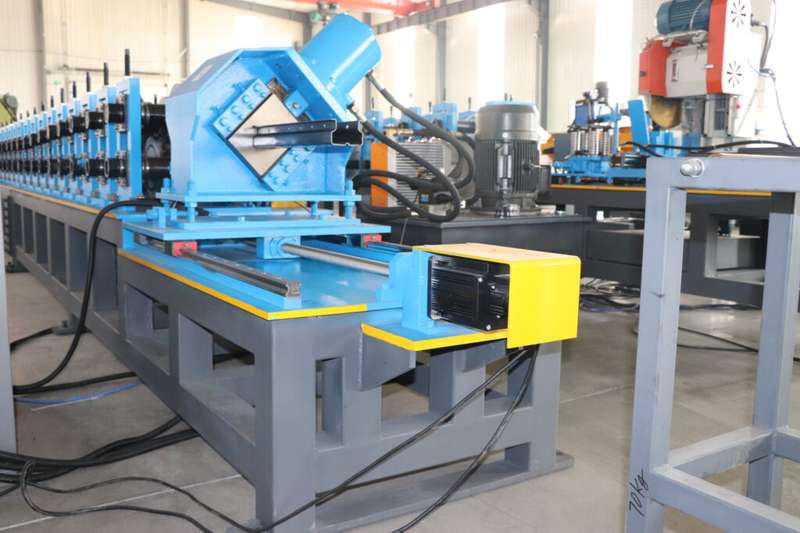

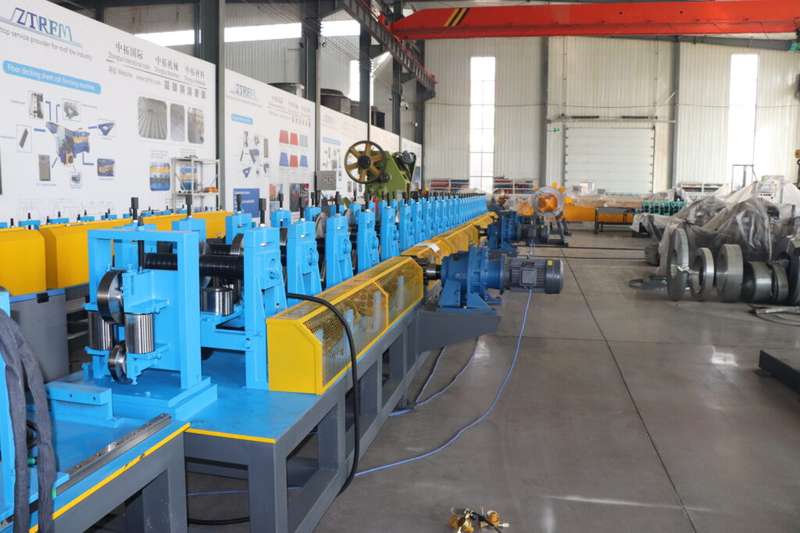

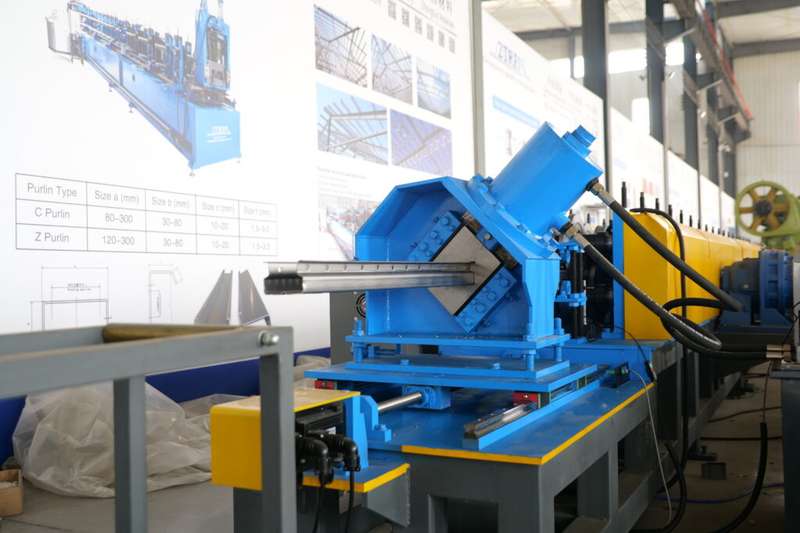

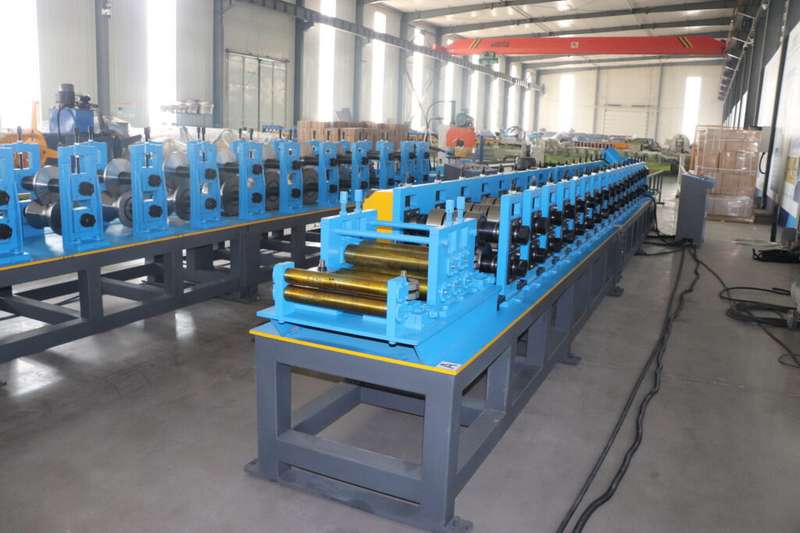

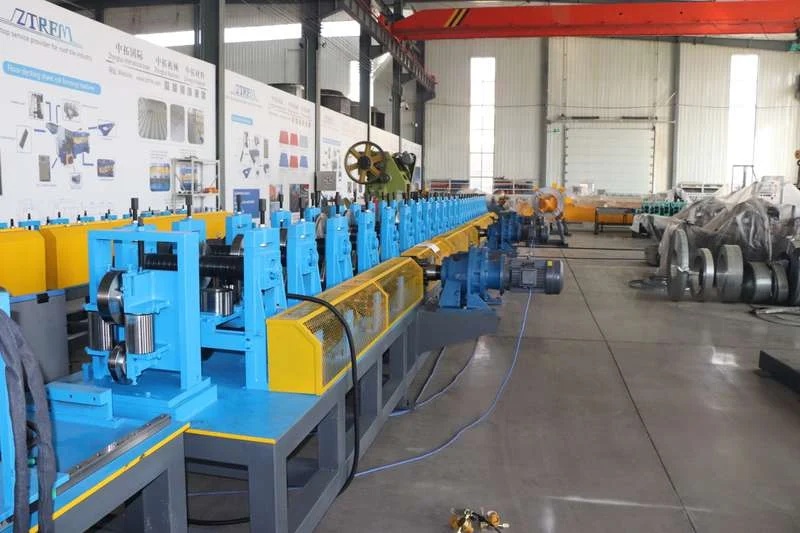

Product images：
