In the construction of drywall partitions and suspended ceiling systems, the wall angle keel serves as a key component connecting the wall panels and ceilings, and fixing the edges of the wall. Its forming accuracy directly affects the flatness and structural stability of the entire interior engineering. The High Precision Steel Wall Angle Roll Forming Machine provides a reliable high-precision wall corner keel production solution for light steel keel manufacturers with its precise forming system and stable mass production capacity.
Core Advantages：
1. High precision molding with consistent dimensions
2. High speed continuous production
3. Intelligent PLC control
4. Durable and sturdy, suitable for harsh working conditions
Application Areas：
- Ceiling system:
As a support for the edge of the ceiling, installed at the junction of the wall and ceiling, carrying the ceiling keel - Dry wall partition:
protection and closure at the corners of the wall, combined with gypsum board to form a clean wall corner line - HVAC and MEP:
Providing Support Structures for Duct and Pipe Installation - Architectural decoration:
decorative edging and edge protection
Product Attributes :
| 1.Formed Material | GI | Thickness:0.2-0..4mm (customized) | ||

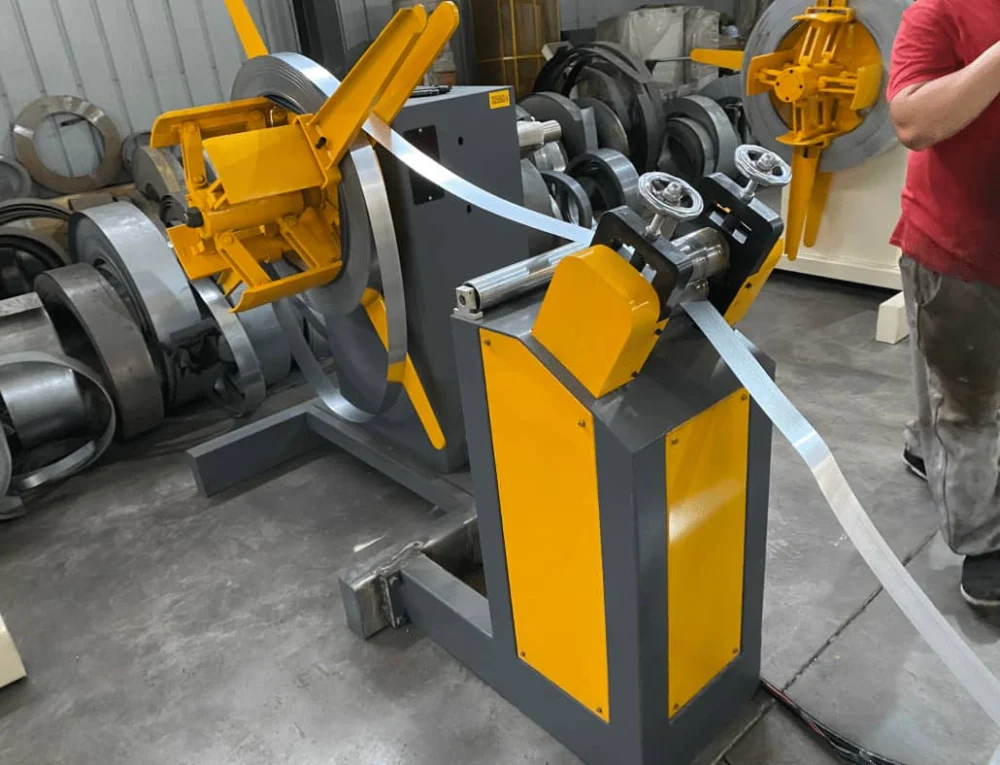

| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gearbox transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3.5T | |||

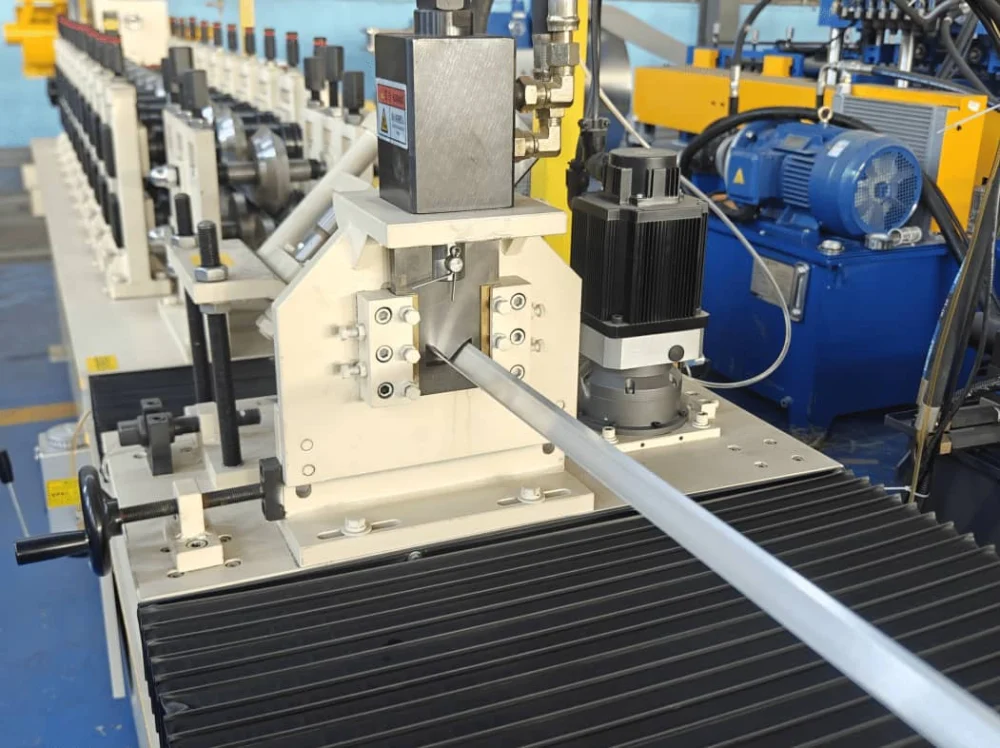

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 4KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 70m/min(customized) | Speed is adjustable according to customer’s request | ||

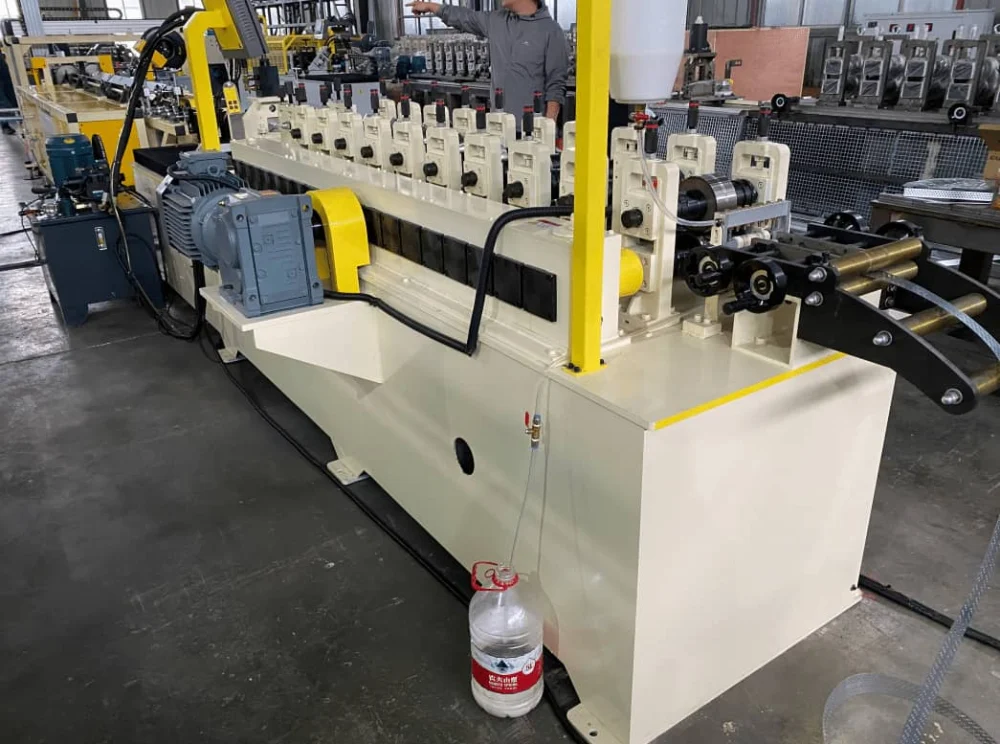

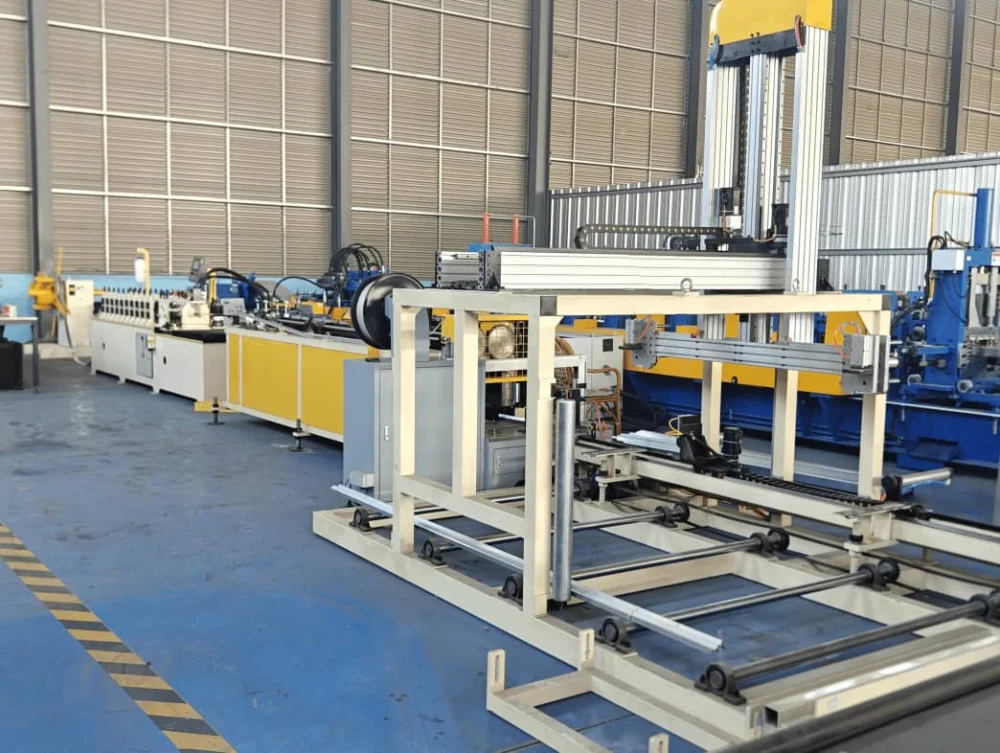

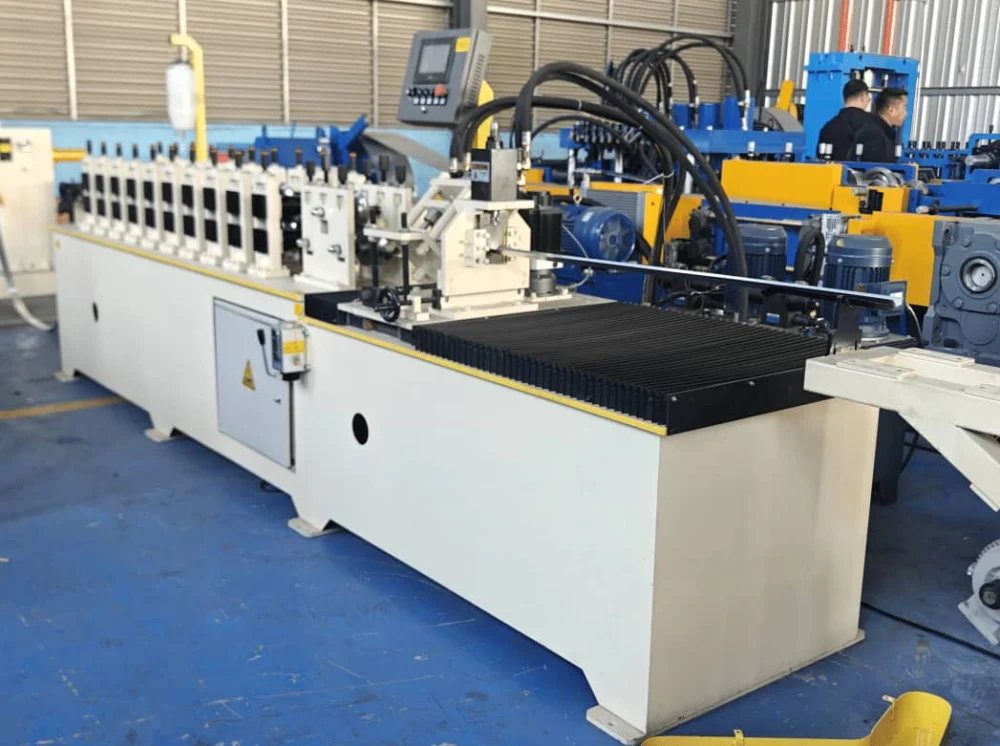

Machine image:
Contact Us：
From the ceiling system of commercial buildings to the partition wall engineering of hospitals and schools, from the corner closure of finely decorated residential buildings to the edge support of industrial plants, the corner keel is serving an increasing number of building interior projects worldwide with its precise molding quality and stable structural performance. A High Precision Steel Wall Angle Roll Forming Machine with reliable performance and stable accuracy is the core equipment for light steel keel manufacturers to improve product quality and expand product lines. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
