The High Effective Suspended Ceiling T Bar Roll Forming Machine is a rolling forming equipment specifically designed for rolling T-shaped section metal keels. It uses high-quality continuous hot-dip galvanized sheet or color coated sheet as raw materials, and gradually processes the flat metal strip into a "T" - shaped skeleton with a specific cross-sectional shape through continuous deformation of multiple cold bending rolls.
Core feature: Dual synergy of efficiency and accuracy
- Efficient and high-speed, with a leap in production capacity
- High precision molds with excellent consistency
- Automated control, easy to operate
- Strong rigidity and durability
Application Scenario:
- Public and commercial spaces:
Hospitals, schools, office buildings, and other places often require a large number of sound-absorbing ceilings and partitions. T-shaped keel combined with mineral wool board or silicon calcium board can not only hide pipelines, but also provide excellent fire and sound absorption effects, making it an ideal choice for such spaces. - Industrial and cleanroom:
In areas with high cleanliness requirements such as electronics factories and food workshops, T-shaped keels combined with dust-proof and corrosion-resistant panels form an easy to clean and stable ceiling system. - Residential and decoration market:
With the rise of whole house customization and prefabricated decoration, T-shaped keels also play an important role in the design of suspended ceilings and partition walls in residential buildings, suitable for decorating non load bearing walls and roofs with gypsum boards.

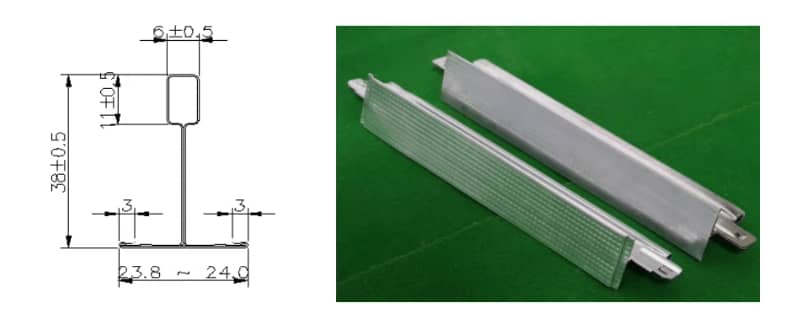

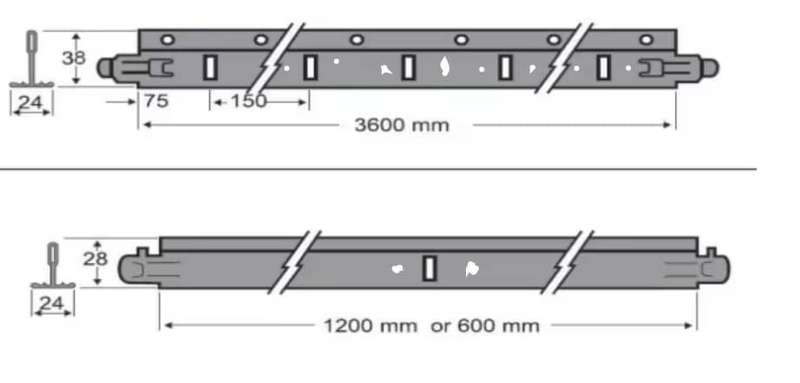

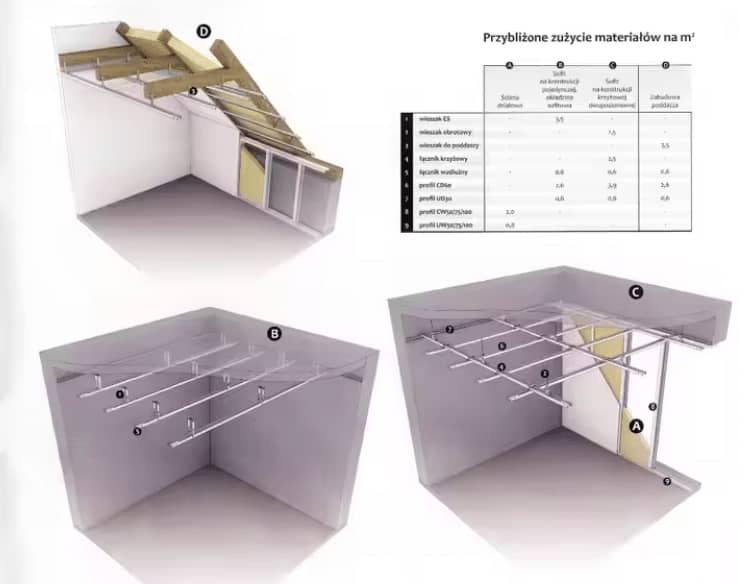

Pattern diagram:
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 16 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | As your requirement | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 11KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 20-25m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

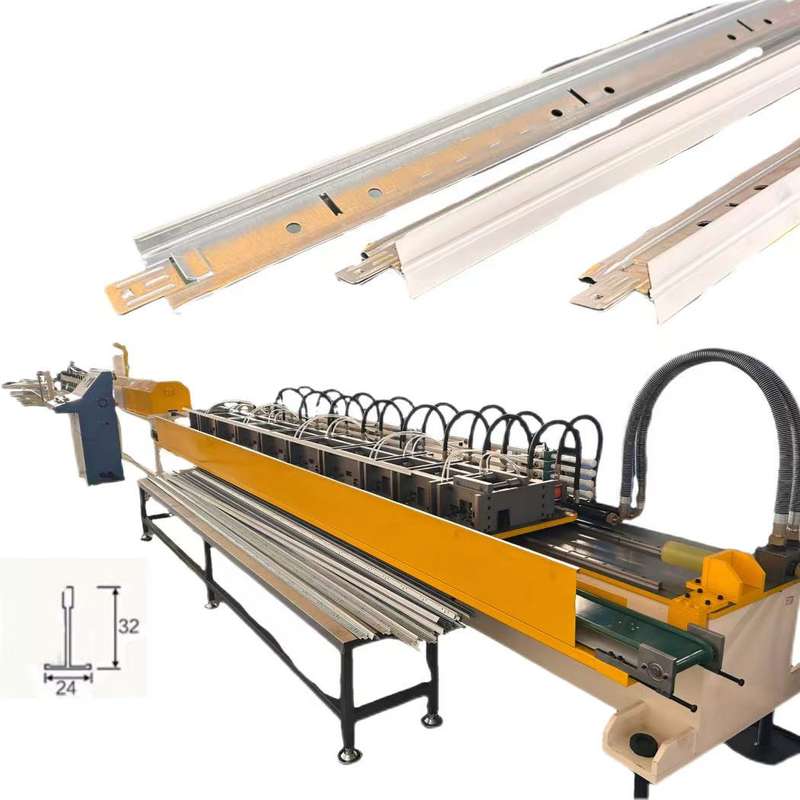

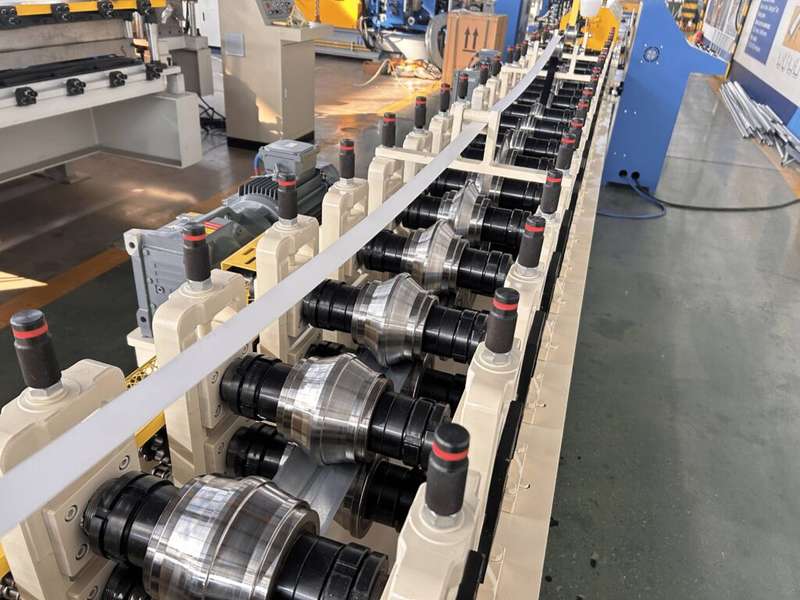

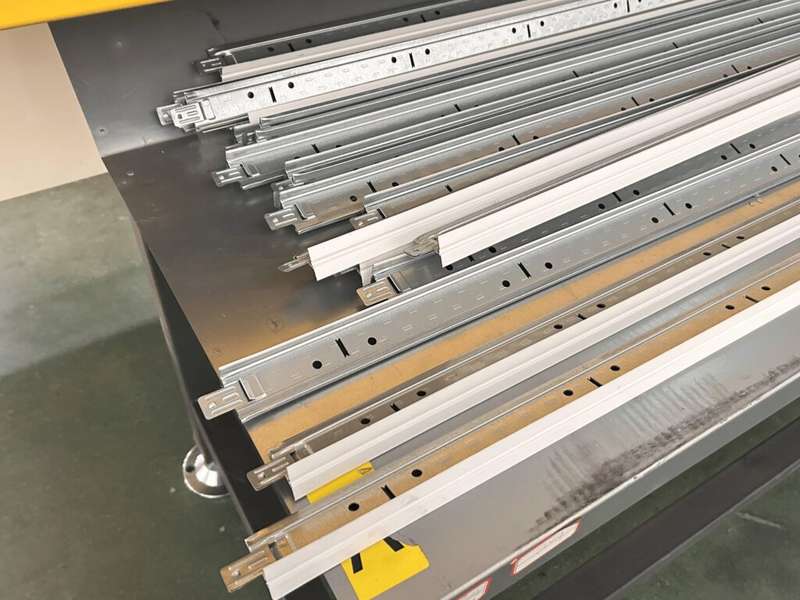

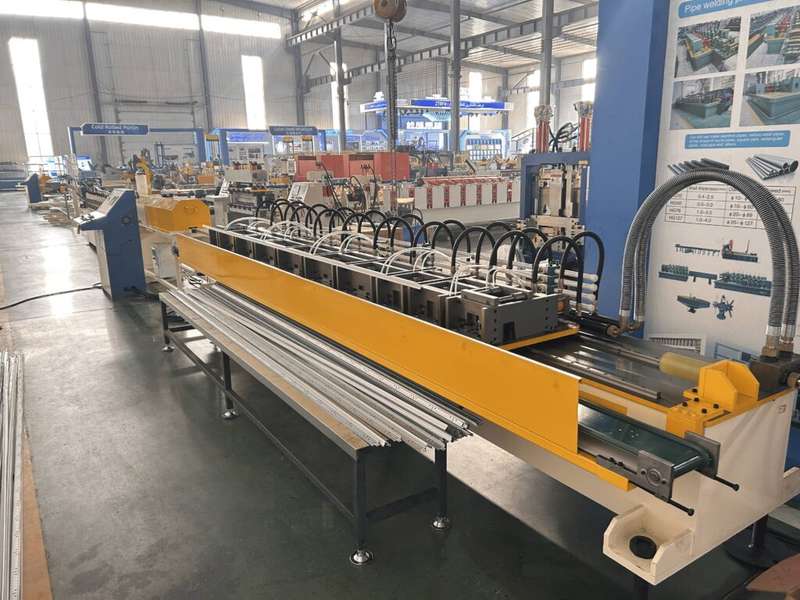

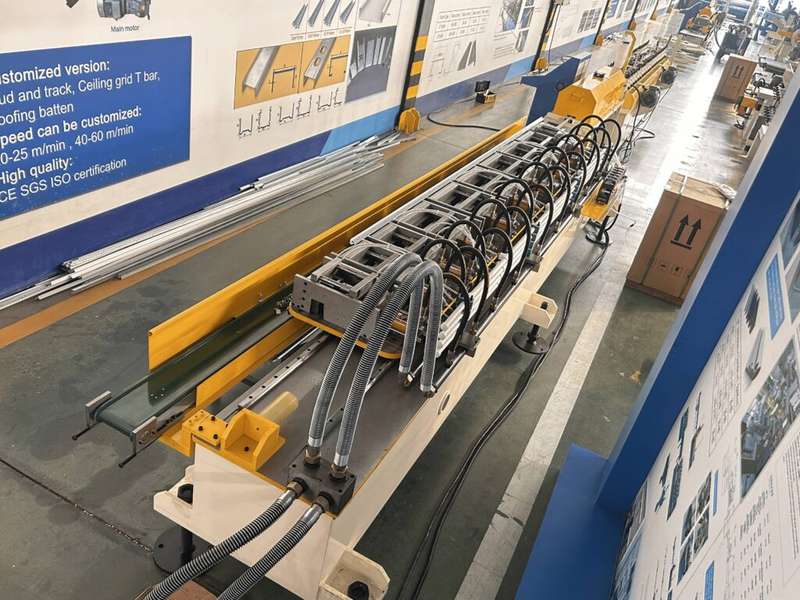

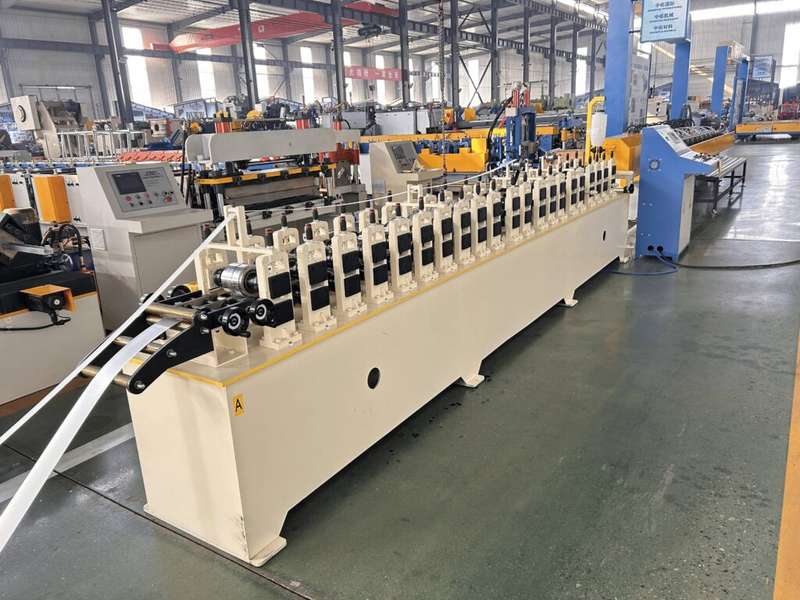

Machine image:
