The Villa House Steel Frame C89 C100 C140 C150 Frame Cad Machine can be called the "hexagonal warrior" in the villa construction industry! This automated forming equipment is specifically designed for villas, capable of transforming metal coils such as light steel and galvanized steel into "steel bars and iron bones" for villa walls, roofs, and floors through a continuous and high-precision processing process. With these dragon bones' support ', the structure of the villa is stable, the seismic resistance is fully enhanced, and the construction speed is even faster! Nowadays, its presence is indispensable in the construction sites of light steel structure villas and prefabricated villas.

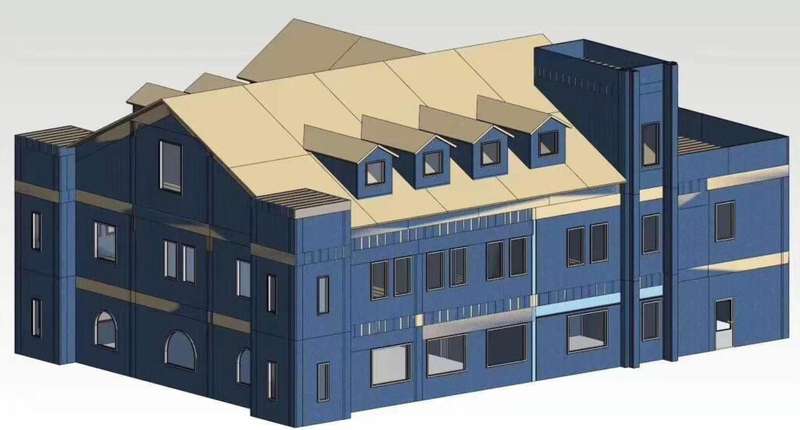

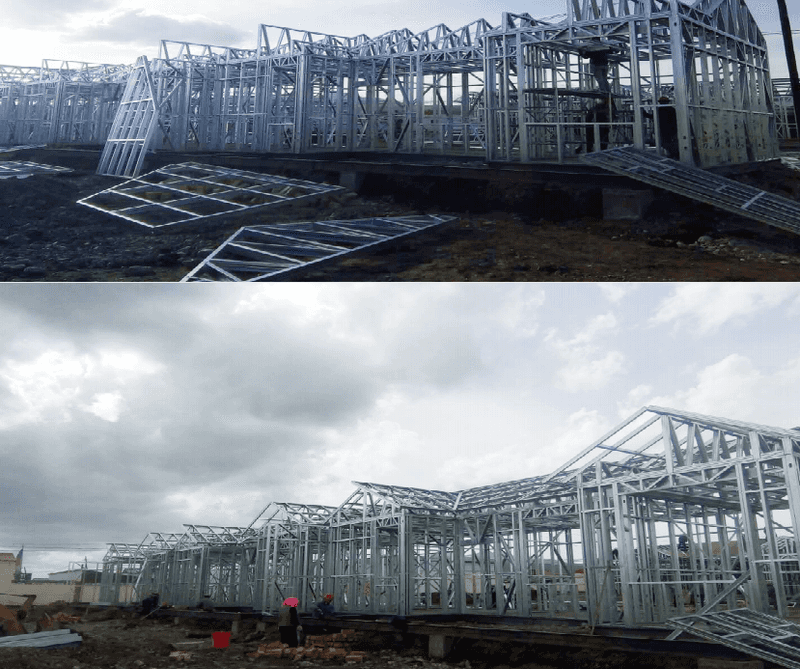

Application Scenario:
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.7-1.2mm | ||

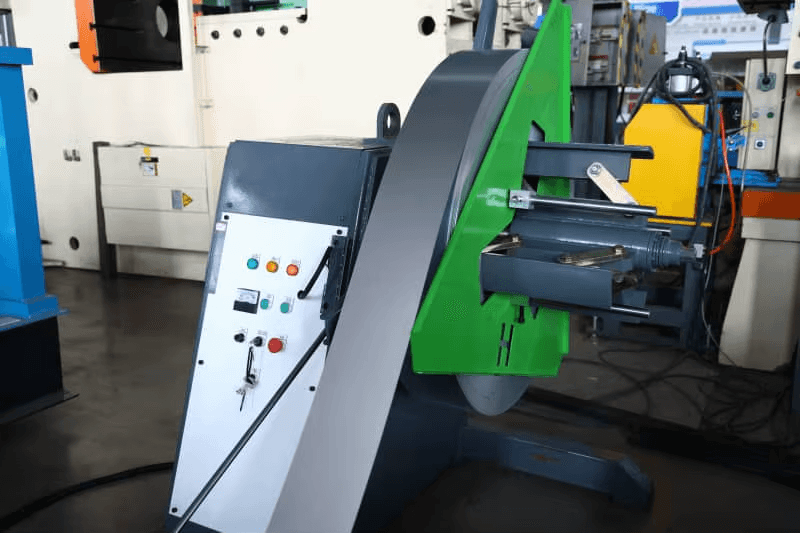

| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | gearbox transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||
Main features ：
- High degree of customization
- Strong structural adaptability
- Green and energy-saving advantages
- High stability and safety

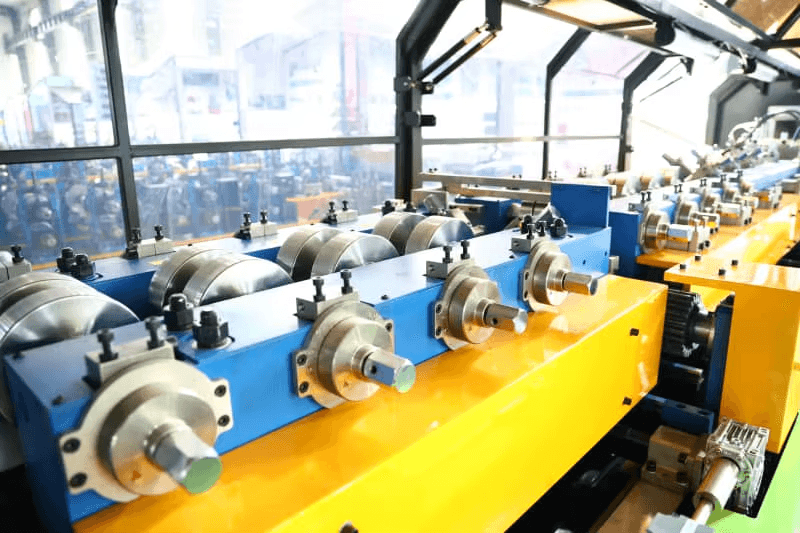

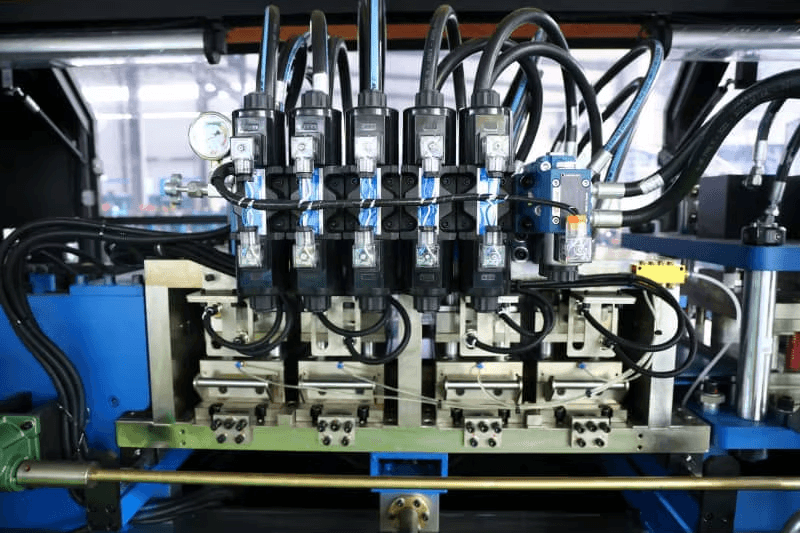

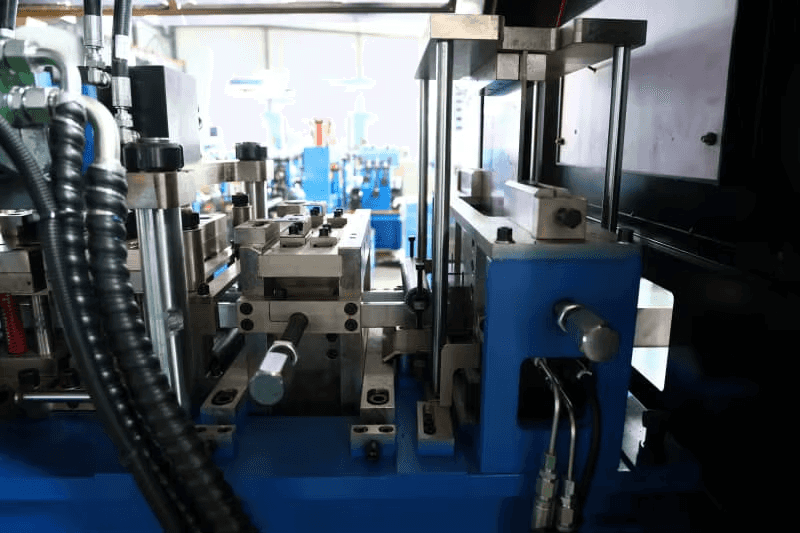

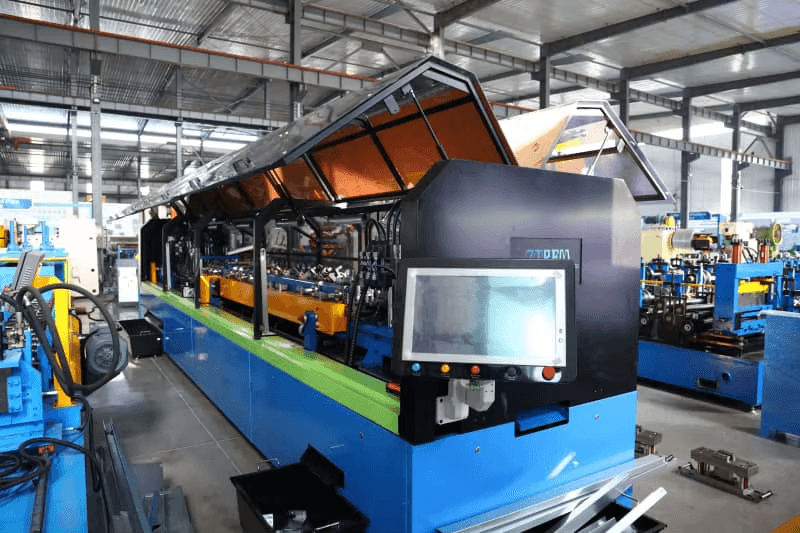

Machine image:
