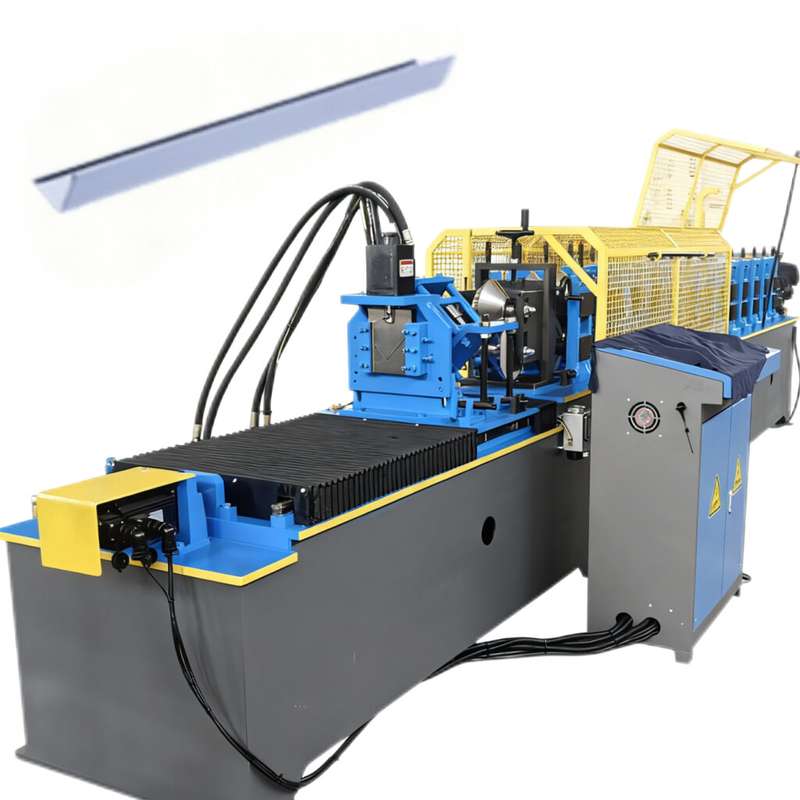

The High Speed Wall Angle Gypsum Ceiling Steel Forming Machine is an automated mechanical equipment designed specifically for angle steel processing. It is mainly used to process raw angle steel into keel components required in construction, decoration and other fields. By integrating feeding, punching, cutting, forming and other functions, it realizes standardized and efficient production of angle steel keels. It is widely used in engineering projects such as curtain wall installation, steel structure construction, indoor and outdoor decoration and renovation. It is a key equipment for improving production efficiency and product quality in the modern construction processing industry.
Pattern drawing:
Application areas:
- Curtain Wall Construction:
We manufacture curtain wall support purlins. Precise dimensions and punching locations ensure a perfect fit between the purlins and curtain wall panels and embedded components, enhancing the structural stability and wind and earthquake resistance of the curtain wall. - Steel Structure Engineering:
We manufacture purlins and support purlins for steel structure factories, exhibition halls, and other buildings. Our mass production capacity meets the component needs of large-scale projects and ensures project progress. - Decoration and Renovation:
We manufacture interior ceiling purlins and partition purlins. Flexible parameter adjustments allow for customized design to suit various decorating styles, improving construction efficiency. - Transportation Facility:
We manufacture highway guardrail support purlins and subway platform decorative purlins. Highly wear-resistant core components ensure the equipment can consistently and reliably process high-strength angle steel, meeting the durability requirements of transportation facilities.

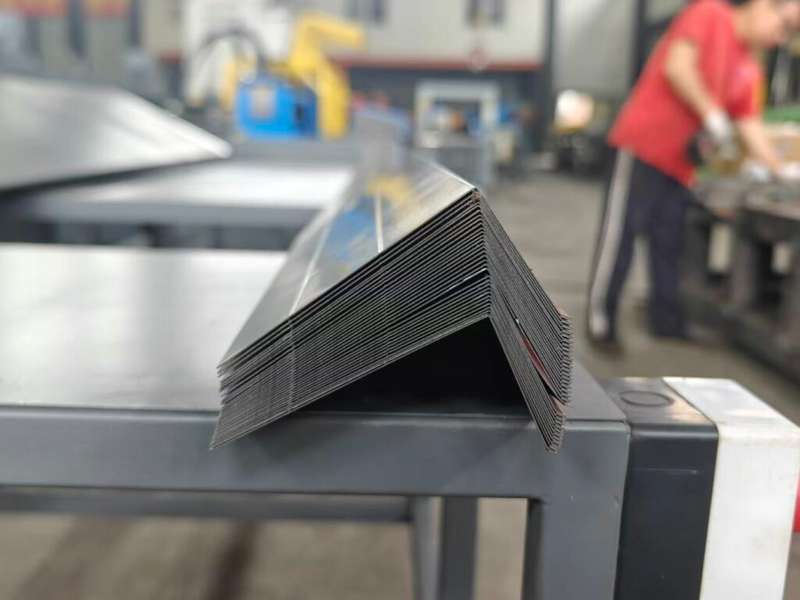

Finished product image:
Product Attributes :
| 1.Formed Material | GI | Thickness:0.2-0..4mm (customized) | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gearbox transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 70m/min(customized) | Speed is adjustable according to customer's request | ||

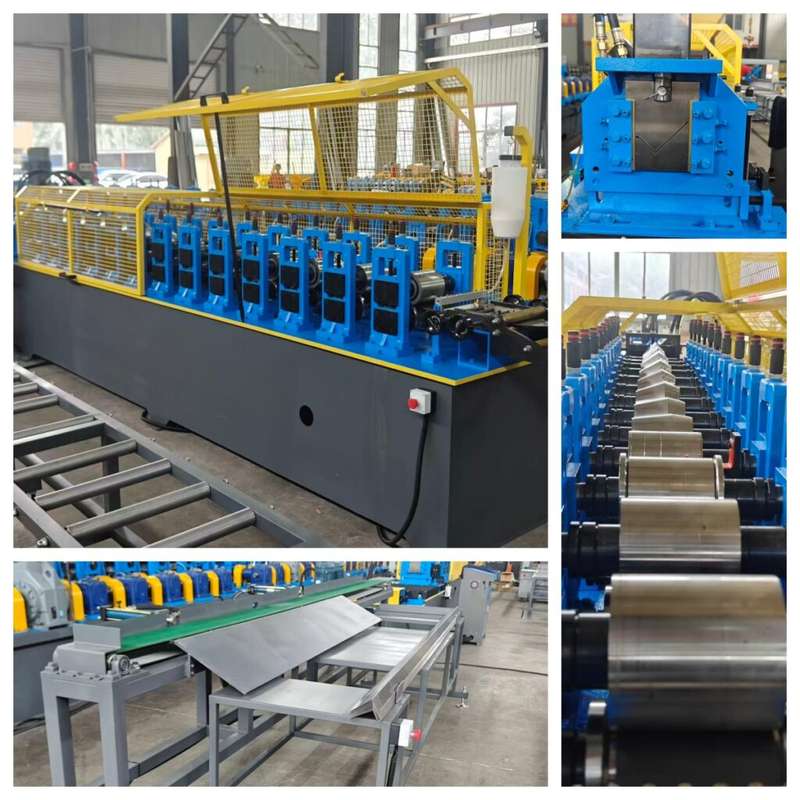

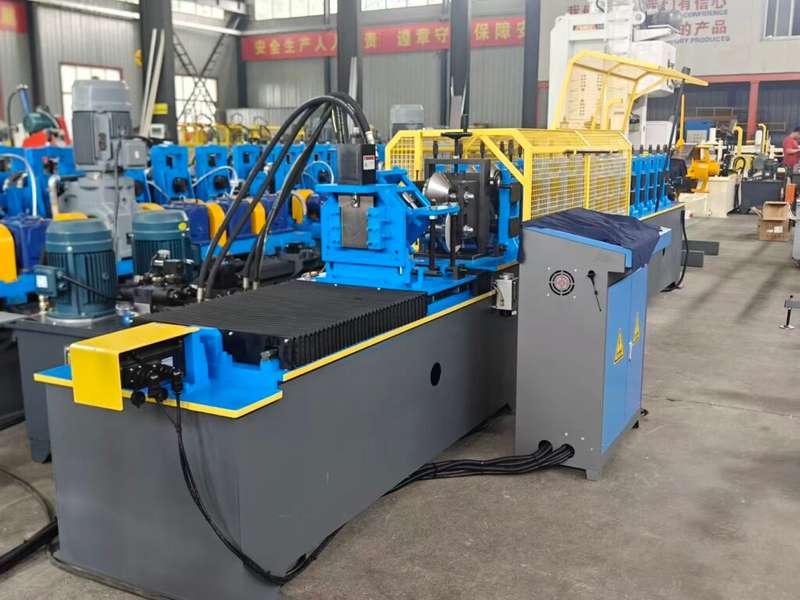

Products Display:
