Compared with other domestic manufacturers, ZT steel gauge steel framing machine has below advantages:
Disadvantages of other domestic light steel gauge steel framing machine : the pitch of the archway is large, and it is impossible to produce small size keels.The light steel gauge steel framing machine is single-chain multi-transmission or multi-gear transmission. During the production process, chain interference and gear interference will occur, and the molding accuracy and the position of the hole, shearing, closing, rounding, nail hole and other holes can not be achieved. Precision and dimensional accuracy. The hole position is not rushed when assembling the keel, and the installation is difficult.
Install up to 3 encoders for the entire device, control the host, the printer 1, and the printer 2. During the production process, the computer host will accept 3 position signals, which will easily cause interference, resulting in inaccurate hole position accuracy and keel size accuracy.

89 steel framing machine
Galvanize Material specifications
Galvanize Strip material:G550
Galvanize Strip feeding with:182mm
Galvanize Strip thickness:0.75-1.20mm
Galvanize Strip coil inner diameter:430-590mm
Galvanize Strip coil outer diameter:1300mm
Galvanize Strip coil weight:3tons

89 steel framing machine parts:
De-coiler
Roll forming machine ( rollforming,punching and notching,inkjet)
PLC system
transmission and hydraulic system
receiving table

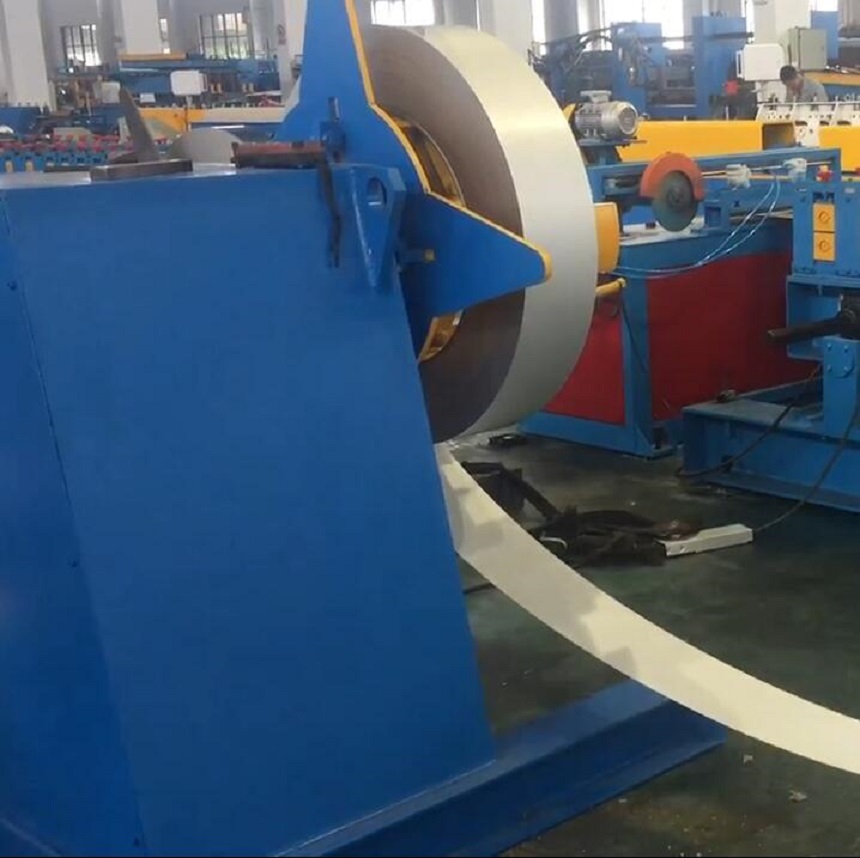

De-coiler
Function:
Carrying coils and rotating coils. It has a micro-brake device to prevent inertia from moving forward during an emergency stop.
Drive mode: electric drive load weight: 3.0T
Inner diameter range: 430-590mm,
Outer diameter requirement: 1300mm

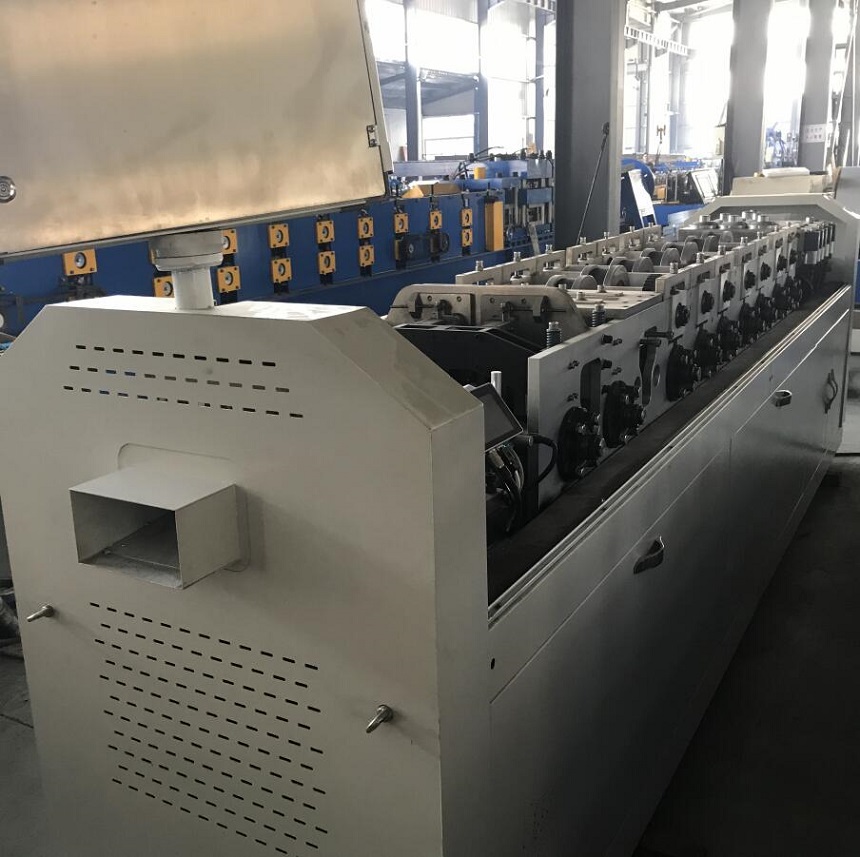

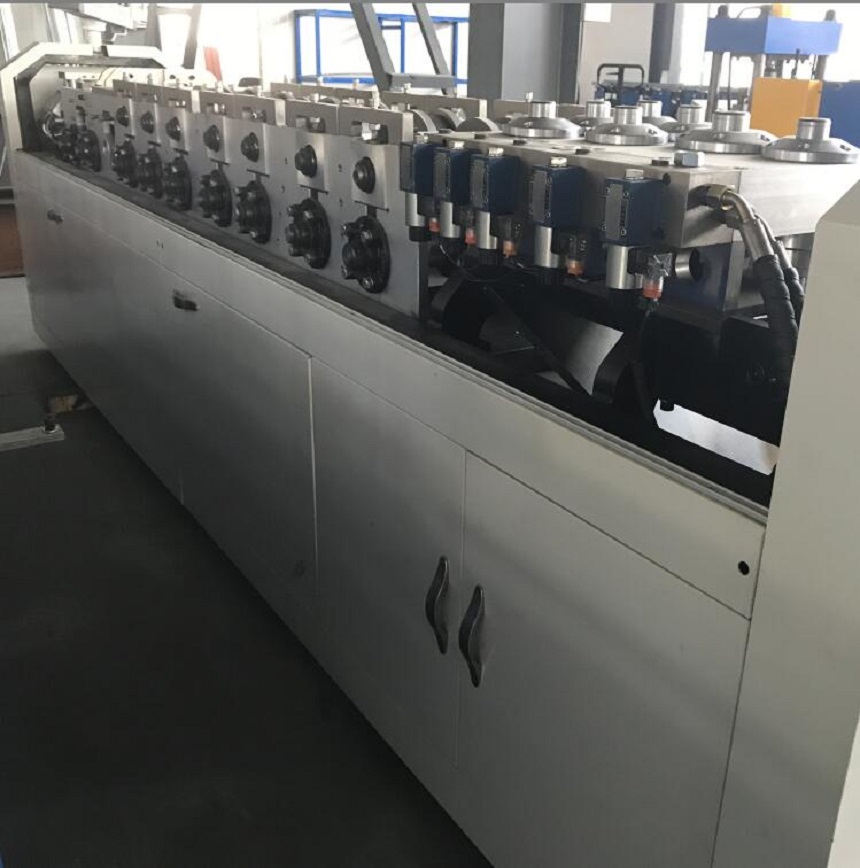

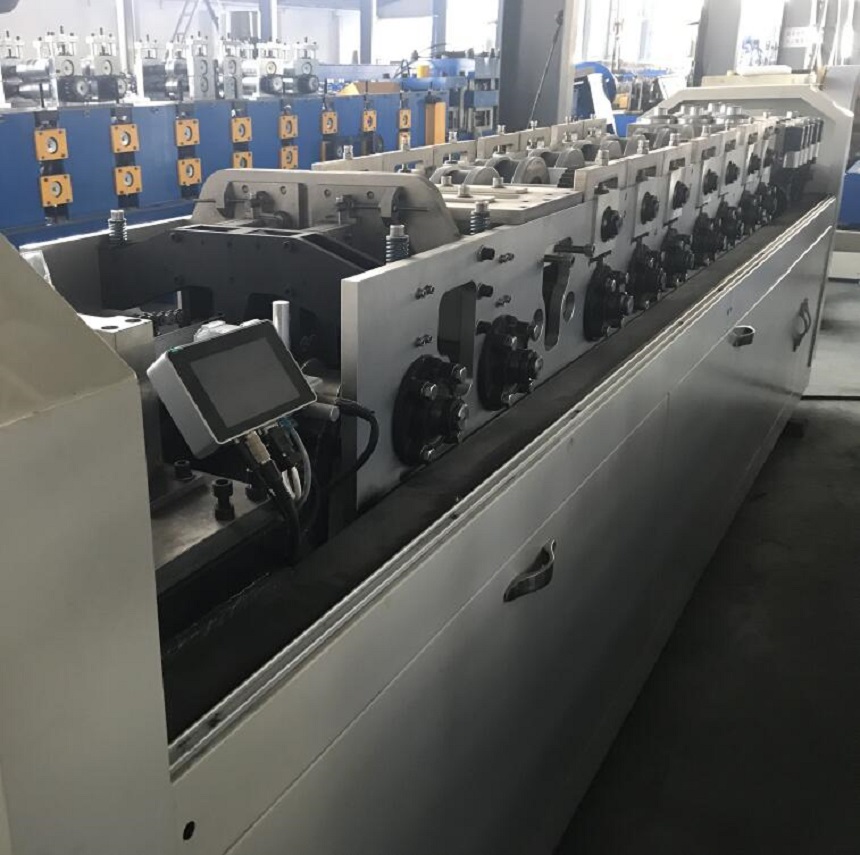

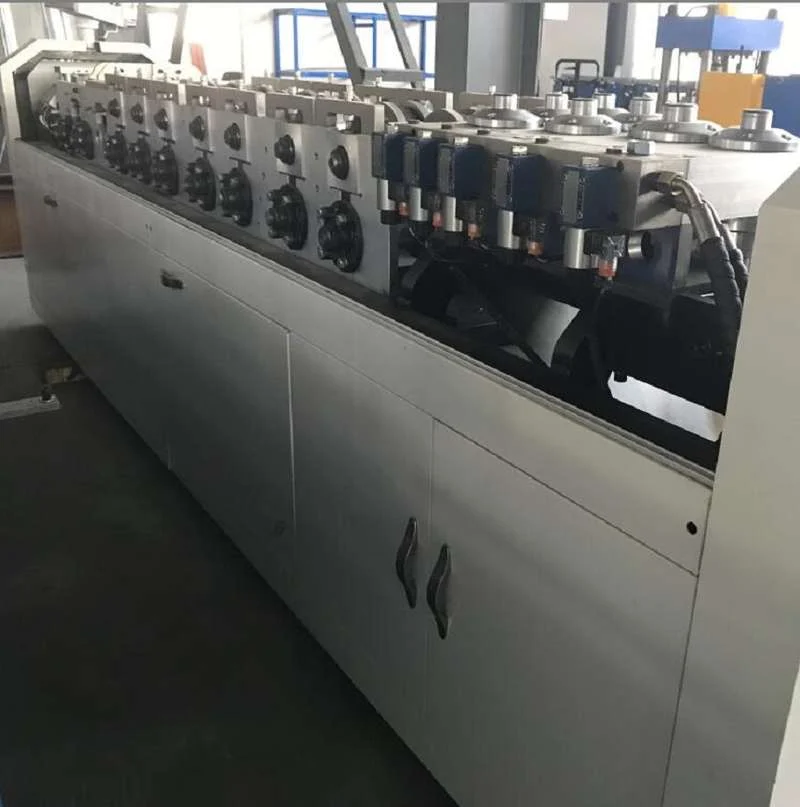

Rollformer: (forming, punching, slotting, inkjet printing)
CU profile roll forming part: used to gradually bend the strip in a certain order and gradually roll forming.
Total machine weight: 3T
Total length of the machine: 4m*0.8m*1.2m (length*width*height)
Molding pass: 8 sets of spindle roll forming, 4 sets of fine roll forming
Main drive mode: servo motor (7.5KW), self-locking function
High production speed: 52 m/min (depending on the number of punches and the length of the cut)
Roller material: imported material, DC53. CNC center machining, HRC58-62
Main shaft: 40Cr is quenched and tempered, finely ground
Frame and roof frame die punching: 8 stations (pipeline holes, web holes, small side cuts, fixed holes, chamfers, web shrinkage, shearing, nail socket bolt holes, etc.)
Inkjet printer: double nozzle, waist height on both sides, spray code content can be set.
Cutting method: hydraulic cut,
Blade material: imported material tungsten steel
Hydraulic power: 5.5KW

Control System:
Function: The design parameters are directly transmitted to the control computer through the USB interface or the network. The NC control software installed in the computer is imported and automatically reads the BOM documents. After the import, the batch produced can be selected.

Voltage: 380V, 3 Phase 50HZ

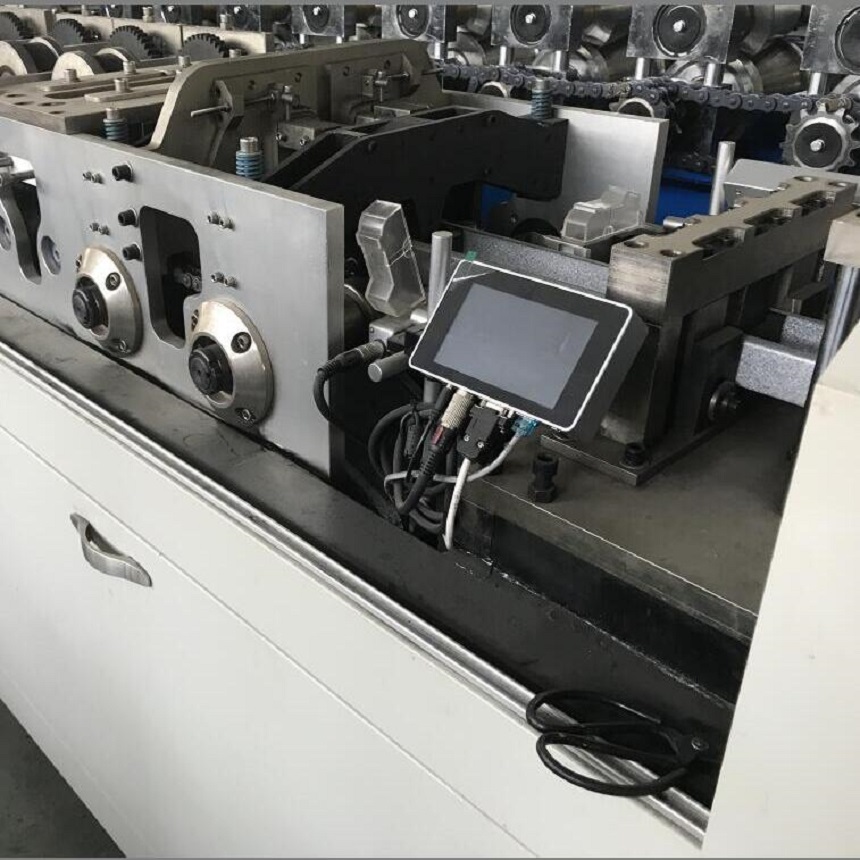

Control method: 19-inch touch computer + electrical main control cabinet 1
External controller: set emergency stop button on the control box of the device
Main accessories Origin: PLC (Mitsubishi). Relay (Schneider, France), length encoder (OMRON), servo motor (INVIT)
