In the skeleton of modern architecture and decoration, there is a material that is ubiquitous yet often overlooked—light steel Channel . It supports magnificent ceilings and divides private spaces. And the core equipment for shaping this “skeleton” is the C Channel Machine for Slotted Stud and Track Production.
In the fiercely competitive building materials market, the speed, precision, and durability of your equipment directly determine your profit margin. Today, we bring you not just a machine, but a highly efficient, stable, and intelligent cold bending forming solution.
More than just equipment, it’s about competitiveness.
Choosing our C-shaped Channel machine offers you added value far beyond this:
1.Flexible Production:
Supports production of various specifications including 50 series, 75 series, and 100 series. Custom-made through-beam keels and ceiling keels are also available upon request, making it a multi-functional machine.
2.Material and Energy Saving:
Optimized forming arc design reduces sheet metal stretching loss, and frequency conversion energy-saving technology reduces overall power consumption by approximately 15%.
3.Worry-Free After-Sales Service:
We provide a one-year warranty on the entire machine. Engineers can provide on-site commissioning and operator training to ensure the equipment is ready for production immediately upon installation.
Product Attributes:
| 1.Formed Material | PPGI,GI,AI | Thickness:0.4-0.6mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 40mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 7800*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-100m/min(customized) | Different speed designs for options. | ||

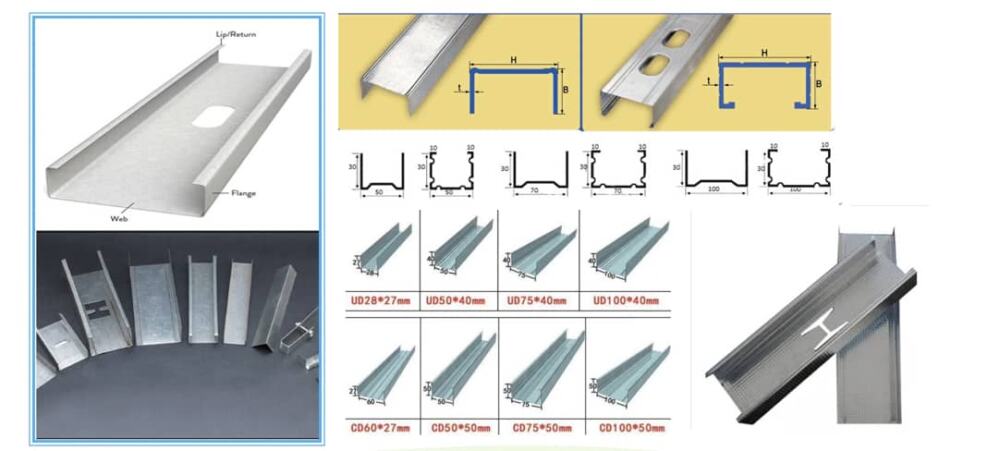

Pattern diagram:
A Balance of Rigidity and Flexibility: The Long-Term Focus on High-Strength Machine Body
If your goal is to produce 10,000 meters per day, then the equipment’s chassis must be as robust as the Channel of your production line.
1.Heavy-Duty Frame Structure:
We thicken the side panels of the machine body, employing an integral frame welding process, followed by tempering to relieve stress. This means that even under continuous, high-frequency production impacts, the equipment remains rock-solid, eliminating finished product deviation caused by frame vibration.
2.Servo Drive System:
Equipped with a renowned brand PLC control system and servo motors, the system boasts extremely fast response speeds. Whether it’s fixed-length cutting or automatic punching, closed-loop control is achieved, keeping errors within the micron level.

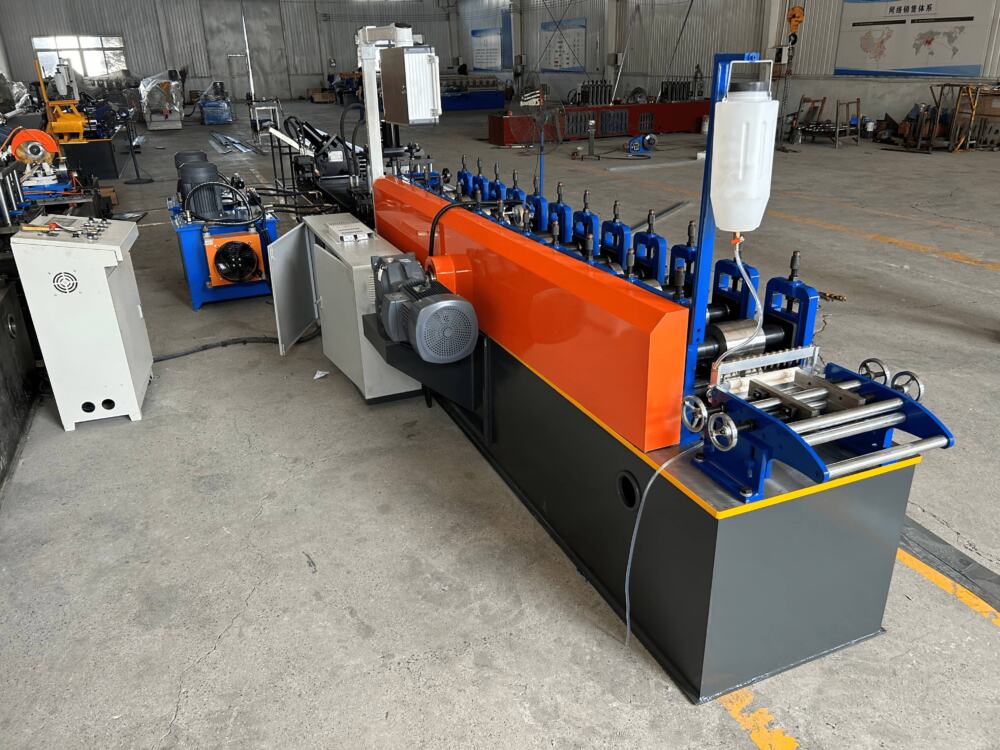

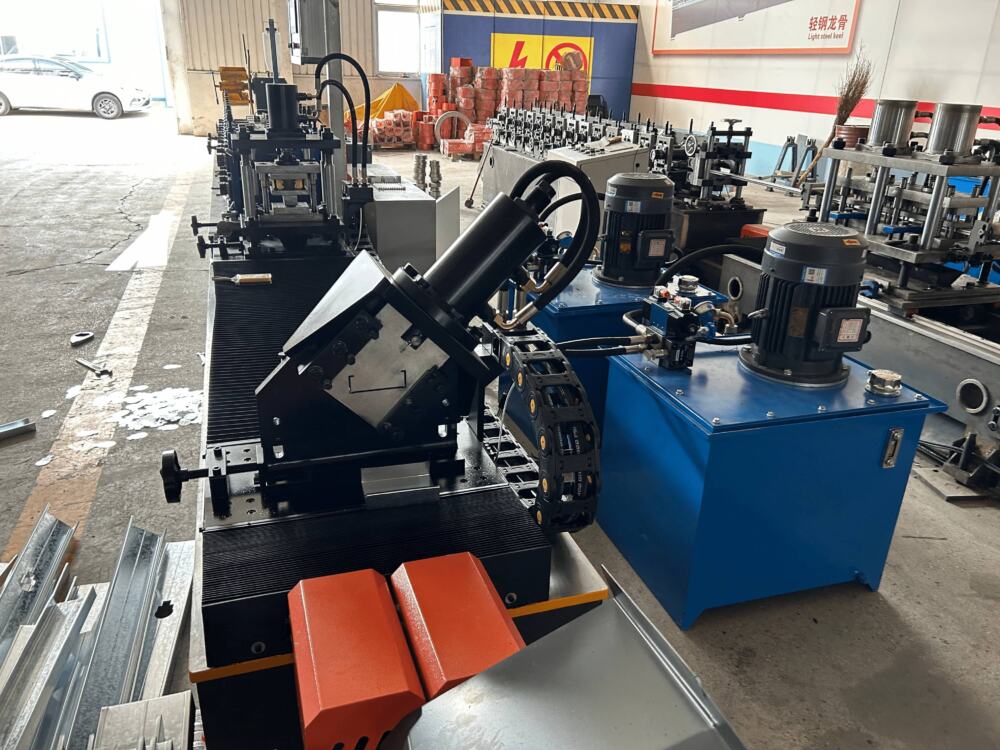

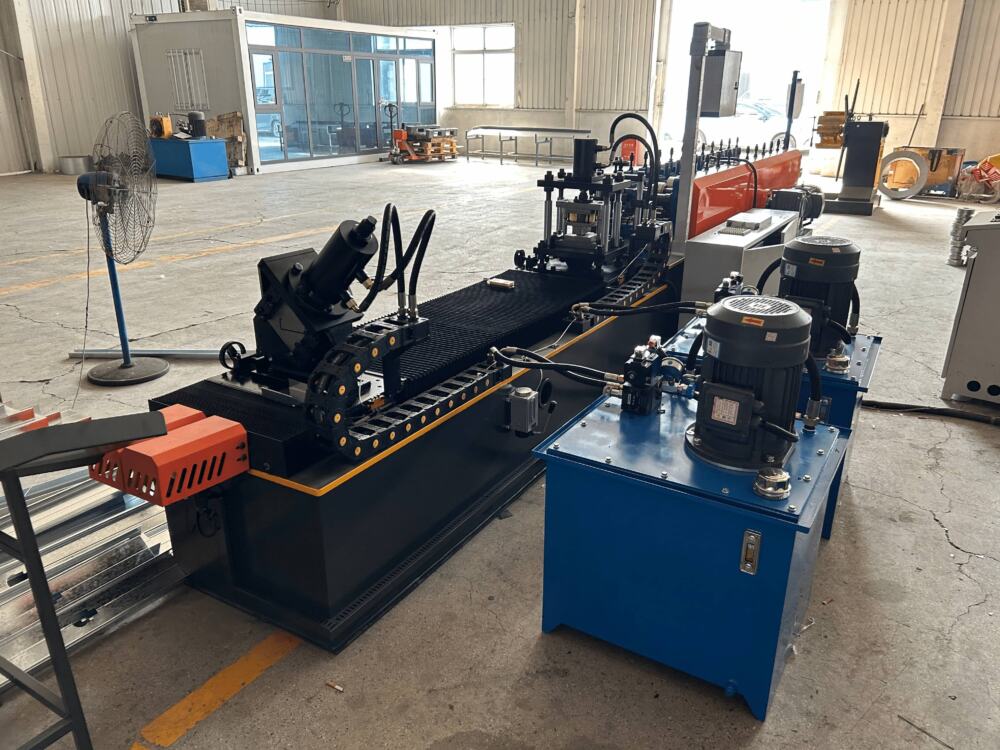

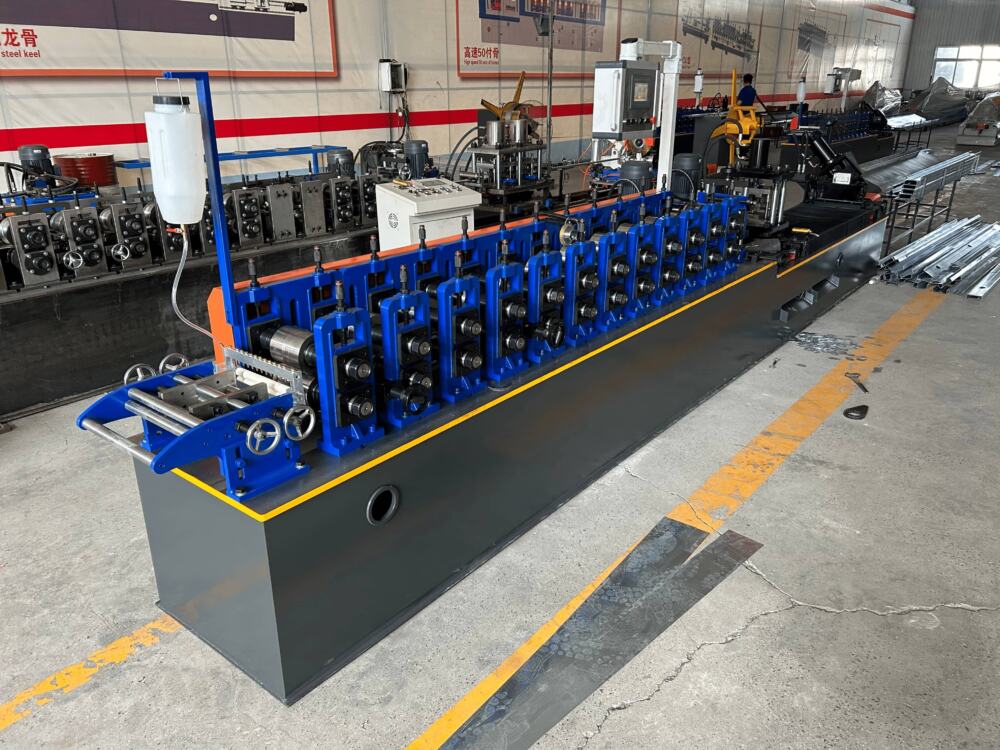

Products Display:
Contact Us:
It’s unassuming yet sturdy and powerful; it never rests, dedicated to bringing you daily profits.
If you are looking for such a device, please feel free to contact us anytime for an on-site inspection and testing, witnessing how the “skeleton” is perfectly sculpted.
