The Full Automatic Double Line C U Channel Machine, as the name suggests, is an automated keel production line that integrates two independently operating cold bending forming heads on the same machine base. It can load steel coils of different specifications simultaneously or separately, and through their respective independent leveling, feeding, forming, and cutting systems, produce two light steel Channel products of different specifications and cross-sections (such as ceiling main keels, wall covering secondary keels, partition wall vertical keels, and ceiling and lintel keels).
Core Features Of Double Line C U Channel Machine:
- Dual units operate independently, instantly doubling capacity.
- Zero-wait changeover, worry-free flexible production.
- Precision rolls and independent servos ensure consistent quality.
- Intelligent central control, one person manages both lines.
- Compact structure, saving valuable workshop space.

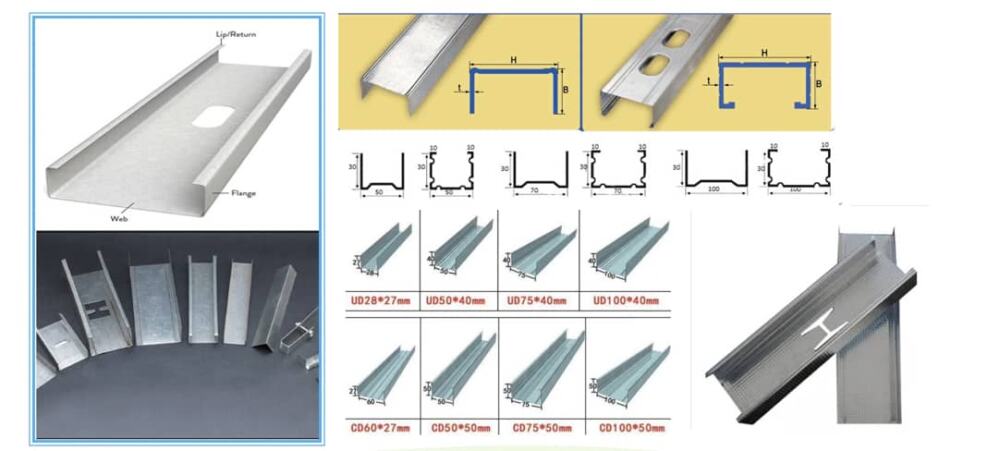

Pattern diagram：
Product Attributes :
| 1.Formed Material | GI,GL | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets | ||
| Hydraulic system power | 5.5KW*2 sets | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | Speed is adjustable according to customer's request | ||

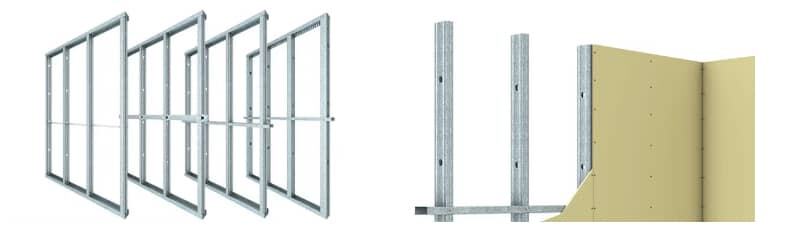

Application Scenarios:
- Large-scale keel production and distribution centers:
Centralized supply to regional markets, with simultaneous output of multiple specifications and large quantities. - Prefabricated decoration component base:
Providing fast-installation ceiling and partition wall Channel systems for real estate decoration and serviced apartments. - Light steel villas and modular houses:
Simultaneous supply of wall vertical Channels, floor beams, and roof purlins, packaged production. - High-end commercial complexes:
Meeting the need for rapid delivery of customized Channels for irregularly shaped ceilings and curved partitions.

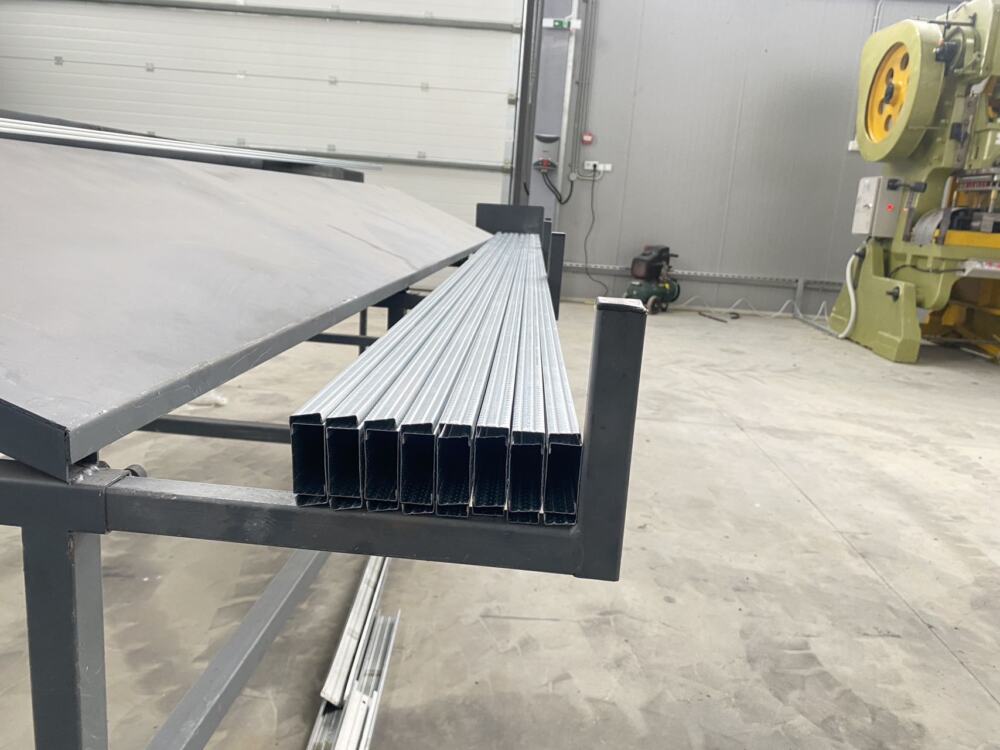

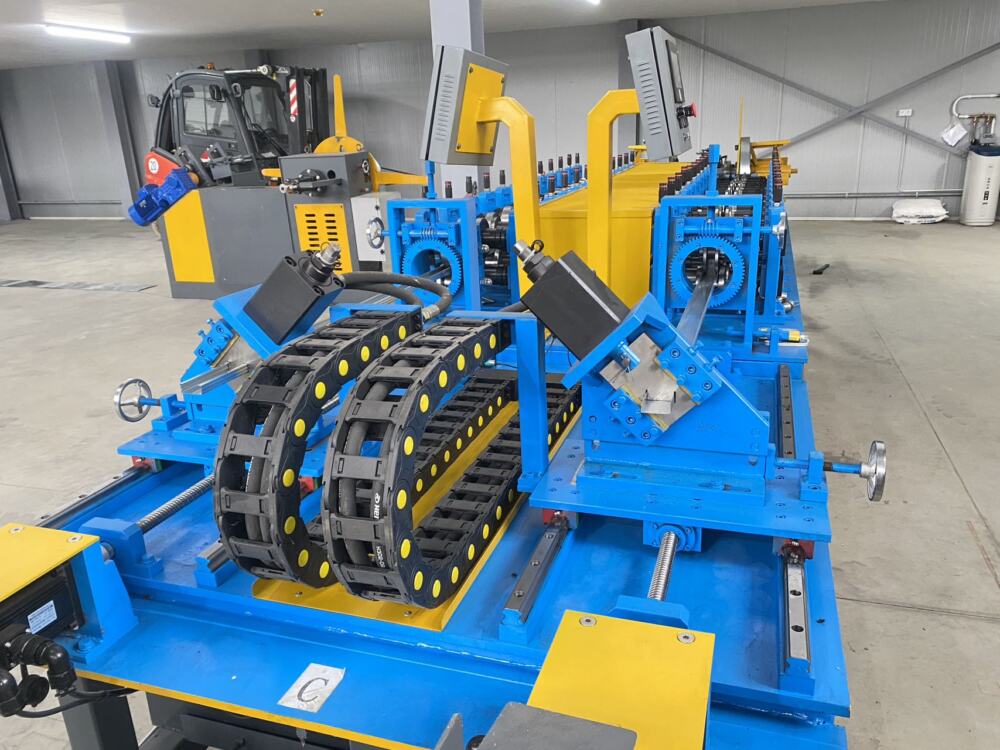

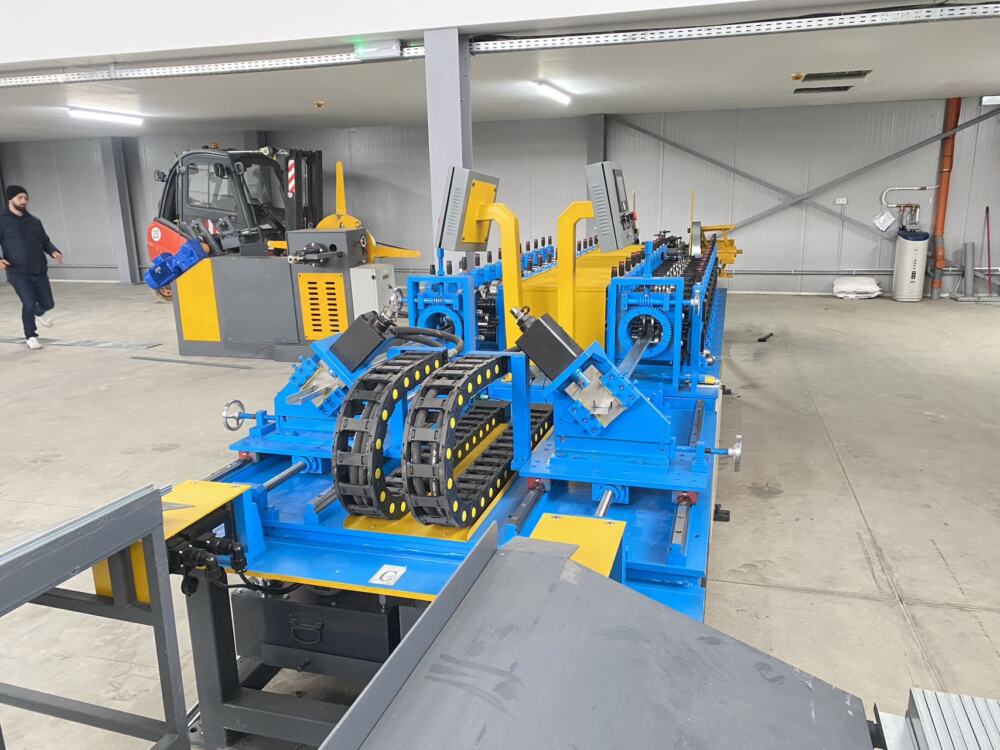

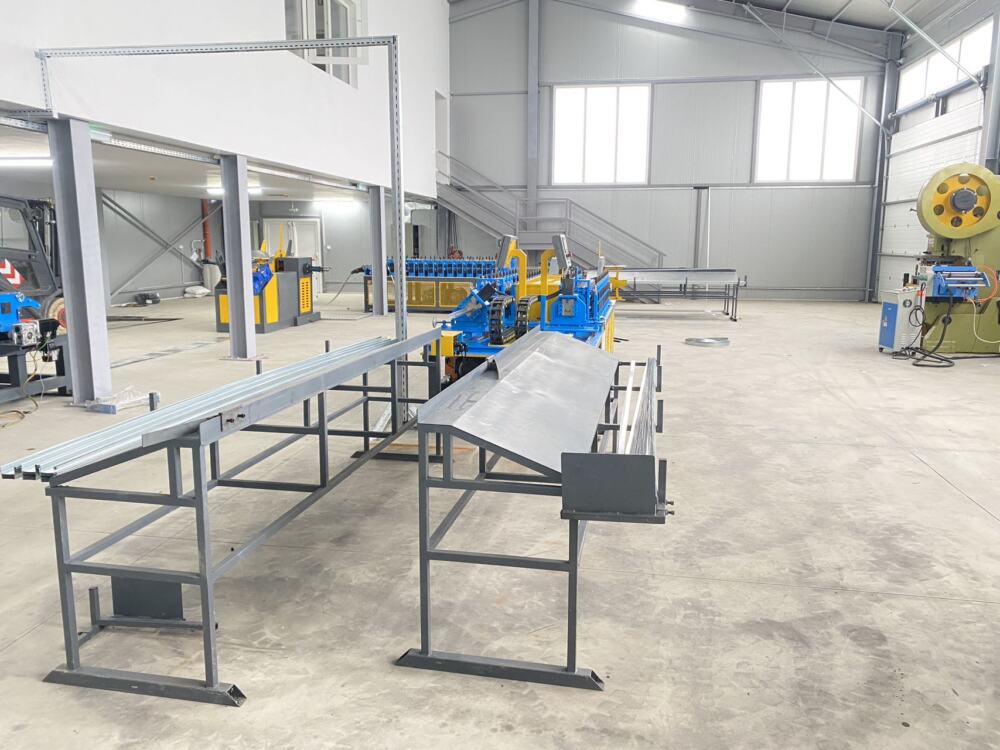

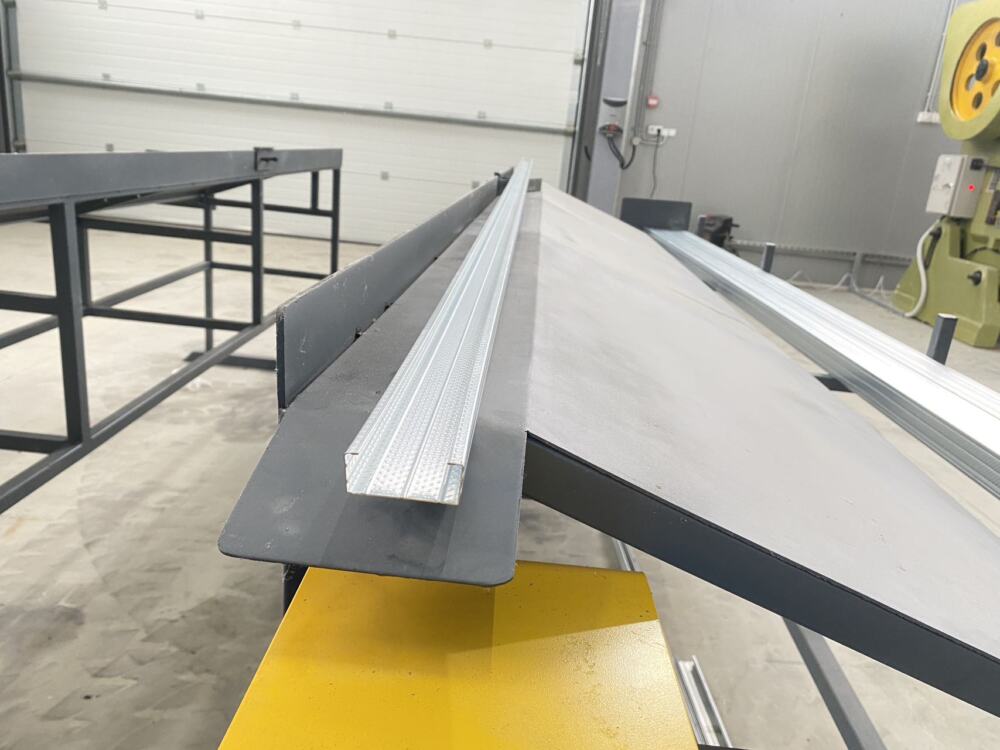

Machine photos：
Contact Us：
In an era where profit margins for light steel Channel structures are thinning and efficiency is paramount, the dual-unit keel forming machine is a crucial step towards cost reduction and efficiency improvement. It creates the production capacity of two machines with the space and energy consumption of one, providing a robust and precise metal framework for buildings in a more intelligent way. We are committed to leveraging our solid equipment manufacturing expertise to help your keel business build a more reliable "steel backbone."
