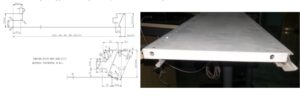

Adjustable width linear shelf panel machine is designed to make the shelf panels in batch fully aromatically. And the length and width of the shelf panel both adjustable. It could produce the shelf panel width within some range by rolling forming principle. In the market, it is easy to make the shelf panel in the fixed sizes, but when make the shelf panels in adjustable width, it is not easy, the punching part and the rolling forming machine all need to be adjustable. In the following part, we take the following drawing profile for example to show you how the machine is designed:

That means that by this machine, we can produce the profile from 285 to 685mm width. The punching part and rolling parts are all adjustable.

Adjustable width linear shelf panel machine working flow for your reference:

Decoiler-----Leveling----- Servo Feeding---Punch Punching—Direction---2 Channel Clipping (Optional for Covering)---Crossing Both Sides-- --Roll forming (through the 28-roller roll forming of the main machine)----cutting after forming + turning two straight sides-----finished products

About the punching

How to control the width control:

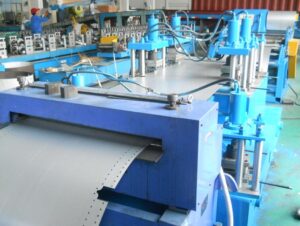

1. The punching part is designed with the handrail, so you can adjust the hole punching station according to the coil width.

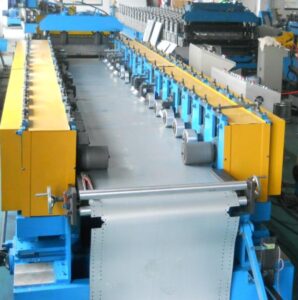

2. As to the main rolling forming part, it is controlled by the PLC, simple input the width you want to produce and then the machine frame will be moved fully automatically.

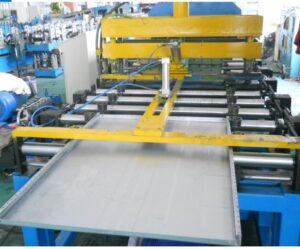

3. As to the bending and shearing part, we will design to match the Max size and then the smallest one also could be made.

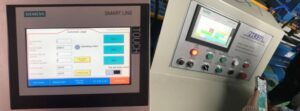

4. As to the PLC brand, if you need we can use the world famous Siemens brand.

So for this type Adjustable width linear shelf panel machine, if you want to know more information, please contact us at any type.
