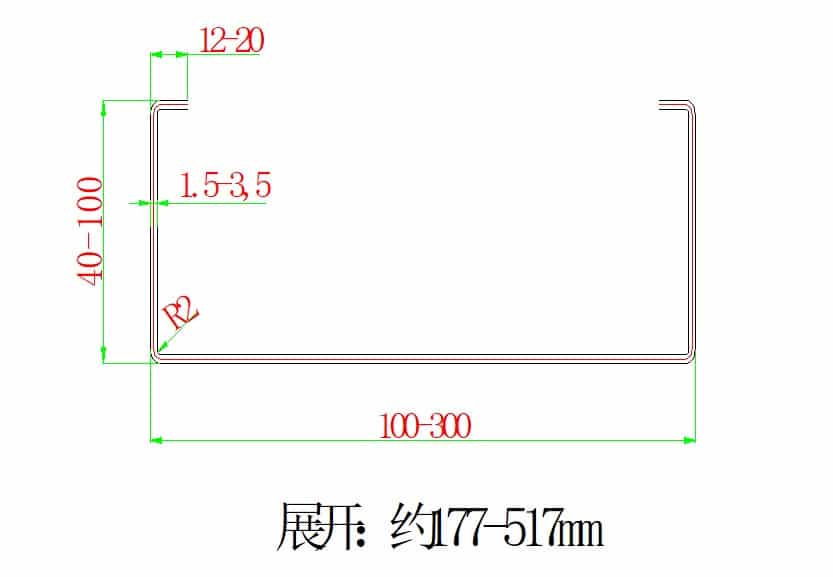

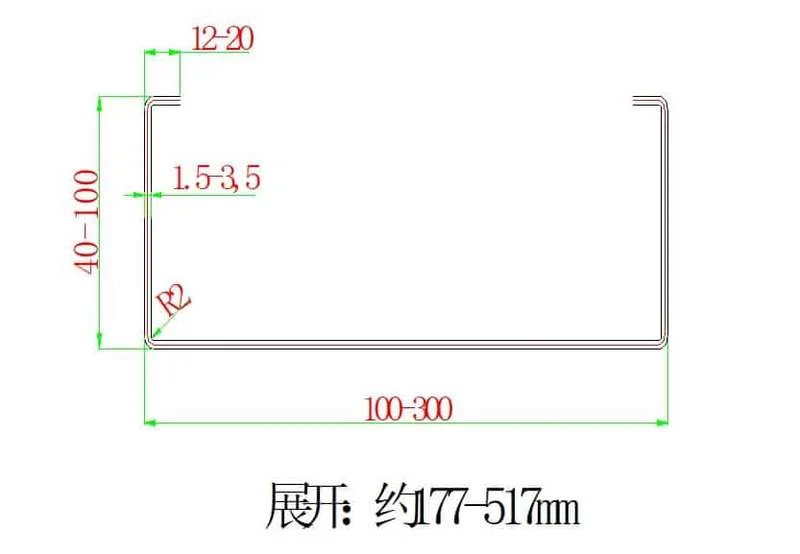

Yx15x40-80x100-300mm
speed 10-15 meter/min（not including cutting tile）
Thickness 1,5-3,0mm
Controlling method PLCP anasonic
Decoiler 3 tons manual decoiler
Feeding Two teams
Leveling 7 teams
Front punching 5 teams
Rolling stations16 stations
Roller material GCR15 steel finish machining after HRC 58-62℃, with chromium treatment
Shaft material 45# steel, shaft is ￠80mm
Main power 15kw
Hydraulic power 5.5kw
Hydraulic pressure 12Mpa

Cutting material Cr12Mov， Qurnching HRC 58-62℃
Cr12Mov， quenching HRC 58-62℃
Tolerance 3m±1.5mm
3m±1.5mm
pressure 380V, 50HZ,3ph
（According to customer's requiment）
Transmission 1.0 inch double chain
Structural Memorical arch
Length*width*height 11,5,meterx1,6meter*1.0m
