ZhongTuo automatic changeable C&A purlin making machine is made to produce both C-type and Z-type purlins in batch and in an automatic way. ZhongTuo Machinery is able to design and manufacture different kinds of cold roll forming machines as you want. If you want to buy customized machines, please just contact us at any time！ And we have skillful technicians to design and manufacturing customized machines. Also, they can help you with the installation of the machine and solve any problems during operation.
Here is a video of the machine working process for your reference:

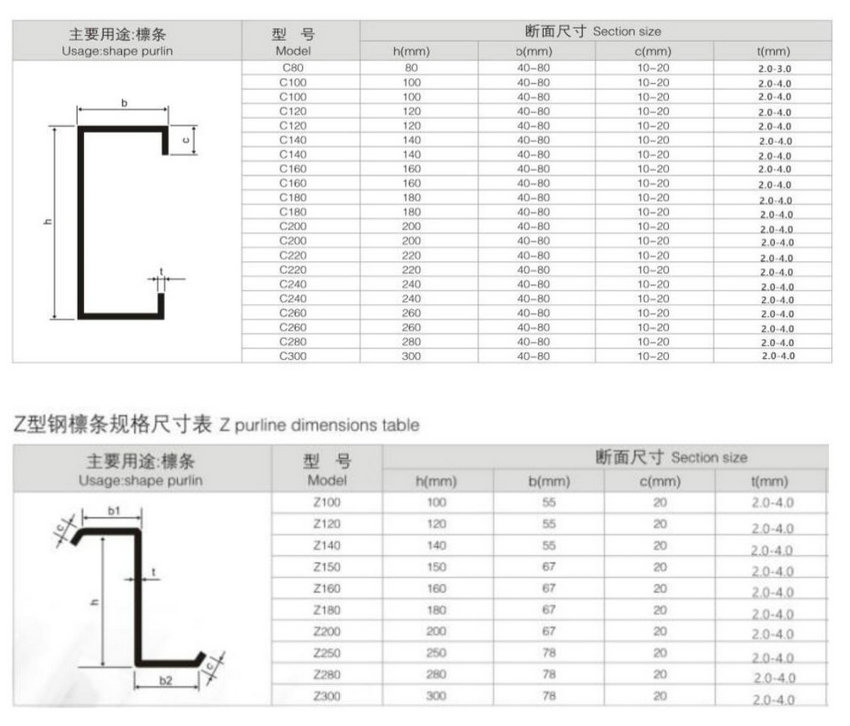

Here is the drawing profile of C&Z purlin for your reference:
Main parameters of the machine:
Voltage:As client request
Weight of machine: About 16t
Material thickness: 1.5-4.0 mm, yield strength≤G345Mpa
Processing material: PPGI,GI, Q345, HR steel etc.
Machine working space: About 13m x 1.5m x 1.7m
Working speed: 0-25 m/minute without punching and 0-12 m/minute with punching. If punching profile G, the most complicated, the min speed is 8m/min.

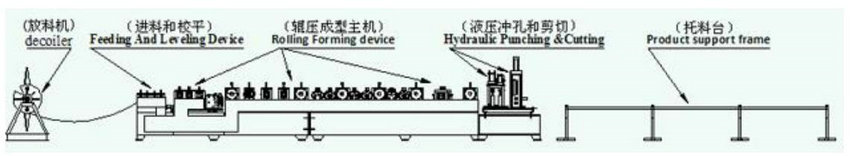

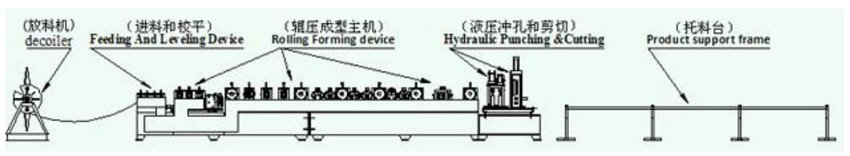

Working Flow:
Decoiler- feeding- leveling - roll forming- - punching- cutting- receiving table
Major machine components are as the follows:
- Manual decoiler 1 set;
- Main roll forming machine (feeding - leveling-punching - roll forming- cutting) 1 set;
- Hydraulic station 1 set;
- Control computer 1 set;
- Receiving table 2 sets;
- Maintain tools 1 set;
- Instruction manual 1 brochure.
More details of major machine components for your reference:

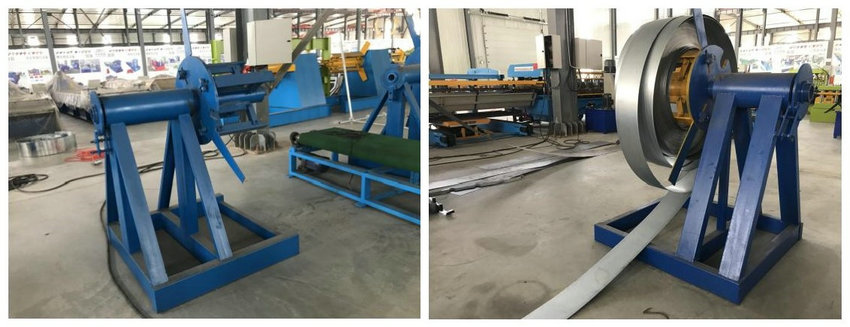

1.Decoiler System
Usage: support steel coil and uncoil it in a turntable way.
Loading capacity: 3 t
Uncoiling width: 500 mm
Inner diameter: 450-550 mm

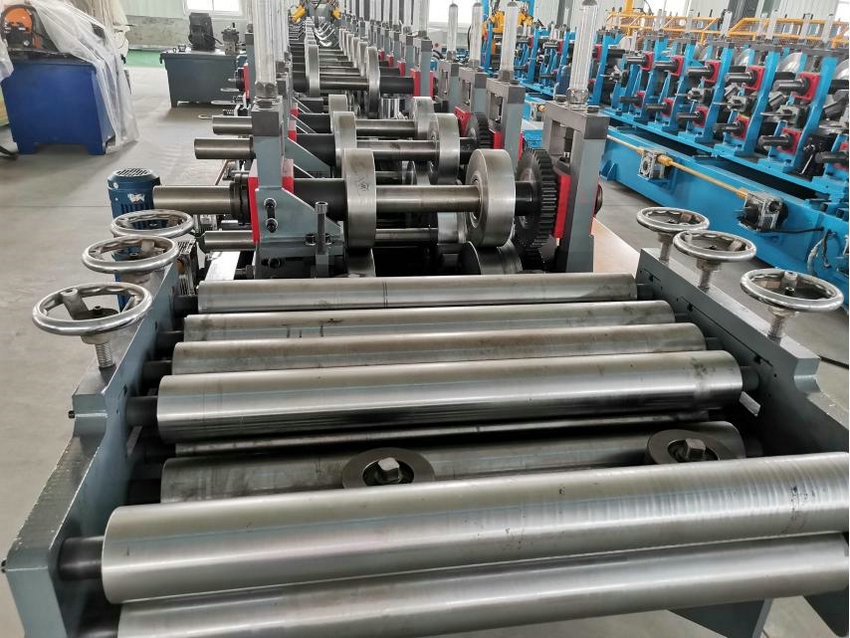

2.Feeding and Leveling
Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate.
Feeding rollers: 1 set
Guiding rollers: 2 sets
Leveling rollers: 4 up + 5 down
Roller diameter: 80mm
Roller material: Cr15
Power supply: pulled by main transmission motor

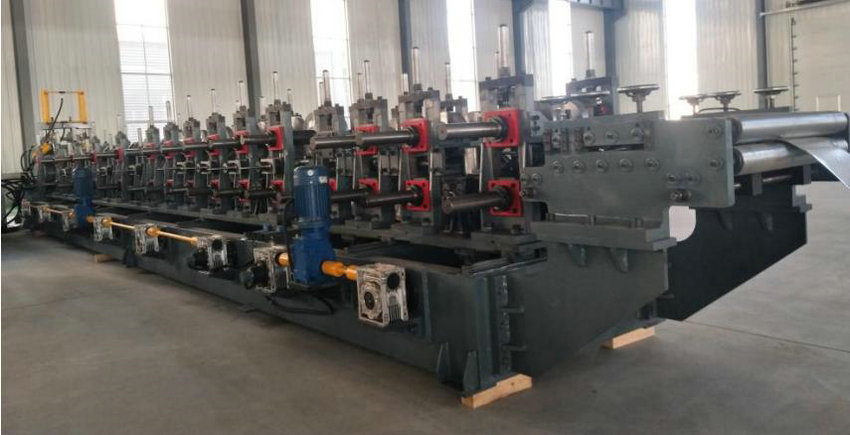

3.Main roll forming system
Machine base frame is made of U beam weld steel. In the main roll forming machine, there are 2 buttons for urgency stop in case any accident happens. Machine stations are made of iron cast to make machine stable and strong.
Main motor power (electric motor): 18.5 kw
Table frame: 460 U beam
Roller station: 19 stations
Roller material: Cr15 quench treatment precision machining, hard chrome-plated ,HRC55-60
Shaft diameter:￠80mm
Shaft material: S45C, heat treatment HRC42
Pinching device: 2 Steps of pinching
Transmission: by chain
Roller stand: cast steel structure
Width adjust motors (electric motor): 1.5 kw*1 set, 0.75*2 sets
4.Punching system
Usage: Automatic holes punching controlled by PLC. Punching after forming to make sure the accurate punching. Totally 2 punching stations. For different profile, please change to related dies.
Power supply: hydraulic power
Punching molds: Cr12mov quench treatment Tolerance is ±2 for elements of 12mts

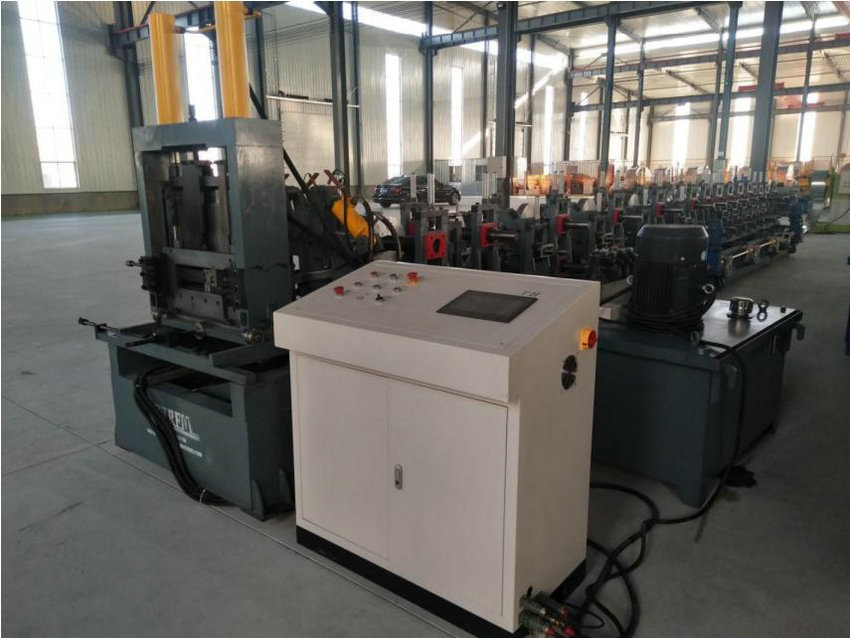

5.Cutting System
It employs post-cutting, hydraulic drive and automatic location to decide the dimension and cut target products, ensure stability, precision and cutting speed.
Cutting type: after forming stop cutting
Power supply: hydraulic power
Material of blade: Cr12mov quench treatment
Length measuring: automatic encoder measuring
Tolerance of length: 3000mm± 1.0mm
For cutting blade, you can manually adjust the cutter to cut different sizes of c z purlin. NO need to change new blade and this cutter is easy to operate.
6.Receiving Table
Frame: weld by angle steel and square tubes, on the top with support rollers.
Table type: no power
Diameter of rollers: 55mm
Table size: 3.0 x 1.0 x 0.9m
Quantity: 2 sets

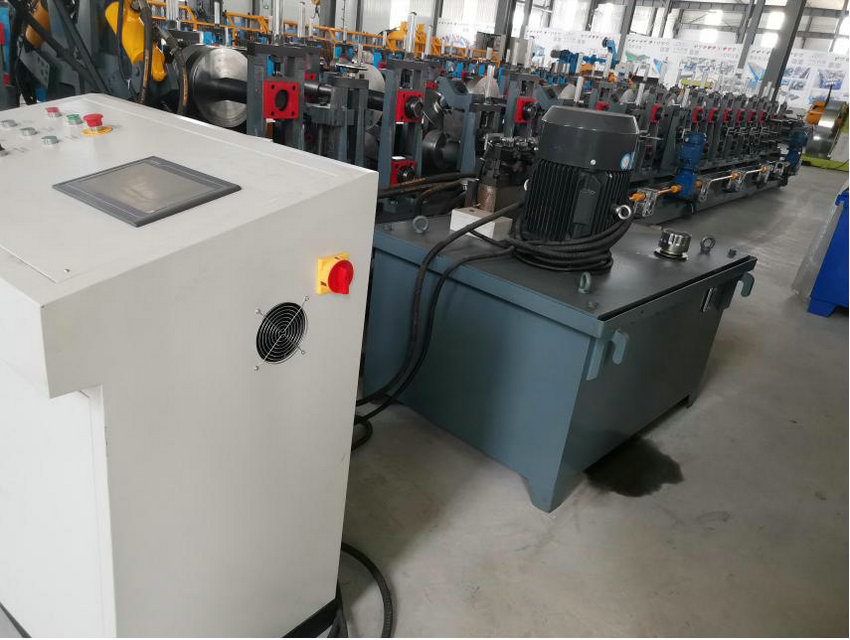

7.Hydraulic Station
It is controlled by the gear oil pump. After filling the hydraulic oil into the hydraulic oil tank, the hydraulic pump drives the shear to work and empowers the punching operation.
Hydraulic power (electric motor): 11 kw
Hydraulic oil: 46# hydraulic oil
Component: The system consists of a set of hydraulic tanks, two sets of hydraulic pumps, six hydraulic pipes, one set of solenoid valves.
There are wind cooling system on this station.

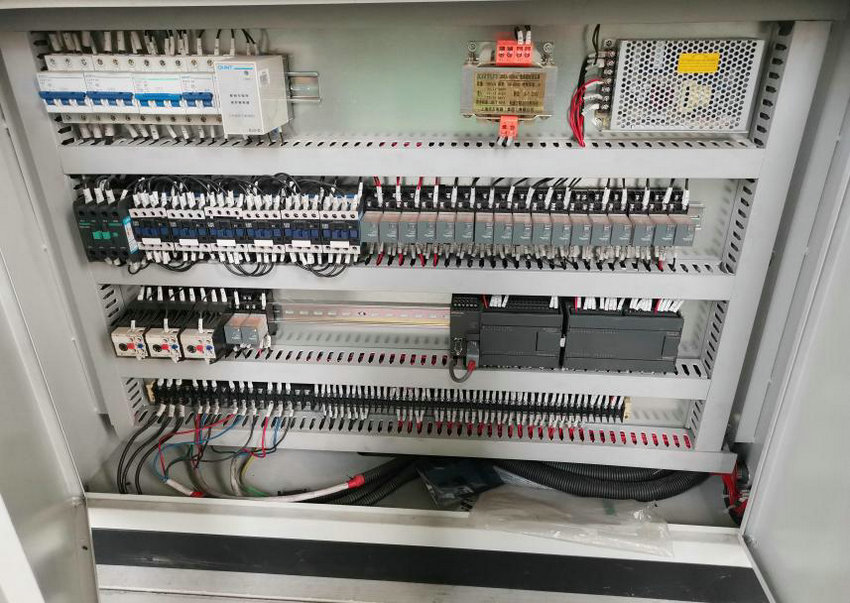

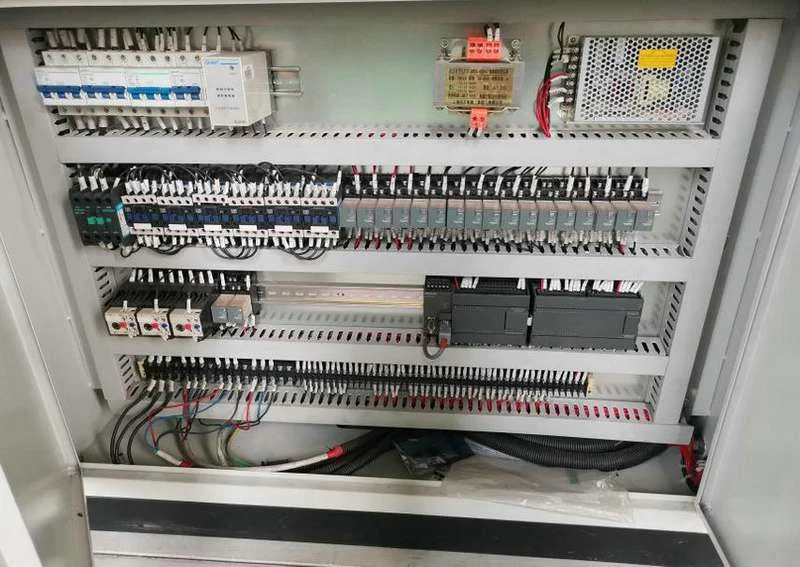

Electric Control System
The PLC powered by the software that controls the automation of the processes of forming cutting and punching, will be of the latest technology available and allow the operator through a touch screen enter quickly and reliably all data to meet a predetermined Production.
PLC. Touch screen. Transducer. Motor: Siemens
Encoder: Omron Automatic length measurement
Automatic quantity measurement
Control panel: Button-type and touch screen
Width, length and the height of the profile can be adjusted automatically by PLC.
