In the fields of residential, commercial spaces, and prefabricated building interiors, CU shaped keels have become the core components of ceiling partitions due to their lightweight, high strength, and ease of installation. The Automatic Light Steel Keel C U Channel Metal Stud Track Ceiling Roll Forming Machine, as a highly adaptable and efficient forming equipment, is the key to ensuring decoration quality and shortening construction period, empowering industrial production and promoting the upgrading of the decoration industry.
Core advantages:
- Full scene adaptation, flexible customization
Support the production of CU shaped keels with a width of 38-100mm and a thickness of 0.5-2.0mm, suitable for various steel strip materials such as hot-dip galvanized and cold-rolled. Quick disassembly and mold replacement time ≤ 20 minutes, balancing standard product mass production and special specification customization, suitable for all scene decoration needs. - Energy conservation and consumption reduction, cost reduction and efficiency improvement
Variable frequency motors save over 25% energy, high-strength alloy core components are durable and resistant to damage, and annual maintenance costs are less than 2% of the total equipment price. Automated production only requires 1-2 people on duty, significantly reducing labor and management costs. - Intelligent control, safe and worry free
The 7-inch touch screen integrates parameter setting, production statistics, and fault warning functions, with zero threshold operation. Overload protection, emergency stop device, safety cover and other configurations ensure comprehensive production safety.

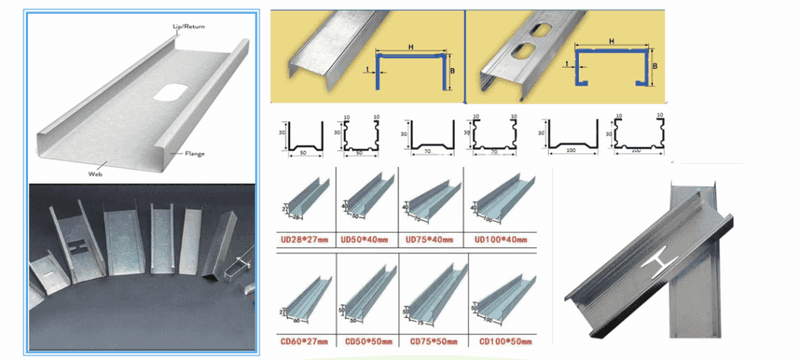

Pattern diagram:

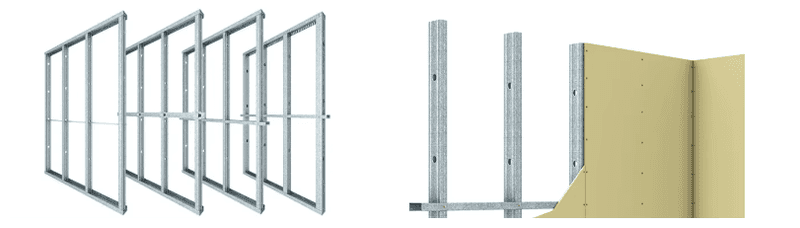

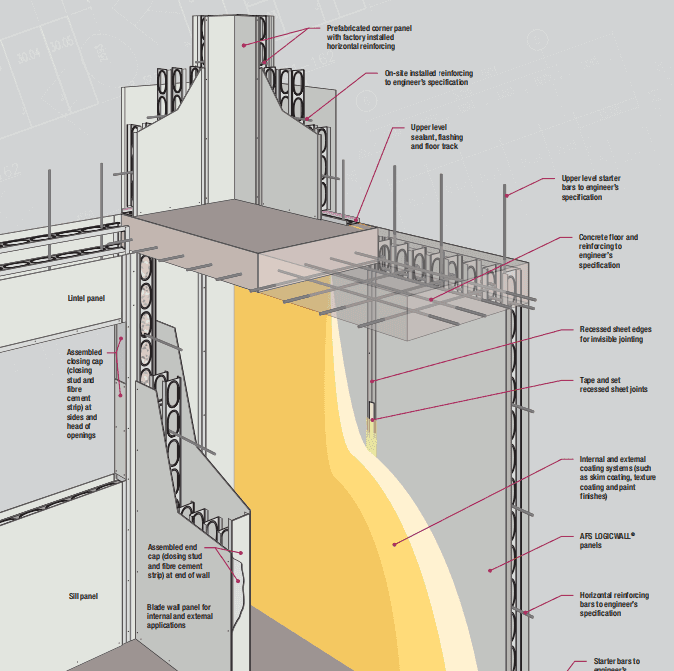

Application Scenarios:
- Ceiling keel and partition keel for residential and apartment buildings
- Decorative ceiling and partition systems for office buildings and shopping malls
- Installation of keel in clean spaces of hotels and hospitals
- Integrated interior keel components for prefabricated buildings
- Simple partition and ceiling engineering for factories and warehouses
Product Attributes：
| 1.Formed Material | GI | Thickness:0.7-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | will give you as free | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 3KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 45m/min(customized) | Speed is adjustable according to customer’s request | ||

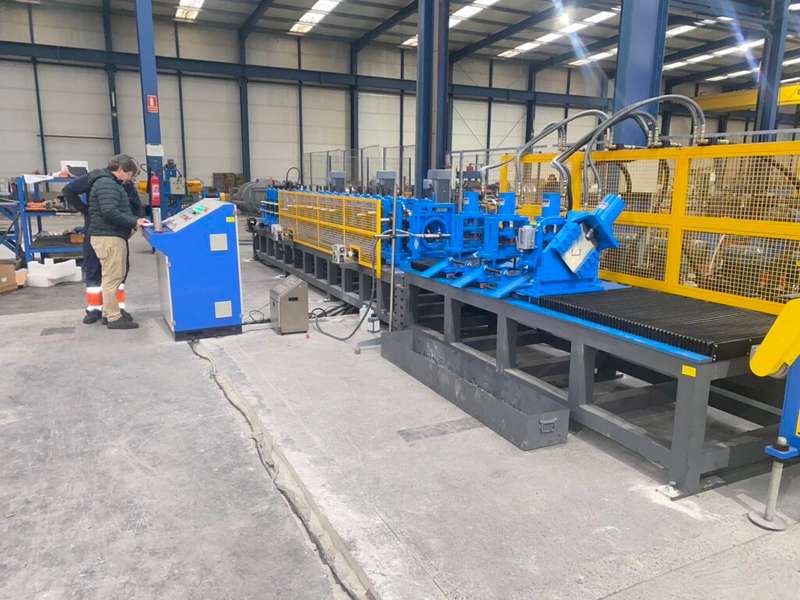

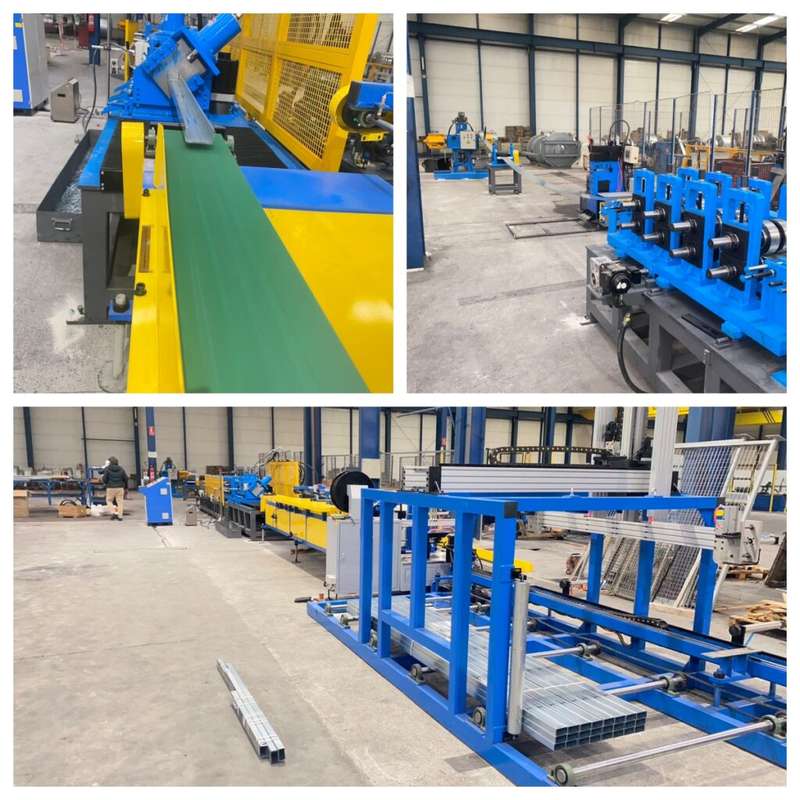

Machine image:
