Barrel type corrugated sheet machine is developed based on the needs that too thin sheet cannot be made to roof sheet by traditional roll forming machine. It can process material thickness from 0.13 to 0.30 mm and the roofing sheet length could be customized as to your requirement.

Barrel type corrugated sheet machine is developed based on the needs that too thin sheet cannot be made to roof sheet by traditional roll forming machine. It can process material thickness from 0.13 to 0.30 mm and the roofing sheet length could be customized according to customer’s personal requirement. But limited by roll forming method, this machine needs to feed sheet and receive sheet by manual.

Basic information of raw materials:

Material: G550 full hard galvanized steel
Maximum feeding length (width): 3.66 m
Material thickness range: 0.13-0.30mm
Processing sheet width range: 900-1250mm

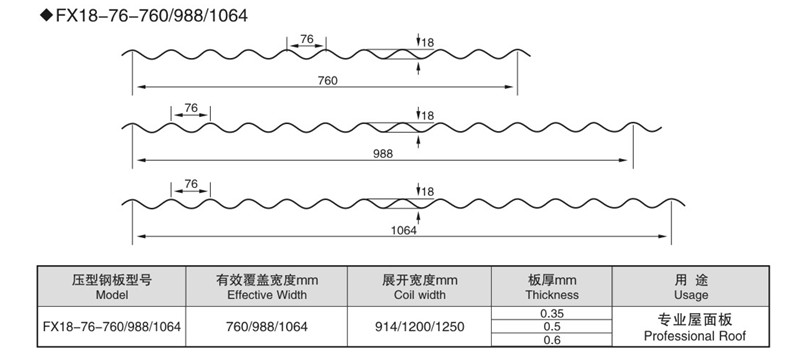

Here attached is the drawing of the corrugated sheet:

Simple parameters of barrel type corrugated roofing sheet machine:

Roller station: 2 sets (4 rollers in total)
Roller diameter: 450 mm
Roller material: 45# steel
Drive motor power: 7.5 kw

Speed: 0-20 pieces per minute
Weight of machine: about 6.5t
Dimension of machine: about 5000x2000x1500mm
Voltage: 380v 50hz 3phase or as customer requirement

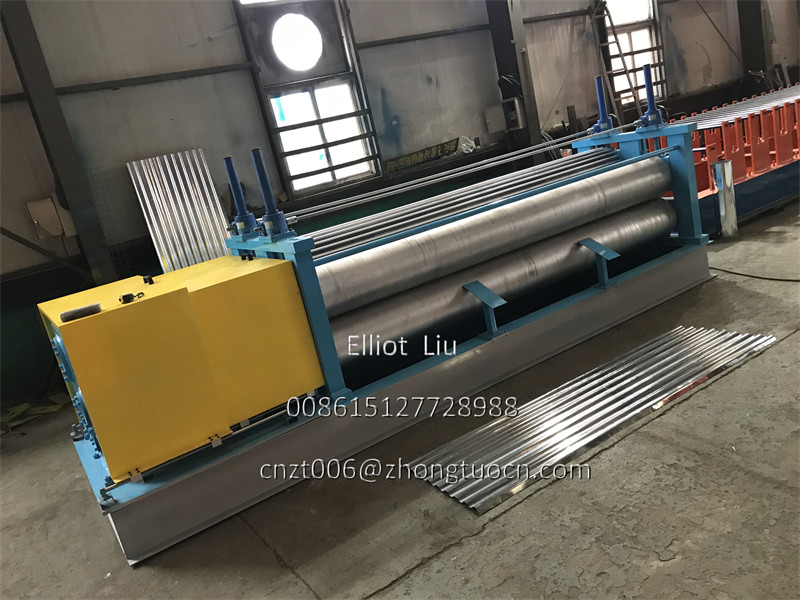

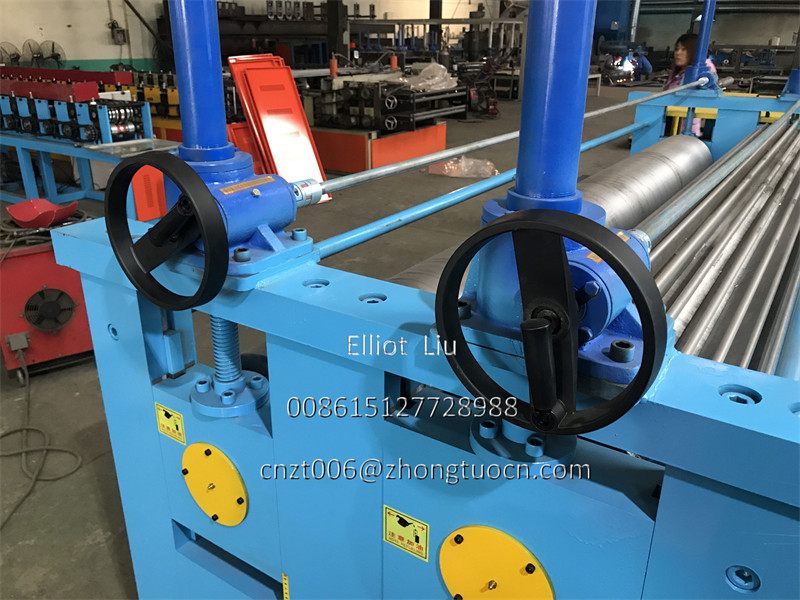

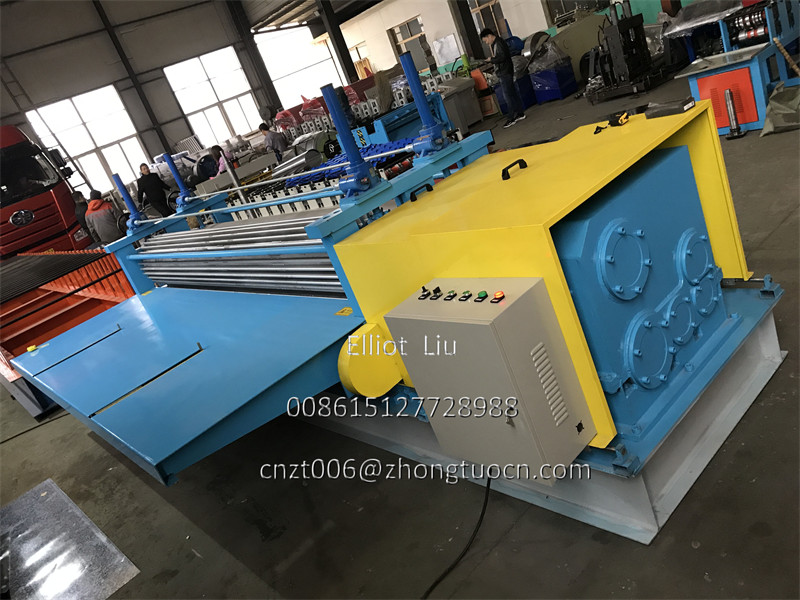

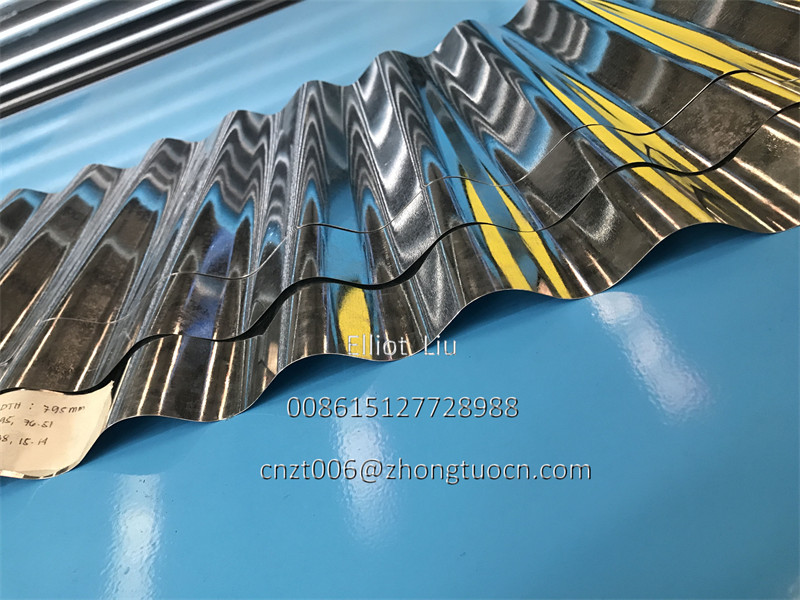

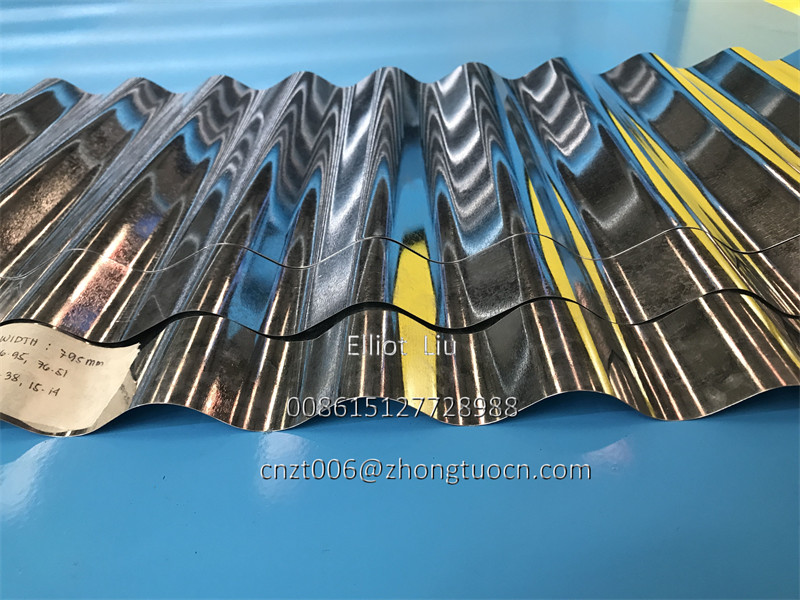

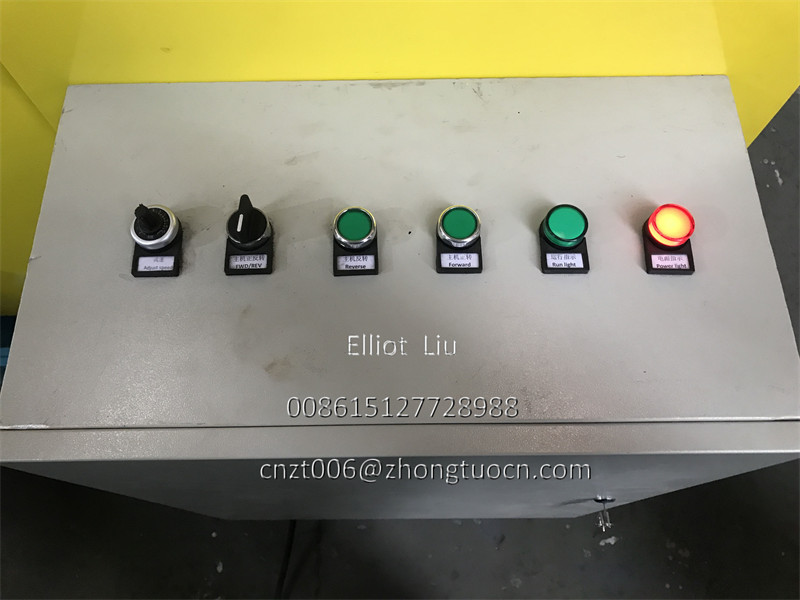

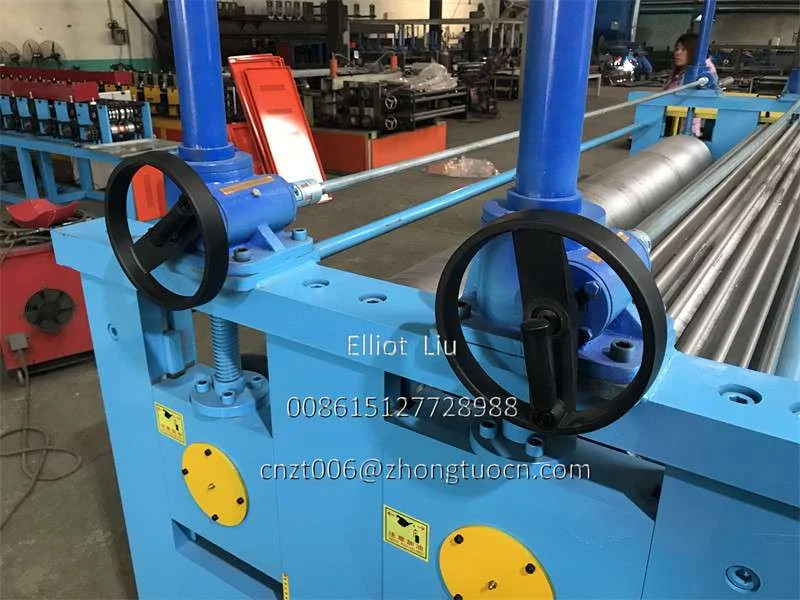

Here below are some of our machine photos for you reference:
