Thickness: 0.3-0.8mm

Material: GI PPGI

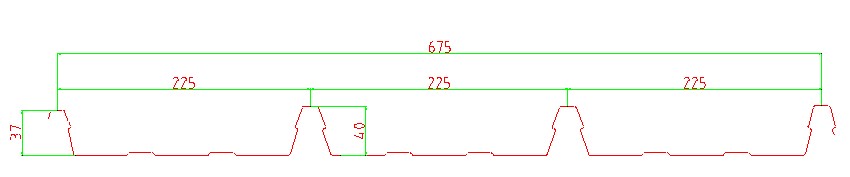

Equipment type Yx40x225x675mm
Expand width 914mm
Working speed 10-15m/min（Cutting is not included.）
Thickness of the press plate 0.3-0.8mm
Control method Panasonic PLC
Decoiler 5T manual decoiler
Forming station 24 Stations

Roller material 45#Steel finishing, Surface with chrome
Shaft material and shaft diameter 45#Steel finishing, Shaft diameter ￠76mm

Motor power 7.5kw
Hydraulic pressure 12Mpa
Cut material Cr12Mov, HRC 58-62℃
Length tolerance 3m±1.5mm
Voltage 380V, 50HZ,3Phaes
（Adjust with customer requirements）
Transmission 1.2 inch single chain
Equipment structure Wall structure[Thickness: 20mm]
Equipment color Blue and yellow (Adjust with customer requirements)
Equipment size 11.5m*1.6m*1.6m
