In the modern engineering landscape of power, communication, and towering buildings, cable tray equipment is like a skilled intelligent manufacturing master, using automated production lines as pens to accurately outline the various forms of cable tray masterpieces.
With its efficient operation and intelligent network, it weaves an orderly and secure network for cable laying, becoming an indispensable and solid guardian behind countless projects.

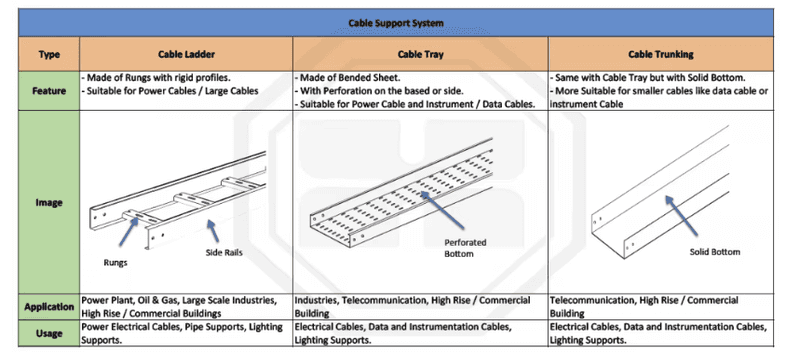

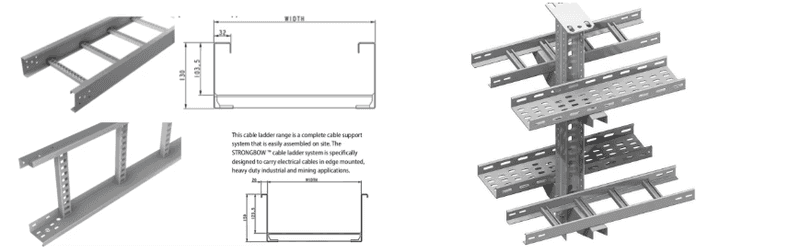

Pattern diagram:
Main Features：
1.High degree of automation
2.High production efficiency
3.High molding accuracy
4.Strong universality
5.Energy conservation and environmental protection
Product Attributes ：
| .Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 65mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | gearbox transmission | |||
| Dimension(L*W*H) | customize | |||
| Weight | About 6T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 30m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

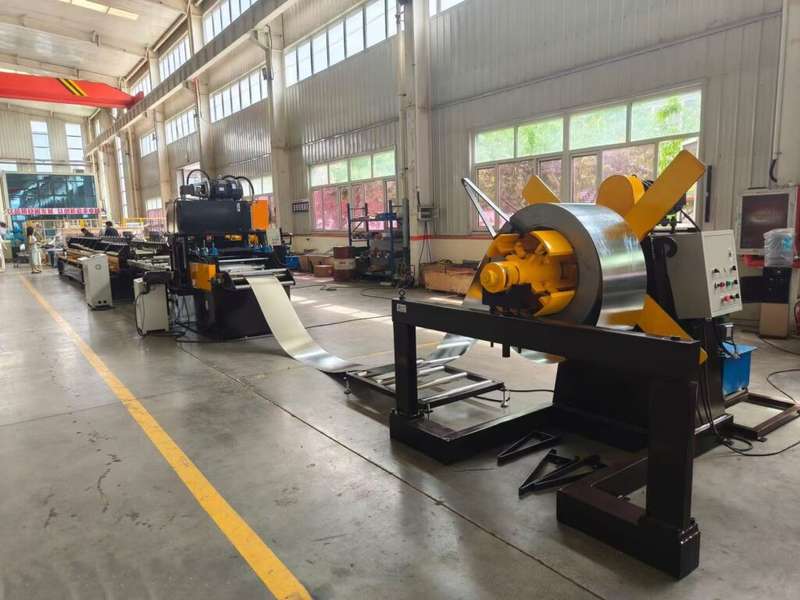

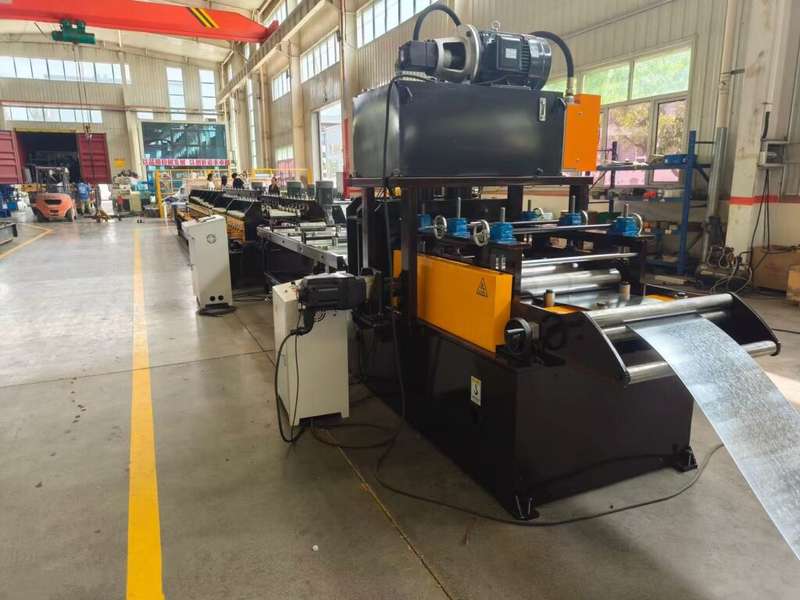

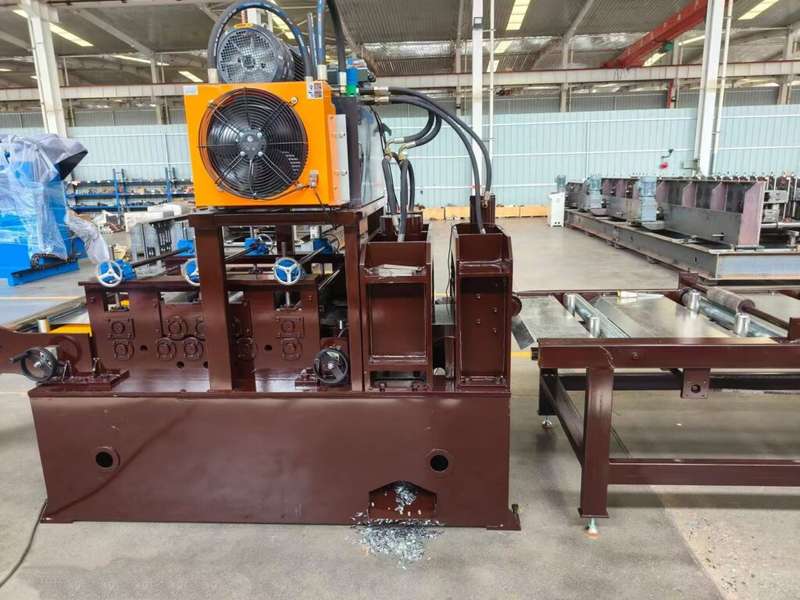

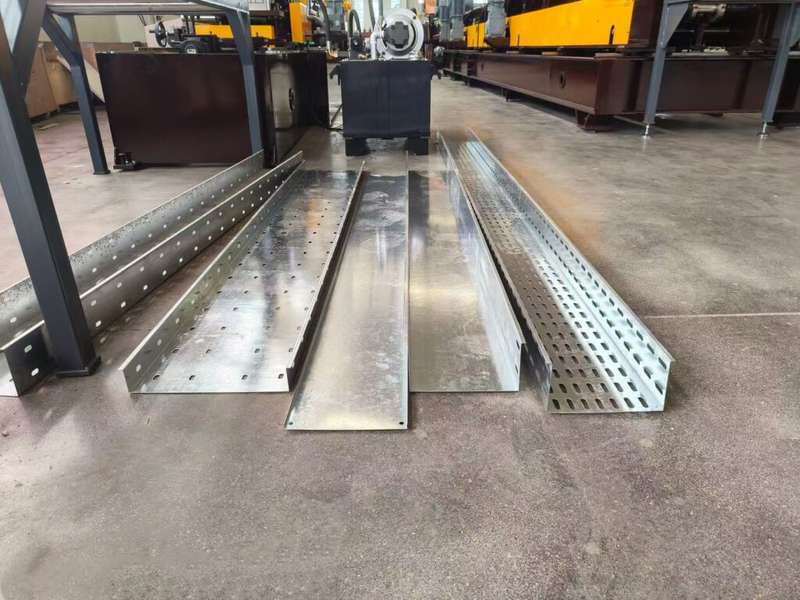

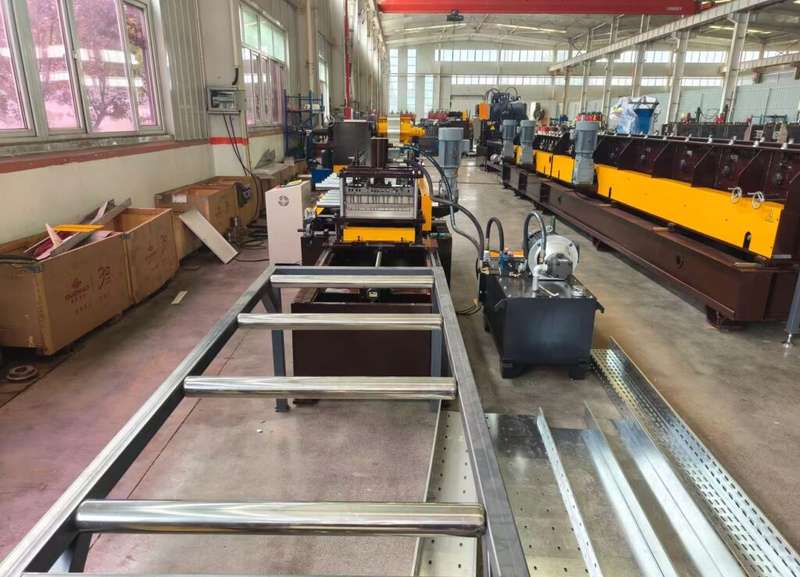

Product images：
