Facing the era of industrialized construction and prefabricated decoration, we have launched a PLC Control CD Drywall Profile Channel Roll Forming Machine. With its high-speed, precise, and flexible production performance, it provides building material manufacturers with a core competitive advantage to seize a leading position in the light steel market.
This is an automated cold bending production line specifically designed for the continuous production of C-shaped light steel keels. It consists of an uncoiler, feeding and guiding device, servo feeding system, multi-pass cold bending forming main unit, hydraulic/flying saw cutting device, and PLC control cabinet. It can process galvanized steel coils into finished keels of the required cross-sectional shape and length in a single operation.
Key Features: Redefining Production with Technology
- High-speed continuous molding, leapfrog production capacity
- High cross-sectional accuracy, seamless interlocking
- Multi-functional, flexible changeover
- Precise dimensional accuracy, material savings
- Intelligent control, extremely simple operation
- Robust and durable, worry-free continuous operation
Application Scenarios: Supporting Every Inch of Modern Building Space
- Commercial and Residential Decoration:
Light steel keel partition walls and ceiling systems for hotels, office buildings, and residences, replacing traditional timber, offering fire resistance, moisture resistance, and quick construction. - Prefabricated Decoration and Integrated Wall Panels:
As the vertical support framework for prefabricated partition walls, it perfectly complements integrated wall panels such as calcium silicate board and gypsum board, achieving dry and rapid installation. - Cleanrooms and Hospitals:
In places with extremely high requirements for flatness and airtightness, such as pharmaceutical and electronic cleanrooms and operating rooms, light steel keels are the foundation for constructing cleanroom wall panels.
Pattern diagram：
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.35-0.6mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 7800*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-100m/min(customized) | Different speed designs for options. | ||

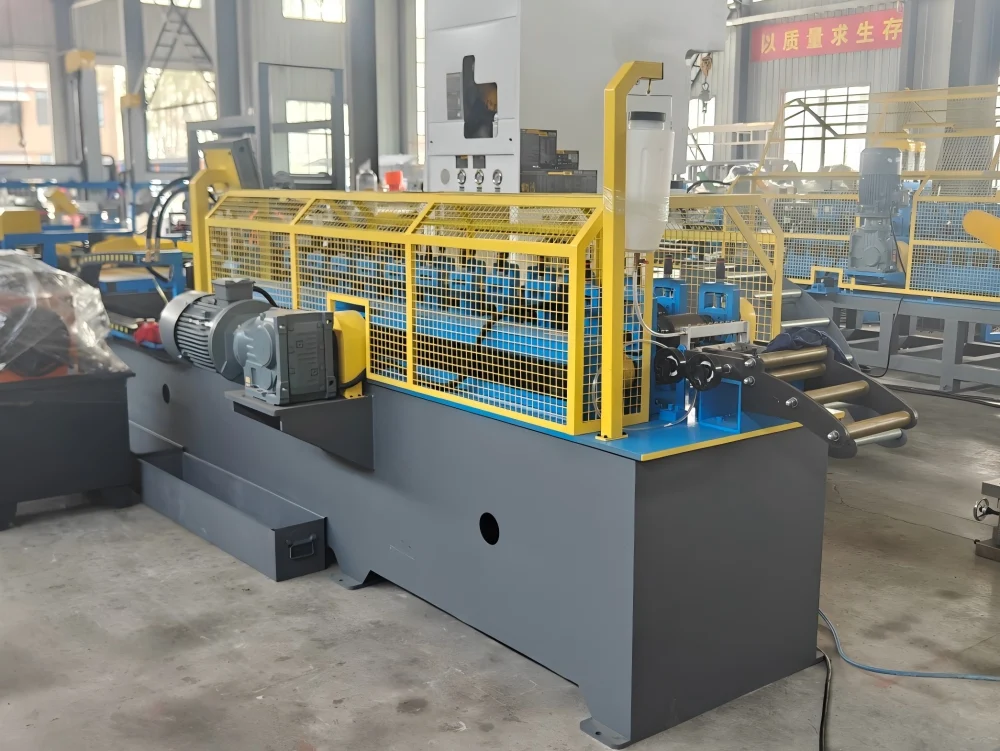

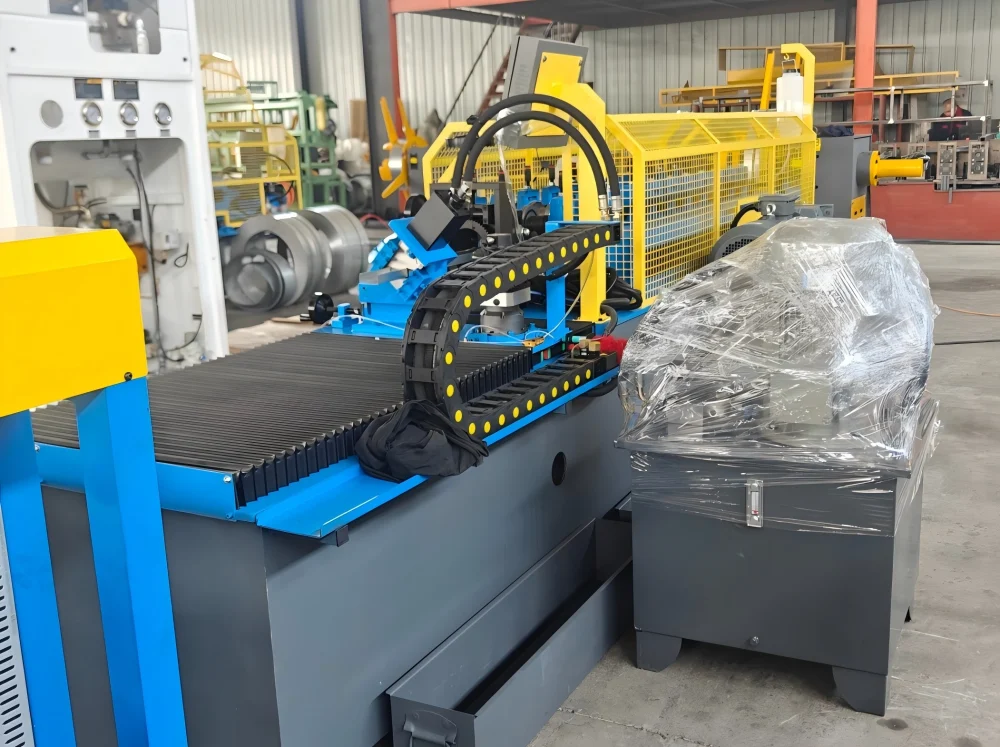

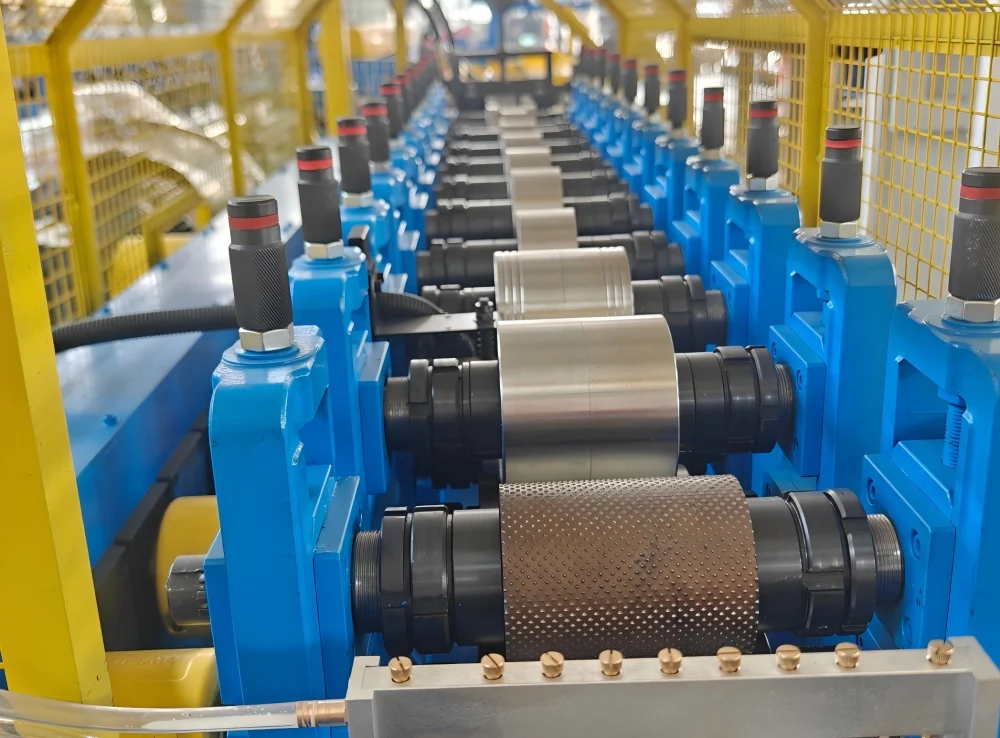

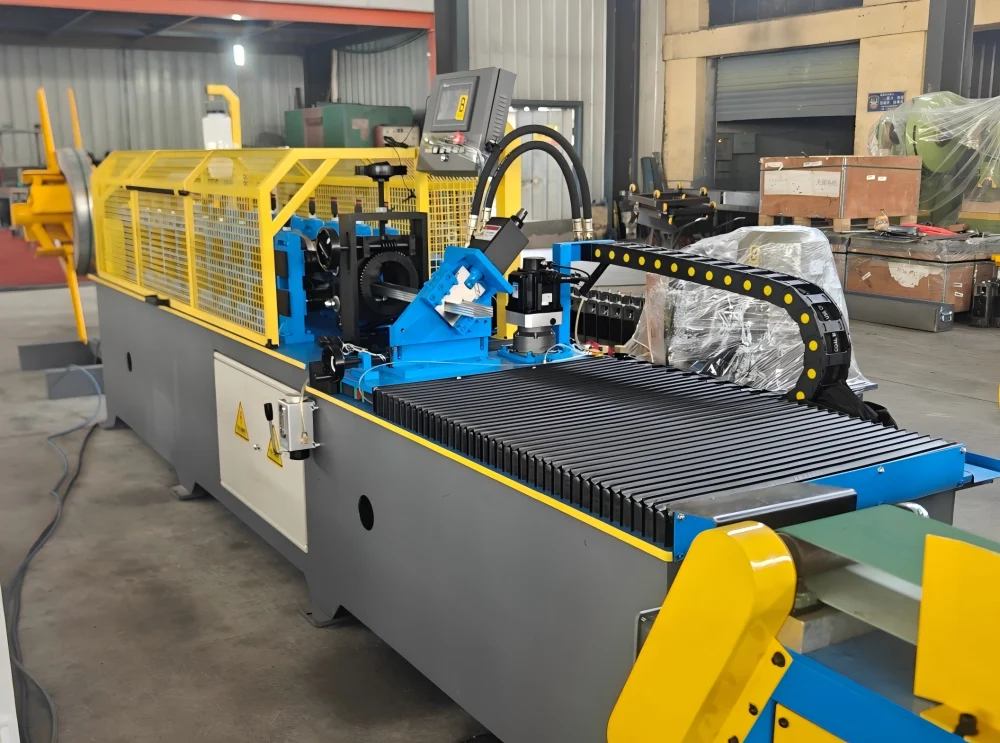

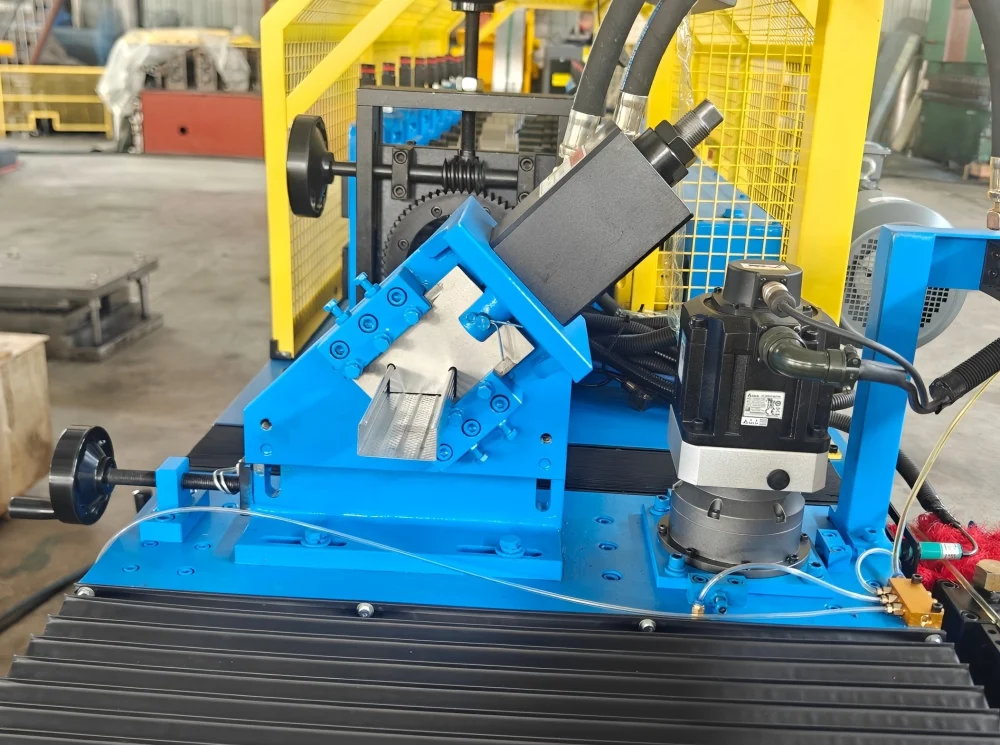

Machine image:
contact us：
A good CD Drywall Profile Channel Roll Forming Machine is not only a production tool, but also a strategic pivot for you to leverage the light steel building materials market. Choosing us means choosing higher output efficiency, more stable product quality, and lower overall operating costs.
We provide a full lifecycle service from equipment selection, customized rolling mill molds, installation and debugging to operation training, helping you quickly start production and make profits ahead of time.
Contact us immediately for exclusive solutions and detailed quotes, and work together to build a strong future for smart light steel buildings.
