In modern architectural design, Corrugated roofs have become a popular choice for sports venues, exhibition halls, cultural and tourism buildings, high-end villas, and other projects due to their smooth visual aesthetics and excellent drainage and wind resistance performance. As an automated molding equipment specialized in producing curved roof tiles, the Corrugated roof tile machine provides key support for the realization of such characteristic roofs with precise curvature control and efficient processing capabilities. It can meet the aesthetic needs of architectural design while ensuring the structural stability and durability of the roof.

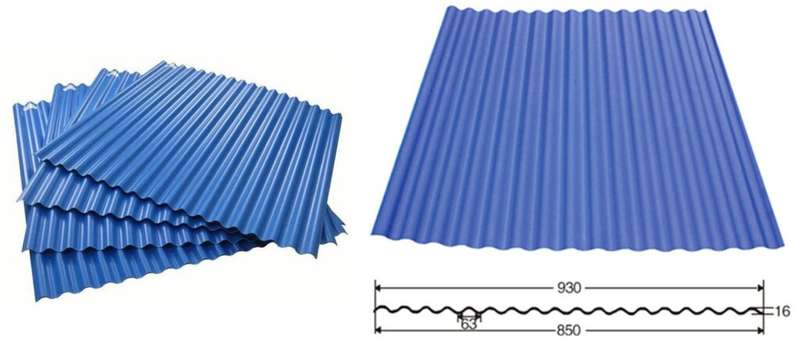

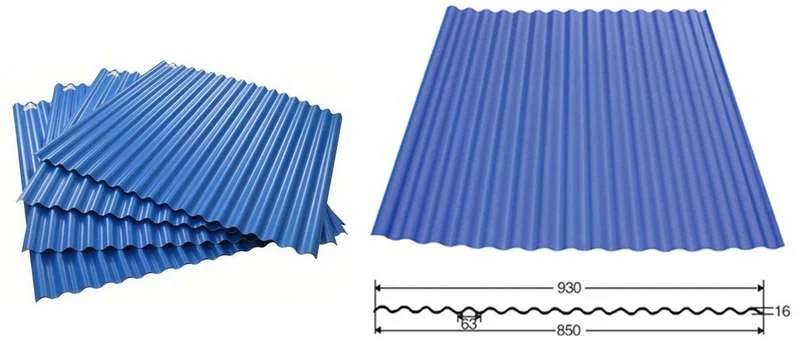

Pattern diagram:

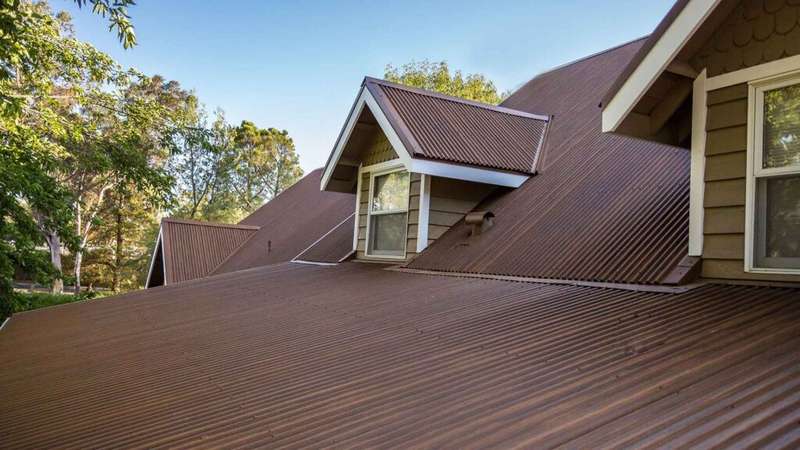

Apply photos ：
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.15- 0.5mm Width:914mm/1450mm(customized) | ||
| 2.Decoiler | Hydraulic automatic decoiler | 5T/10T/15T | ||

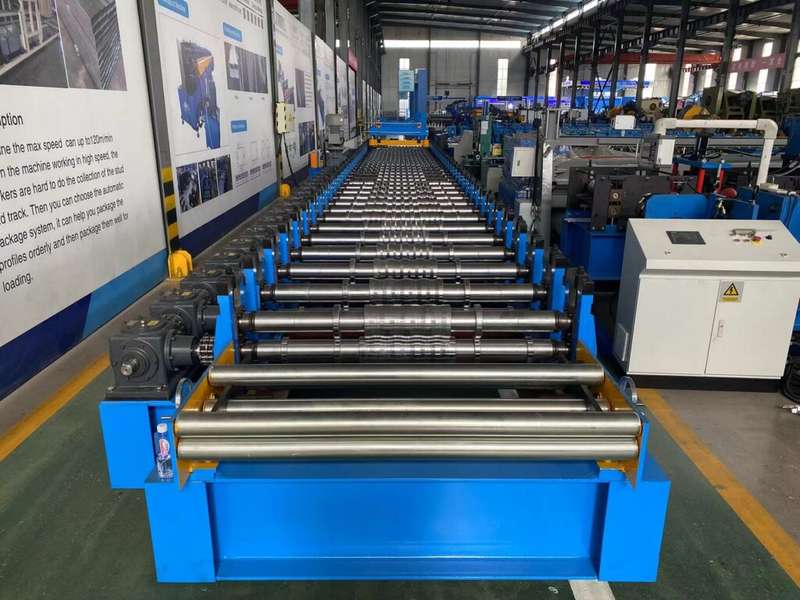

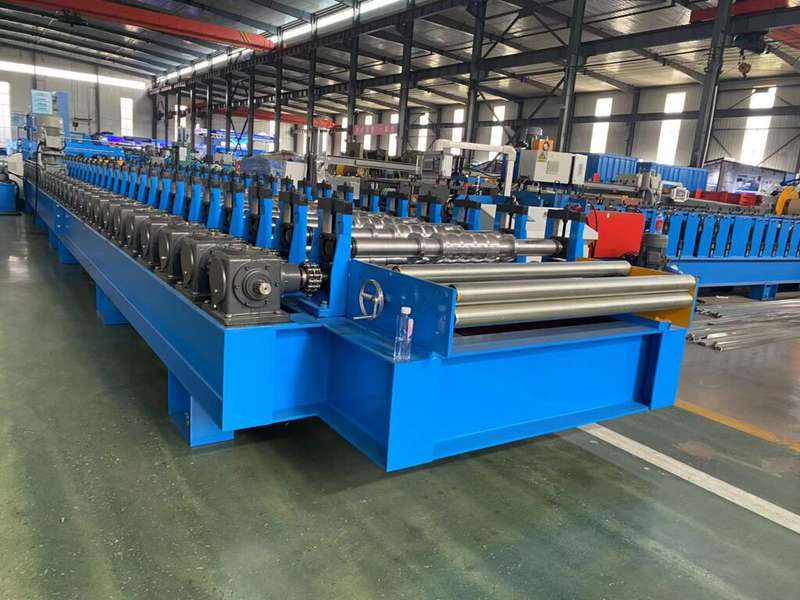

| 3.Main body | Roller station | 20 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 350 H steel | |||
| Drive | Gear box transmission | |||
| Dimension(L*W*H) | 10500*1650*1400 mm(customize) | |||
| Weight | 15T | |||

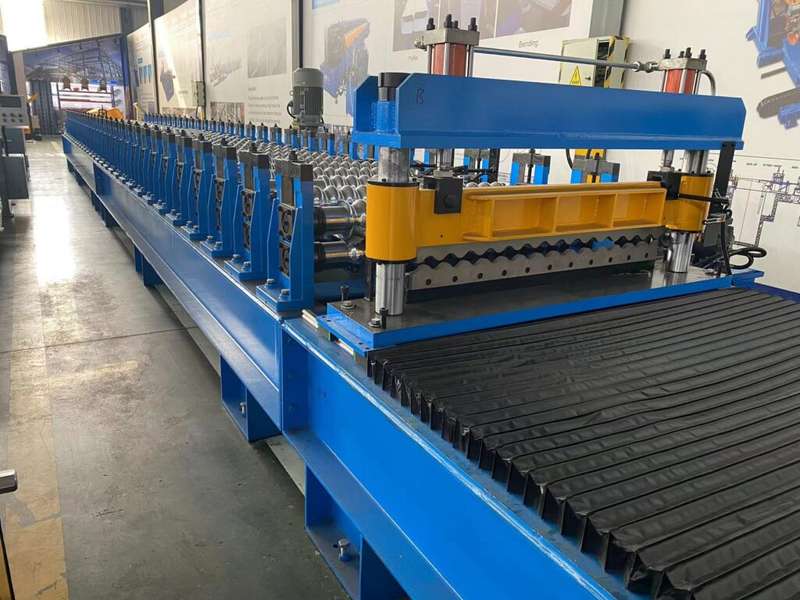

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 30-40 m/min | The speed is adjustable | ||
Core advantages and application value：
1.High degree of customization:
2.Significant production efficiency:
3.Low operating threshold:
4. Wide applicability scenarios:
