Double head decoiler short shaft for narrow strip metal coil

Zhongtuo Machinery for the double head decoiler, we have two types: manual double head decoiler and hydraulic double head decoiler. Manual decoiler means it has no power, when working it needs to be dragged by the machine power. Hydraulic double head decoiler means it is powered by hydraulic, it can help you expand or shrink the inner diameter and outside diameter by the hydraulic power.

No matter the manual double head decoiler or hydraulic double head decoiler, it could be designed with 1.5 Ton, 3 Ton, 8 Ton or more bigger.

As to the loading car, you can choose to add or not.

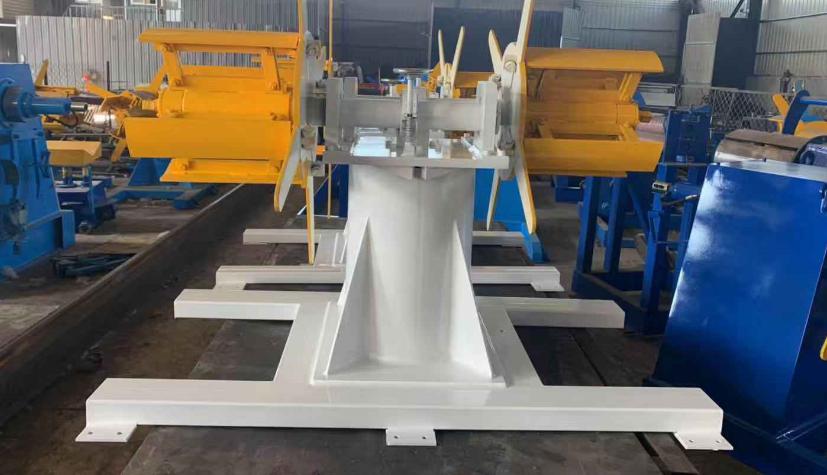

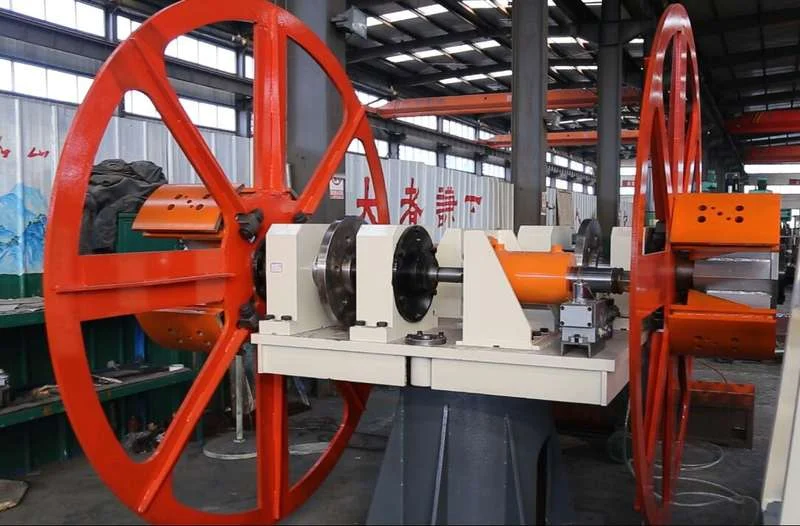

Here are some machine pictures for your reference: Manual double head decoiler

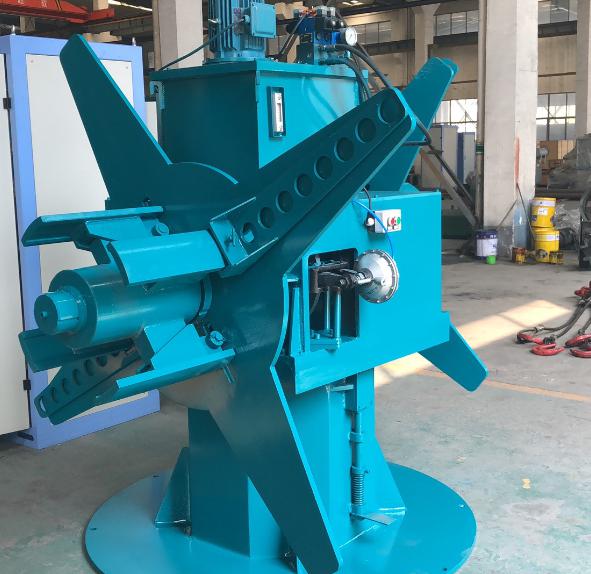

Tension type double head decoiler manual type

Thickness of strip: 0.5-1.5mm Width of strip: 40～450mm I.D. of coil: ΦΦ470to 540mm O.D. of coil: Φ800-1500mm Coil weight:≤3000kg single head

When it is good to choose the manual double head decoiler?

1. When match combined light keel rolling forming machine, one machine for two or more types coil width.
2. When working for different color coil.
3. When for difficult material like PPGI or GI.
4. The good thing is that you can switch the coil from one to another easily.
5. Designed with brake, you can change the direction of the coil easily.

Hydraulic double head decoiler:

Structure: double-station form, equipped with a rotating bearing that can be rotated by 180 degrees, hydraulic slider type expansion and contraction (optional manual expansion), air disc brakes.Advantages: one work and one ready for feeding speed, easy to operate.























It is used to support the rotation of the coil. The main shaft is stretched and tightened by a hydraulic cylinder at the rear. After the coil is clamped, the pinch roller is placed on the coil by a hydraulic cylinder. The coil is driven by a motor reducer mounted on the top. The strip is fed into the pinch leveler. The unwinding uses pneumatic braking. Above the uncoiler, there is a pressure roller that prevents the roll. The uncoiler can be fully translated by the rear hydraulic cylinder, the plc is controlled by the upper feed, and the photoelectric detection automatically slows down.

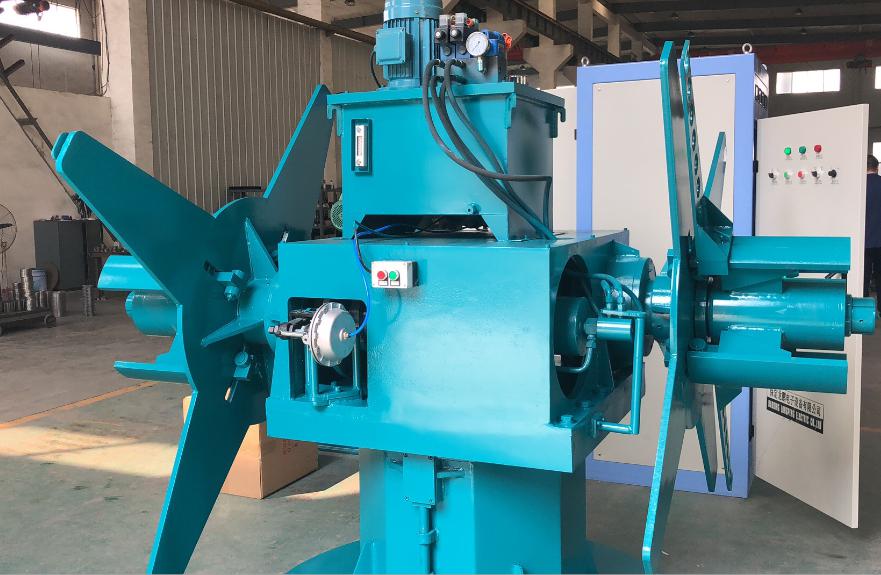

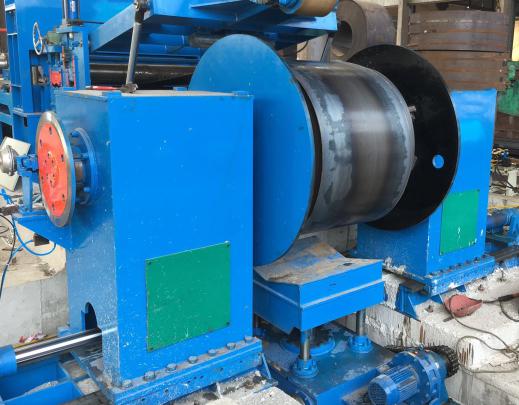

Hydraulic double head decoiler

Supporting steel rolls and uncoiling.

Taper head design to ensure the φ500-800mm steel coil inner diameter.

Hydraulic head movable design. The width can be adjusted according to the steel width

Max loading capacity: 25T

Mechanical structure: the process is welded by steel plate and steel.























For the double head decoiler if you want to know more information, please contact us at any time.
