In the field of modern building roofs, double-layer roof tiles have become the preferred roofing material for industrial plants, residential buildings, commercial complexes, and other buildings due to their excellent thermal insulation performance, strong wind and waterproof capabilities, and longer service life.The double-layer roof tile machine achieves efficient and high-quality production of double-layer roof tiles through unique technology and precise parameter control.
Product Attributes Of Double Layer Metal Sheet Color Steel Roof Roll Forming Machine：
| 1.Formed Material | PPGI,GI,AI,GL | Thickness:0.3-0.8mm Width:1000mm/1250mm(As per profile drawing) | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16+18 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 350 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 10500*1600*1600(customize) | |||
| Weight | 11.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||
Profile drawing Of Double Layer Metal Sheet Color Steel Roof Roll Forming Machine:

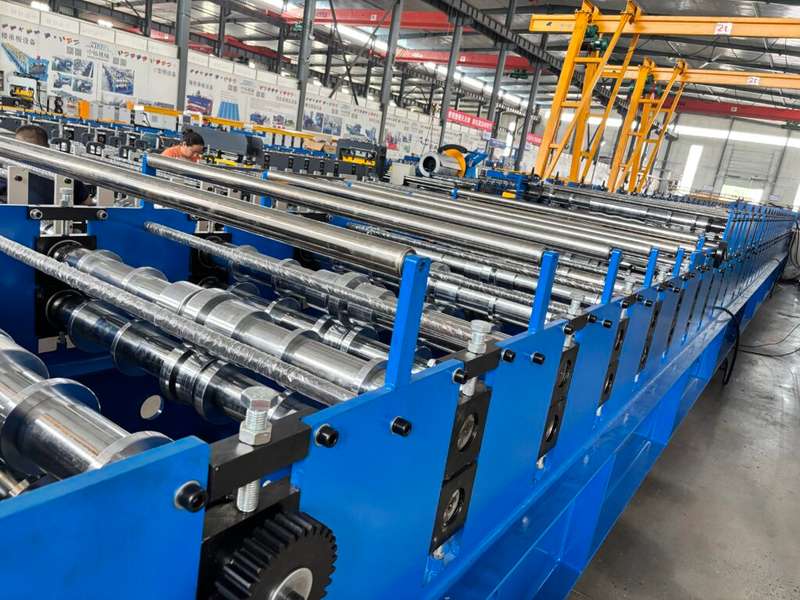

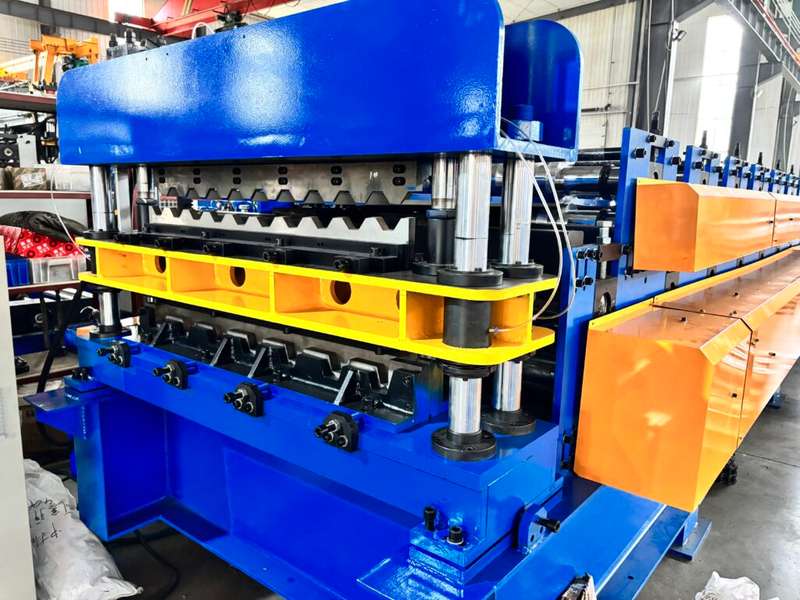

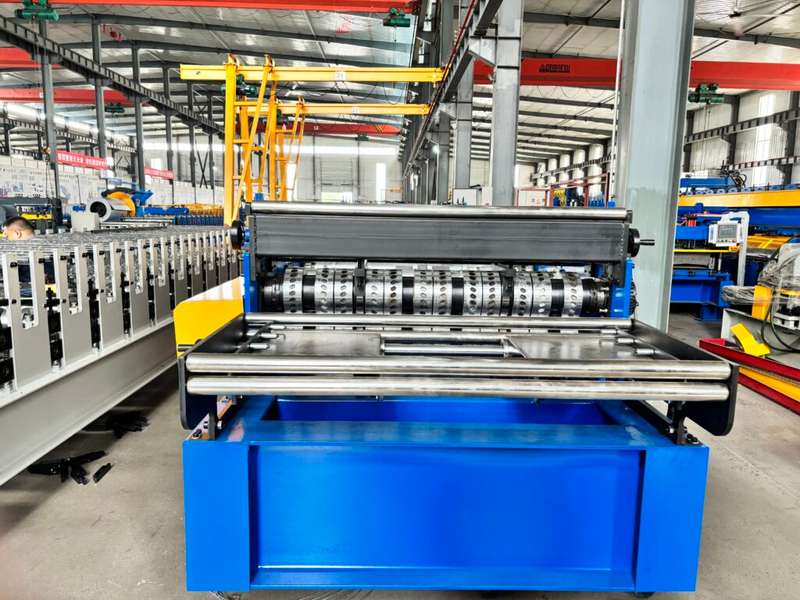

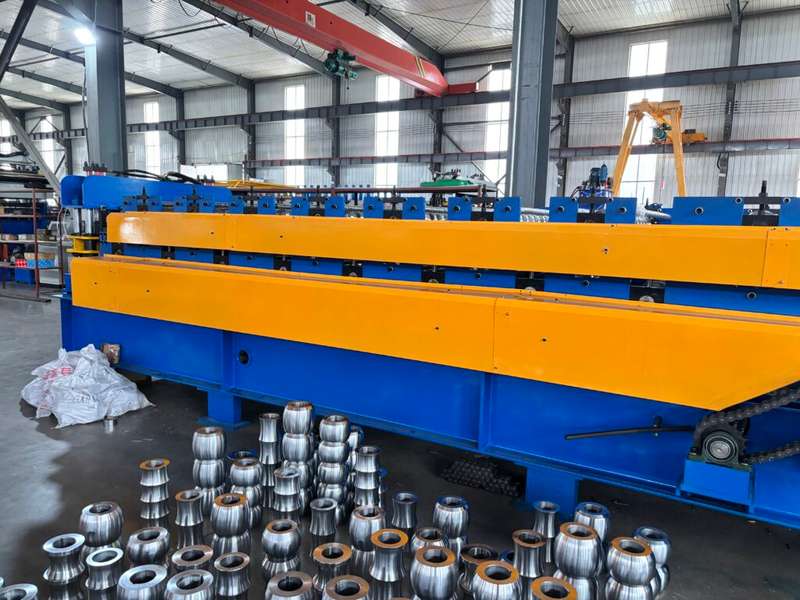

Machine image Of Double Layer Metal Sheet Color Steel Roof Roll Forming Machine:
