As an upgraded and iterated product of traditional single-layer equipment, Double Layer Roof Panel Roll Forming Machine is positioned with the core of “one machine, dual energy, cost reduction, efficiency improvement, and precise intelligent manufacturing”. It integrates double-layer integrated design and intelligent control technology, breaks the bottleneck of traditional production, and becomes the preferred equipment in the field of industrial and civil building roof processing. It provides efficient, convenient, and economical full process solutions for building materials production enterprises and engineering construction parties, helping the industry achieve a dual leap in production capacity and quality.
Product Attributes :
| 1.Formed Material | GI,Steel | Thickness:0.3-0.6mm Width:1220mm (as request) | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | 20+24rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 400 H steel | |||
| Drive | Chains transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 15T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

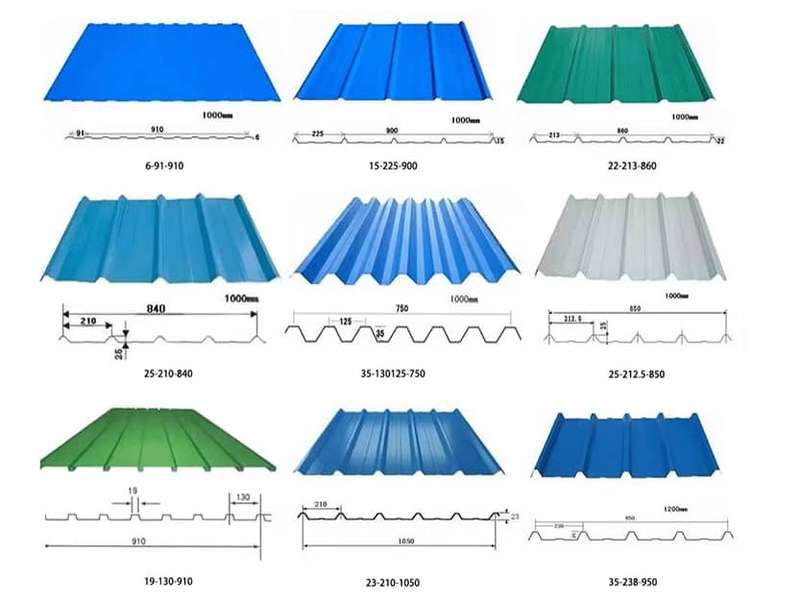

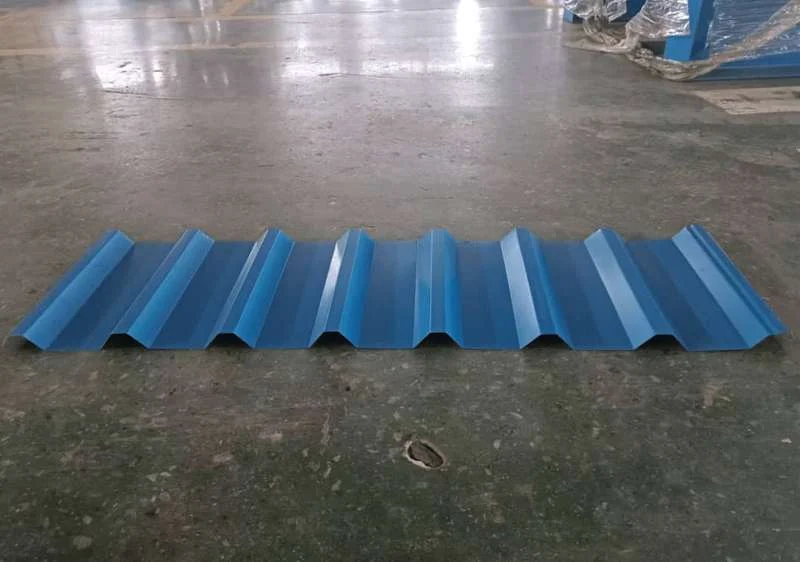

Pattern diagram:
Core features:
1.Efficient dual energy, doubling and upgrading production capacity.
2.Reduce costs and increase efficiency, highlighting cost-effectiveness.
3.Intelligent and precise, with stable and controllable quality.
4.Flexible and convenient, adaptable to diverse needs.
5.Energy conservation and environmental protection, practicing green production.

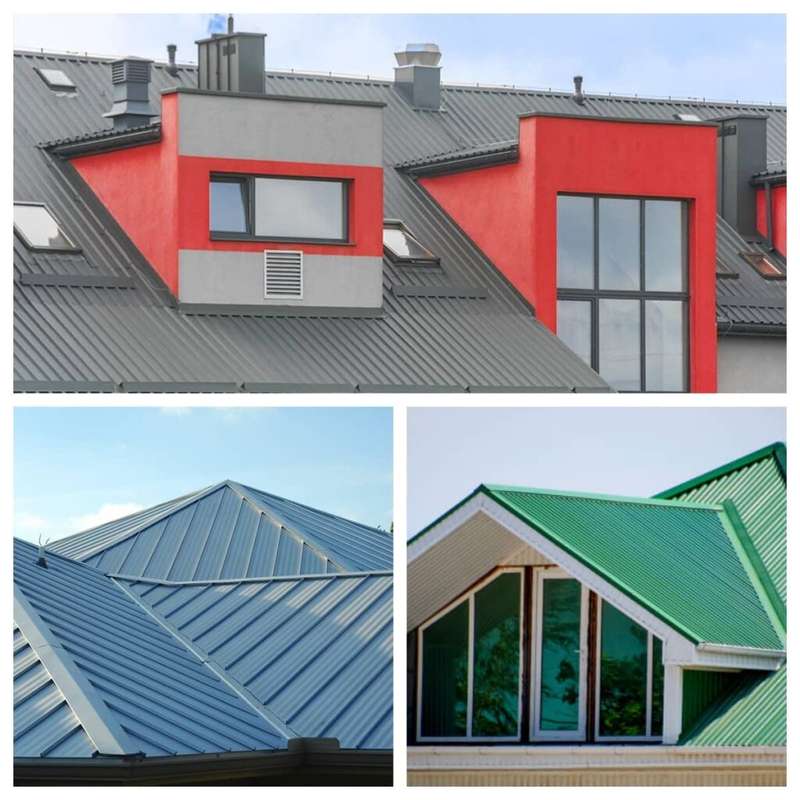

Application scenarios：
- The industrial construction field is the core application scenario of equipment.
Widely used in industrial plants, warehousing and logistics centers, large-span steel structure houses, etc., it can produce high-strength and corrosion-resistant roof tiles and wall tiles, adapt to the complex needs of industrial environments, and help create efficient, energy-saving, and durable industrial building enclosure systems. - In the field of civil architecture, adapting to diverse residential needs.
Whether it is rural self built houses, urban villas, or roof renovation of residential areas, the equipment can produce roof tiles that have waterproof, thermal insulation, and aesthetic functions, and can flexibly switch between various styles such as antique tiles and glazed tiles.

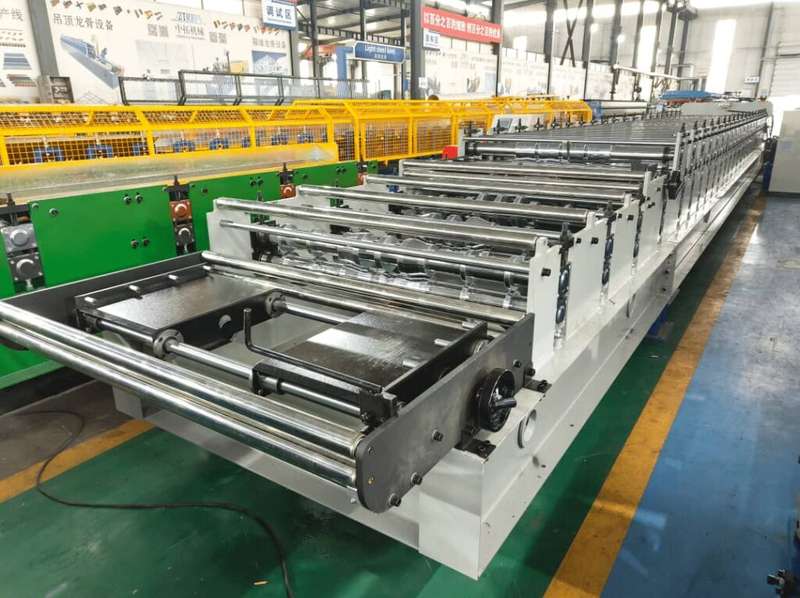

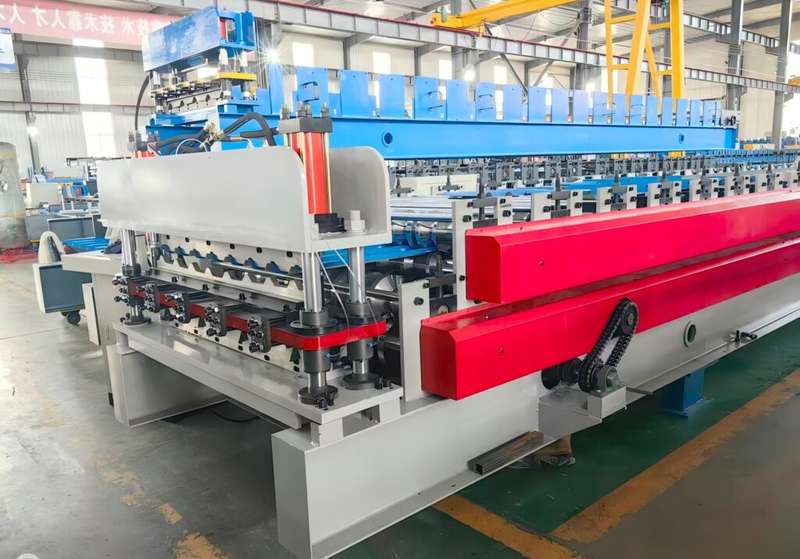

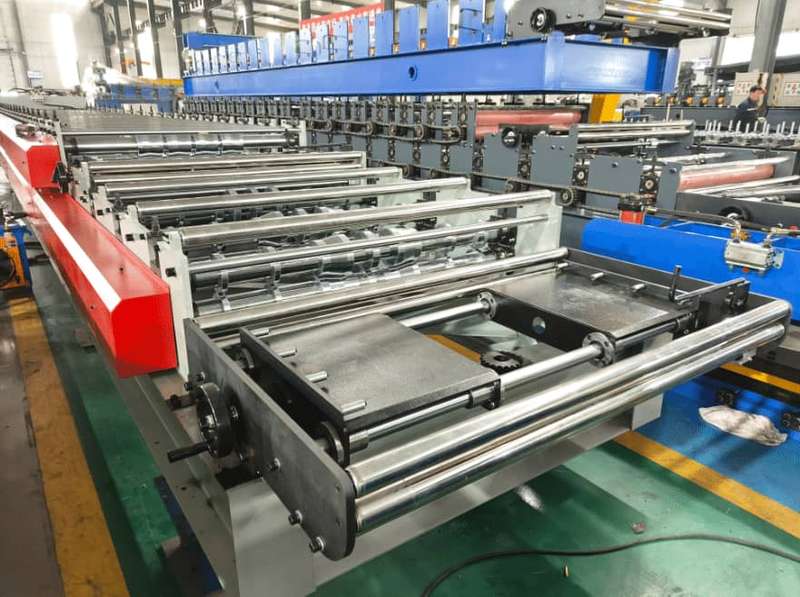

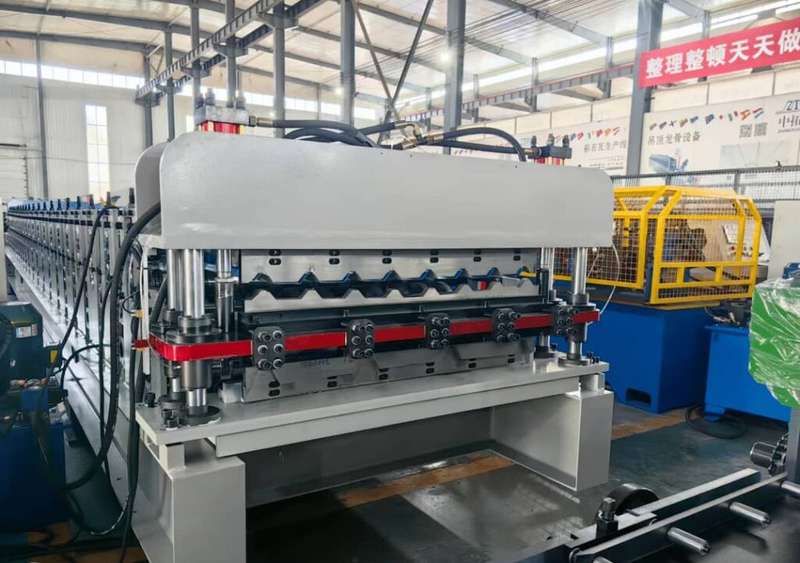

Machine image:
