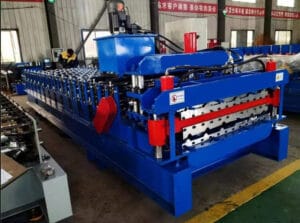

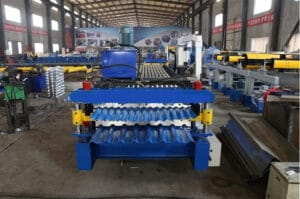

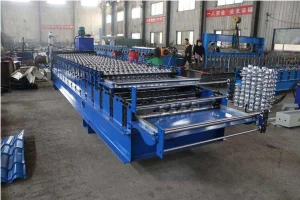

Double layer roof sheet machine for q tiles and ibr roof tile details :
1.This machine for q tiles and ibr details is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2.The machine for q tiles and ibr is stable,no noise,no shake.
3.Our machine for q tiles and ibr can uses galvanized steel sheet, colored armor plate or galvalume plate as the material plate.
4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
| No. | machine for q tiles and ibr | |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | Uplayer 13 rows; down layer 13 rows |
| 3 | Dimensions | 6.5*1.65*1.7m |
| 4 | Motor Power | 4Kw |
| 5 | Pump Station Motor | 4Kw.Lichao Brand |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58ºC-60ºC |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 5800kgs |
| 11 | Main structure of the machine | 300H beams |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 16mm |
| 14 | Chain Wheel and Cycle Chain | 1 Inch |
| 15 | Voltage | 380V 50Hz 3phases or as customer's need |
| 16 | Control system | PLC control (Delta) |
| 17 | Frequency system | Delta |
| 18 | Drive mode | Motor driver |
| 19 | Touch screen | Delta |
| 20 | Rolling materials | 45# forging steel with chromium plate |
| 21 | Length Tolerance | ±2mm |
The advantage of Double layer roof sheet machine for q tiles and ibr roof tile
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)

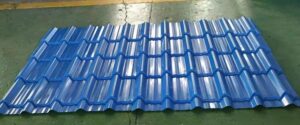

2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
Details Images

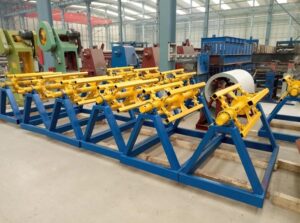

1.Manual decoiler:
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
- Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Remarks:Pre-hand with leveling roller

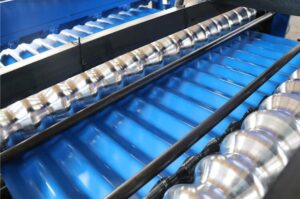

3.Main rollers
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4.Computer Control Cabinet
PLC:Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish

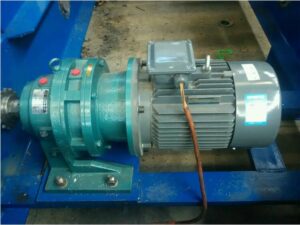

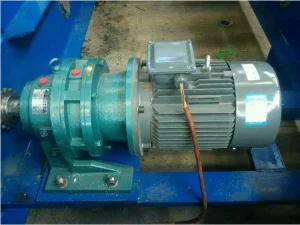

5.Motor driver
Main motor size :4Kw
Brand: The famous brand from Germany or according to customer's need

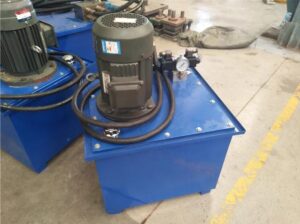

6.Hydraulic station power
Hydraulic station power: 4Kw, the brand is Lichao, Shanghai
7.Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment
