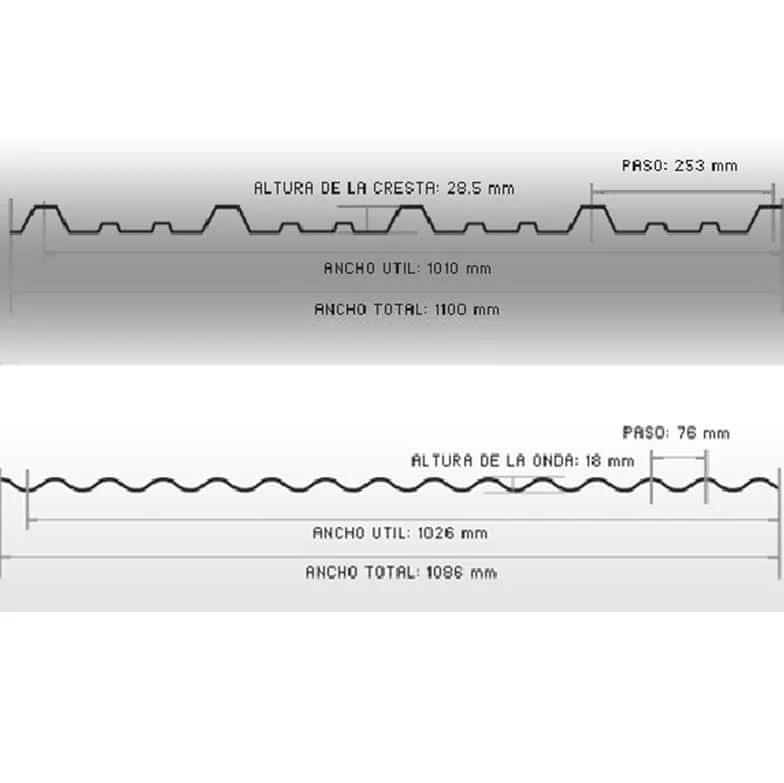

Machine model Yx28x252,5x1010mm
Feeding width 1250mm
Machine speed 25-30m/min（including cutting time）
Sheet thickness 0,3--0,6mm,
Controlling Panasonic PLC
7 tons hydraulic de-coiler One set

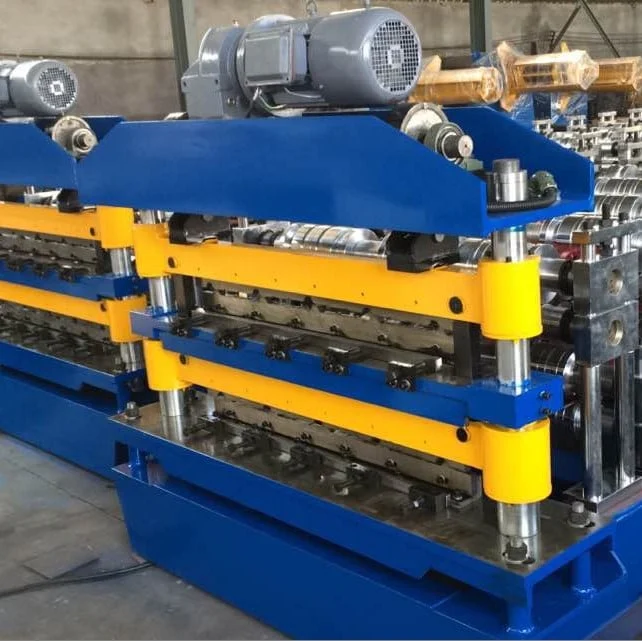

Roll stations UP layer: 18 stations
Down layer: 18 stations
Roller material Gcr15 steel after finishing, quenching HRC58-62°C,surface chrome treatment
Shaft material and size 45# steel，diameter is￠76mm
Main power 7,5kw (servo power)
Cutting method Post cutting system
Hydraulic press 12Mpa
Cutting blade material Cr12Mov， quenching HRC 58-62℃
Length tolerance 3m±1.5mm
Voltage 380V, 50HZ,3Ph
transmission 1,2 inch chain
The structural Memorial Arch structural
Machine color Blue
Machine size Length*width*height
11m*1.8m*1.0m
