We have designed and manufactured double layer roofing sheet machines which can produce two different kinds of metal sheets as follows：
- Trapezoidal roofing sheet and corrugated roofing sheet
- Trapezoidal roofing sheet and metal glazed roof tile
- Corrugated roofing sheet and metal glazed roof tile

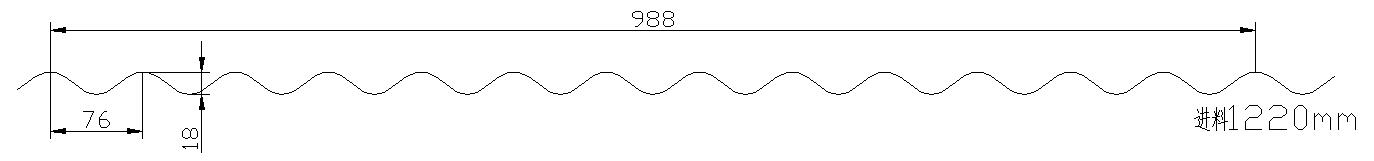

Corrugated roofing sheet:

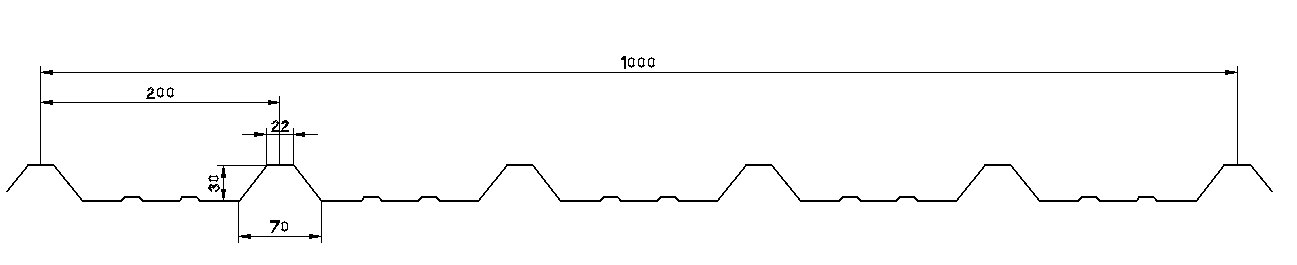

Trapezoidal roofing sheet:

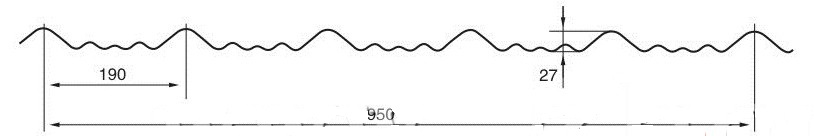

Metal glazed roof tile:
The drawings displayed above are model types. We can manufacture the machine as your different requests. Other profile sizes are also available for us.

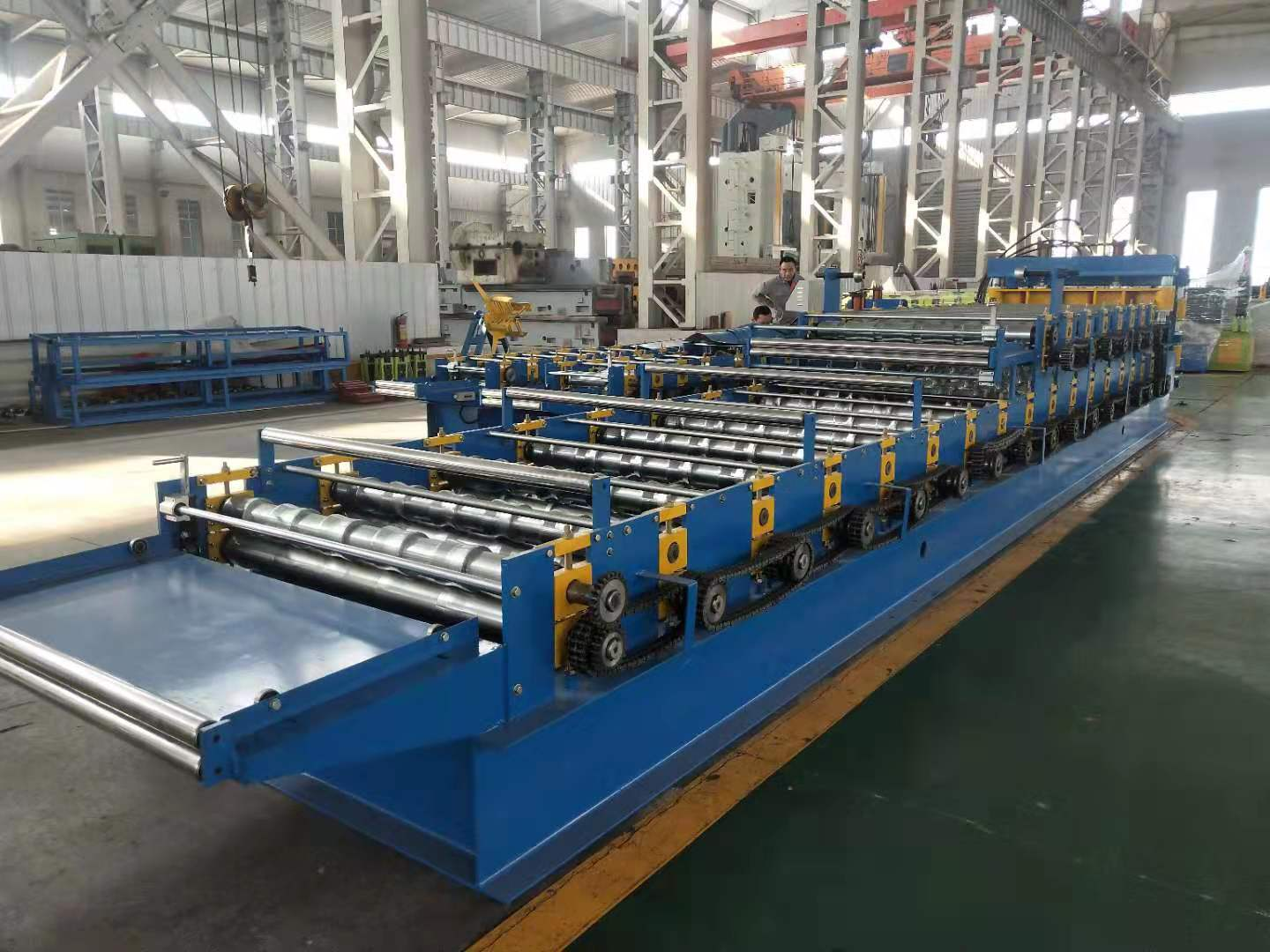

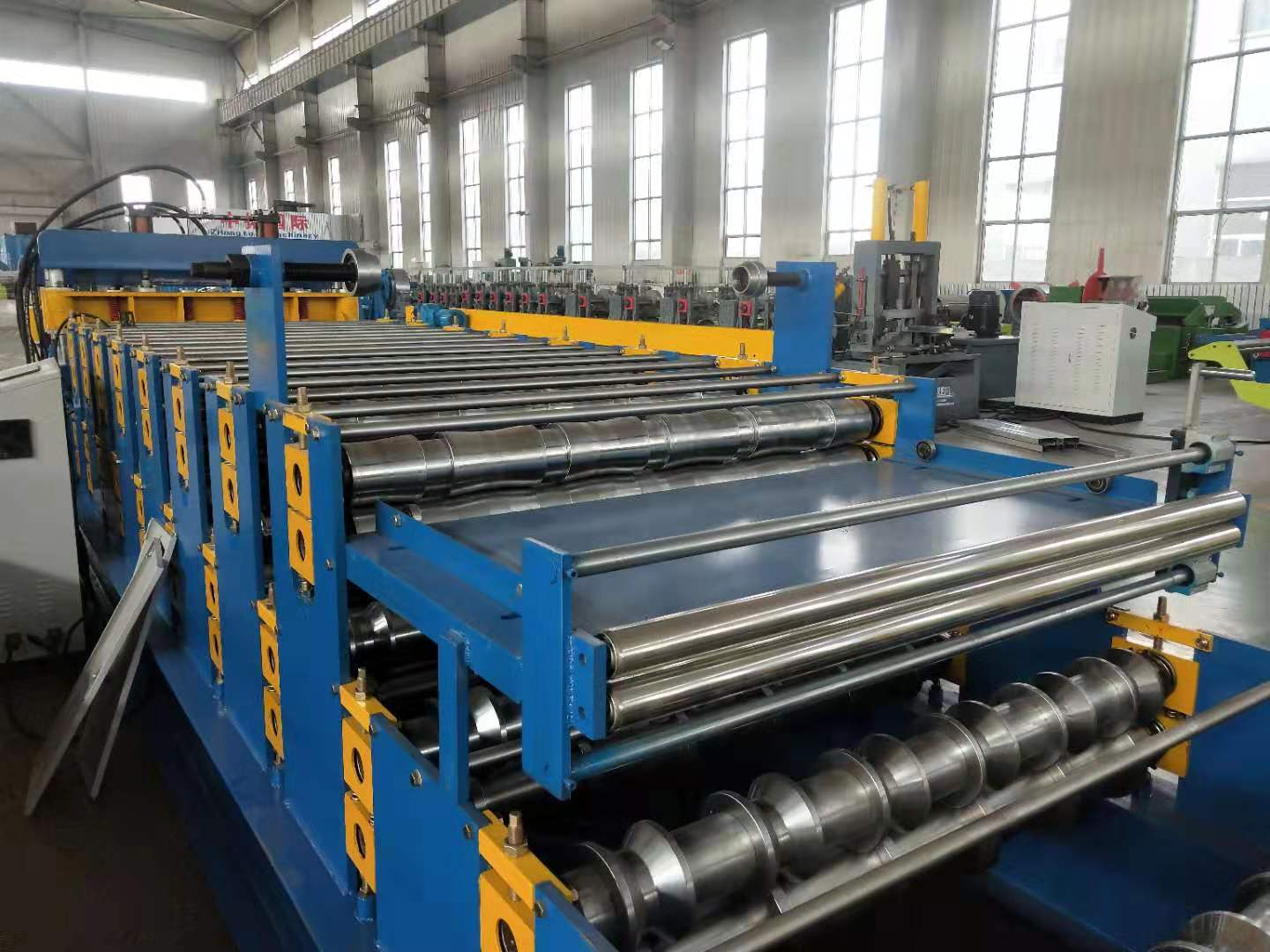

The double layer roofing sheet machine we manufacture is made for high-quality components and designed by sophiscated technology with the guidance of our company philosophy. Here’s a picture of double layer roofing sheet machine that can produce the metal glazed roof tile and trapezoidal roofing sheet. We designed the cutting system and step press system by adopting the gydraulic pillar design concept, helping to balance the hydraulic power and make the cutting incision more neat.
Our double layer roofing sheet machine consists of the composites as followings:
- Manual decoiler
- Manual pre-shearing
- Feeding guide
- Roll forming system
- Hydraulic stamping & cutting unit
- Control system
- Output table
The specification of the double layer roll forming machine:
1. Feeding width: 1220mm (or as required)
2. Effective width: depends on the profile drawing
3. Rolling station number: 18 stations
4. Driving motor power: 5.5kw
5. Hydraulic motor power:5.5kw
6. Control system brand: Delta or Siemens or Mitsubishi
7. Voltage: (415-440)V-50HZ-3Phase
8. Roller treatment: chromed
9. Shaft diameter: 80mm
10. Transmission: by chains
Service:
1. We have showroom in Mumbai of India, the after sale service will be free in lndia.
2. The customer will bear the accommodation for our technician if the work cannot finish one day.
