The Double Line C U Channel Stud and Track Rolling Making Machine lies in its breakthrough of the limitations of traditional equipment with a single output. It is not a simple superposition of two machines, but rather achieves synchronous operation of two independent production lines on the same device through highly integrated precision design and intelligent control system. This means that enterprises can simultaneously produce two different specifications and cross-sectional shapes of light steel keel profiles, whether it is C-shaped steel for partition walls, U-shaped steel for ceilings, or non-standard customized profiles required for specific projects, all of which can be processed in one machine.

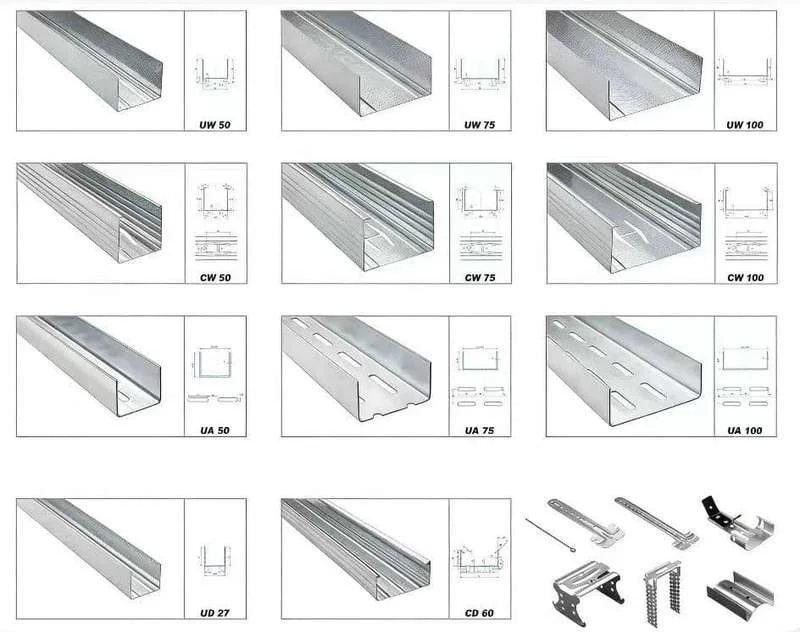

Pattern diagram:
Core advantages:
- One machine, dual output, efficiency revolution
- Precision and intelligent manufacturing, quality assurance
- Flexible customization, smarter than the future
- Green intelligent manufacturing, win-win ecology

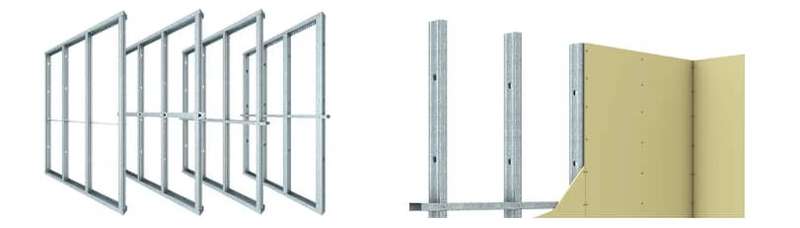

Application Scenario:
1、 Architectural Decoration Engineering (Most Mainstream)
Integrated production of indoor partition walls and suspended ceilings：Simultaneously producing C/U-shaped partition wall keel+card/overlay/ceiling keel to meet the needs of partition wall and ceiling skeleton in office buildings, shopping malls, hotels, and residential areas.
2、 Light steel villas and prefabricated buildings
Production of Light Steel Structure Residential Skeleton：Simultaneously producing vertical wall studs, floor/roof purlins, and crossbeams, suitable for villas, homestays, and multi story light steel buildings.
3、 Industrial and Commercial Buildings
Factory/Warehouse/Workshop：Production of C/Z steel, roof purlins, wall beams, dual unit high production capacity, fast delivery, suitable for large-area factories.
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | gearbox transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

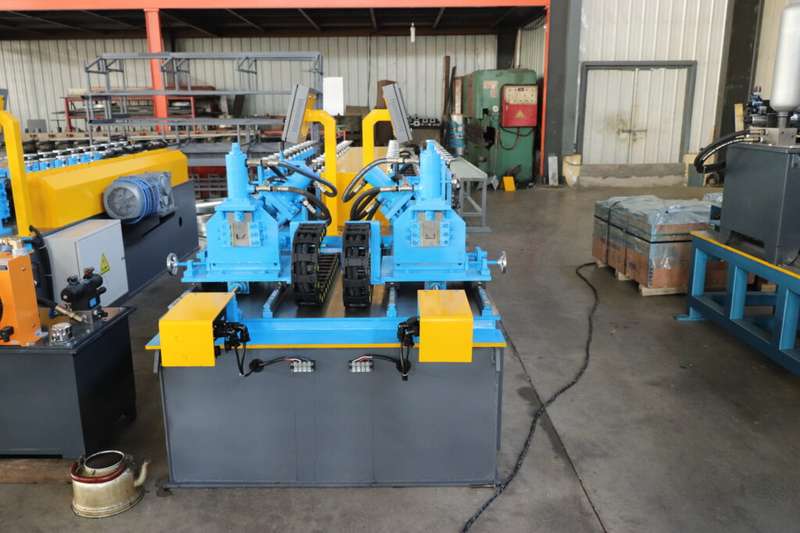

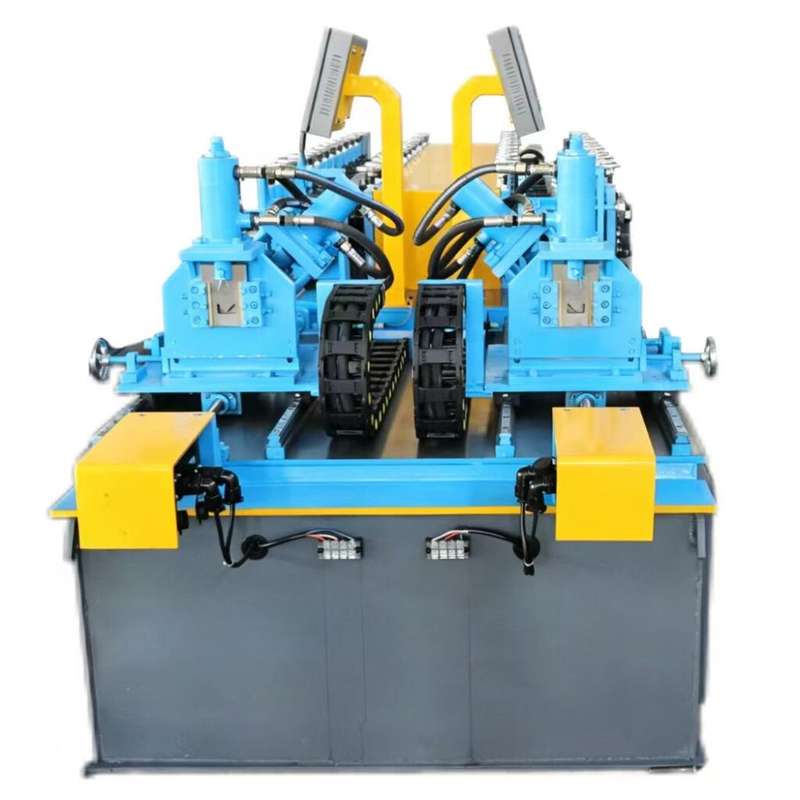

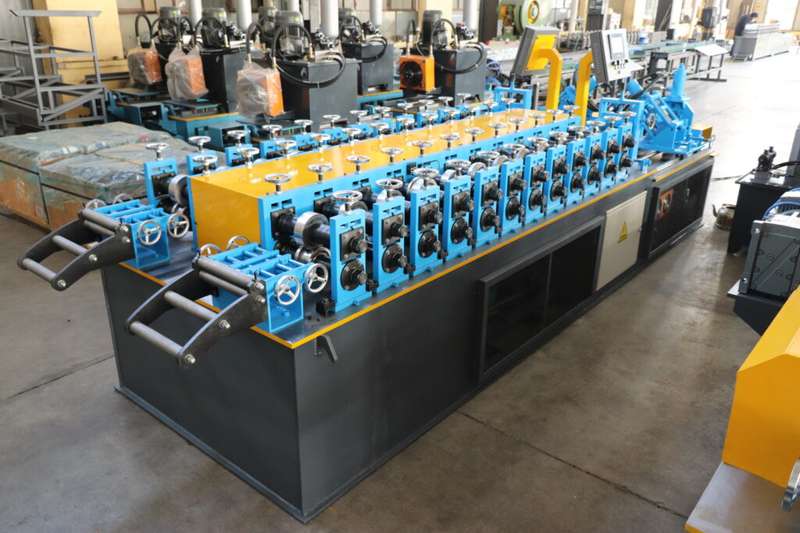

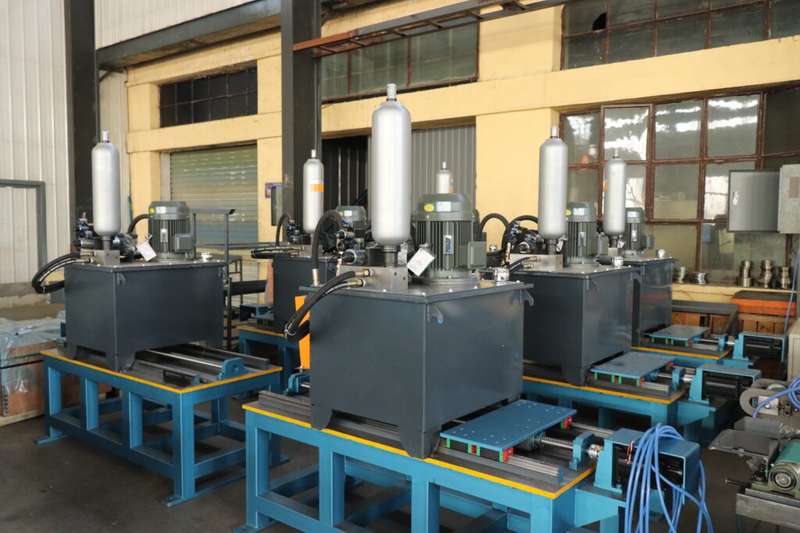

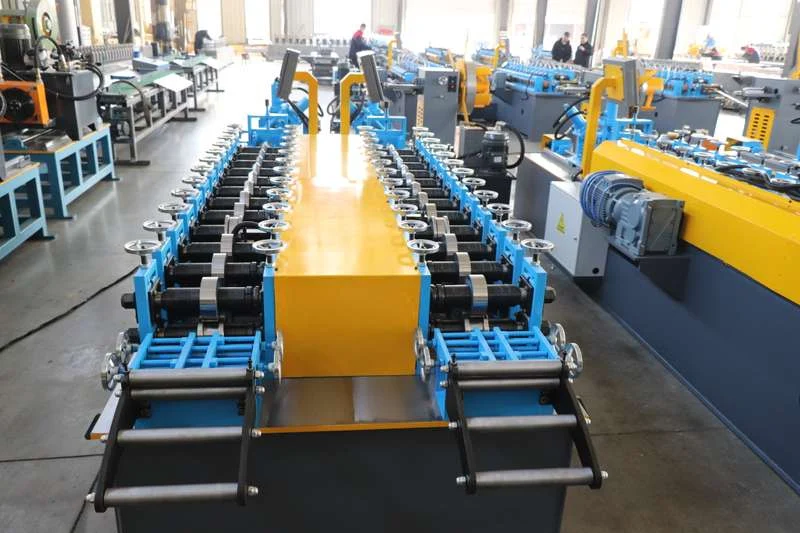

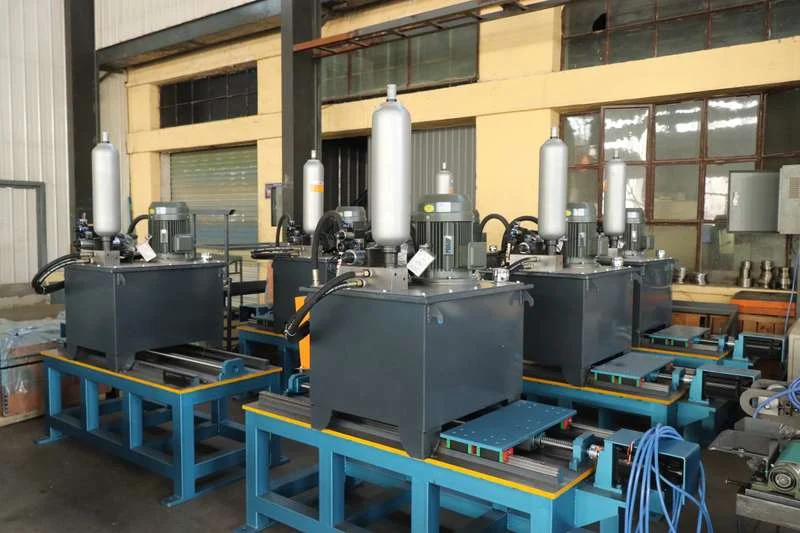

Machine photo:
