The Double Line Light Steel Keel Furring Channel Roll Forming Machine is not simply two individual machines joined together, but a highly integrated automated cold bending forming system. It mainly consists of an integrated double material rack, dual-channel leveling and feeding system, dual independent precision roller sets, a hydraulic/servo punching and cutting system, and a dual-circuit intelligent electrical control system.
It can operate two production lines independently simultaneously, or achieve synchronous production from both sides. Whether standard specifications or customized sizes, it can double the daily production capacity of traditional single-machine equipment while ensuring extremely high consistency, truly embodying the modern industrial aesthetic of "trading space for time and intelligence for manpower."
Key Features: Six Advantages for Superior Quality
- Dual-unit synchronous drive, doubling efficiency and halving costs
- High-precision roll dies, ensuring millimeter-level forming accuracy
- Intelligent CNC system, one-button changeover for simple and efficient operation
- Silent hydraulic/servo cutting, producing smooth and aesthetically pleasing cuts
- Fully automatic online punching, overcoming installation barriers
- Fully enclosed safety protection, ensuring durability
Application Scenarios: Wide Coverage, Constructing Safe Spaces
- Customized Ceiling Systems:
In large commercial complexes, office buildings, and cleanrooms, the cap-shaped keel serves as the load-bearing keel, working in conjunction with the clip-on main keel to form a double framework. This not only provides strong load-bearing capacity, but its open groove design also allows for more flexible and convenient installation of ceiling panels and pipeline laying. - Lightweight Roof Trusses and Exterior Wall Systems:
In low-rise light steel structure buildings, the cap-shaped keel can also be used as roof purlins or wall tie strips. Its lightweight, high-strength, rust-proof, and corrosion-resistant properties replace traditional heavy wooden or steel materials. - Old Building Renovation and Secondary Decoration:
The prefabricated keel has standard dimensions and is lightweight, making it ideal for the rapid renovation of old buildings. It significantly reduces the additional load on the main building structure, allowing for dry construction and is environmentally friendly.

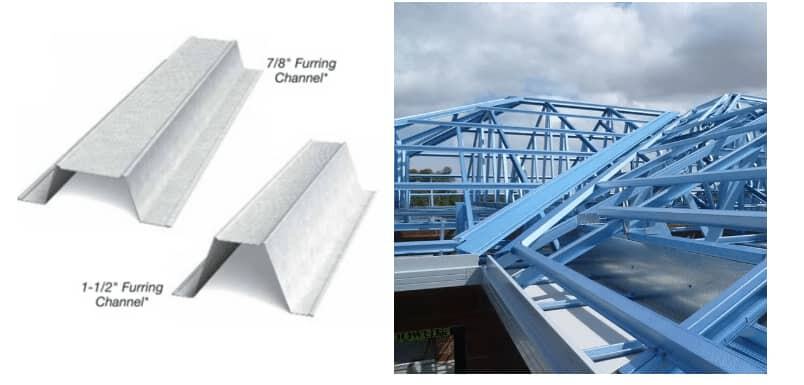

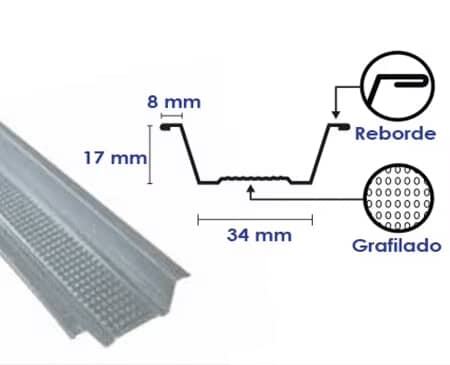

Pattern diagram：
Product Attributes :
| Series | Details | Parameter | Comment |
| Material | Raw material | Steel | Customer confirmed |
| Material thickness | 0.4-0.6 mm | ||

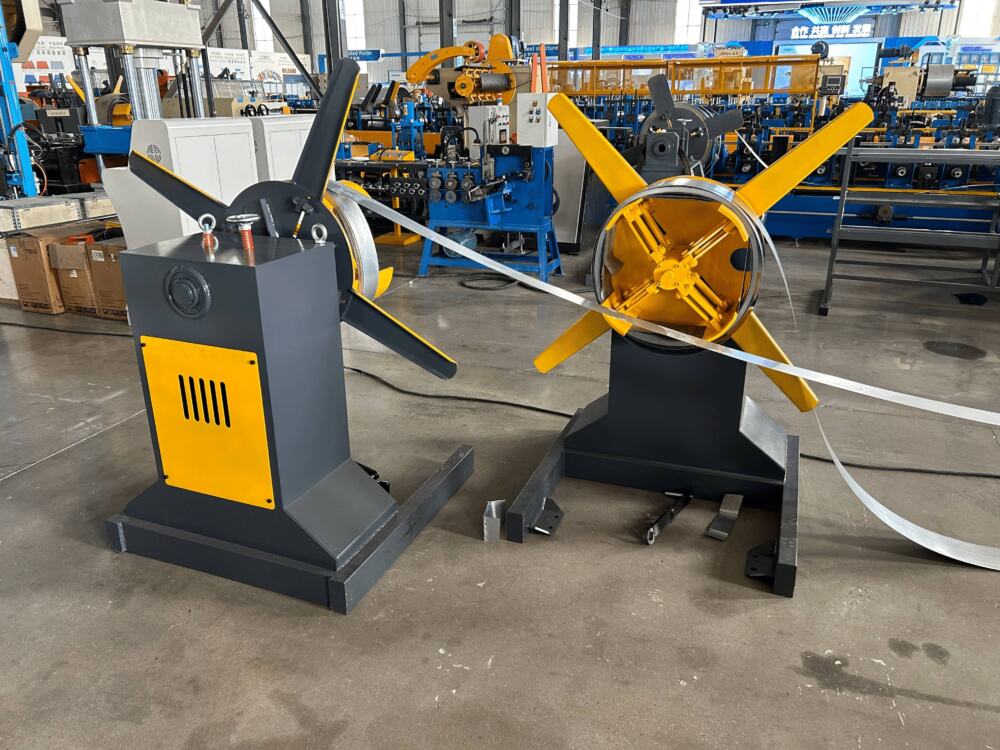

| Decoiler | Structure | Manual passive type | The standard one to match the production line |
| Single head type | |||
| Loading capacity | 1.5 Tons | ||
| Coil inner diameter | 450-550 mm | ||

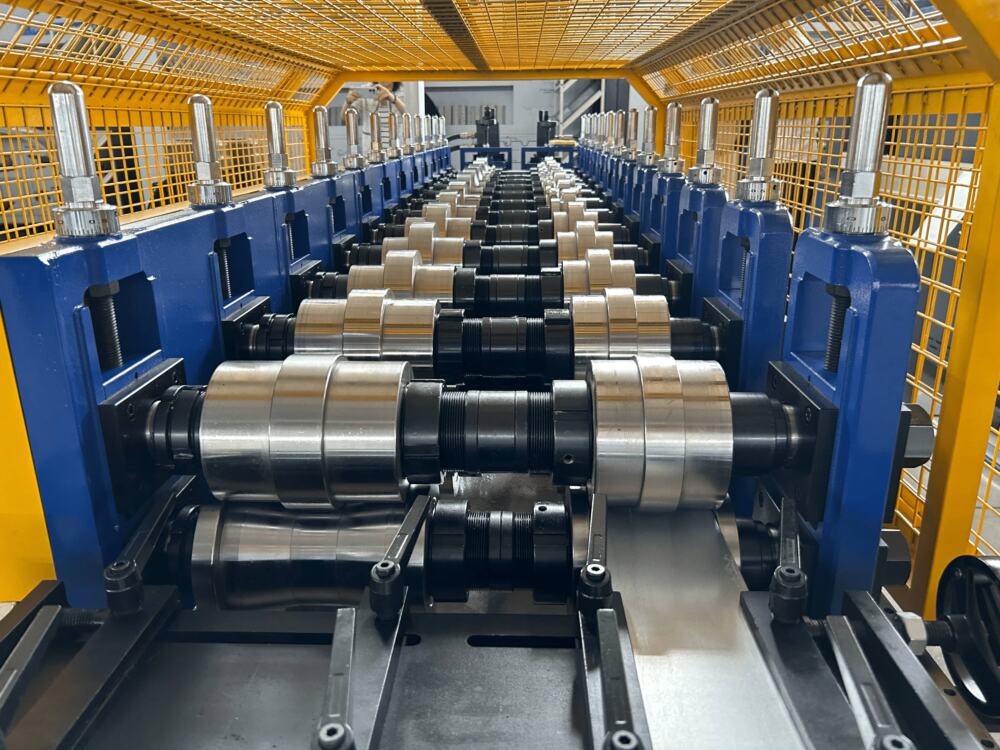

| Roll forming machine | Guiding device | Placed on the machine by seller | |
| Rolling shaft material | 45# STEEL | ||
| Shaft diameter | 50 mm | ||
| Roller material | GB-Cr12 | ||
| Rolling station | 12 stations | ||
| Work speed | 25 m/min | ||
| Machine structure | Vertical memorial arch frame | ||
| Machine basic frame | Steel plate welded | ||
| Bearing | Roller bearing | Famous brand of Harbin | |
| Work power | 5.5 + 5.5 kw | ||
| Transmission | By gear | With cover | |
| Safety cover | available | ||
| Appearance | Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy | We confirm each detail can match the standard, ensure the machine is 100% new! |

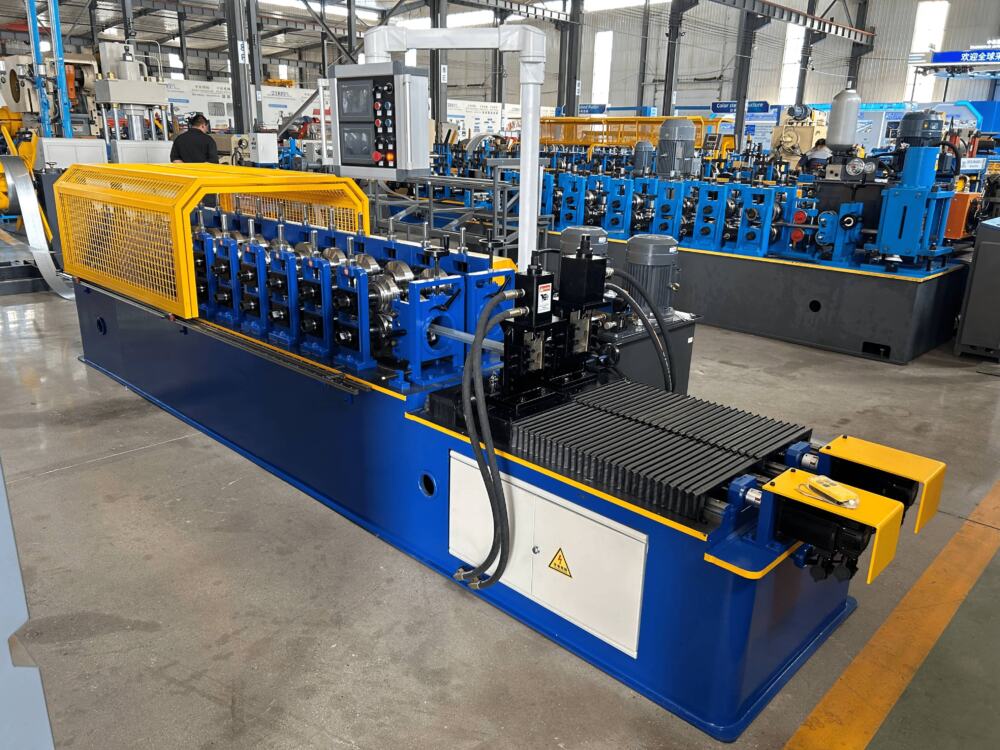

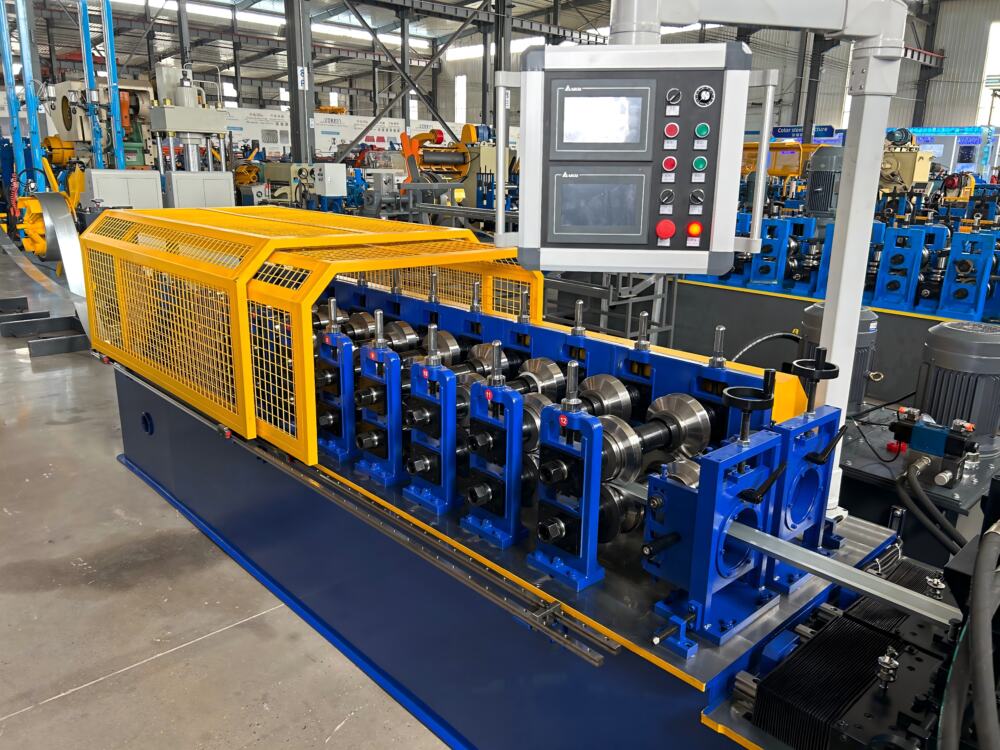

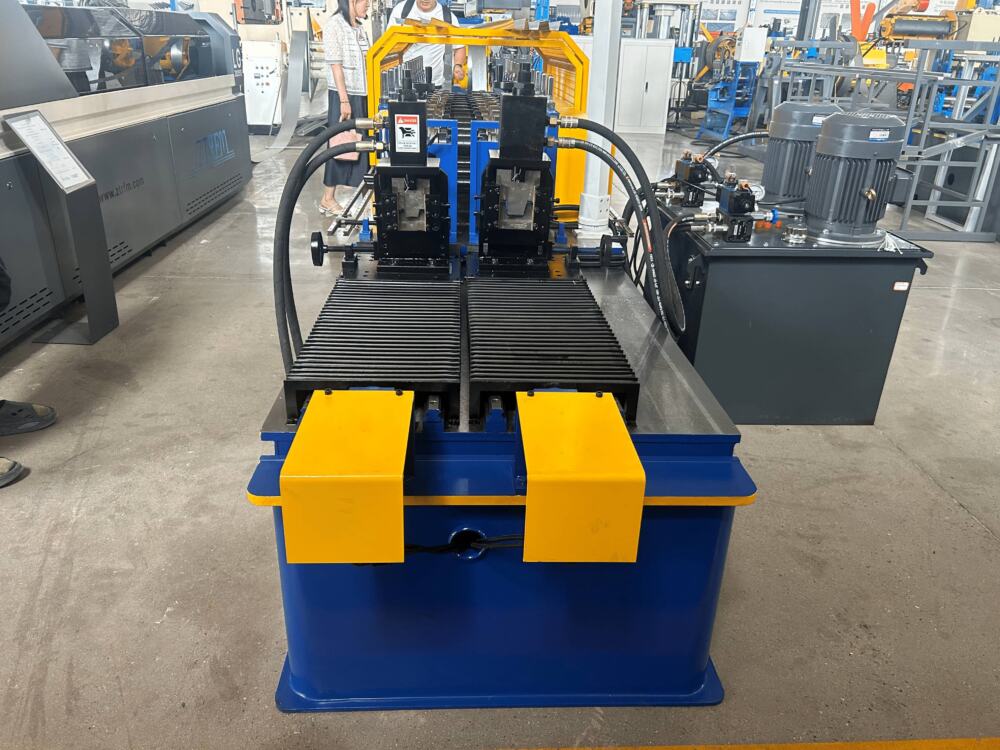

Machine image:
