As the light steel keel industry rapidly moves towards large-scale and customized production, the traditional single-machine production model has revealed pain points such as "high efficiency bottlenecks, long changeover times, and the need for multiple supporting machines." Our Double Line Two in One C U Channel Drywall Stud and Track Roll Forming Machine, with its innovative dual-line parallel design, combines two independent production lines—U-shaped vertical keels and C-shaped vertical keels—into one. Using only one machine, it can simultaneously produce high-precision matching keels, providing a superior solution for cost reduction and efficiency improvement for keel manufacturers, large building material distribution centers, and the construction engineering supporting sector.
Key Features：
1.Dual-line parallel operation, doubling efficiency
2.Multi-functional, rapid changeover
3.High-precision molding, stable quality
4.Intelligent control, simple and reliable
5.Compact structure, durable
Application Scenarios：
- Large-Scale Light Steel Keel Manufacturing Plant:
For large-scale engineering projects or brand OEM manufacturing, requiring rapid delivery of large quantities and multiple specifications of keels. Dual production lines can simultaneously produce matching keels, making inventory turnover more efficient and easily handling order peaks. - Building Material Logistics and Distribution Center:
For scattered orders with "multiple varieties and small batches," dual production lines flexibly produce different specifications, quickly equipping customers with the complete set of keels and accessories needed, improving service responsiveness and market competitiveness. - Construction Site Support Station:
Mobile or on-site keel production, simultaneously manufacturing the required partition wall and ceiling keels according to the construction schedule, reducing material transportation and loss, ensuring construction progress, and lowering overall costs.

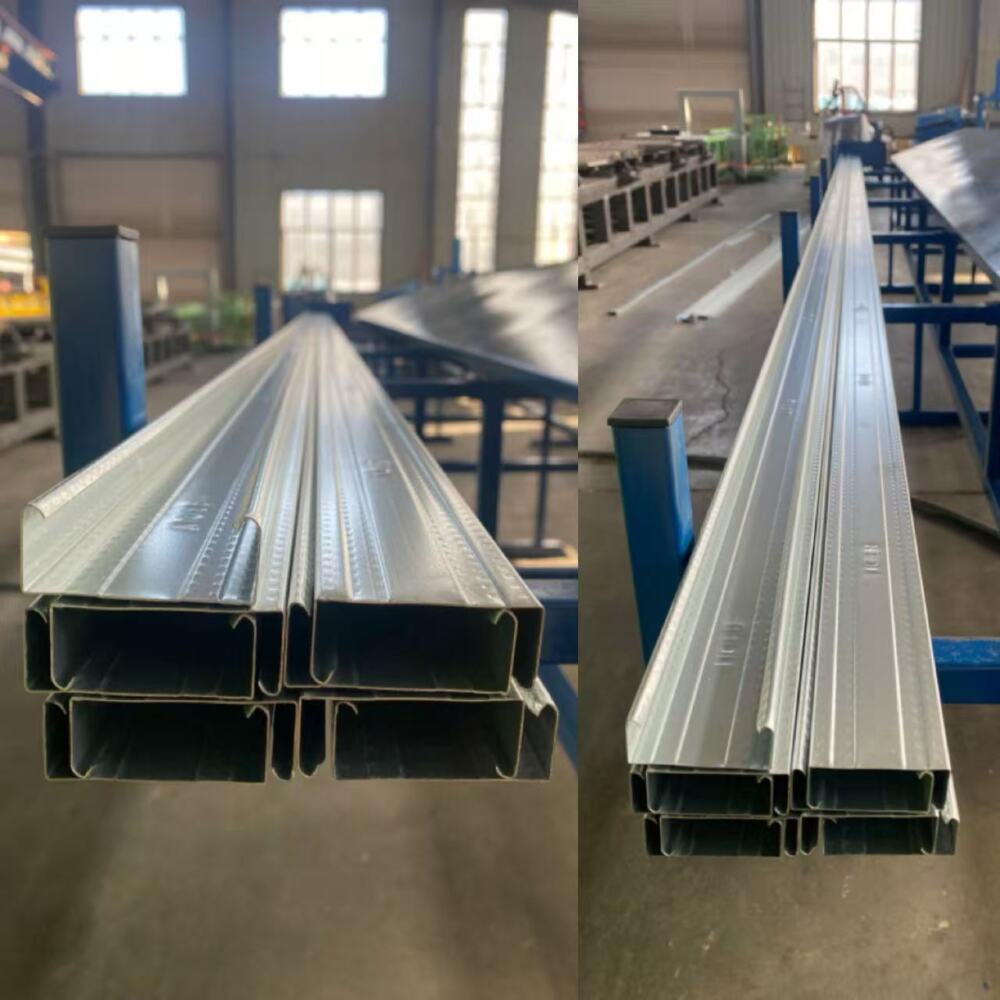

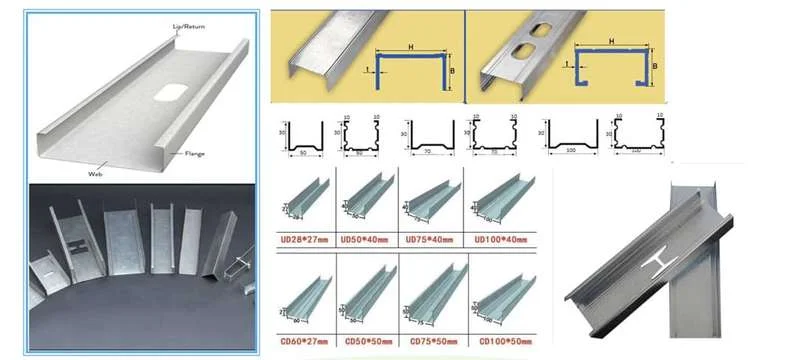

Pattern diagram：
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||

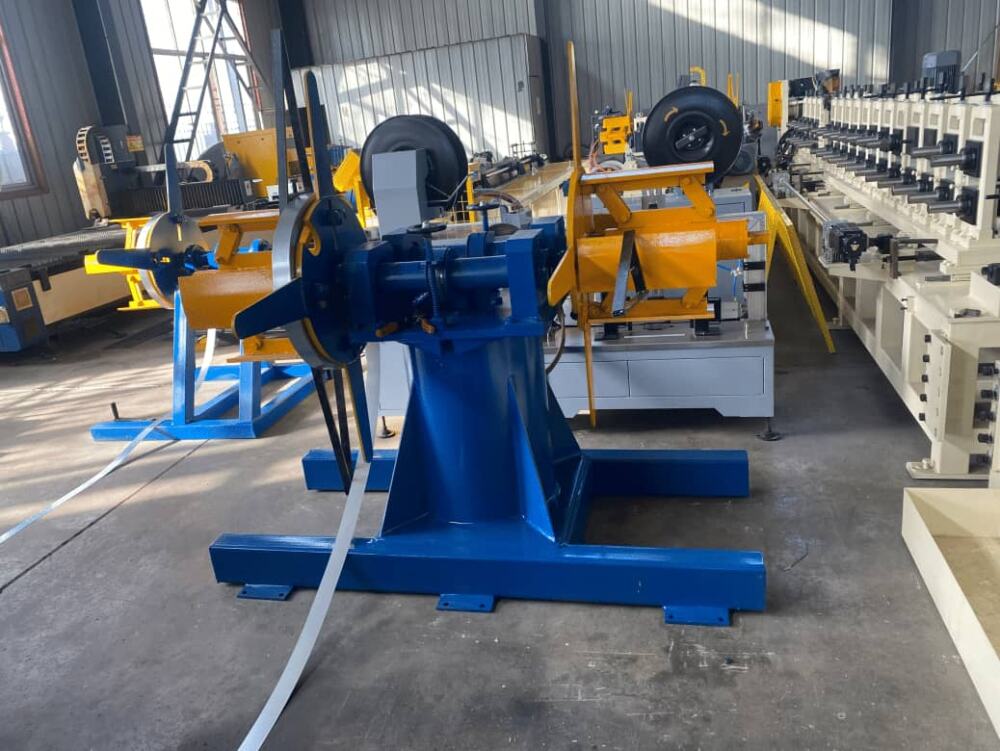

| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chains transmission | |||
| Dimension(L*W*H) | 7800*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW*2 sets | ||
| Hydraulic system power | 4KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-100m/min(customized) | Different speed designs for options. | ||

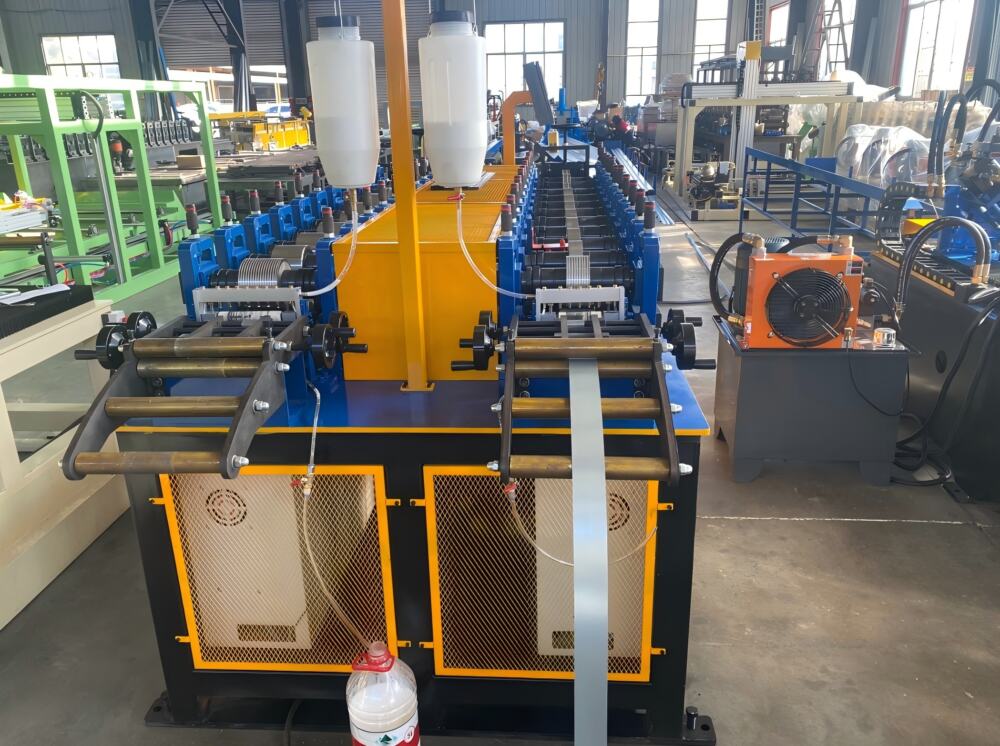

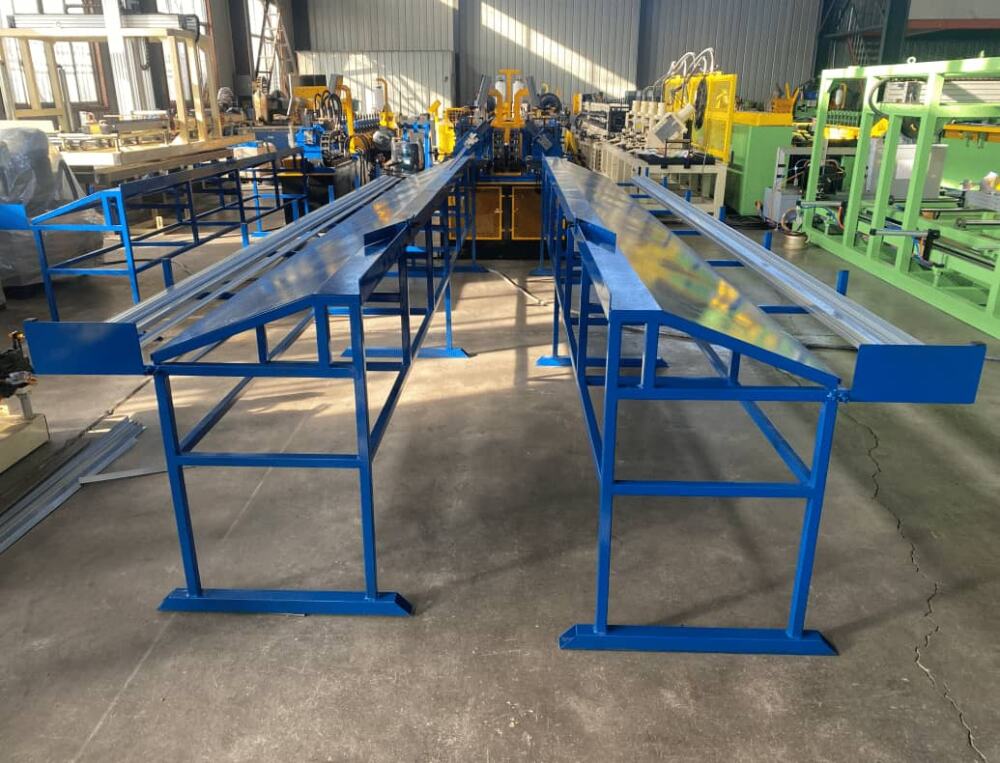

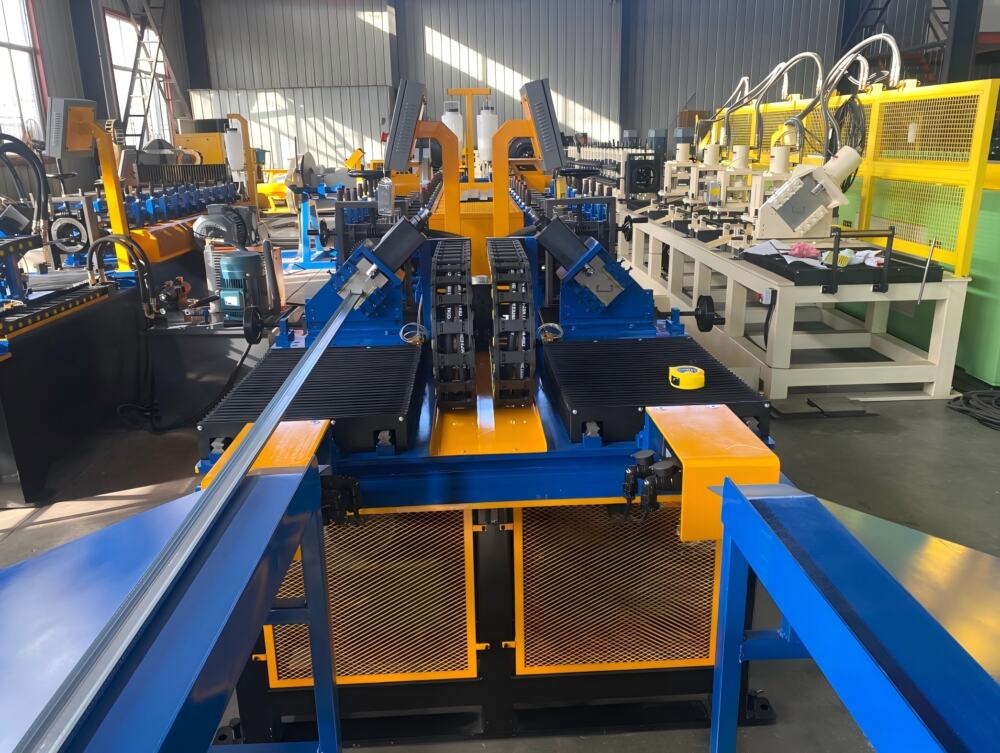

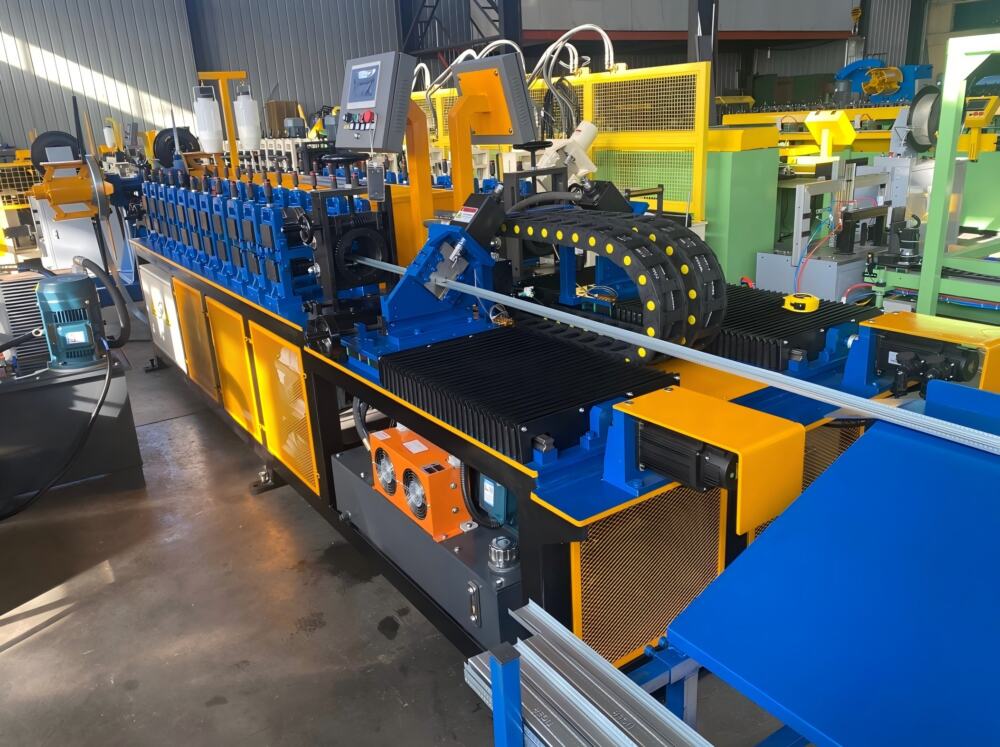

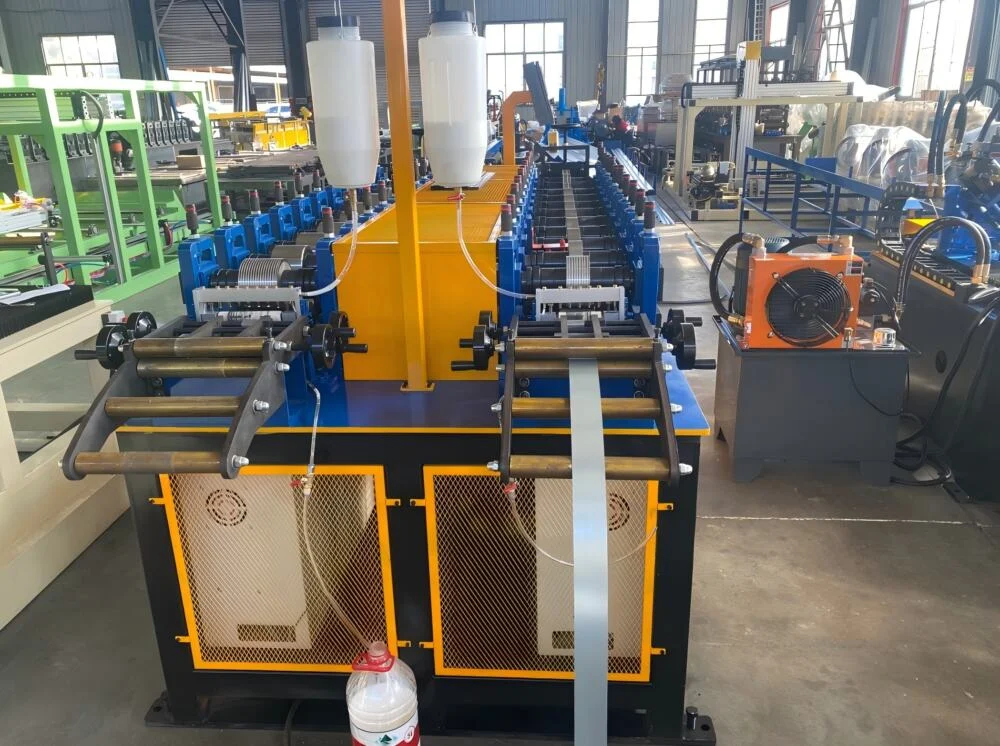

Machine image:
Contact Us：
The dual-unit keel forming machine breaks through technological boundaries, reshaping the production logic of light steel keels with dual-line intelligence—doubling capacity is no longer a simple addition of space and equipment, but a smart collaboration integrated into a single machine. Choosing us means choosing lower overall investment, faster market response, and more stable product quality. Partner with the dual-unit keel forming machine now and drive your building materials manufacturing into a new era of high efficiency.
