The Double Light Steel Drywall Stud Frame Forming Machine, as the name suggests, is a high-performance cold bending equipment integrating two independent forming units. It is not simply a combination of two machines, but rather a highly integrated system combining dual-line main units, a dual-servo tracking cutting system, and intelligent electrical control within a single machine bed. The entire machine typically consists of a hydraulic feeding machine, dual forming main units (which can operate independently or in conjunction), a high-precision servo cutting unit, and a PLC integrated control cabinet. Depending on order requirements, a single unit can operate independently at high speed, or both units can operate simultaneously to double production capacity. This truly achieves "one machine for two uses," completely breaking down traditional production barriers.
Superior Features：
1.Dual-function machine, flexible production switching
2.Double efficiency, halved footprint
3.Intelligent control, consistent precision
4.Durable and durable, low damage and long lifespan
5.Cost reduction and efficiency improvement, rapid return on investment
Application Scenarios:
- Large building material factories and distribution centers:
Facing frequent mixed-batch orders from distributors, it can simultaneously produce ceiling main keels and surface secondary keels, enabling immediate packaging and delivery, significantly shortening delivery cycles and improving customer satisfaction. - Light steel villa and prefabricated house manufacturing:

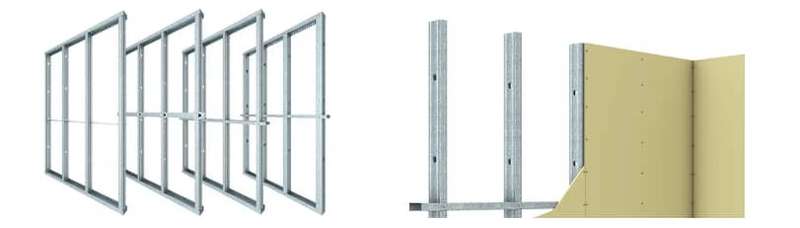

Housing systems require varying sizes of top and bottom keels, vertical keels, and through keels. A single dual-unit machine can simultaneously supply all cross-sections, simplifying on-site material management and further accelerating construction efficiency. - Decoration engineering companies' own production bases:
Providing centralized supply of ceiling and partition wall keels for large-scale decoration projects, both units operate at full capacity simultaneously, ensuring supply to their own projects while generating revenue through external sales of surplus stock, achieving integrated manufacturing and trading.

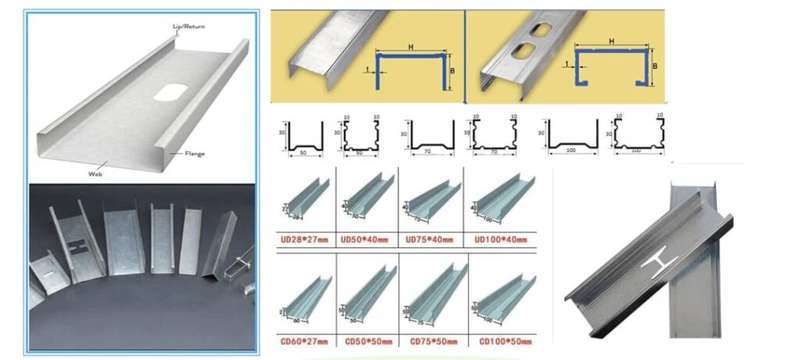

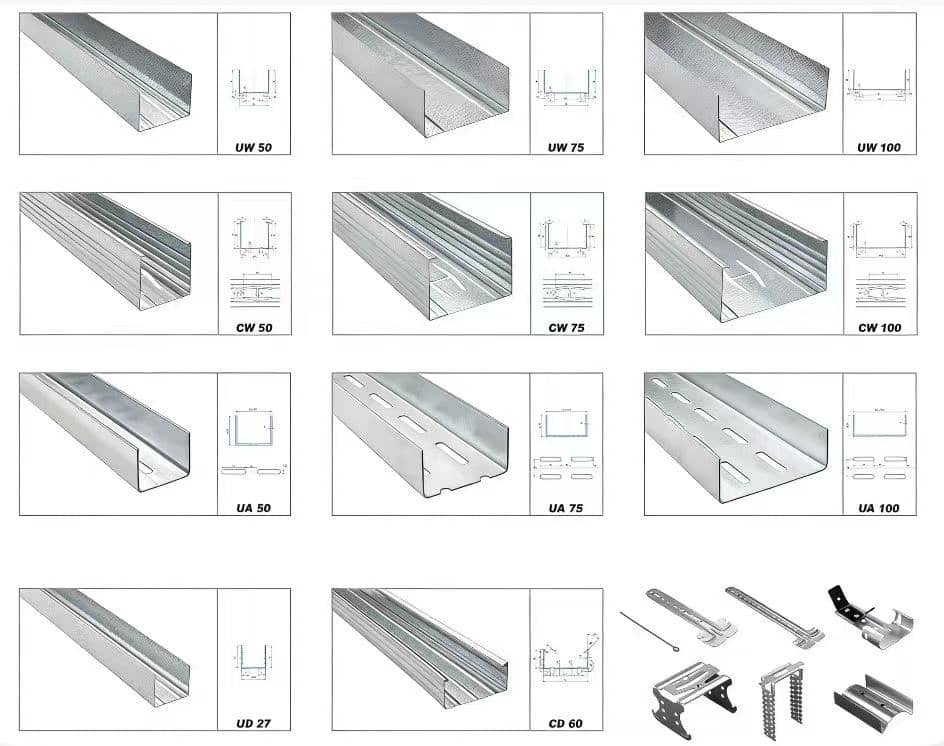

Pattern diagram：
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||

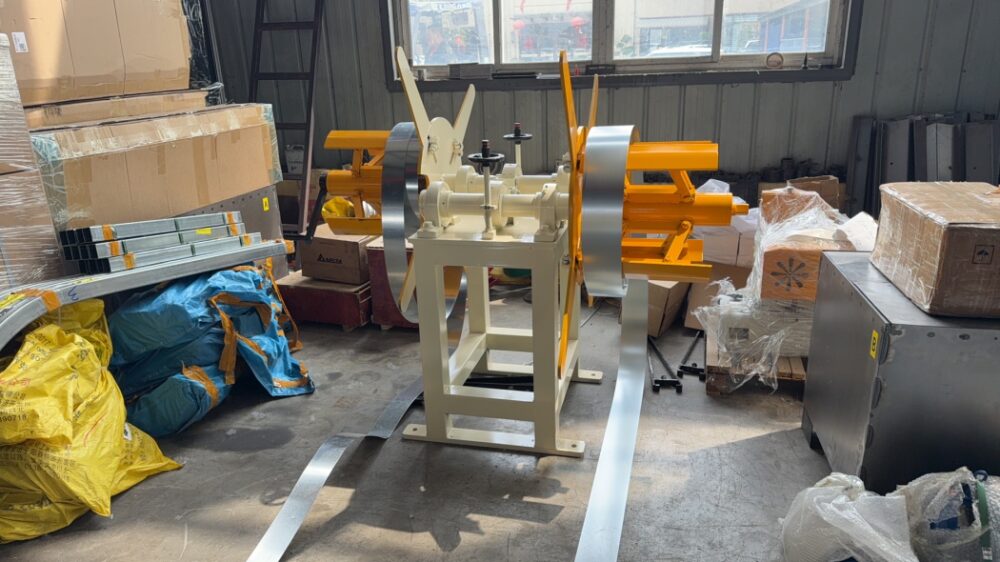

| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | gearbox transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 60-70m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

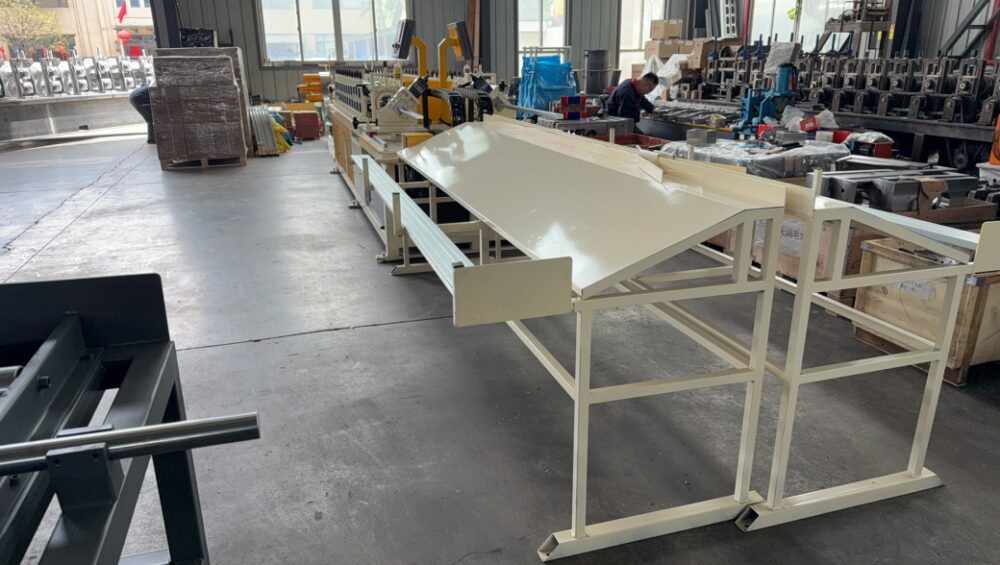

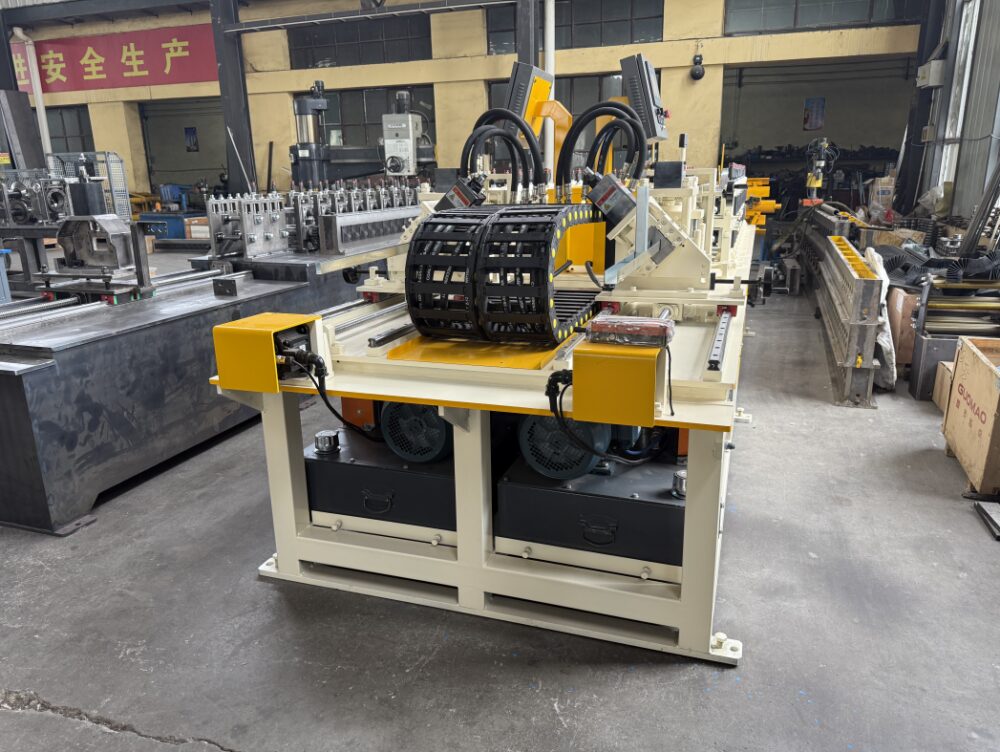

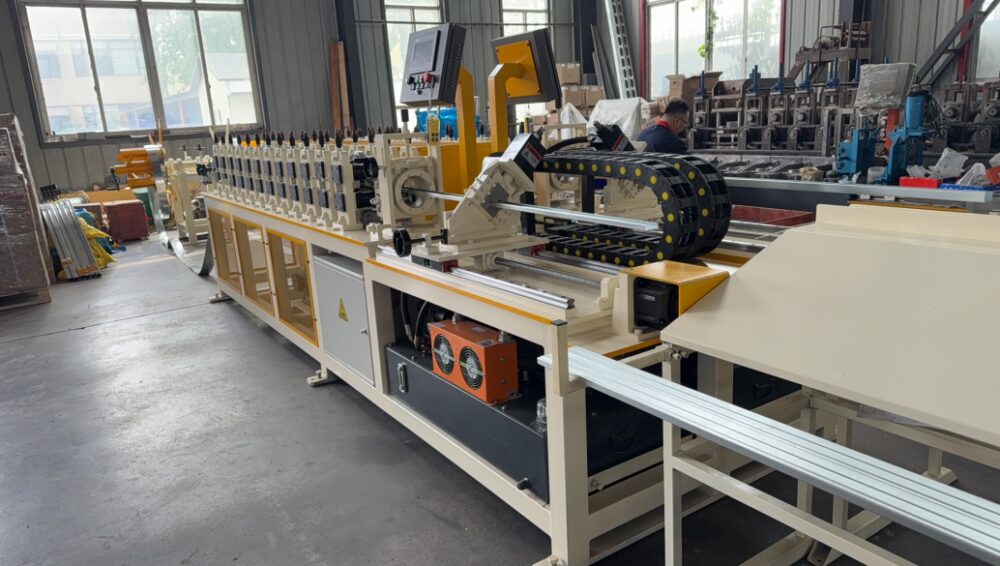

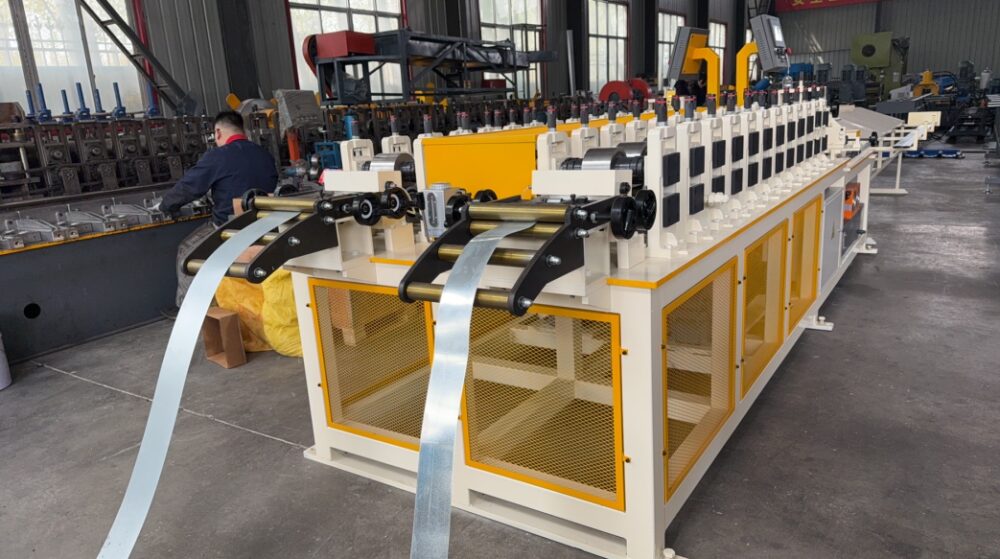

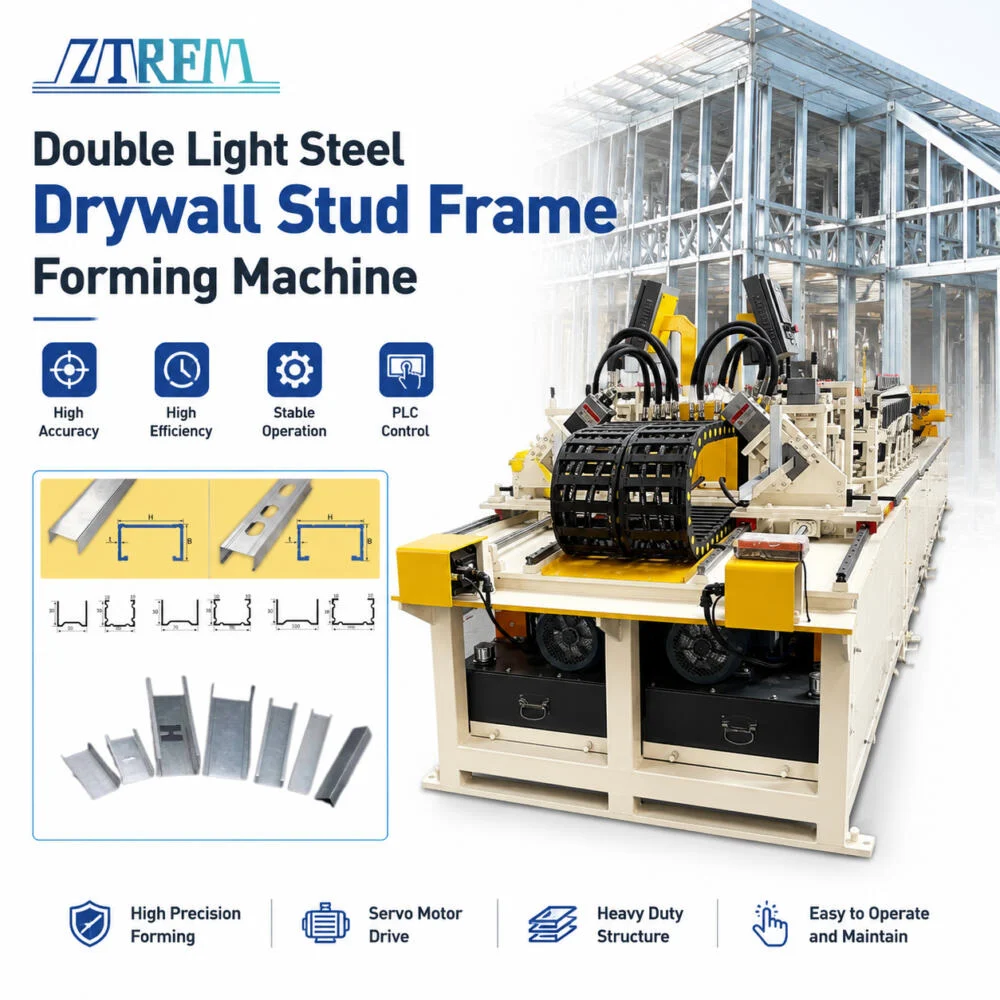

Machine photo:
Contact us：
To seize the high ground in efficient light steel keel production, speed is essential, but so is flexibility. Our dual-unit keel forming machine breaks free from the limitations of single specifications with integrated intelligence, ensuring that every production run precisely meets market demand, maximizing returns with minimal investment.
Contact us for customized production plans and real-time quotes, and let's usher in a new era of intelligent and flexible manufacturing.
