Popular in Costa Rica Drywall C Channel Roll Forming Machine

The Drywall C Channel Roll Forming Machine is an automated cold-bending forming equipment specifically designed for the continuous production of C-shaped cross-section light steel keels. It integrates feeding, leveling, punching, cold bending, length cutting, and automatic unloading into one unit, achieving fully automated assembly line operation through a PLC electrical control system.

Simply place the galvanized steel coil into the material rack, and the equipment will automatically produce C-type keel finished products conforming to national standards, such as ceiling keels and partition wall vertical keels, according to a preset program.

Key features:

High-precision forming, consistent quality:
The equipment uses high-quality alloy steel rolls, precision CNC machined and subjected to rigorous heat treatment processes to ensure accurate roll dimensions, high surface hardness, and excellent wear resistance.
Fully automated control, extremely simple operation:
Equipped with an imported or top-tier domestic brand PLC control system, coupled with a touchscreen human-machine interface, parameter settings are intuitive and clear. The operator only needs to input the production quantity and length, and the equipment can automatically complete the entire process from material input to finished product.
High speed and high efficiency, leap in production capacity:
The optimized mechanical structure and power transmission system enable the equipment to achieve high-speed continuous production while maintaining precision, with production speeds typically reaching 15-30 meters per minute.

Pattern Diagram:

Application Scenarios:

Interior partitions in commercial and residential buildings:
Serving as the main structural framework for non-load-bearing interior partitions (such as those in offices, hotels, and residences), it replaces traditional brick walls, enabling dry construction, rapid installation, lightweight construction, and high space utilization.
Interior and exterior decorative ceilings:
An indispensable structural material for various ceiling designs (such as flat ceilings and stepped ceilings), providing a flat and stable installation base for gypsum board, mineral wool board, and other decorative panels.
Old building renovation and refurbishment:
In the renovation of existing buildings, the light steel keel system facilitates construction, allows for the rapid creation of new spatial layouts, and places minimal load on the original structure, making it an ideal choice for urban renewal projects.

Product Attributes :

1.Formed Material	PPGI,GI,AI	Thickness:2-3mm

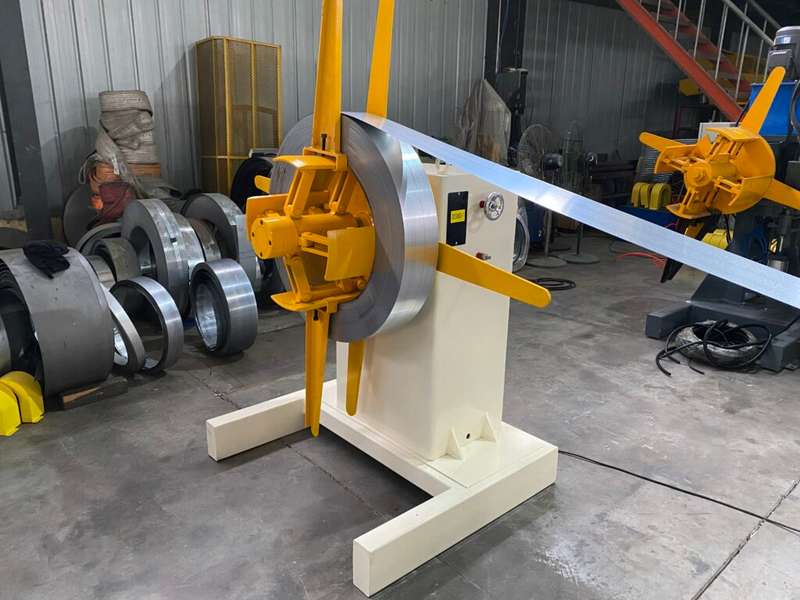

2.Decoiler	Hydraulic automatic decoiler	will give you as free
3.Main body	Roller station	12 rows(As your requirement)
	Diameter of shaft	40mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	Metal steel welded
	Drive	customized
	Dimension(LWH)	customized
	Weight	About 3.5T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	10-25/min(customized)	The speed depends on the shape of the tile and the thickness of the material.

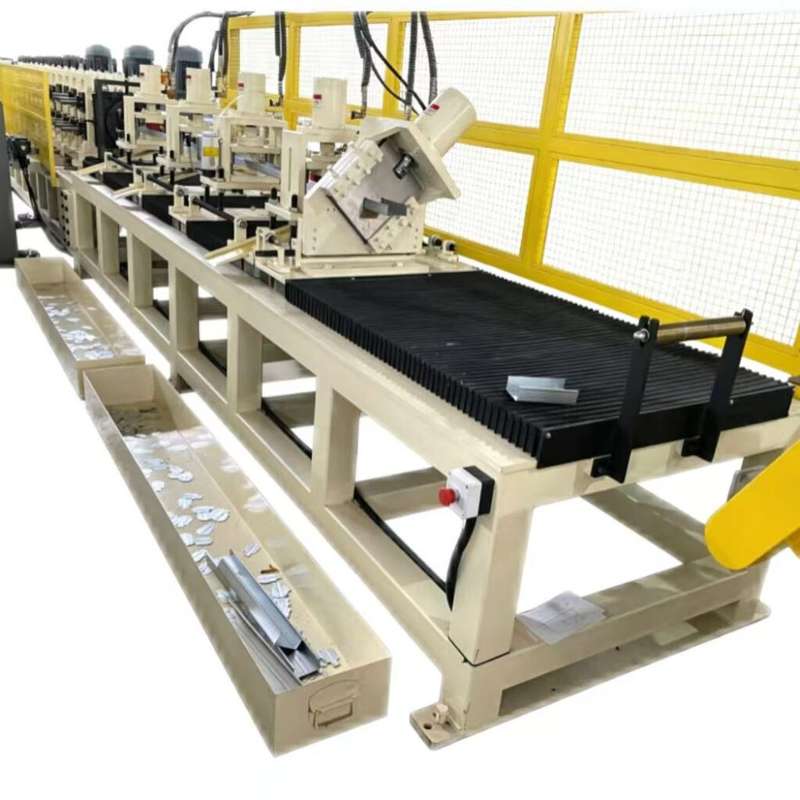

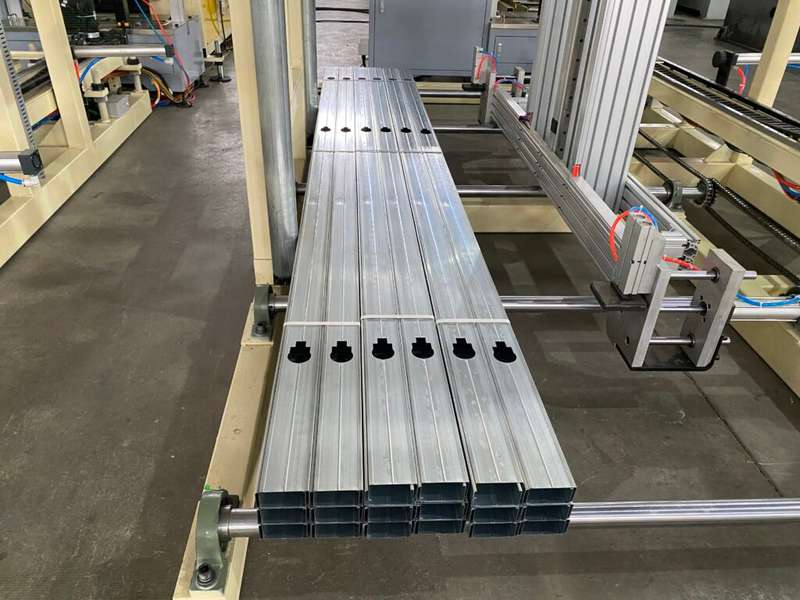

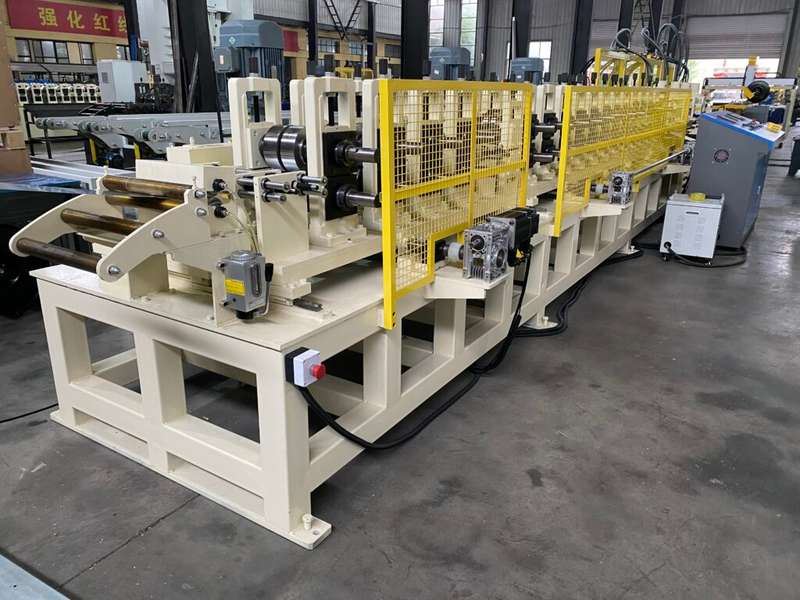

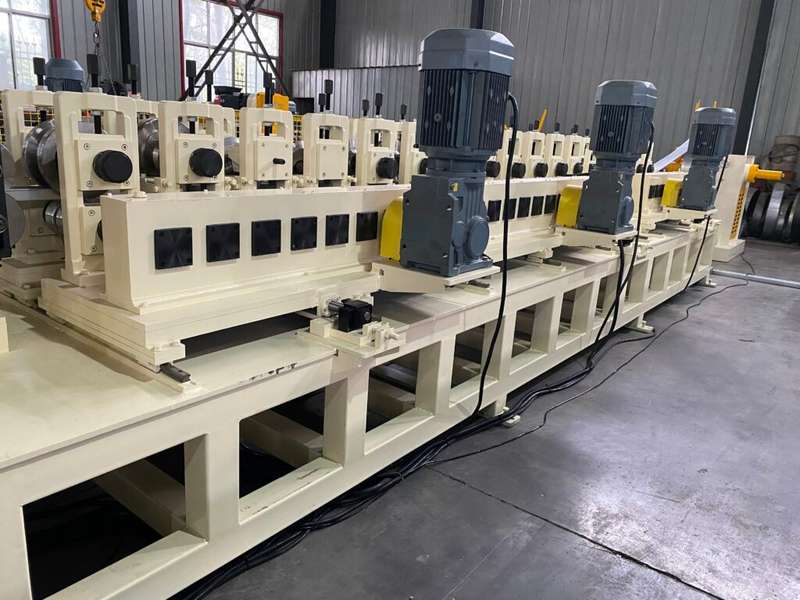

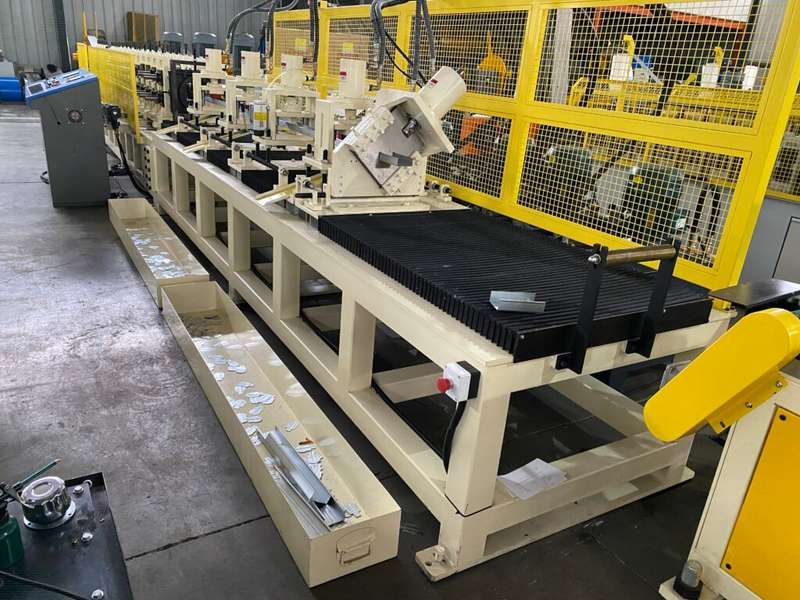

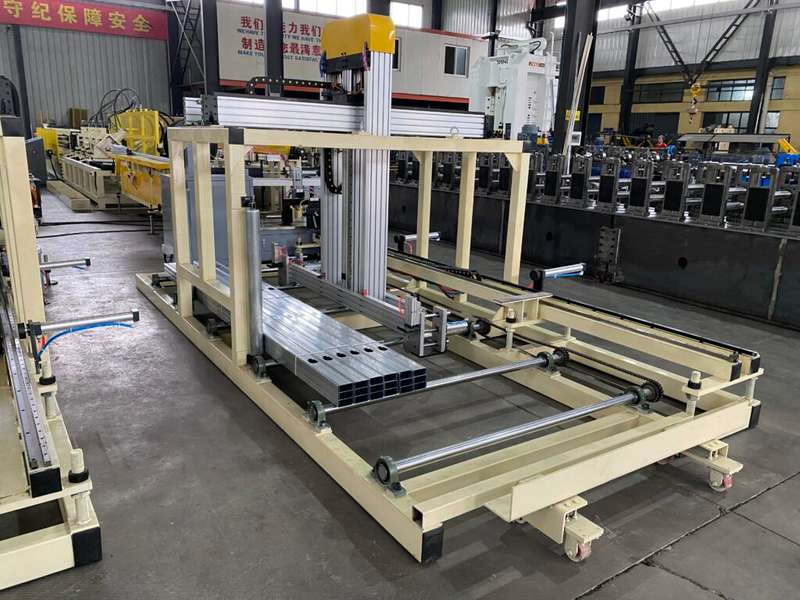

Machine image:

contact us：

Choosing our C-type keel machine is not just about purchasing a piece of equipment; it’s about acquiring a highly efficient production solution and a trustworthy long-term partner.

We provide a complete service, from factory layout planning and equipment installation and commissioning to operator training and lifetime technical support. Invest with confidence, operate with ease, and profit happily.
