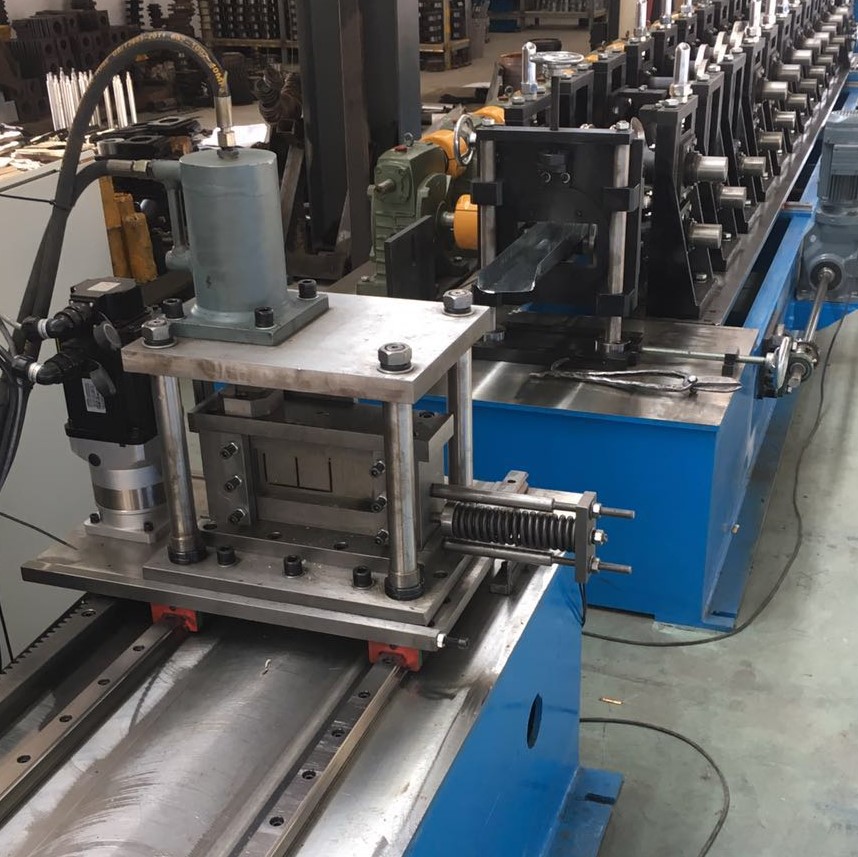

Model Yx5x33,5-38x75mm CU
Speed 15-20m/min (Not including cutting time)
Thickness 0.3—0.8mm
Controlling Panasonic PLC
Manual De-coiler 2 ton de-coiler
Roller station 14 stations （Including 1 station of reinforcing.）
Post cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃，chromium coating.
Shaft material and diameter 45# steel finish machining，diameter is ￠65mm
Main power 7.5kw
Hydraulic power 3.0 kw
Blade material Cr12Mov， quenching HRC 58-62℃
Length tolearance 3m±1.5mm
Voltage 220V, 60HZ,3ph
Can be customized according.
Transmission 1,2 inch single chain
