Motor decoiler:
Loading ability: 5T Decoiling width: 1200mm
Inner diameter:450-550mm Power: motor expansion
Moter brand: Chinese famous brand
125 Leveling system:
Machine size: 2300mm width PLC control box one set
Leveling roller: six upper rollers and 7 down rollers. Cutting blade thickness:1300mm
Runout table plate:80x2000mm
Hydraulic shearing system:
Machine size:3040x1610x1020 with one PLC control box
Machine power: 5.5kw hydraulic shearing blade:2500 width
Shearing blade:2500mm
Net weight: 4 ton
Supported material thickness: Max 1.5mm

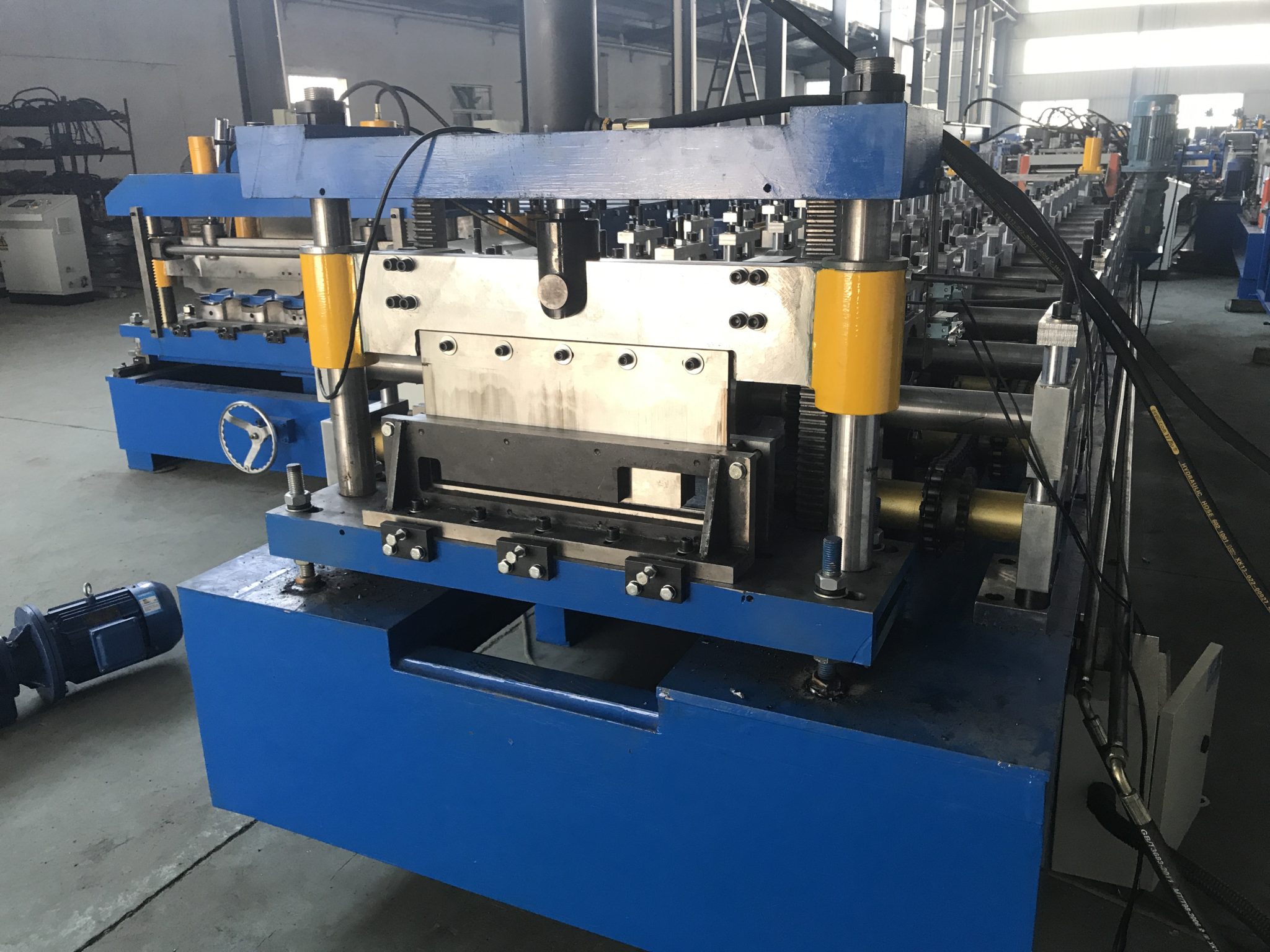

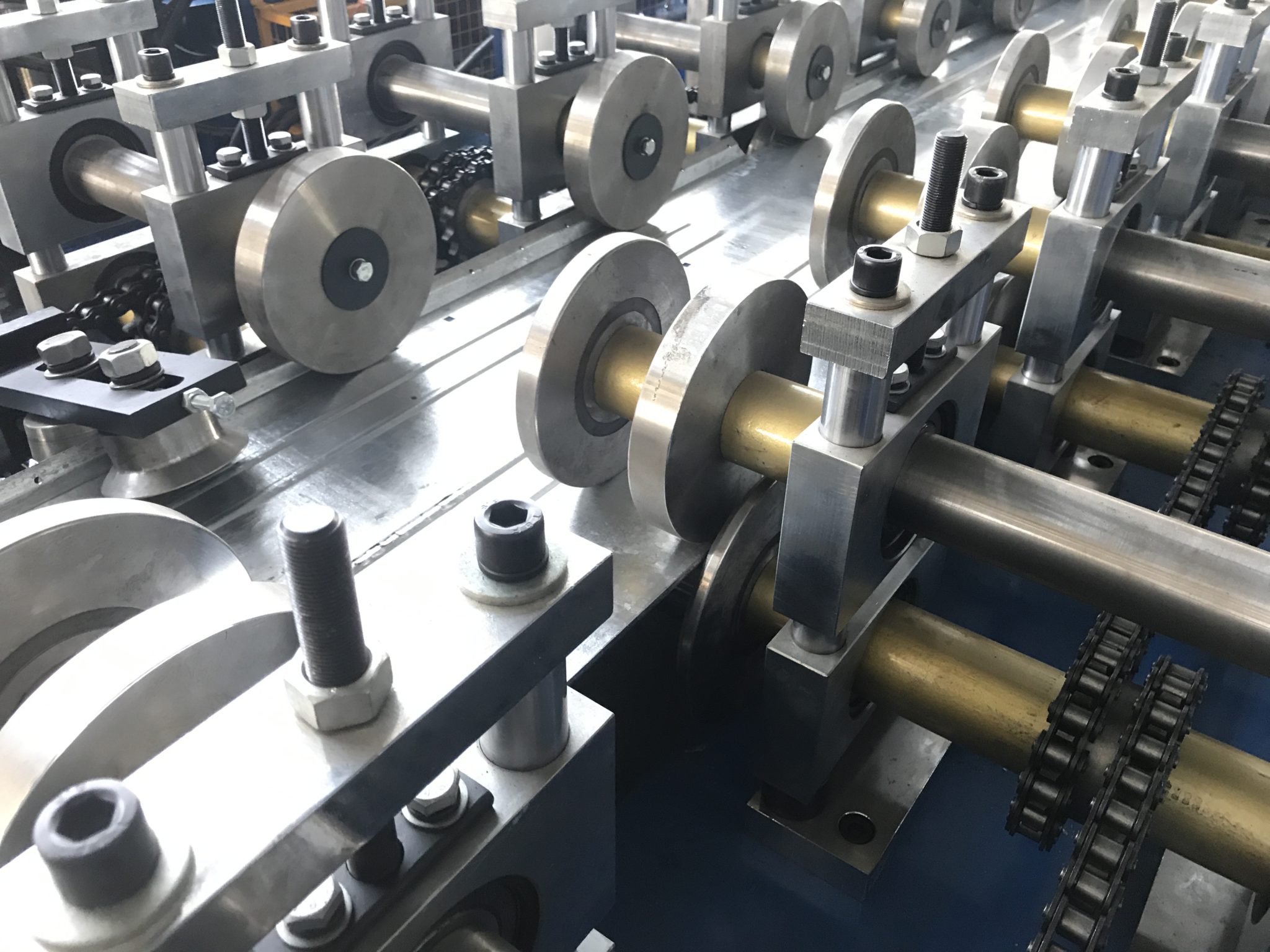

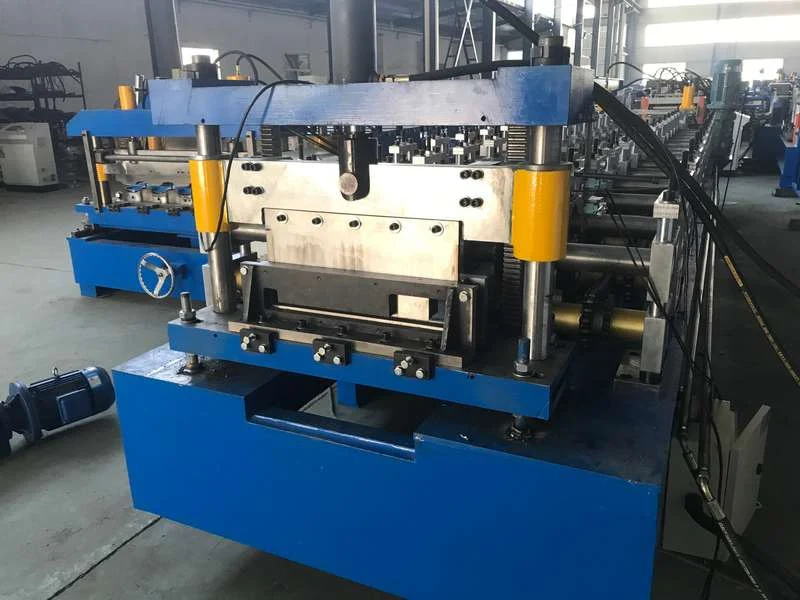

Main roll forming machine specification:

1. Machine size: 9 meter long
2. Rubber roller moving up and down supporting framing system.
3. Rubber roller driving system.
4. The door edge triming machine
5. Door leaf adjustable width system and servo sizing motor system.
6. Heating system: totally seven pairs 14 heating roller station
7. Door panel conveying system.
8. PLC control system.
