Product Details

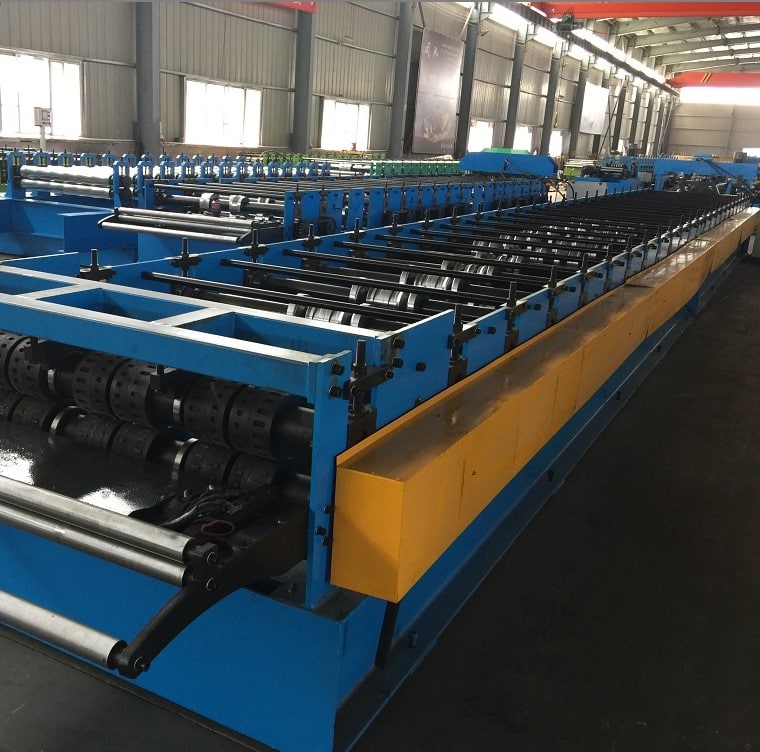

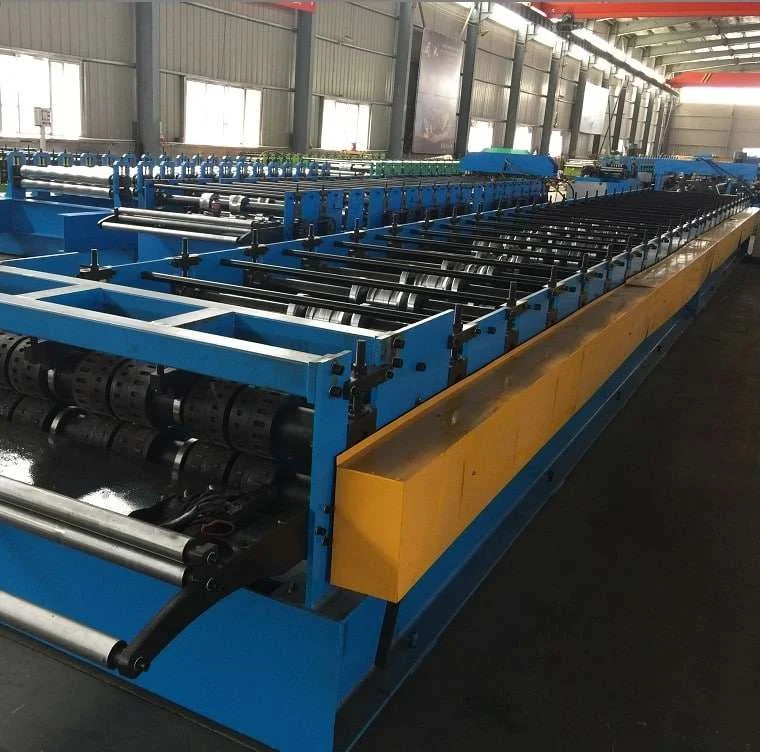

Floor decking rollforming line is designed and manufactured to make the steel metal concrete floor decking for the steel house. Full automatic floor decking rollforming line is including below parts: De-coiler--deeding—roll forming machine—post cutting system---receiving table .

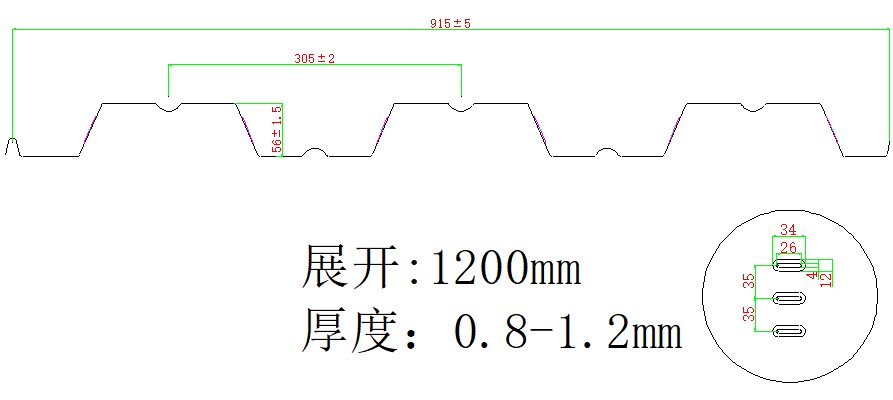

Below is a floor decking tile profile drawing for your reference:
NO |
Description |
Details |
Requirements |
1 | Model | Yx 56x305x915mm | |
2 | Feeding width | 1200mm | |
3 | Speed | 10--15m/min (including cutting time) | |
4 | Thickness | 0.8-1.2mm | |
5 | Controlling | Panasonic PLC | |
6 | 5 ton Manual De-coiler | 1 set | |
7 | Roller station | 28 stations , including embossing | |

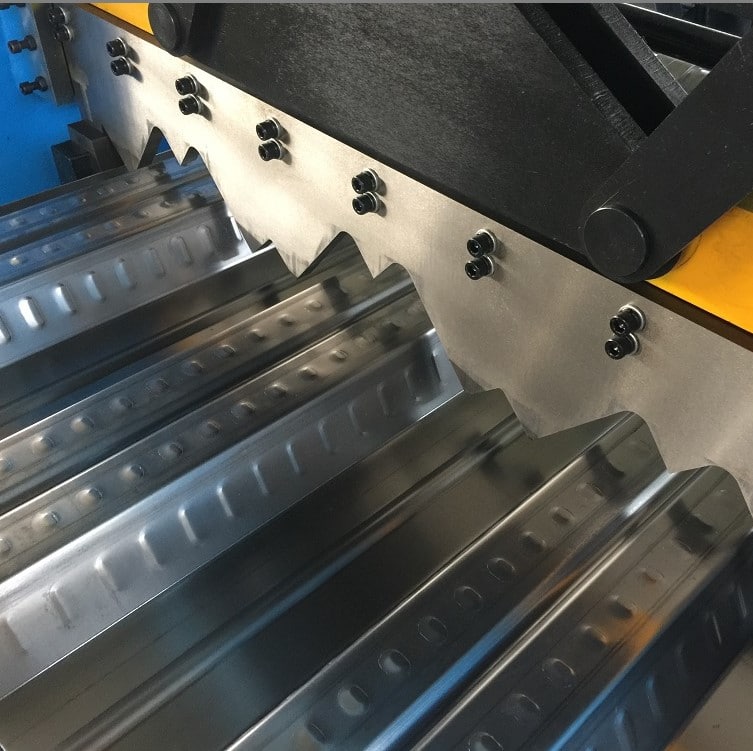

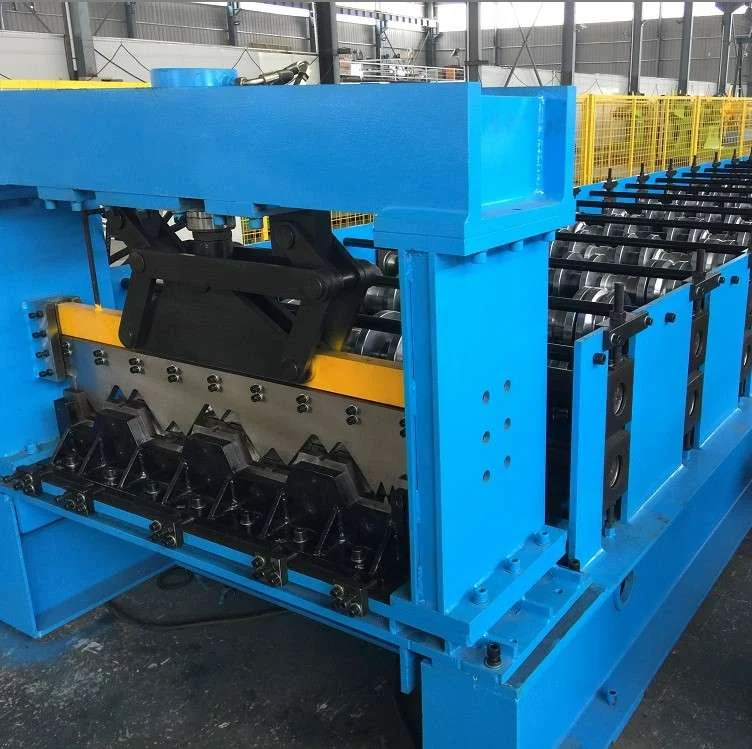

8 | Post cutting | 1 set | |
9 | Roller material | # 45 steel with chromium coating. | |
10 | Shaft material and diameter | # 45 steel with chromium coating. 85mm diamter | |
11 | Main power | 22kw | |
12 | Hydraulic power | 5.5kw | |
13 | Blade material | Cr12Mov, quenching HRC 58-62℃ | |
14 | Length tolearance | 3m±1.5mm | |
15 | Voltage | 380V, 50HZ,3ph
Can be customized according. |
|
16 | Transmission | 1,0 inch double chain | |
17 | structural | Middle plate | |
18 | Color | Company color | |
19 | Size | Length*Width*Height
14.5m*1,8m*1.0m |
|
20 | Delivery time | 70 days | |
21 | payment | 30% as deposit,70% before shipping |
