Against the backdrop of the "dual carbon" goal and the accelerated promotion of prefabricated buildings, the construction industry has become increasingly demanding in terms of efficiency, environmental friendliness, and customization requirements for component processing. As a key component of steel structure buildings, the short plate in the processing of the floor slab often leads to project delays and cost overruns. A high-quality Composite Metal Floor Decking Rolling Forming Machine is breaking through industry bottlenecks with innovative technology, bringing efficient, green, and flexible production experiences to construction enterprises, and becoming the core equipment for enterprises to seize market opportunities.

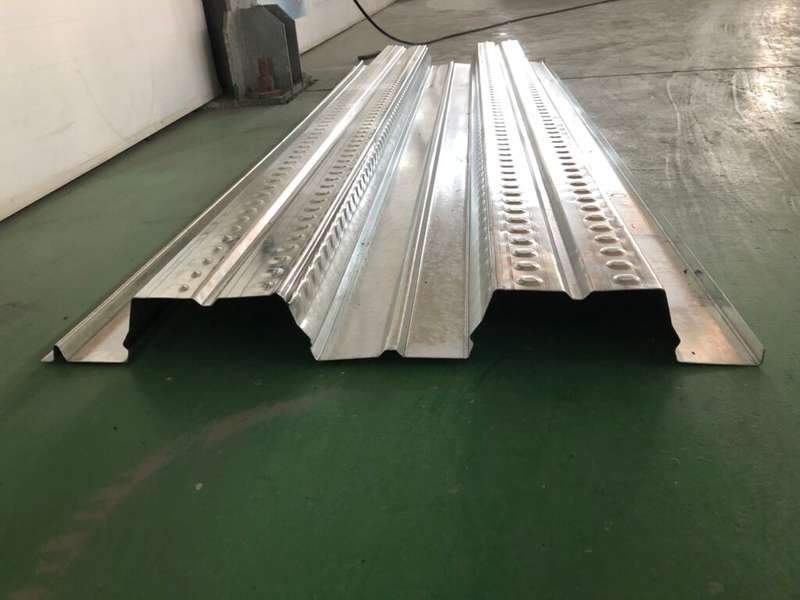

Pattern diagram:
Multi scenario applications empower the development of the entire industry：

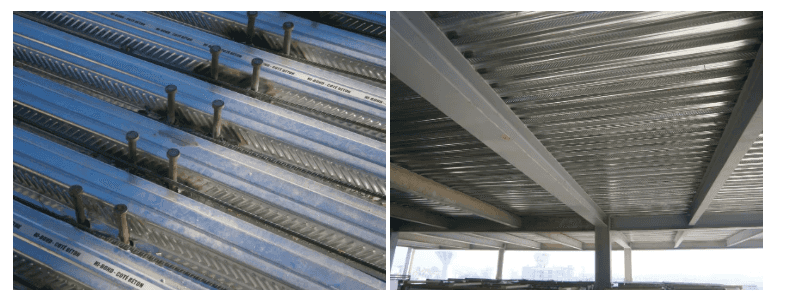

The floor slab machine has been widely used in various construction scenarios: in industrial plant construction, it efficiently processes large-span floor slabs, helping projects to top out 15 days in advance; In the field of residential real estate, producing lightweight floor slabs can reduce the weight of buildings while improving construction efficiency; In warehousing, logistics, and public building projects, customized board shapes meet special space design requirements.
Four core highlights, reshaping processing standards:
- Green and energy-saving, responding to the call for environmental protection
- Flexible production, adapted to diverse needs
- Precise and stable, building a solid foundation of quality
- Intelligent and convenient, reducing operating costs
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness:0.8-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 36 rows(As your requirement) | ||
| 9 Diameter of shaft | 90mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | chain transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 15.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 11KW*2 sets | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-45m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||

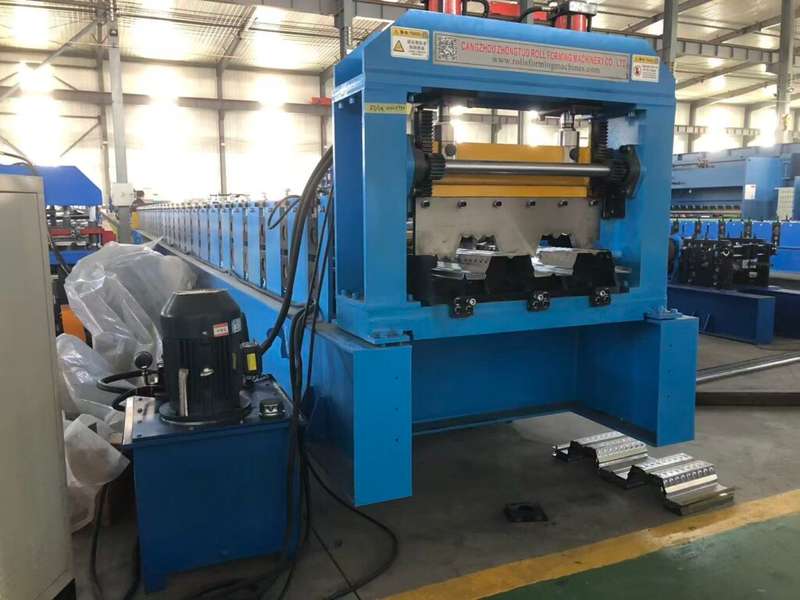

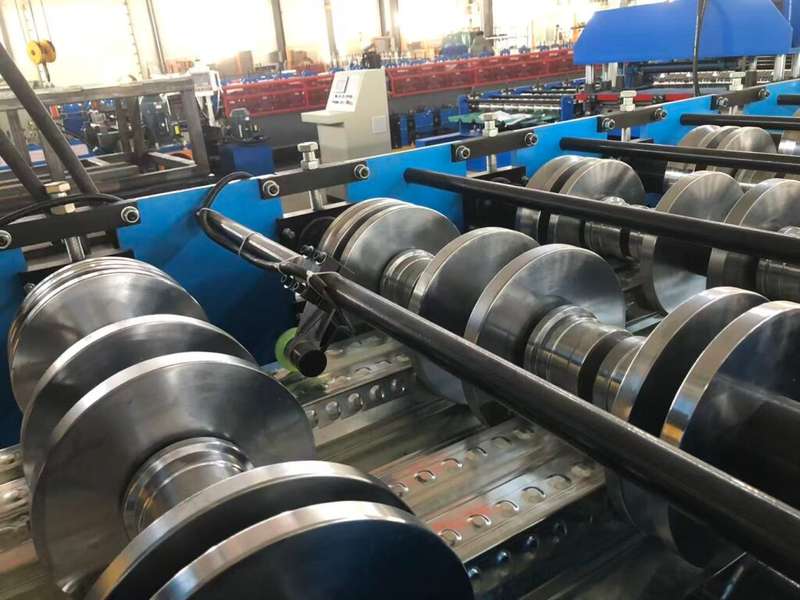

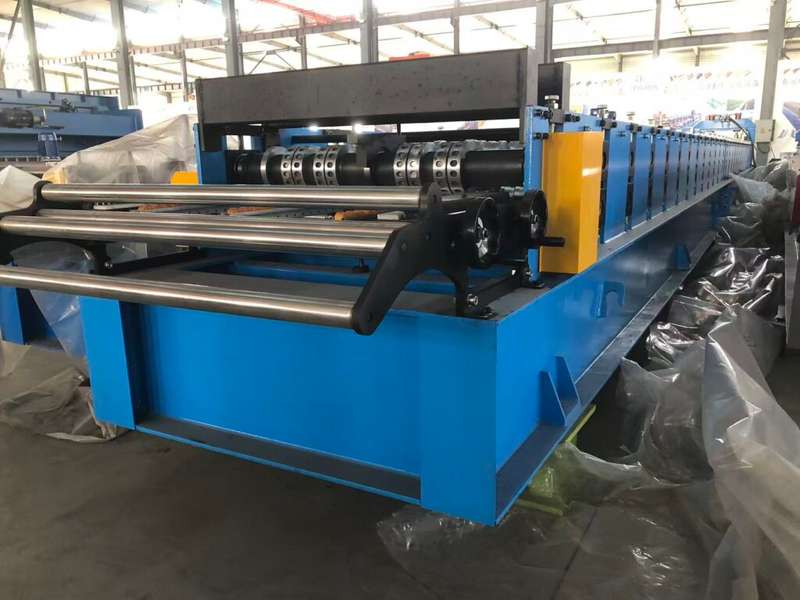

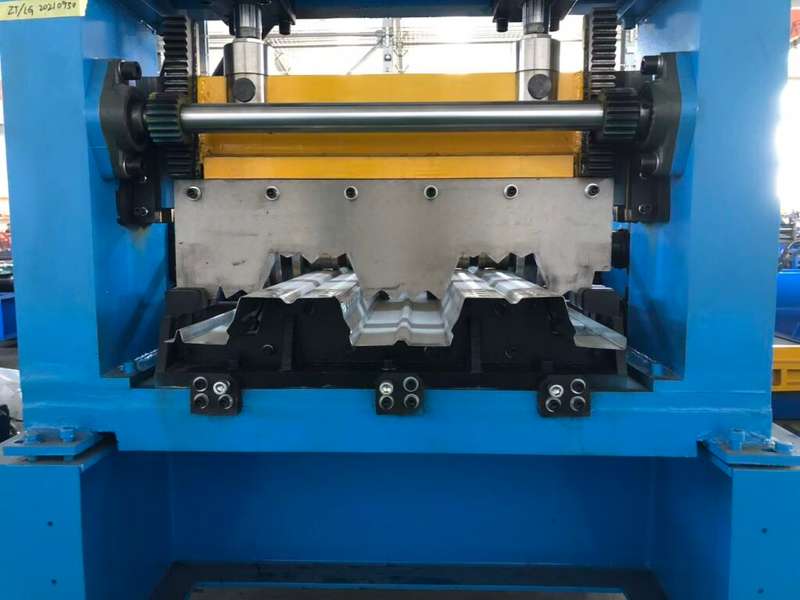

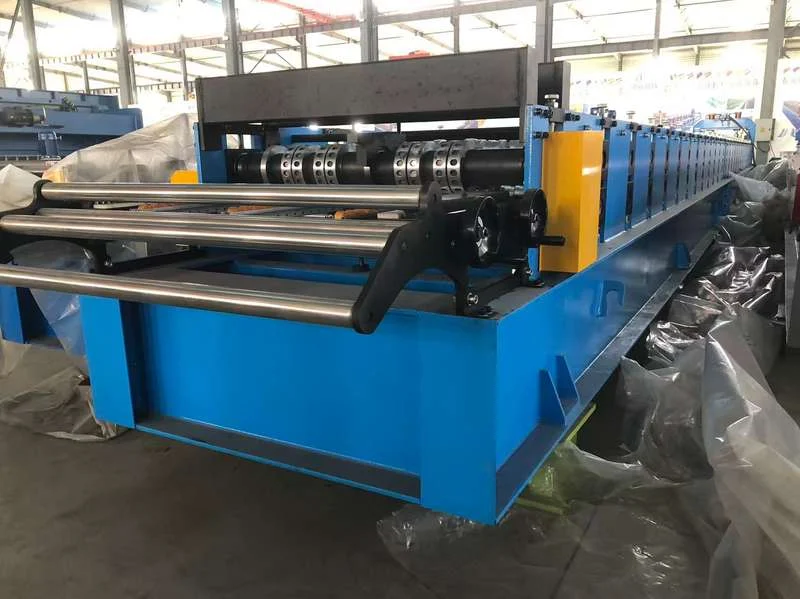

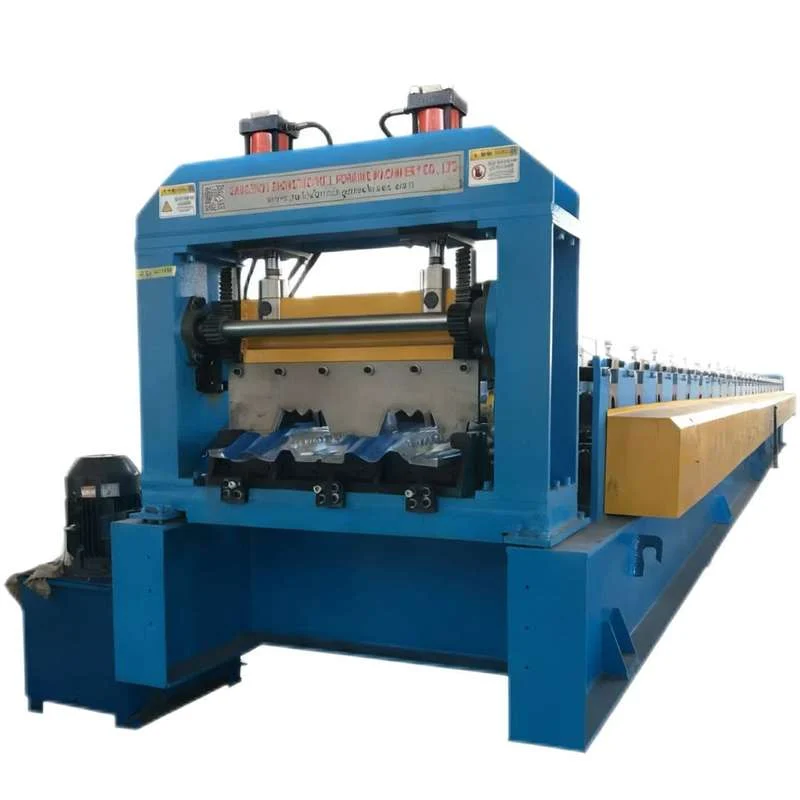

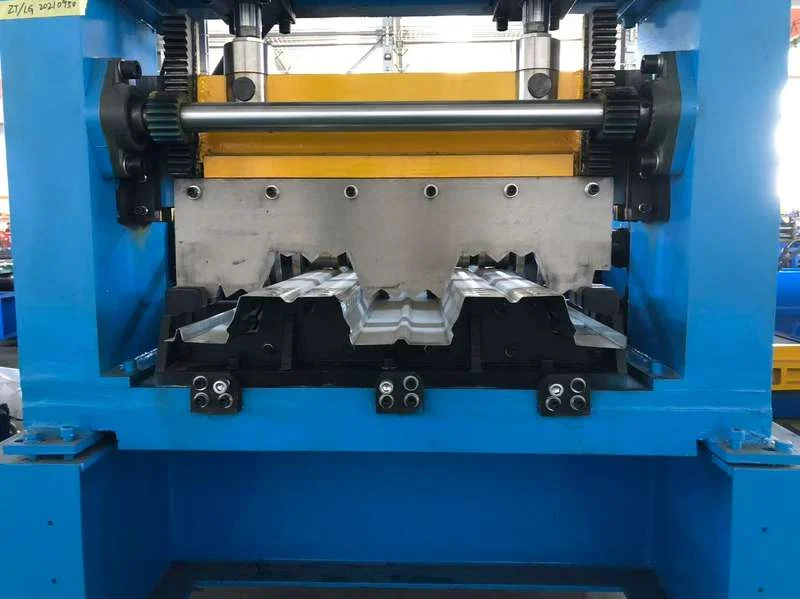

Machine image:
