ZhongTuo has manufactured the furring channel making machine for a long time and we are rich in experience and design. Let me show a video of the operation of the hat channel roll forming machine. We can also manufactcure other kind machines as your different requests. If you are interested in our machine, please click here to contact us!

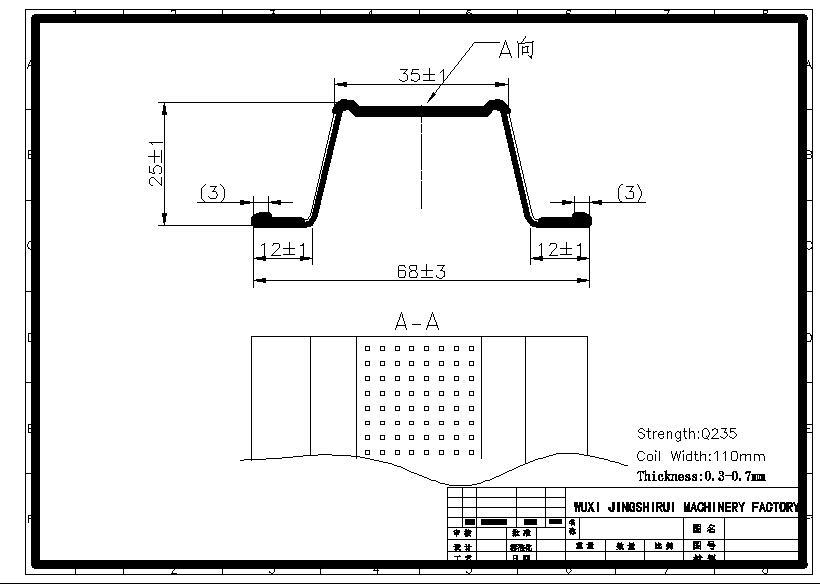

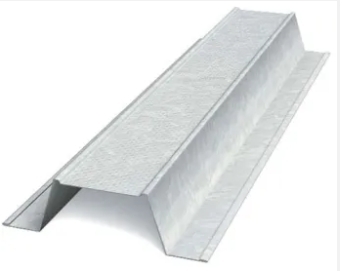

Here let me show you the finished products and drawing profiles:
The metal furring channels are made from raw material, galvanized steel, by roll forming machines. The material thickness is from 0.3 to 0.9 mm.

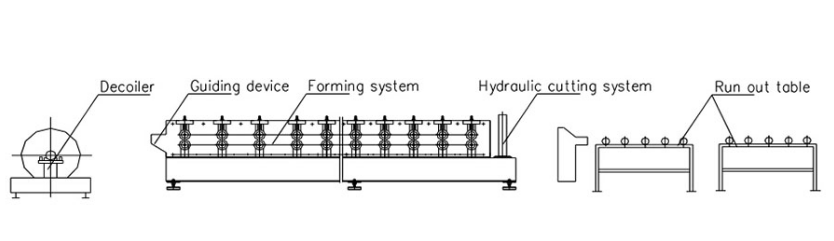

Here let me show you the working flow of our machine:
Brief introduction of our machine:
Power: as customers’ requirement
Weight of machine: about 3.8 tons
Forming speed: 0-25 m per minute
Technical parameters:
| Machine Specifications | |
| Weight | About 2500kgs |
| Size | About 5m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.6mm |
| Coil width | 112mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 12-14 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
