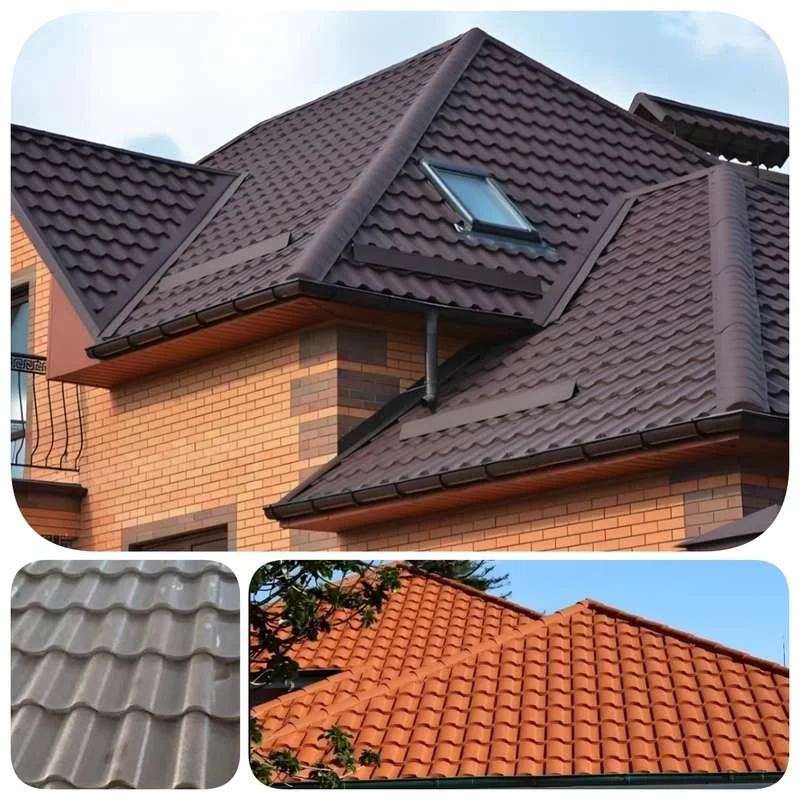

As a traditional and artistic building material, glazed tiles have become the preferred choice for roof and wall decoration due to their color and luster. They can add a beautiful scenery to buildings and enhance their artistic value and aesthetic taste.
The Profile drawing of Glazed Tile Roll Forming Machine With 1 Year Warranty :
We can make according to the pattern that the customer wants：

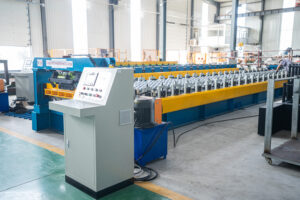

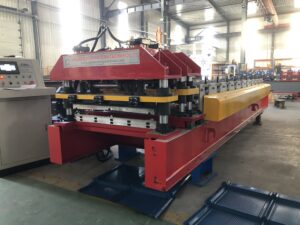

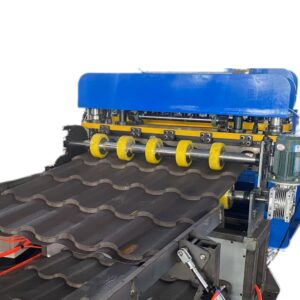

Here are photos of Glazed Tile Roll Forming Machine With 1 Year Warranty Adamante Profile Machine：
Main components of Glazed Tile Roll Forming Machine With 1 Year Warranty Adamante Profile Machine：
| No. | Name | Unit | Quantity | Remark |
| Part 1 | 5ton manul decoiler | set | 1 | |
| Part 2 | Main roll forming machine | set | 1 | Gear box drive |
| Part 3 | PLC control station | set | 1 | Delta brand |
| Part 4 | hydraulic system | set | 1 | For cutting |
| Part 5 | 3M auto stacker | set | 1 | |
| Part 6 | Spare parts | set | 1 |
Technical parameters：
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.3-0.5 mm |
| 3 | coil feeding width | 1250 mm |
| 4 | Felt device | Available |
| 5 | Roller station | 14stations |
| 6 | Punching speed | 0-6 m/min |
| 7 | Motor for roll forming | 5.5 KW |
| 8 | Machine frame | Hot rolled H-beam |
| 9 | Transmission | Gear box transmission(bevel gear inside) |
| 10 | Roller material | High grade 45# steel |
| 11 | Shaft diameter | 80 mm |
| 12 | Cutting type | Hydraulic cutting |
| 13 | PLC brand | Delta |
| 14 | Frequency brand | Delta |
| 16 | Coder brand | Omron |
Machine detail diagram of Glazed Tile Roll Forming Machine With 1 Year Warranty Adamante Profile Machine：
