In the field of modern building roofing, metal glazed tiles, with their advantages of being lightweight, durable, aesthetically pleasing, and easy to install, have gradually become an important alternative to traditional clay glazed tiles, and are widely used in residential buildings, villas, cultural and tourism projects, and industrial plants. Full Automatic Color Steel Glazed Tile Roofing Sheet Machine, as automated equipment specifically designed for the production of metal glazed tiles, use metal sheets (such as color steel sheets, aluminum sheets, galvanized steel sheets, etc.) as raw materials. Through continuous forming, cutting, and coating processes, they quickly produce metal roofing tiles with glazed tile textures and shapes, making them core equipment for the large-scale production of metal glazed tiles.

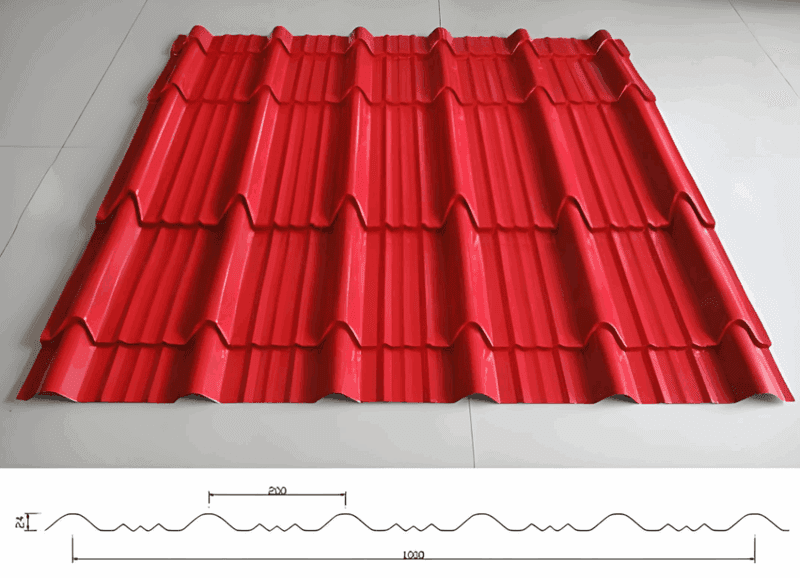

Pattern diagram:

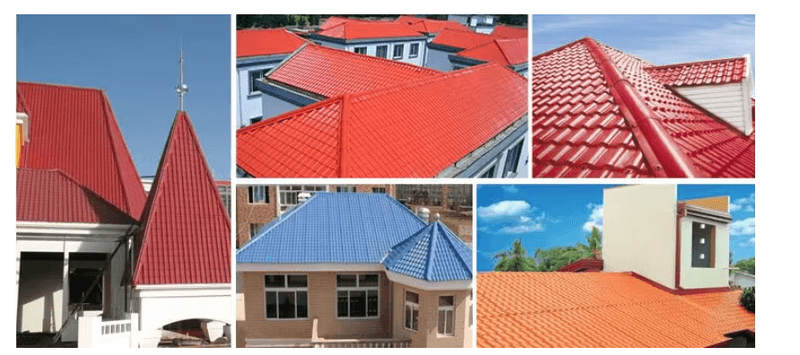

Main applicable scenarios:
1.Residential and Villa Sector:
Lightweight and aesthetically pleasing, metal glazed tiles are easy to install and require no heavy supporting structure. They are widely used in modern Chinese-style villas, garden houses, and rural self-built houses, showcasing traditional aesthetics while meeting the load-bearing, waterproofing, and energy-saving requirements of modern residences. They are compatible with various roof types.
2.Cultural Tourism and Commercial Building Sector:
In ancient town development, cultural tourism scenic areas, and Chinese-style commercial complexes, metal glazed tiles can replicate traditional shapes and colors, matching the style of ancient architecture. They are also highly durable, have low maintenance costs, and reduce later repair work.
3.Industrial and Public Building Sector:
Suitable for industrial plants, warehouses, and other buildings, their high strength, resistance to winds of force 12 or higher, and corrosion resistance ensure roof stability. In school and hospital roof conversion projects, they can be quickly modified to improve aesthetics and insulation performance.
Product Attributes ：
| 1.Formed Material | PPGI,PPGL,AI,Etc. | Material Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic decoiler(optional) | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | Due to your requirement profile | ||
| Diameter of shaft | Due to your requirement profile | |||
| Material of rollers | High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm) | |||
| Machine body frame | Due to your requirement profile | |||
| Drive | gear and Double Chain transmission/gearbox transmission optional | |||
| Dimension(L*W*H) | Due to design | |||
| Weight | Due to design | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW(normally) | ||
| Hydraulic system power | 4.5KW | |||
| 6.Voltage | As your requirement | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | Support multiple languages | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 0-80m/min | Provide customized | ||

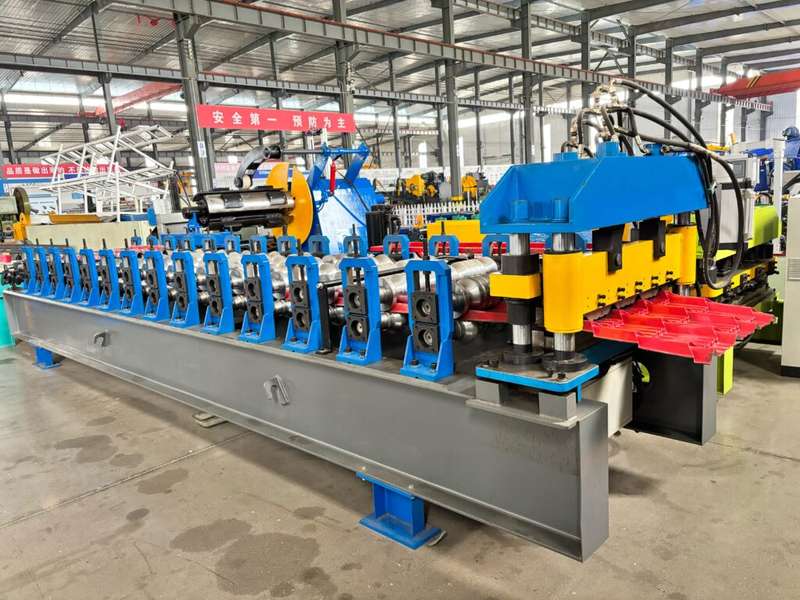

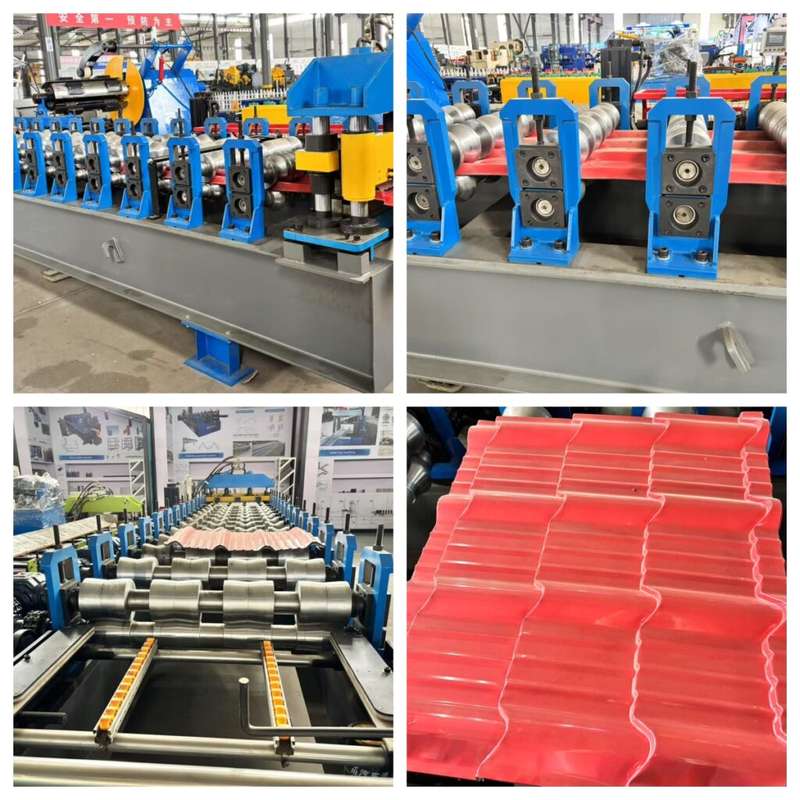

Machine image:
