Sometimes when talking about how to produce matal step roof tiles, the glazed tile roofing sheet machine usually comes to mind. We can manufacture machines in different sizes, please contact us without hestation! There are many machines for your options!
There is a video of glazed tile roofing sheet machine for your reference:
There is a video of high quality and high speed step tile rolling machine for making galzed tiles in batch.

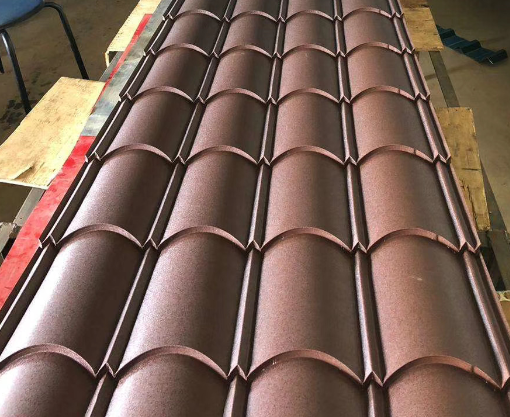

The glazed tile roofing sheet machine sold in our company is a new generational type with high accuracy and high efficiency. Here is a picture of metal step roof tile for your reference:

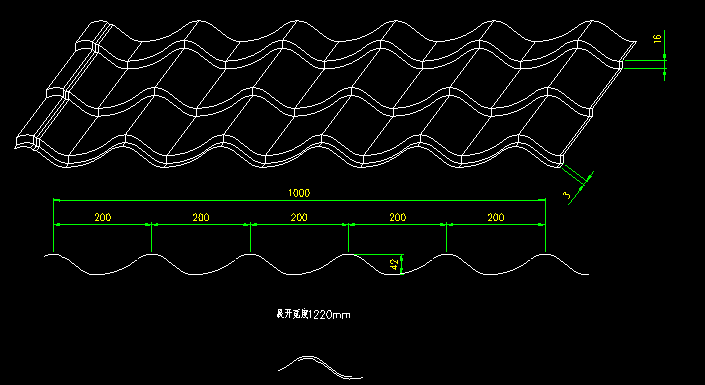

And take this drawing profile for example:

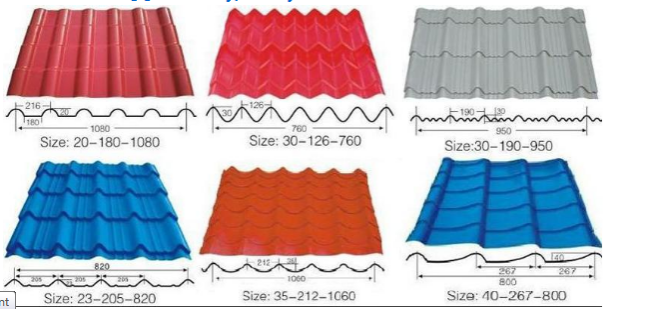

Our company can supply different kinds of this forming machine as your different needs. There are some glazed tile types for your reference:
Glazed tile roofing sheet machine made in ZhongTuo consists of decoiler system, sheet guiding system,roll forming system, pressing system, cutting system, auto-stocker system, hydraulic system, controlling system etc.

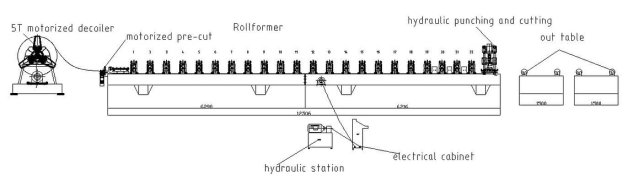

Working flow:

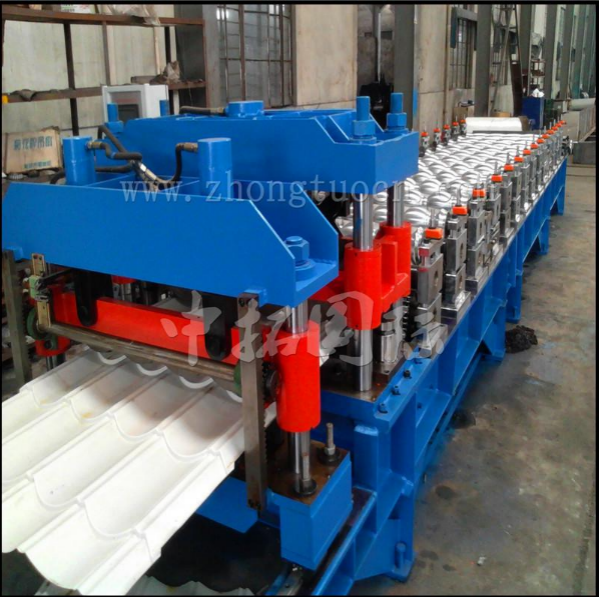

Glazed tile roofing sheet machine:
Specifications of glazed tile roofing sheet machine :
- Machine Structure: H steel welded, Chromed stands as the support arm.
- Profile steel thickness 0.3-0.6 mm carbon steel and stainless steel
- Main motor power: 7.5 KW, AC motor,
- Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase,
- Roll station: 16stations
- Roller material: ASTM1045, hardness and chrome plated surface
- Shaft diameter: diameter 76 mm material: ASTM1045
- Metal Tile Machine Speed: 6-8m/min
- Transmission: by chain or gearbox.
If you want to know more information about this machine, please contact us.
