Steel Silo Roll Forming Machine is for making metal barrel steel silo in batch fully automatically. And it is for producing silo wall panels which is corrugated and curved. A steel silo is a structure for storage bulk materials but it can not be used for storage water as it may leak. Steel Silos are used in agriculture to store grain or fermented storage. For showing this production more clearly here are some drawing and finishes product pictures for your reference:

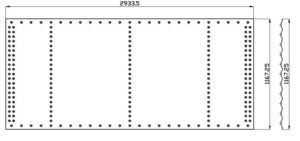

Profile Drawing of Steel Silo Corrugated Wall Panel

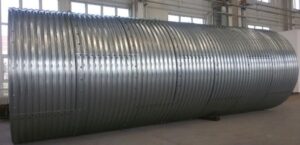

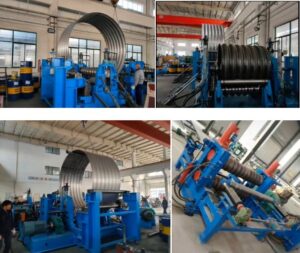

Grain bin steel silo roll forming machine pictures for your reference:

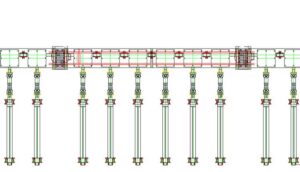

Layout of Steel Silo Roll Former Machine

The Steel Silo Machine Layout: Uncoiling– Feeding and Guiding– Pre-cutting– Roll Forming– Punching Holes– Curving– Cutting

Grain bin steel silo roll forming machine main components and Technical Parameters for your reference.

1. For this production line, you can choose the normal hydraulic decoiler or the Double Bevel-type Hydraulic Uncoiler
2. As to the feeding and guiding Device, we can make it accurate leveling. Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to Leveling device

Main machine of Steel Silo Machine Roll Forming Mill why we design like this :

1. For strongly working, machine Structure adopt Iron Cast Stands, more strongerthen it can handle 0-2.0mm.
2. As to the roller station, we design as18 -20 for making shape more beautiful.
3. Roller material:GCR15 chrome plated surface with hardness 58-62 degree ,CNC,

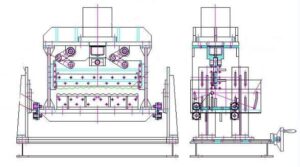

As to the punching hole device:

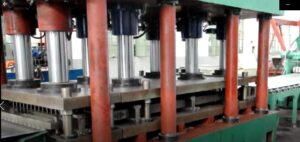

As the steel silo needs punching device, here the tools and parameters for your reference:

To make sure the quality the dies we will SKH51 or DC53, HRC 58-62. The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator’s console. And the device we will adopt whole punch holes device, 2 steps, first side, then middle.

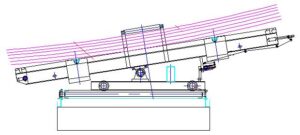

The last step Online Curving Device:

For this punching device, we use adopt 4 rollers mechanical horizontal type structure then it can help you do the online continue curving, to avoid the ends of the corrugated sheet be perfect.

Hydraulic Cutting Device of Grain bin steel silo roll forming machine.

By this device, it can cut at any length after crimping.

1. Cutting type: Hydraulic, connect with the punching hydraulic unit

Collection Table

Designed for collected the curved corrugated sheets after cutting from the Steel Silo Roll Forming Machine.
