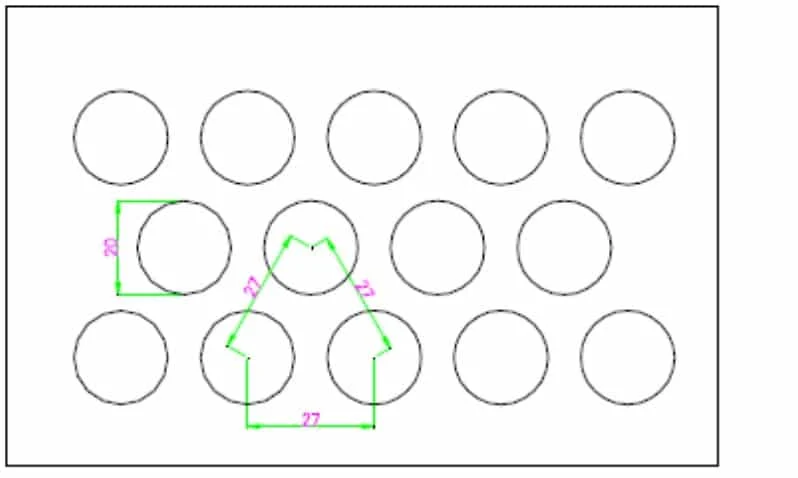

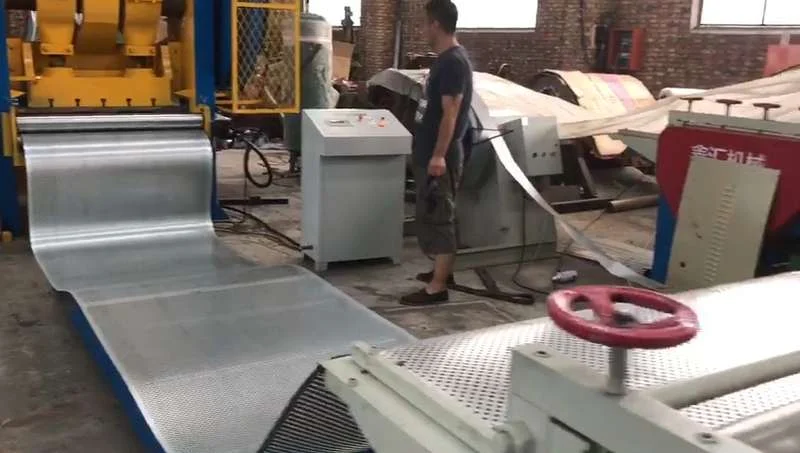

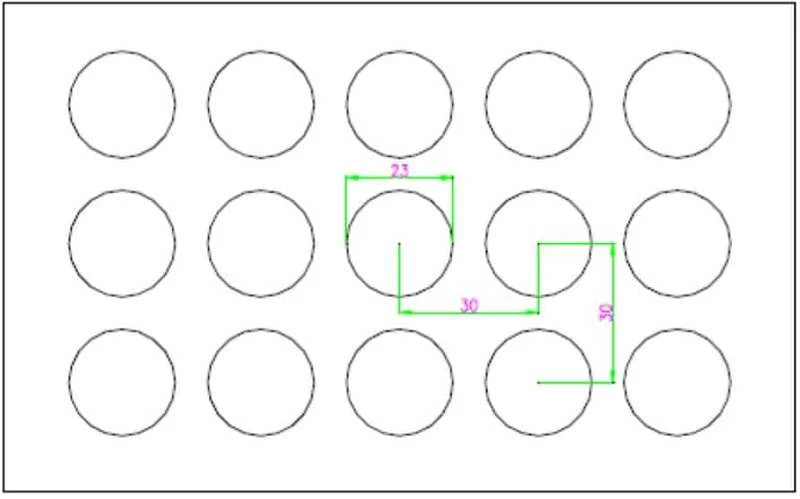

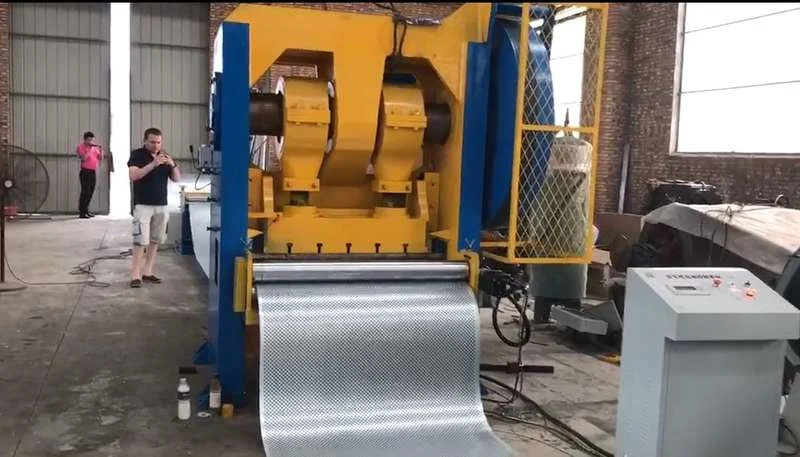

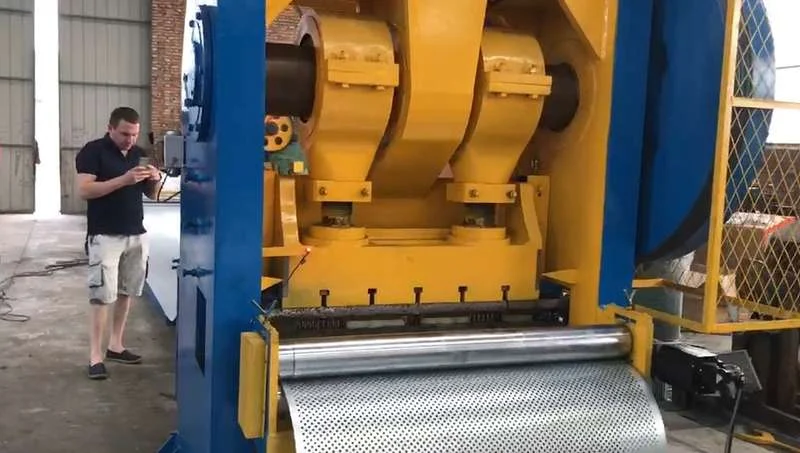

This line cut steel sheet and /or pierce whit different drilling pattern in flat sheet, coil or mini coil format,The raw to enter the line are coils whit 5 ton max weight, 48 inch wide, and thickness from 0.3-0.8mm, the output product are sheet max 4 meters long or coil with 5 ton max weight and inside diameter 508mm or mini coil max weight 400 kg, and inside diameter 150mm. Optional Equipment
---Decoiler
---Recoiler
---Shearing machine
---Servo motor feeding system

According to the sheet the customer produce, some other small equipment is need, such as coiler, decoiler and leveling machine. Customers can choose to buy it or make it by themselves.

The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.

The material of sheet can be iron, aluminum, tin, copper and other material.

Type Perforating Strength Feeding Width Perforating Speed Main Engine

50T-1 500kn 1000mm 72times/min 4kw or as required
50T-2 500kn 1000mm 72times/min 5.5kw or as required
Type Perforating Strength Feeding Width Perforating Speed Main Engine

100T-1 1000kn 1000mm 72times/min 7.5kw or as required
100T-2 1000kn 1250mm 72times/min 7.5kw or as required

JF125-G
Nominal Pressure kn 1250
Slider Stroke mm 20
Perforating Speed times/min 120-140
Feeding Width mm ≤1250
Engine Power kw 18KW-4 or as required

JMC-160
Slider Stroke mm 30
Perforating Speed times/min 200
Feeding Width mm ≤1500
Engine Power kw 18.5 or as required

JMC-160 High Speed
Slider Stroke mm 30
Perforating Speed times/min 200
Feeding Width mm ≤1500
Engine Power kw 30kw-6 or as required

JF200-G
Nominal Pressure kn 2000
Slider Stroke mm 30
Perforating Speed times/min 100-200
Feeding Width mm ≤1500
Engine Power kw 30KW-6 or as required

D-250THigh Speed
Nominal Pressure kn 2500
Slider Stroke mm 30
Perforating Speed times/min 100-200
Feeding Width mm ≤1600
Engine Power kw 37-6
