Highway Guardrail Machine is an automatic metal processing equipment specially used for continuous production of anti-collision guardrail boards (mostly corrugated guardrail boards) for highways, first-class highway and other traffic trunk lines. Its core function is to process metal coils (such as Q235 low carbon steel and galvanized steel sheet) into guardrail products with specific cross-sectional shapes and high strength through cold bending forming technology, providing critical protection for road traffic safety.
Application Scenario:
Core role：
- High production efficiency
- High product accuracy
- Strong stability
- Wide adaptability
- Low energy consumption
Machine Attributes ：
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 2-3.5mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 14stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 100mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By gear box |
| 10 | Motor power | 30kw |
| 11 | Machine frame | 400H steel |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 18.5kw |
| 14 | Cutting blade material | Cr12 quenched |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |

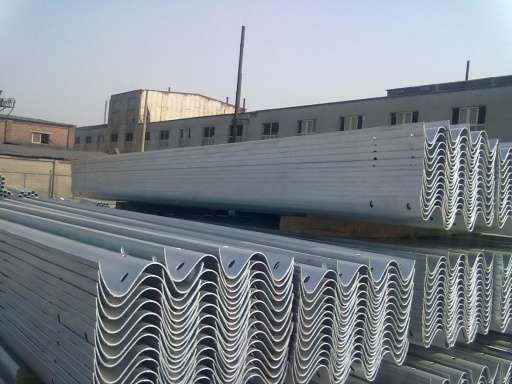

Product images：
