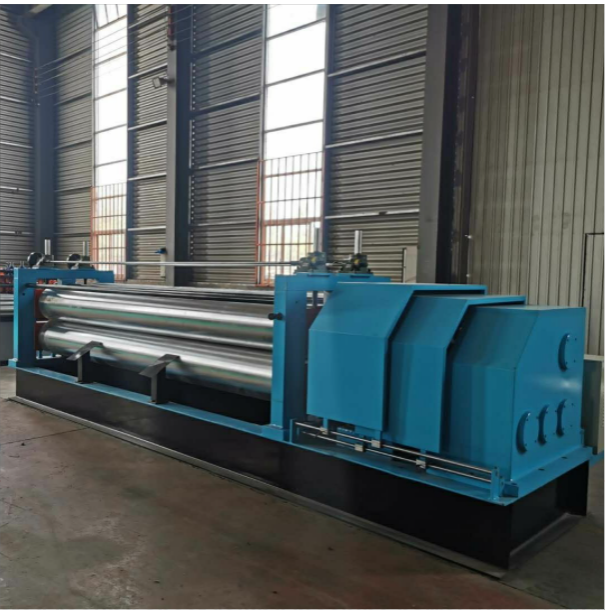

The horizontal wave roof sheet machine will help you to produce round wave roofing sheets.

The horizontal wave roof sheet machine we manufacture can process material thickness from 0.13 to 0.35mm and the roofing sheet length could be customized according to your personal requirement.

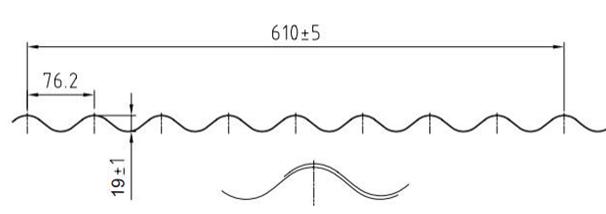

Take one drawing profile for reference:

Here are some machine basic parameters for your reference:

Supported Coil material thickness: 0.16 to 0.             Feeding width:1250mm Material :550Mpa,full hard                                          Max width:4.3 m

1).Roller station:2 sets 2).Roller diameter:300mm,Material:45# steel 3).Speed :15piece/min 4).Weight:8.5T 5).Voltage:380v,50hz,3ph 6). Motor: 11kw

Screen: 3.2 inch text screen                                             PLC: Delta Automatic length measurement                                    Automatic quantity measurement

Features of main structure:

1. It is easy to operate and its appearance is beautiful because we have designed the shape-steel structure and screwed most dots which help the machine to be much more stronger and more flexible.
2. We adopt all the components that are made from famous companies, which ensures the machine to operate normally and efficiently.
3. The machine is highly precised.
4. The machine is noiseless.

Limitation:

Limited by roll forming method, this machine needs to feed sheet and receive sheet manually.

Please check metal roofing sheet machine video here to see the machine working whole process. And for this machine if any problem, please contact us at any time.
