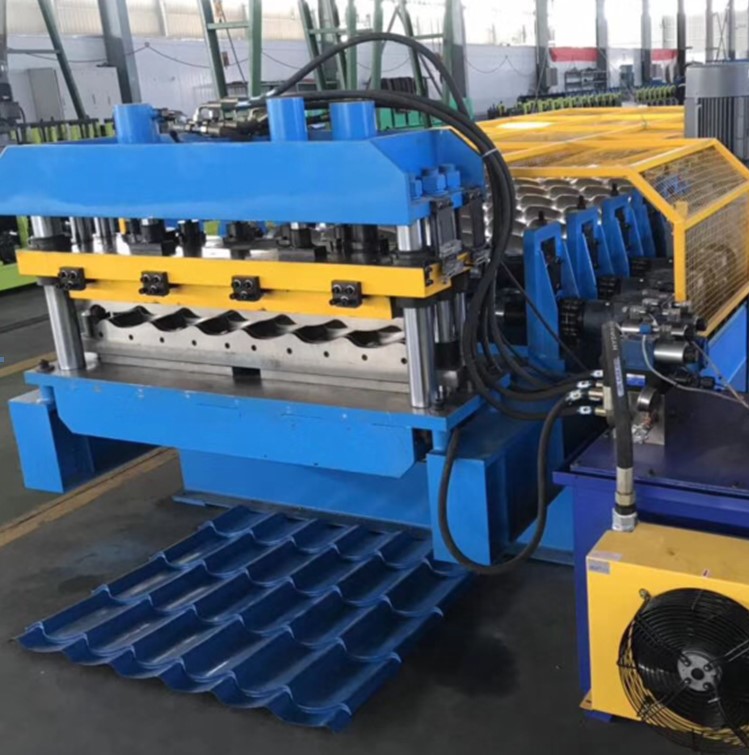

Italy popular glazed tile rollforming line

Product Details

Length of the main part: About 13500 mm х 1850 mm х 1500 mm
Total line is: 22 meters
Weight of main part: 7.6 ton
Voltage :As customer need
Roller fixer : Guide pillar
Drive mode: Chain
Material of rollers: 45# steel with surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 90 mm
Number of rollers : 22 rollers
Main power: 11 kw
Material thickness: 0.25-0.8 mm
Feature : Ensure stability, precision and cutting speed
Function: Automatic cutting controlled by PLC
Speed: 8 meters/min
Material of blades: Cr12 quenched
Power supply : Hydraulic power
Servo motor power: 3.0 kw 1 GSK
Components: It contains one set of the servo motor , one set of blade, one hydraulic tank and one cutter machine.
