In the roof construction of steel structure factories, logistics and warehousing centers, large venues and other buildings, the traditional roof panel processing mode has long faced the dilemma of “difficult transportation, poor adaptation, and low efficiency” – prefabricated panels are prone to deformation due to long-distance transportation, large on-site cutting losses, complex roof dimensions are difficult to match, and the construction period is often delayed due to external factors.
Nowadays, the emergence of car mounted vertical seam roof panel equipment, with the core advantages of “on-site production, precise customization, and efficient construction”, has completely solved the pain points in the industry and opened up a new mode of “production and use” for steel structure roof construction.
Product Attributes ：
| 1.Formed Material | PPGI,PPGL,AI,Etc. | Material Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic decoiler(optional) | Manual decoiler(will give you as free) | ||

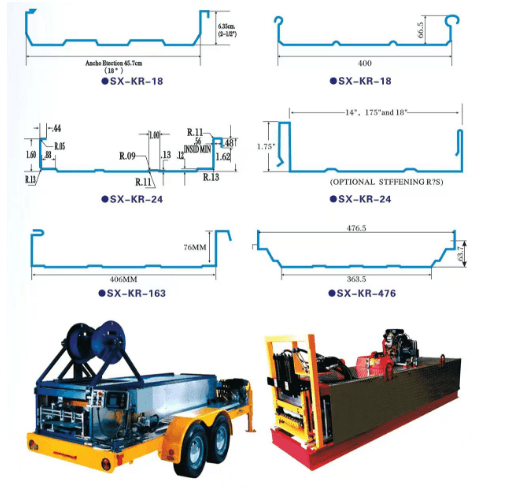

| 3.Main body | Roller station | Due to your requirement profile | ||
| Diameter of shaft | Due to your requirement profile | |||
| Material of rollers | High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm) | |||
| Machine body frame | Due to your requirement profile | |||
| Drive | optional | |||
| Dimension(L*W*H) | Due to design | |||
| Weight | Due to design | |||

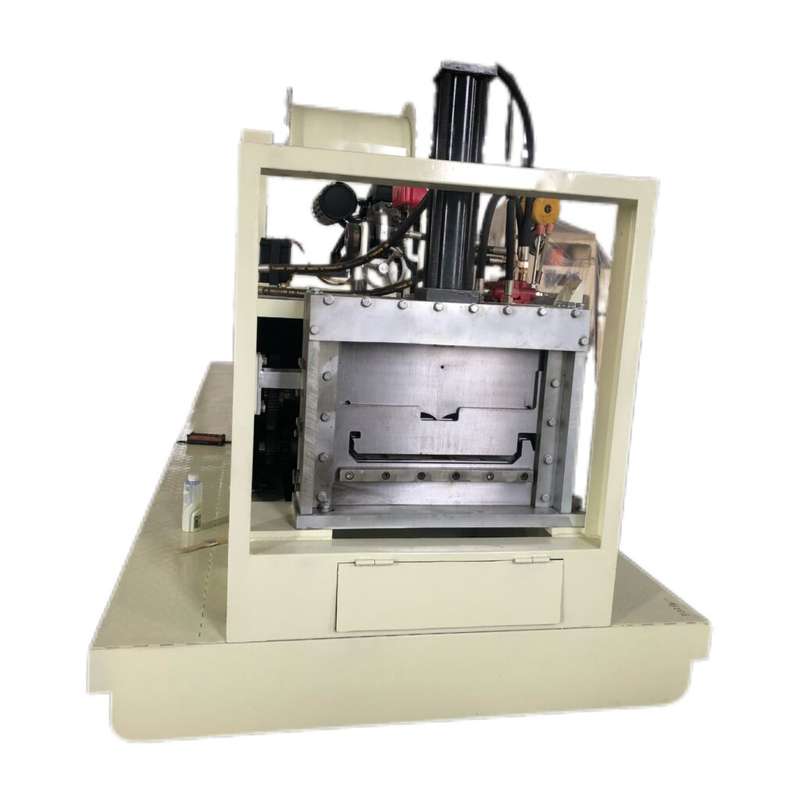

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW(normally) | ||

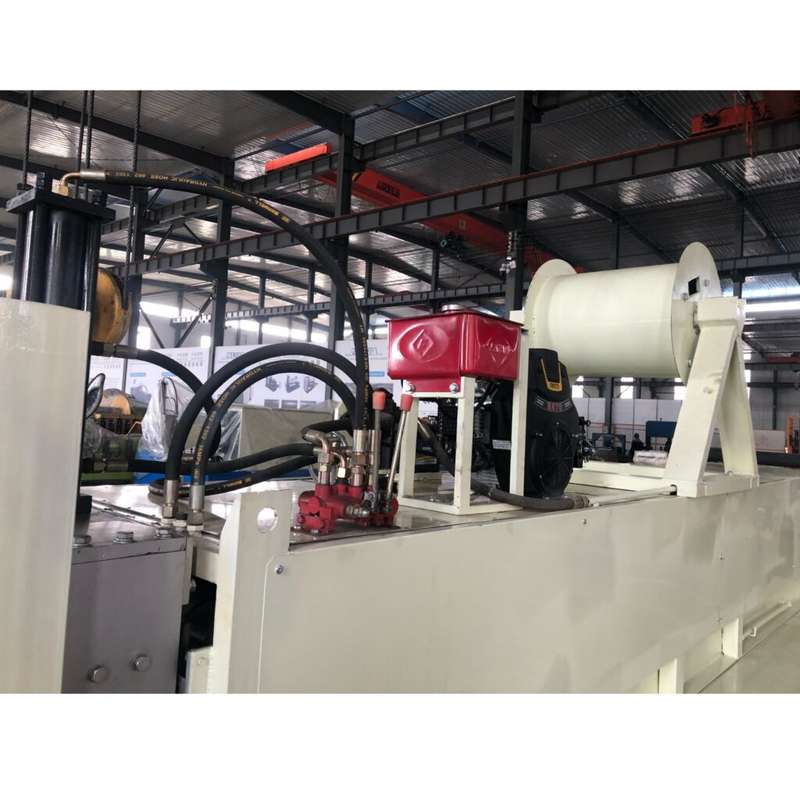

| Hydraulic system power | 4.5KW | |||
| 6.Voltage | As your requirement | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | Support multiple languages | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 0-15/min | Provide customized | ||
On site production, bid farewell to transportation and size difficulties

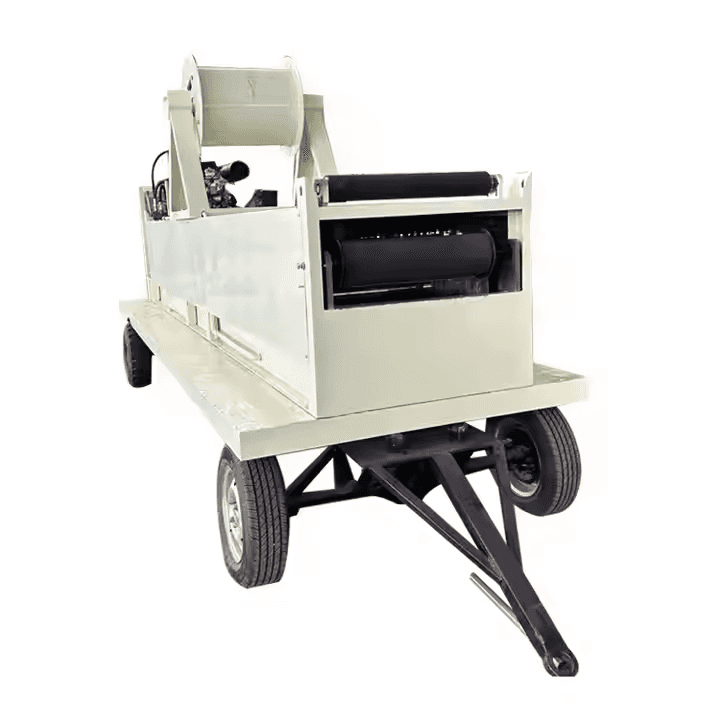

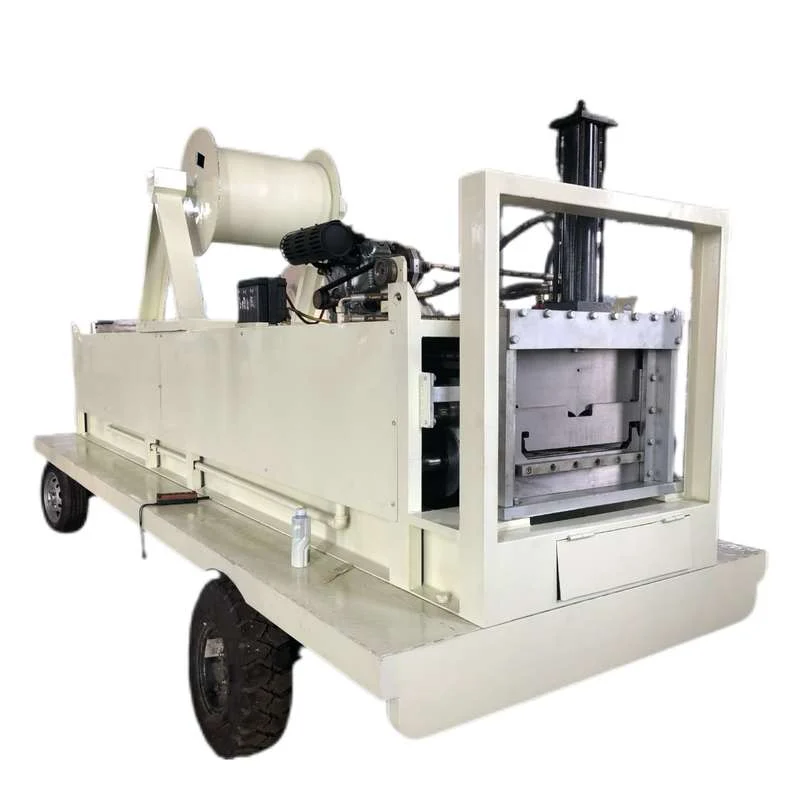

The vehicle mounted vertical seam roof panel equipment completely subverted this mode, and directly moved the “production workshop” to the construction site. The equipment can be flexibly mounted on dedicated trucks and moved at any time according to the project address. Upon arrival at the site, simply connect the power supply and lay the raw material rolls to “customize” the vertical seam roof panels according to the roof design dimensions. From raw materials to finished boards, there is no need for long-distance transportation to avoid deformation and loss of the boards; Whether it is standard length or irregular size, it can be accurately matched, eliminating on-site cutting waste and making roof construction “zero waste, high efficiency”.
Efficient molding, with daily construction exceeding 1000 square meters
The equipment is equipped with a high-precision forming unit and adopts a multi pass roll forming process. The raw material roll undergoes leveling, roll pressing, biting, cutting and other processes to form a standard vertical seam roof panel in one go. The forming speed can reach 15-20 meters per minute, and the entire process is automated without manual intervention.
Based on an effective construction time of 8 hours per day, a single device can produce over 8000 meters of vertical seam roof panels in a single day. With a professional installation team, the daily roof construction area can easily exceed 1000 square meters, which is 3-5 times more efficient than traditional methods. For large-scale projects with tight schedules, multiple equipment can be brought on site simultaneously to further shorten the construction period and facilitate early project delivery.
Precise biting, building a strong waterproof and load-bearing defense line for the roof
The car mounted vertical seam roof panel equipment adopts patented interlocking technology, which achieves seamless interlocking between panels through precision mechanical structure. The interlocking depth can reach 15-20mm, and the interlocking strength far exceeds industry standards. It has been tested to withstand a load of more than 500kg per square meter, effectively resisting risks such as strong winds and snow compression.
Intelligent control, even beginners can easily get started
The device is equipped with a 10 inch high-definition touch screen, built-in intelligent control system, and can preset various roof profile parameters (such as seam height, board width, length, etc.). Operators only need to input the design dimensions, and the device can automatically adjust the molding parameters and start production with one click.
Suitable for all scenarios, stable operation even in harsh environments
The equipment body adopts a thickened steel structure frame, and the surface is treated with anti-corrosion spray coating, which can resist dust and rainwater erosion; Key components such as forming rollers and transmission systems are made of imported high-quality steel, which undergoes high-frequency quenching treatment to improve wear resistance by more than 50%, ensuring stability even under long-term high load operation.
