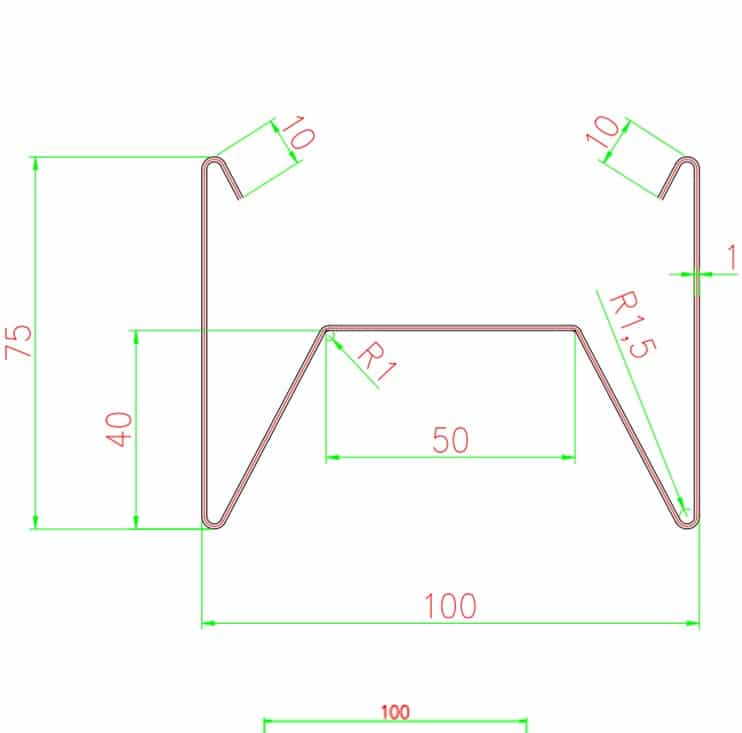

Model Yx10x75x100mm
Speed 10-15 meters/min
Thickness 0.6-1.0mm

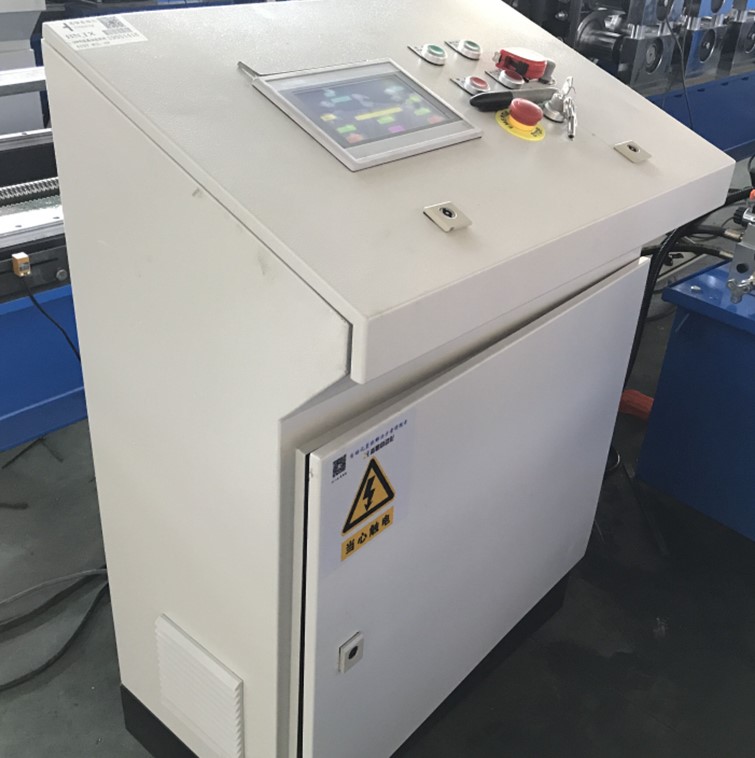

Controlling Panasonic PLC
Manual De-coiler 2 ton de-coiler
Roller station 16 stations
Post cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃，chromium coating.
Shaft material and diameter 45# steel finish machining，diameter is ￠70mm
Main power 7.5 kw
Hydraulic press 12 Mpa
Hydraulic power 4.0 kw
Blade material Cr12Mov， quenching HRC 58-62℃
Post punching 2 stations
Length tolearance 3m±1.5mm
Voltage 380V, 50HZ,3PH
Transmission 1,0 inch single chain
structural Pillar structure
Color Company color
Size Length*Width*Height
10.5m*1,5m*1.0m
