FUll Automatic Metal ridge Capping Making Roll Forming Machine is a specialized machinery that focuses on the processing of protective profiles for roof ridges. Through core processes such as cold bending and hydraulic extrusion, raw materials such as metal coils and plastic clay are processed into finished roof tiles with specific cross-sectional shapes. As the key equipment of the roof system, it not only determines the sealing and protection performance of the ridge, but also affects the integrity and aesthetics of the building's appearance, and is widely suitable for various scenarios such as industrial buildings, civil residences, and ancient building restoration.

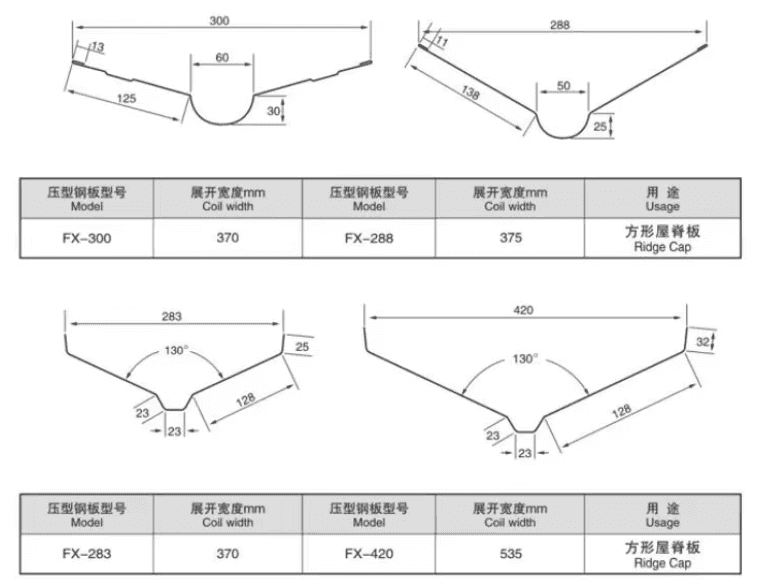

Pattern diagram:
Main application scenarios:
The finished products of ridge tile equipment cover various building needs due to differences in function and appearance
- Industrial and commercial buildings:
Metal ridge Caps are widely used for roof sealing in steel structure buildings such as factories, warehouses, airport sheds, and garages. With their strong corrosion resistance and easy installation, they reduce maintenance costs; - Civil and high-end buildings:

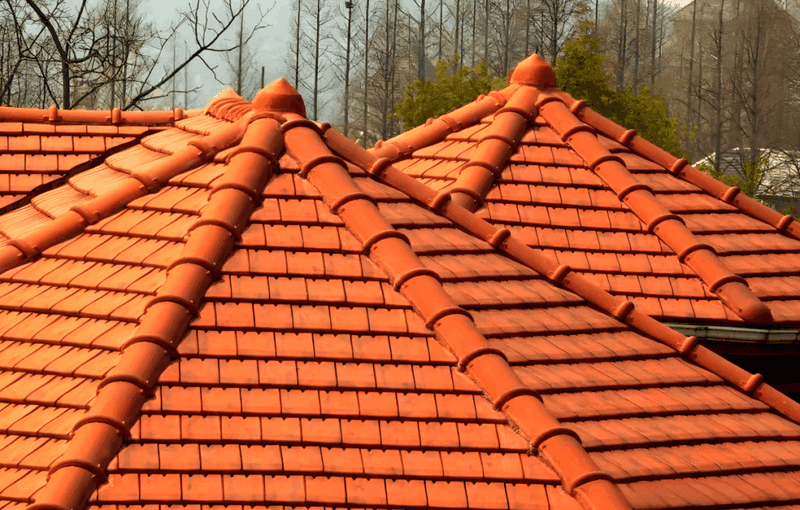

Arc shaped metal ridge Caps are suitable for private villa roofs, while clay antique tiles are used for ancient building restoration, Chinese style courtyards, and other projects to enhance the aesthetic value of the building; - Special scenarios:
Customized ridge Caps can be used in special places such as photovoltaic roofs and low-temperature storage facilities, balancing sealing protection and functional adaptation requirements.
Product Attributes ：
| Formed Material | PPGI, GI, AI | Thickness:0.3-0.8mm |
| Decoiler | Hydraulic automatic decoiler | manual decoiler (will give you as free) |
| Main body | roller station | 13 rows (as your requirement) |
| diameter of shaft | 70mm solid shaft | |
| material of rollers | 45# steel, hard chrome plated on the surface | |
| machine body frame | 350 H steel | |
| drive | chain transmission | |
| dimension(L*W*H) | 5500mm*1600mm*1600mm (customized) | |
| weight | 2.5T | |
| Cutter | automatic | Cr12mov material, no scratches, no deformation |
| Power | motor power | 4kW |
| hydraulic system power | 3KW | |
| Voltage | 380V 50HZ 3PH | as your requirement |
| Control system | electric box | customized (famous brand) |
| language | English (support multiple languages) | |
| PLC | automatic production of the whole machine. can set batch, length, quantity, etc | |
| 3-5m/min | The speed depends on the final cutting length |

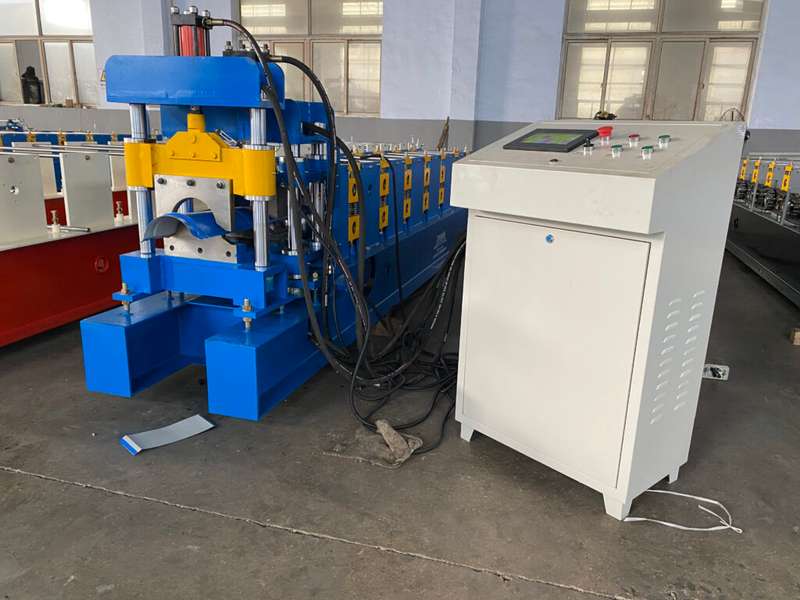

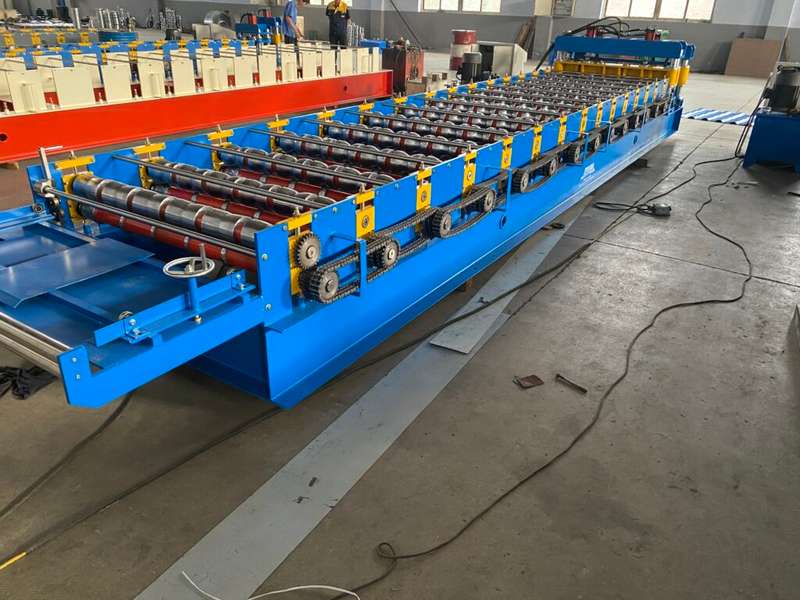

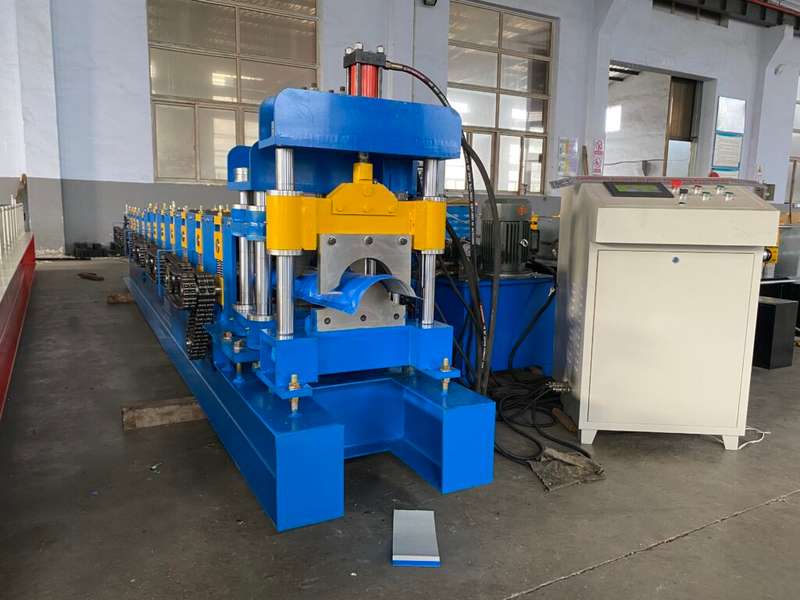

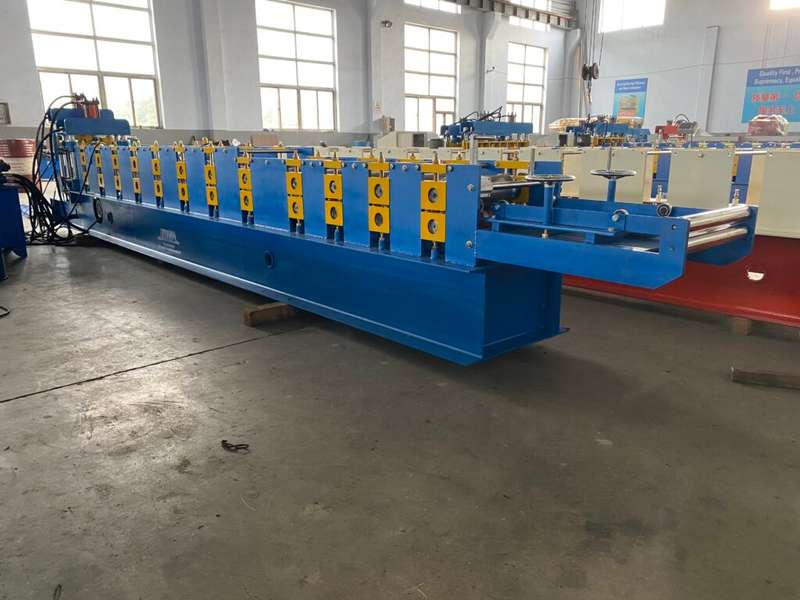

Machine image:
