The High Speed Shutter Door Slats Roll Forming Machine is an automated production equipment specifically designed for roll-up door manufacturing. Its core function is to transform metal coils (such as color steel plates, galvanized steel plates, aluminum alloy plates, etc.) through continuous and precise automated processing techniques into roll-up door slats with anti-theft, sun-shading, and protective functions. It is widely used in the production and processing of roll-up doors for industrial plants, commercial stores, residential communities, warehouses, and other scenarios.
Key Performance Characteristics：
1.High-Precision Forming:
The servo motor and PLC CNC system work in coordination to achieve a forming accuracy of ±0.15mm, ensuring uniform blade shapes, tight splicing, reduced operational stutter, and enhanced quality.
2.High-Efficiency Mass Production:
Supports continuous operation with a standard processing speed of 15-25 meters per minute for curtain panels. An 8-hour production capacity ranges from 7,200 to 12,000 meters, achieving 10-15 times the efficiency of manual labor and significantly reducing lead times.
3.Flexible Adaptation:
Compatible with various materials such as 0.3-1.5mm color steel plates and galvanized sheets, enabling rapid mold change within one hour to meet production demands for multiple types of rolling doors, including standard, fireproof, and windproof varieties.
4.Energy Saving and Cost Reduction:
Automation reduces labor costs by 40%, material utilization exceeds 97%, energy-efficient motors cut energy consumption by 15%, significantly compressing production costs.

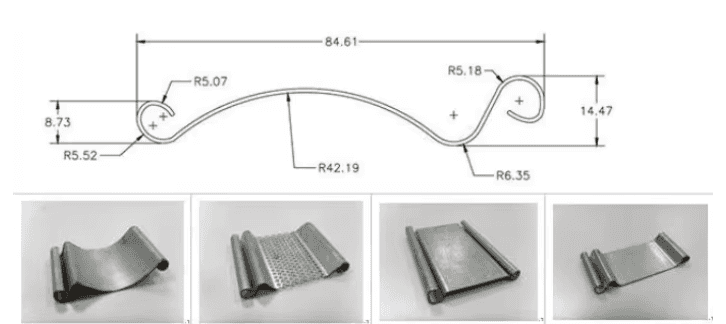

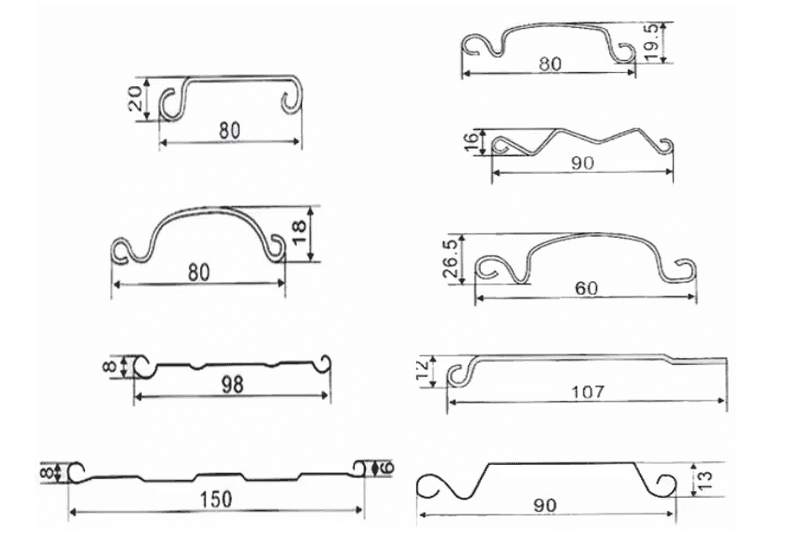

Pattern diagram:
Product Attributes ：
| 1.Formed Material | GI | Thickness:0.8-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 14 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 20-30m/min(customized) | Speed is adjustable according to customer's request | ||

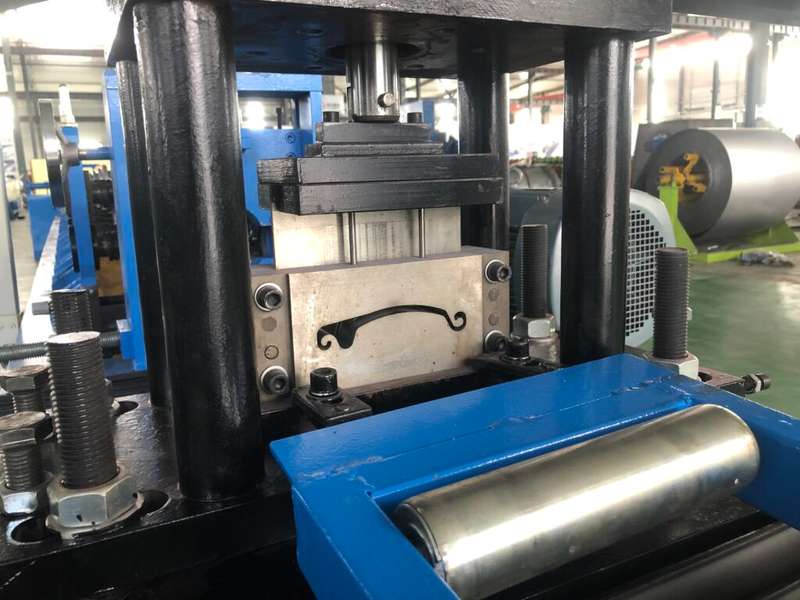

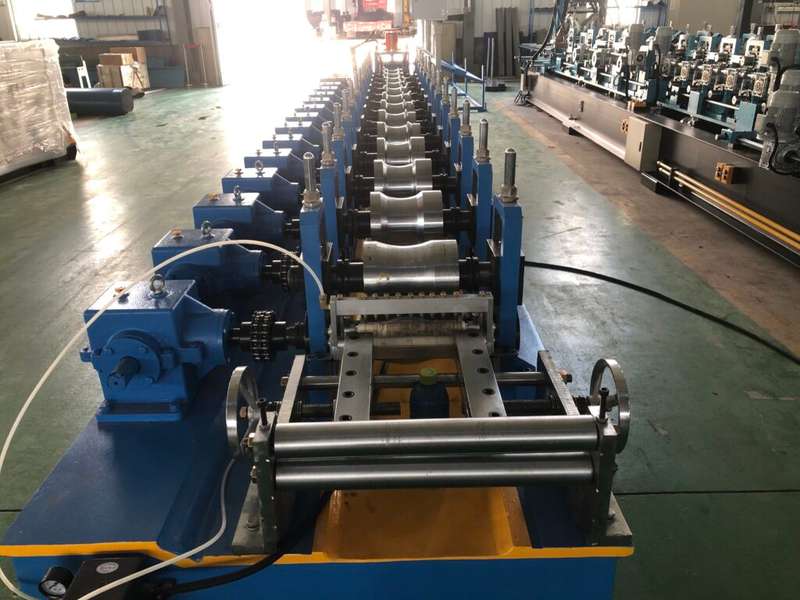

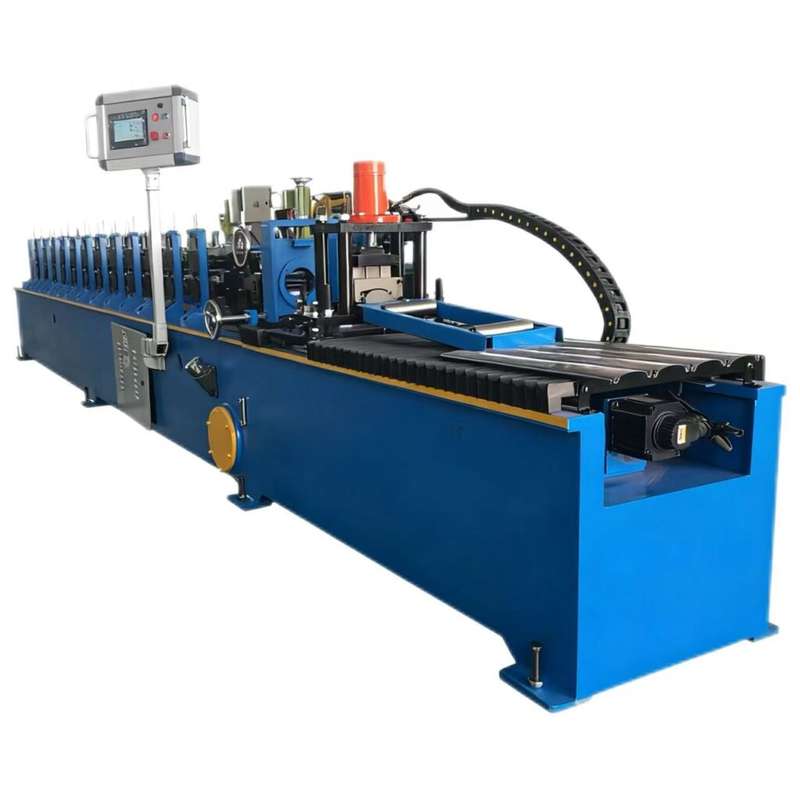

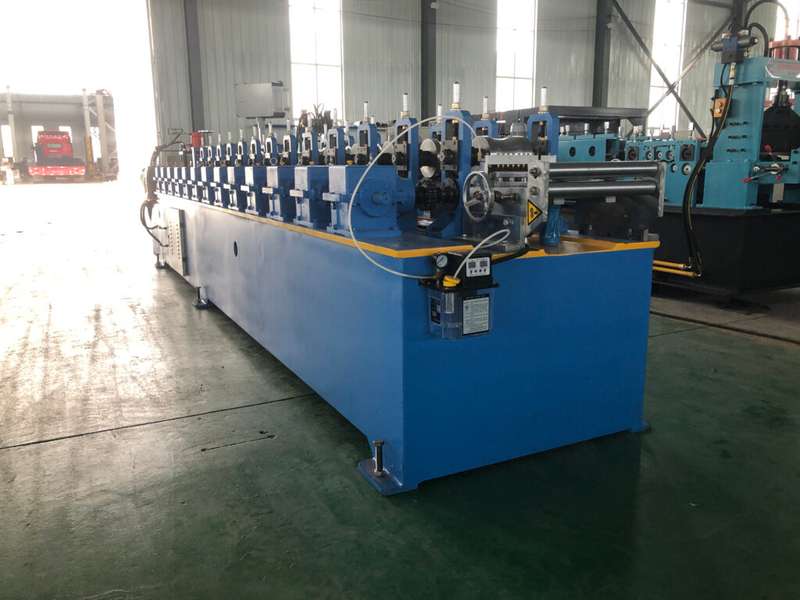

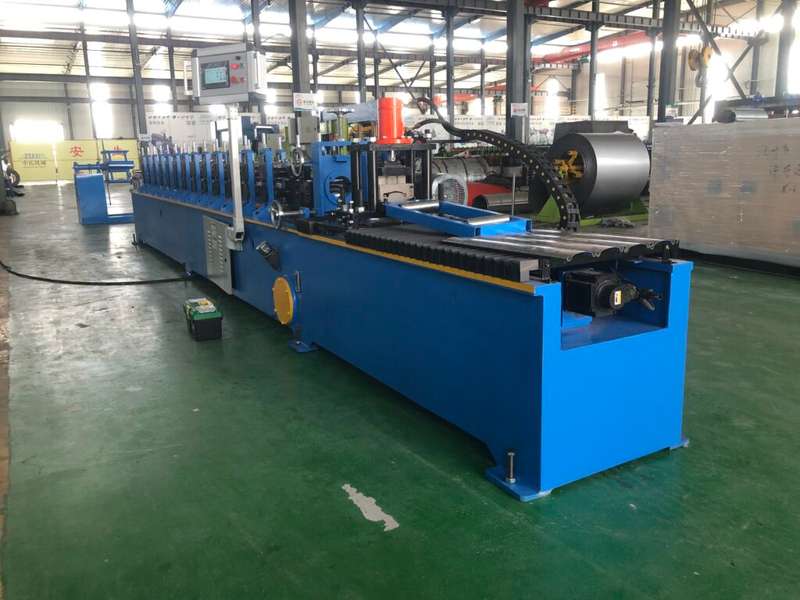

Machine image:
