In industrial plants, logistics and warehousing, and rural self built houses, roof tiles produced by Metal Roof PBR R Panel Roll Forming Machine have become the preferred building materials due to their fast drainage, excellent load-bearing capacity, and easy installation.

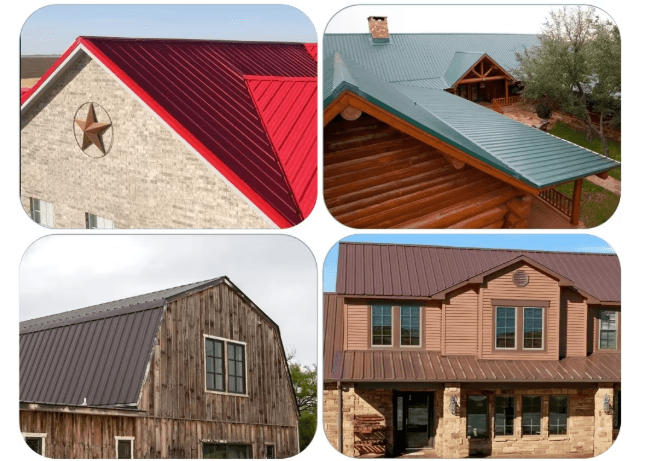

Applicable scenarios:
- Industrial buildings:
Roof protection for large factories, logistics and warehousing centers, and heavy machinery workshops (compatible with large-sized reinforced trapezoidal tiles); - Rural construction:
self built houses, homestays, and public buildings in rural areas (suitable for small-sized economical trapezoidal tiles, easy installation, and low cost); - Municipal engineering:
roof renovation of vegetable markets, community service centers, and bus stations (compatible with anti-corrosion trapezoidal tiles, strong durability);

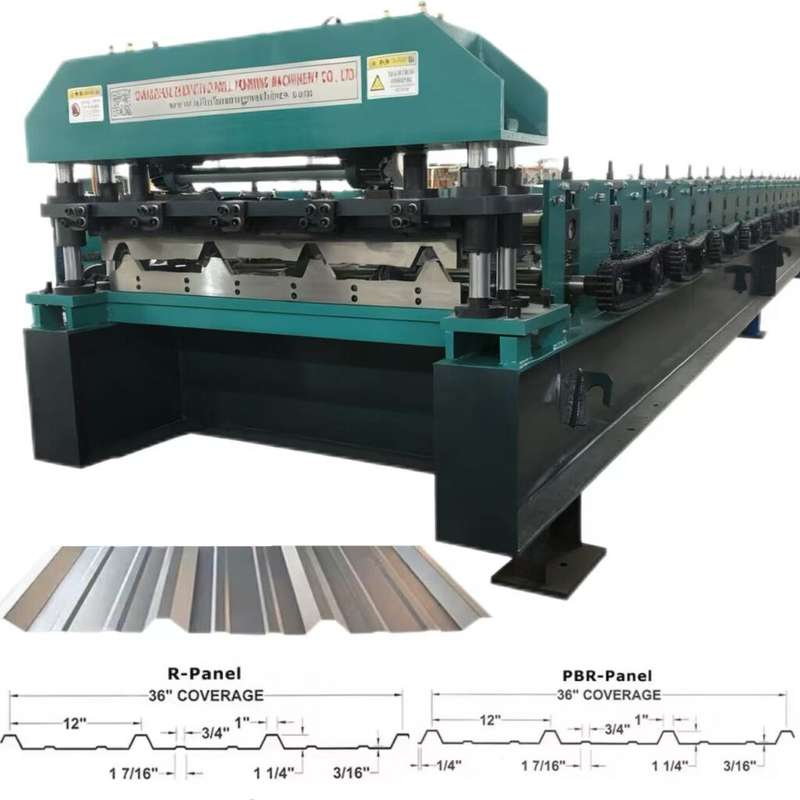

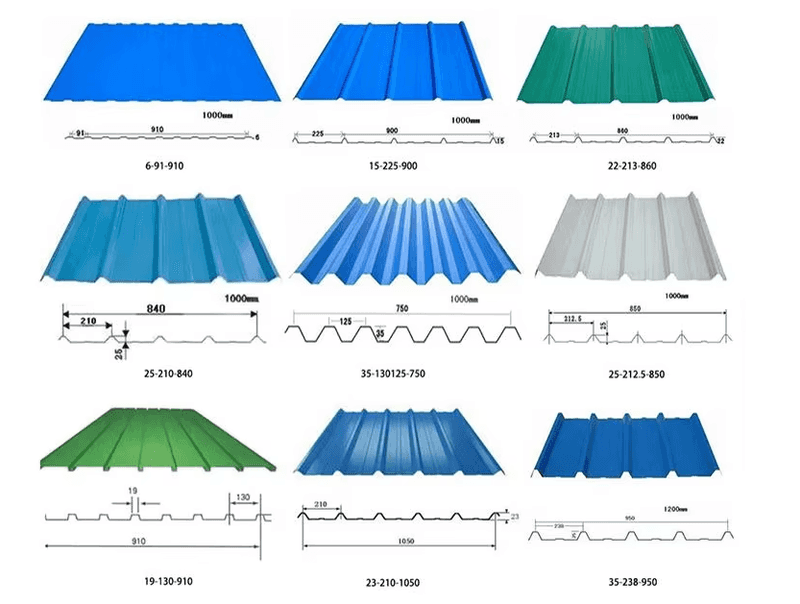

Profile drawing：
Two major advantages:
1.Efficient production capacity breakthrough: 4800 pieces per day, able to handle large orders without panic
2.Intelligent operation lowers the threshold: even beginners can "produce good tiles with just one click"

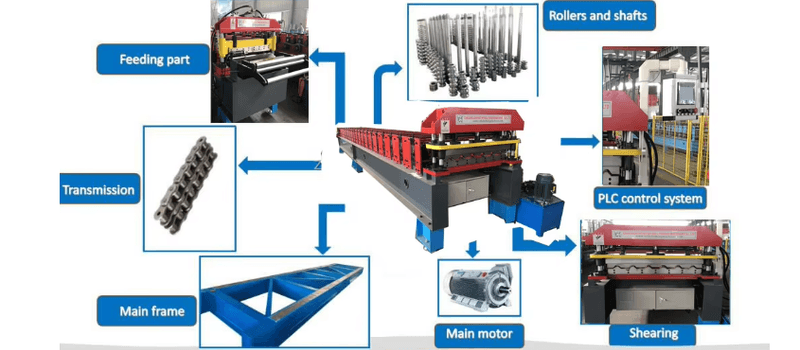

Product Attributes：
| 1.Formed Material | Material Thickness | 24-26 gauge | ||
| 2.Main body | Roller station | 19 rows | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | High Grade 45# Forged Steel, hard chrome plated on the surface | |||
| Machine body frame | 350mm H Beam Structure, With 20mm Welded Steel Middle Support Plate. | |||
| Drive | gear and Double Chain transmission | |||
| 3.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 4.Power | Motor Power | 5.5KW | ||
| Hydraulic system power | 4KW | |||
| 5.Voltage | 480V/440v/600v/240v 60Hz 3Phase | As your requirement | ||
| 6.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 7.Forming Speed | 0-15m/min | 45ft/min | ||

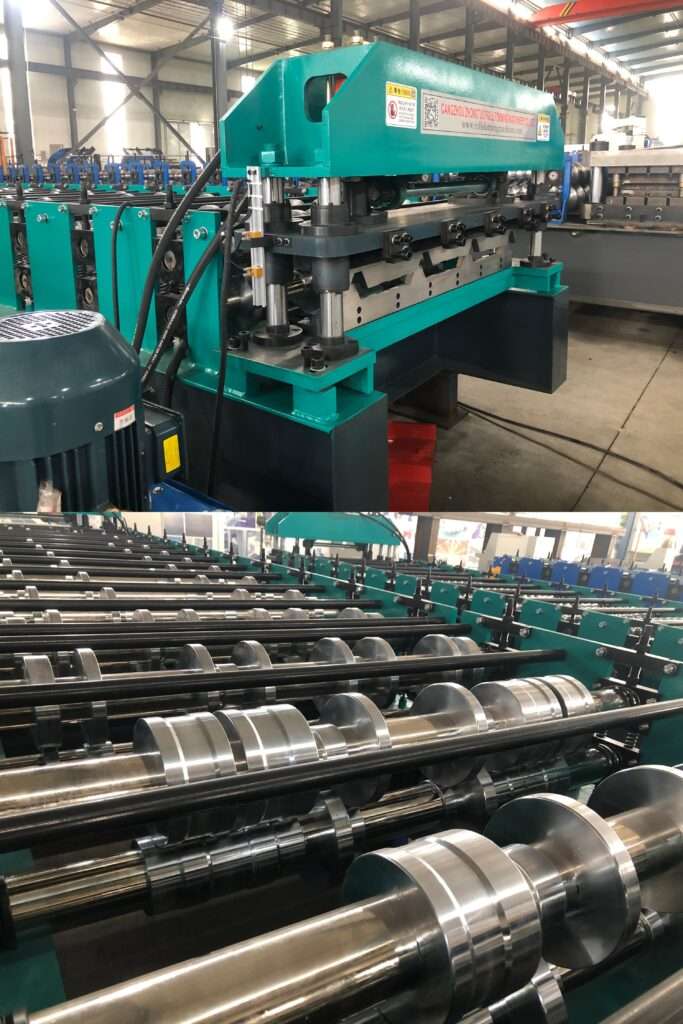

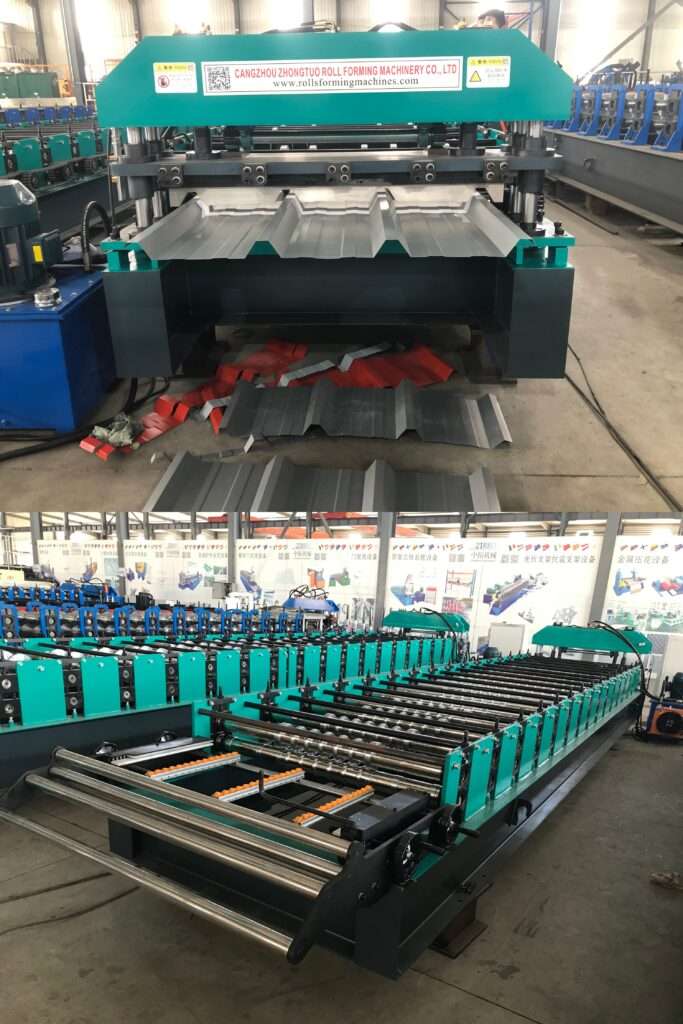

Machine image：
