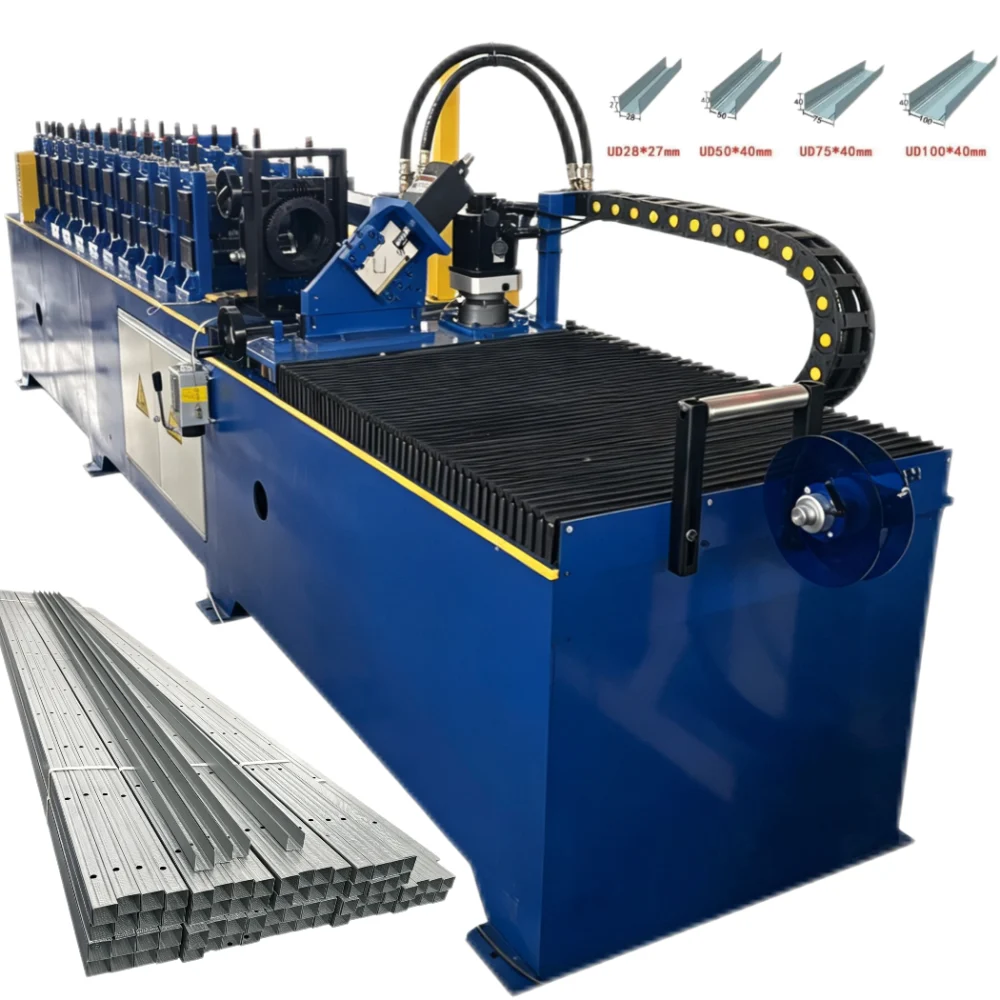

UD Steel Channel Metal Stud and Track Roll Forming Machine is a fully automated device that processes metal coils such as galvanized steel strips, color steel plates, or aluminum plates into U-shaped profiles through a continuous cold rolling process. It integrates mechanical, hydraulic, and electrical automation technologies and typically consists of an uncoiling and feeding system, a roll forming main unit, a hydraulic cutting system, a PLC electrical control system, and a finished product discharge rack.
Key Features:
- Fully automated production, significantly reducing costs and increasing efficiency
- High-precision molding, stable and reliable quality
- Flexible changeover, multi-functional
- Robust and durable, smooth operation
Application Scenarios: The Ubiquitous Backbone of Buildings
- on-load-bearing Partition Systems:
Serving as perimeter joists along the floor, ceiling, and walls, they work in conjunction with C-shaped vertical joists to form a stable framework for interior partitions. - Ceiling Joist Frames:
In ceiling systems, U-shaped joists can serve as the main load-bearing joists, supporting additional loads (such as lighting fixtures and equipment) or providing structural support for large-area ceilings. They are also used to produce corner joists of specific specifications for ceiling systems. - Decoration and Renovation Projects:
Widely used in the construction of interior ceilings and wall decoration bases in factories, office buildings, shopping malls, supermarkets, hotels, and residences.
Pattern diagram：
Product Attributes :
| 1.Formed Material | PPGI,GI,AI | Thickness:0.5-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 60mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 7800*800*1200(customize) | |||
| Weight | About 4.5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 40-100m/min(customized) | Different speed designs for options. | ||

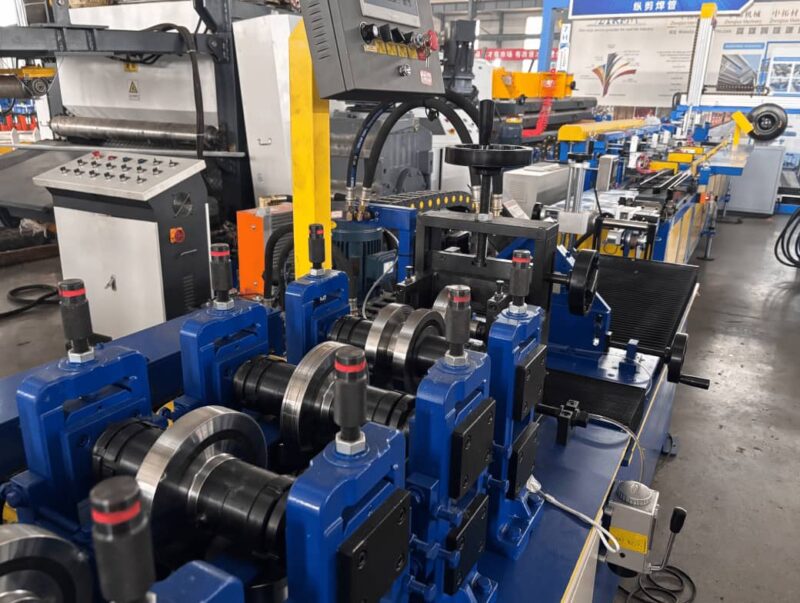

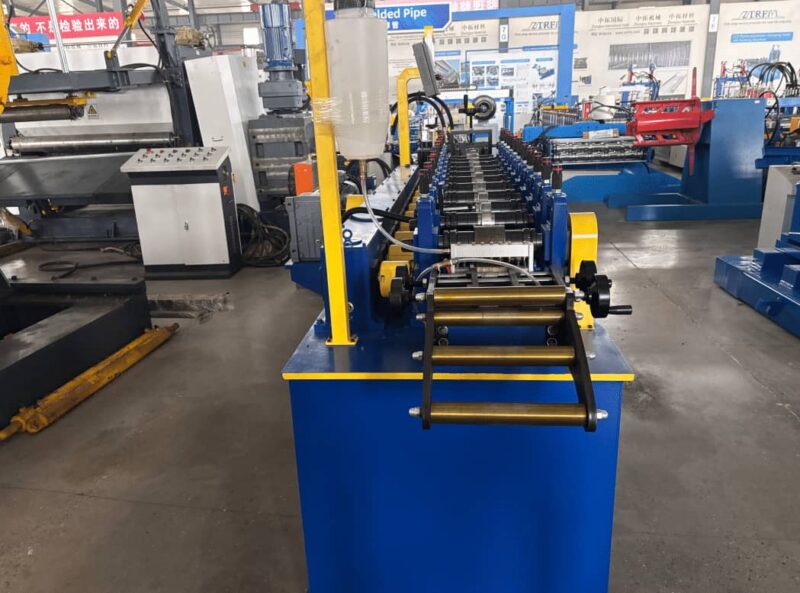

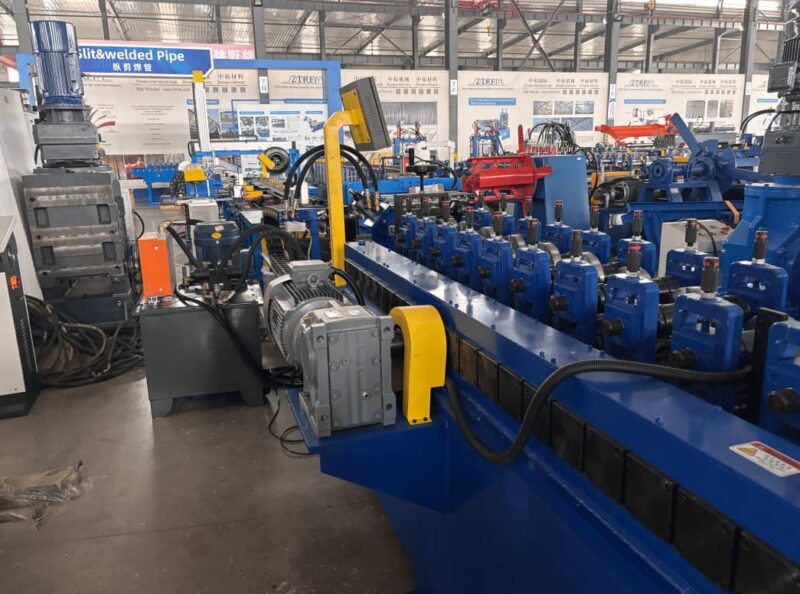

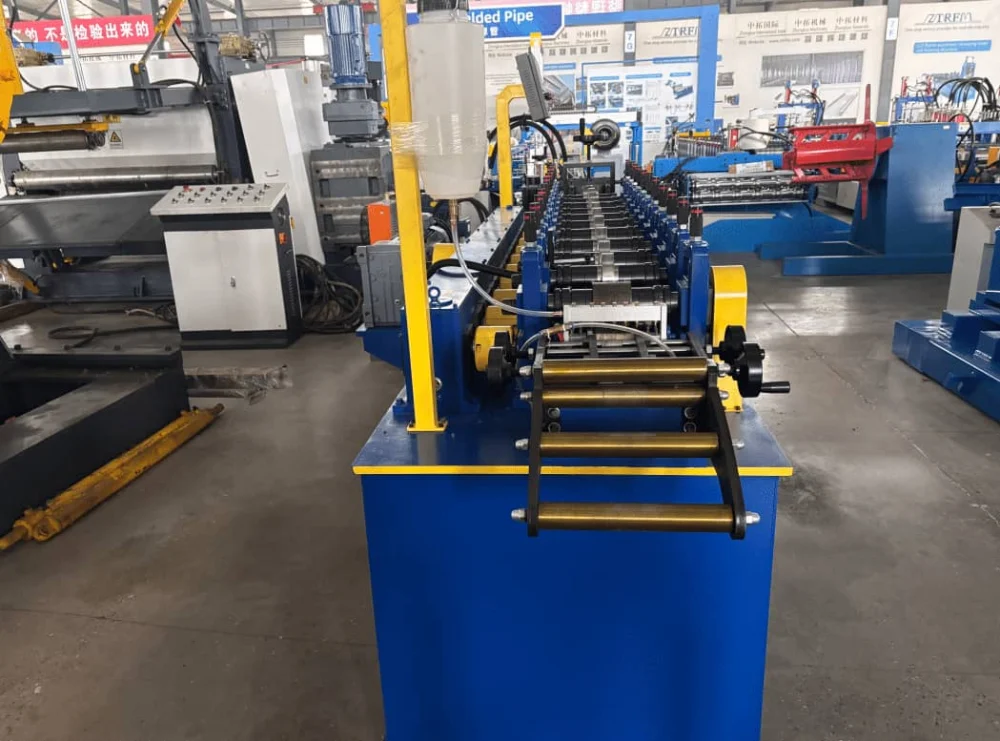

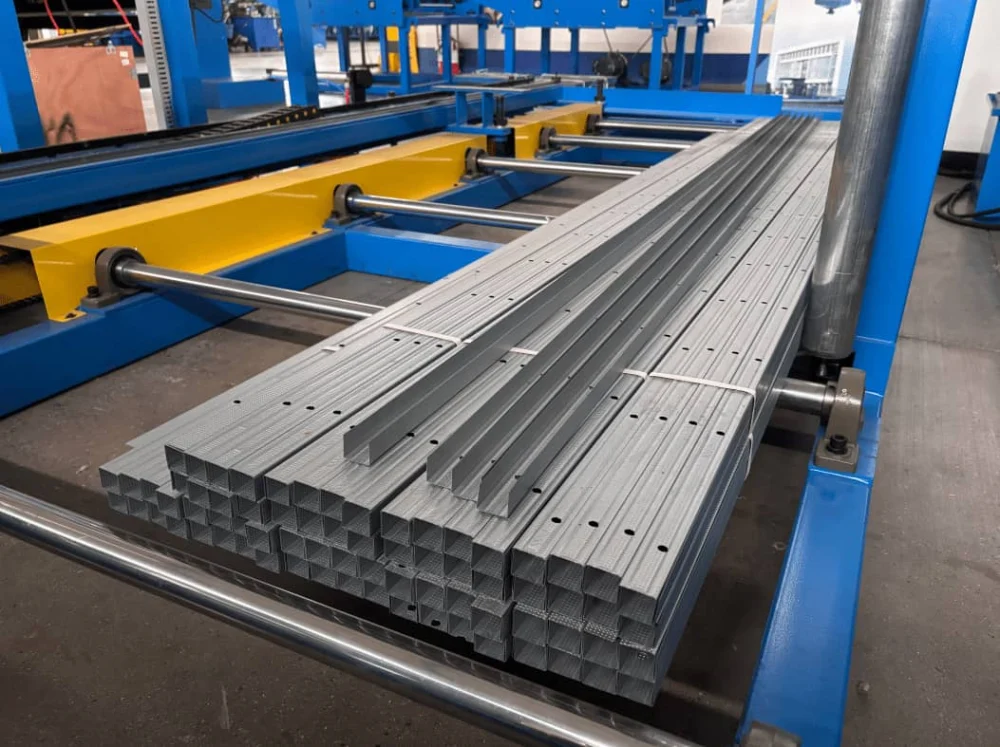

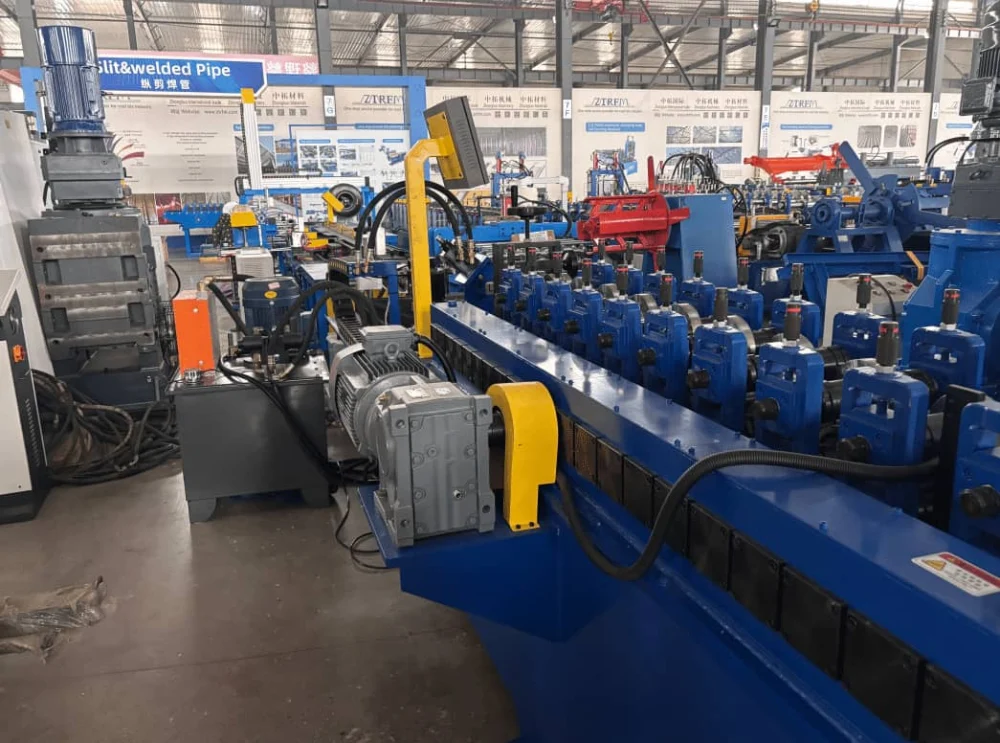

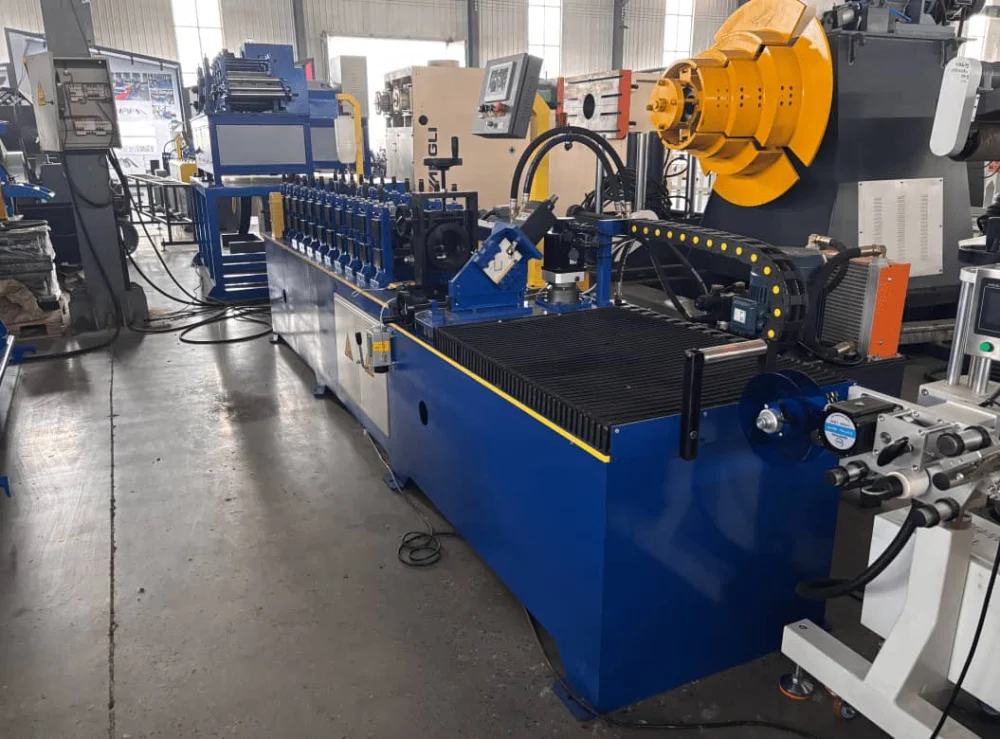

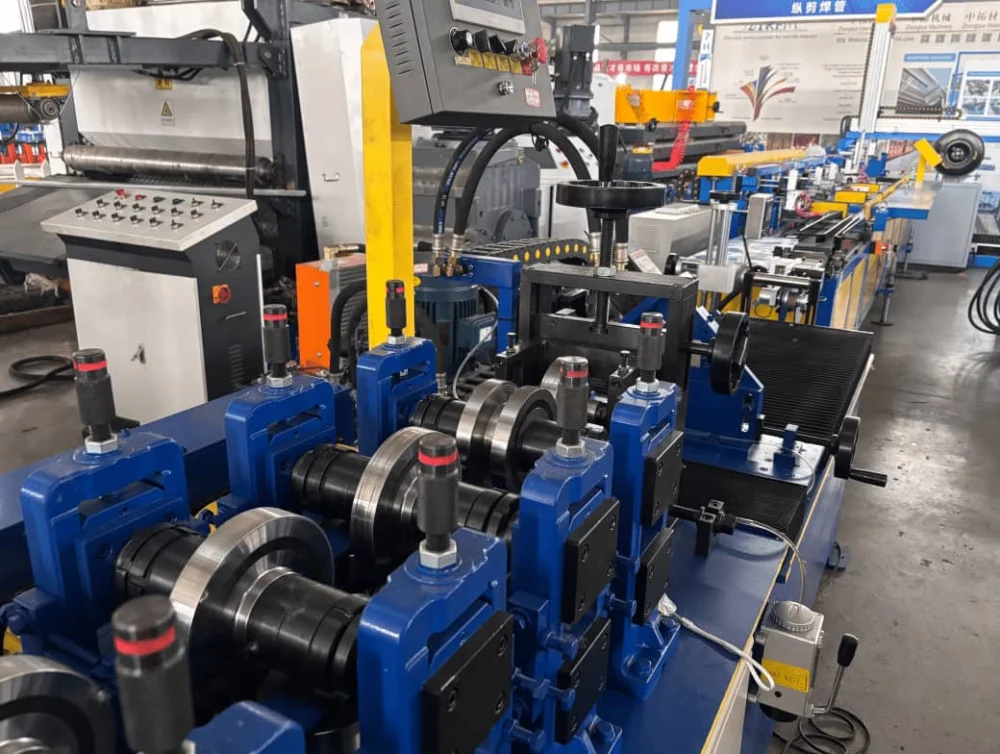

Machine image:
contact us：
In an era that prioritizes both construction efficiency and project quality, the U-shaped keel machine, with its high speed, high precision, and high automation, provides an excellent solution for light steel keel production. It is not only an upgraded replacement for traditional manual labor but also a reliable piece of equipment driving modern construction towards industrialization and prefabrication. Choosing a high-performance U-shaped keel machine means securing efficiency, stability, and quality for your construction project.
