In today’s construction industry, roof tiles are not only protective barriers for roofs, but also the finishing touch of architectural styles. With the increasing aesthetic requirements of consumers for building appearance and the tightening of environmental policies, the traditional production mode of roof tiles is no longer able to meet market demand. The emergence of a new generation of intelligent roof tile production equipment is bringing unprecedented development opportunities to roof tile production enterprises with disruptive technology, making production more efficient, quality more outstanding, and environmental protection more up to standard.
Main advantages:
- High production efficiency
The fully automatic roof tile equipment adopts modular manufacturing technology, with high component universality and convenient maintenance. The molding speed of the equipment can reach 15-20 meters per minute, with a single fixed length error of ≤ 2 millimeters. The board shape is neat and does not deform at the beginning and end. - High degree of automation
Equipped with Siemens PLC control system, supporting human-computer interaction interface operation, and simple parameter setting. The equipment adopts PEM optimized design to ensure production stability, with strong self-learning ability of the system, suitable for rapid deployment in factories or construction sites. - High structural strength
The H-beam welding frame and roller set are strengthened by heat treatment, and the whole machine is painted with baking paint, which has strong corrosion resistance. Modular design reduces maintenance costs and achieves a component universality rate of over 80%. - Wide applicability
Suitable for scenarios such as roofs, garages, and industrial buildings, it supports precise cutting of up to 10 meters in length. The equipment has low noise and is easy to install and debug, especially suitable for large-span factories or complex construction environments.

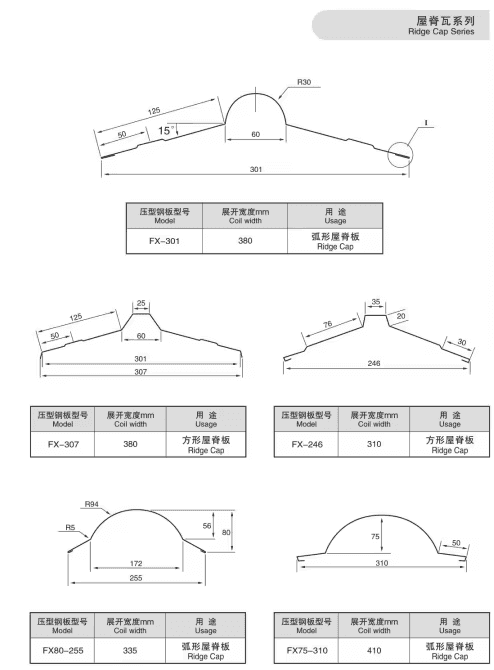

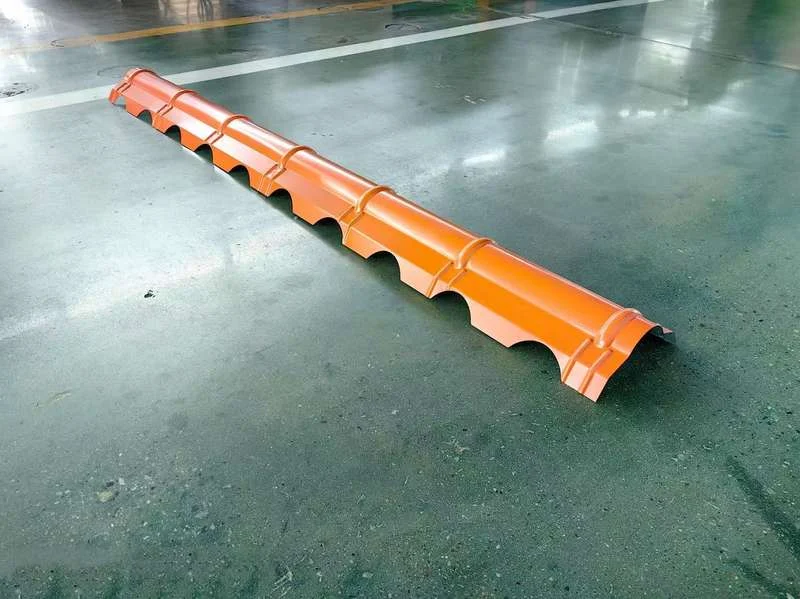

Pattern diagram:
Product Attributes ：
| 1.Formed Material | PPGI,GI,AI | Thickness: 0.4-0.7mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler (will give you as free） | ||
| 3.Main body | Roller station | 14 rows (As your requirement) | ||
| Diameter of shaft | 65mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 350 H steel | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | about 5500*1600*1600(customize) | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 5.5KW, servo motor | ||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 10-15m/min | The speed can be adjusted as customer’s request | ||

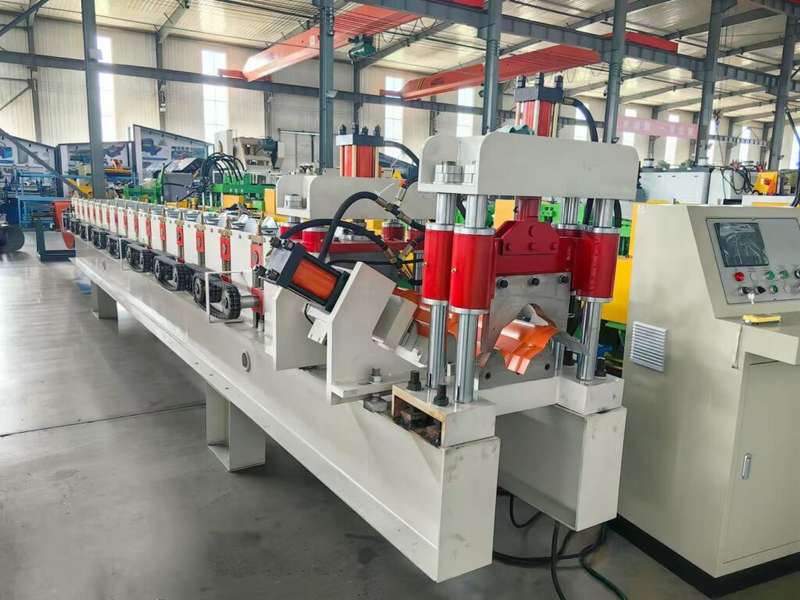

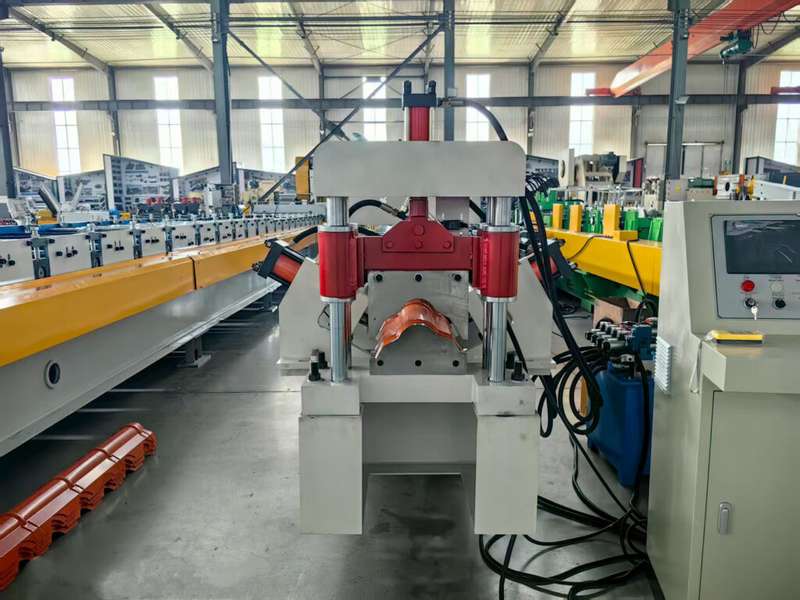

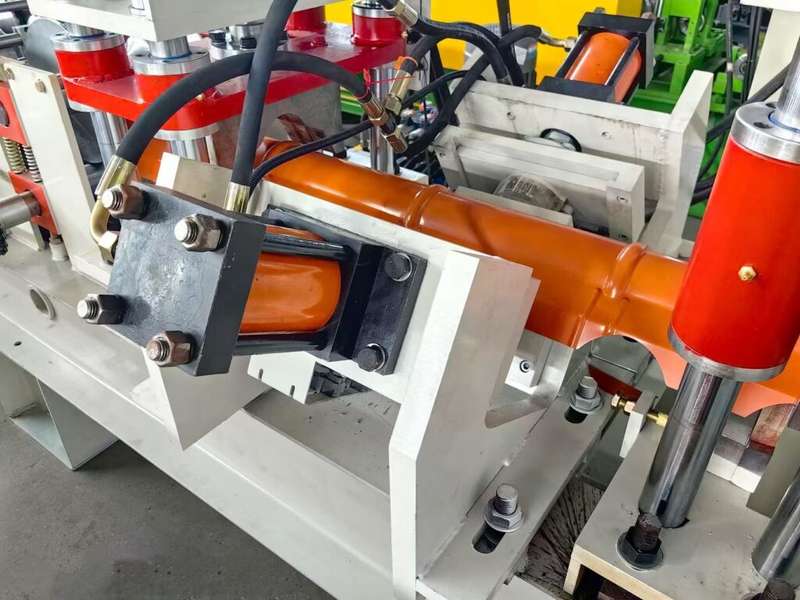

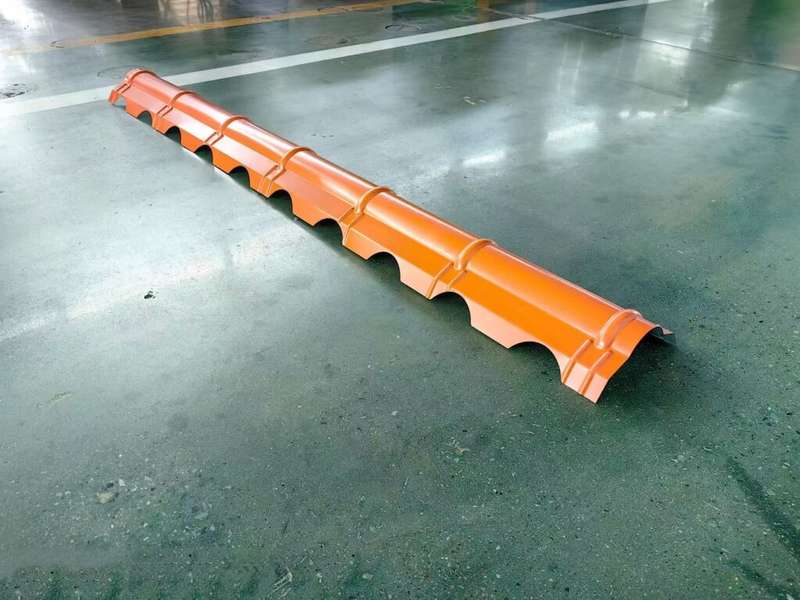

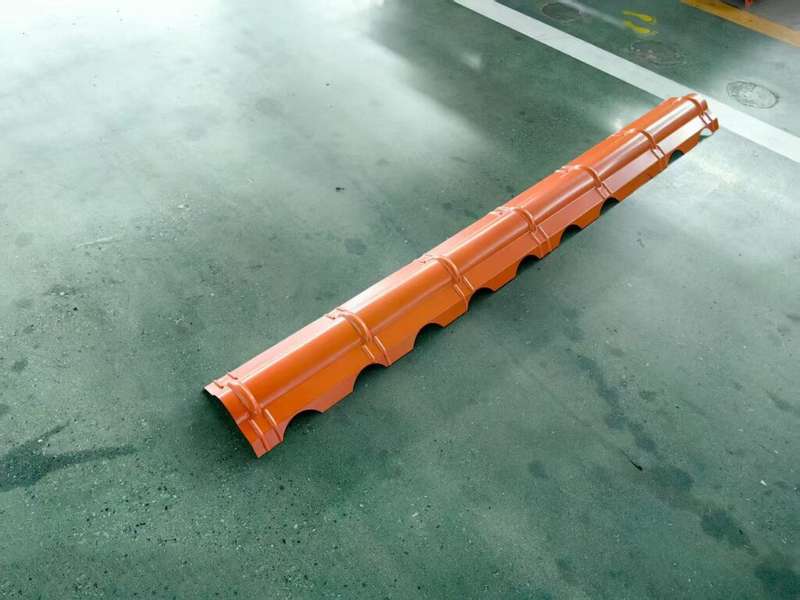

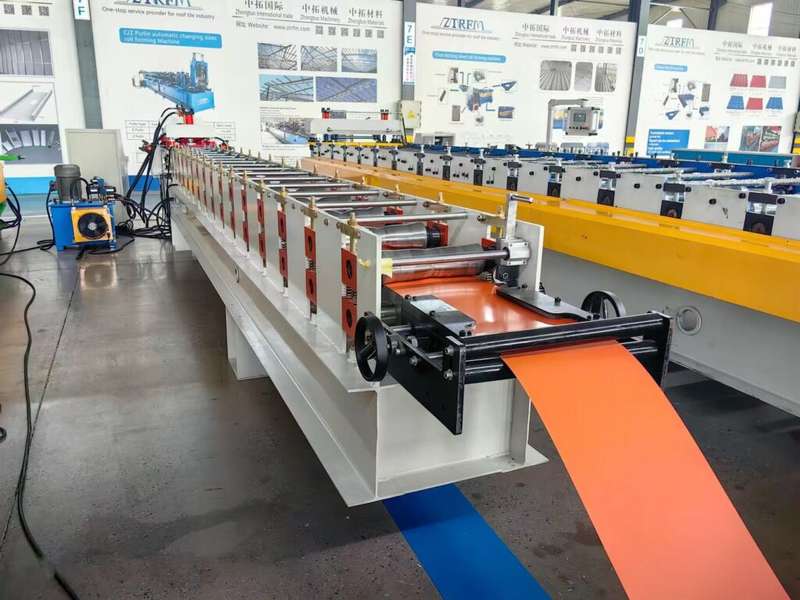

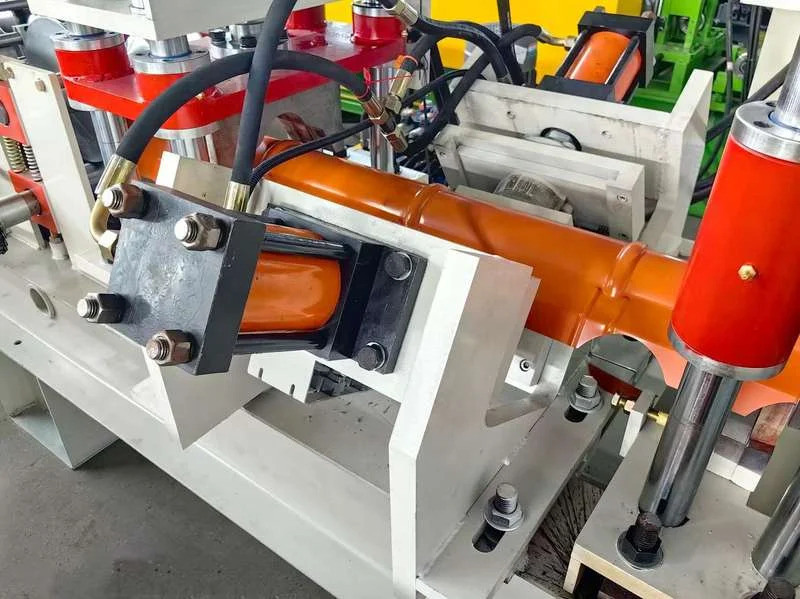

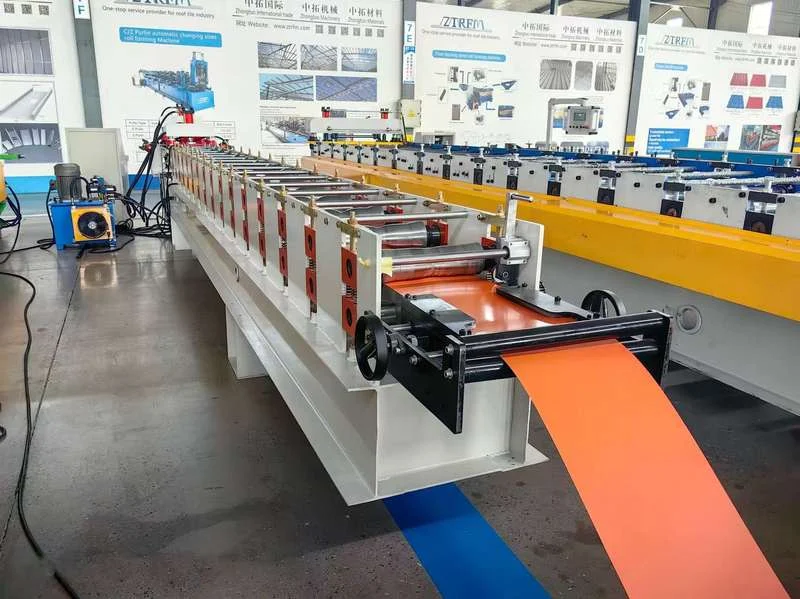

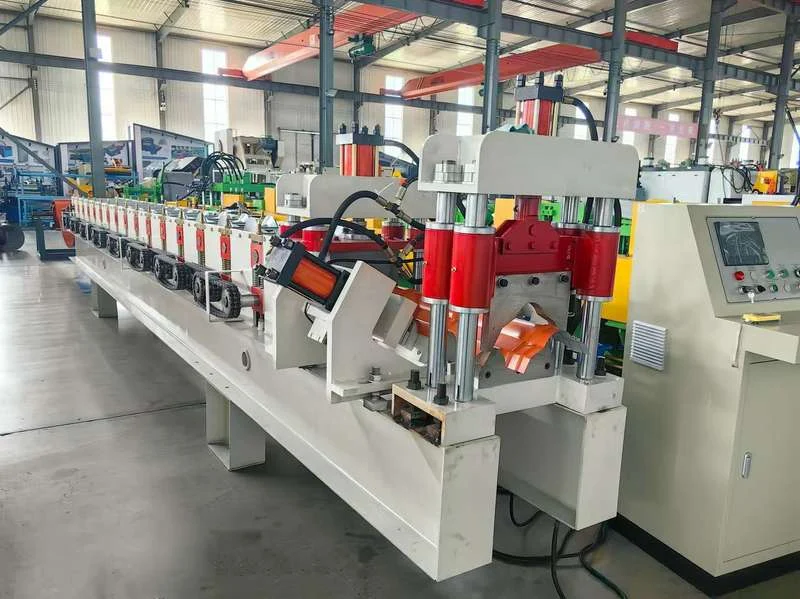

Product images：
