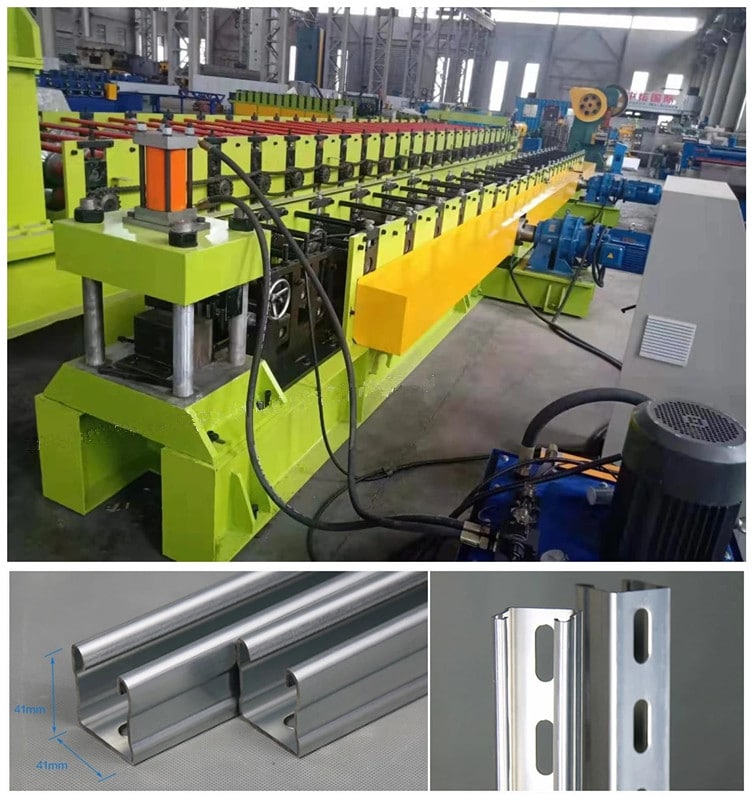

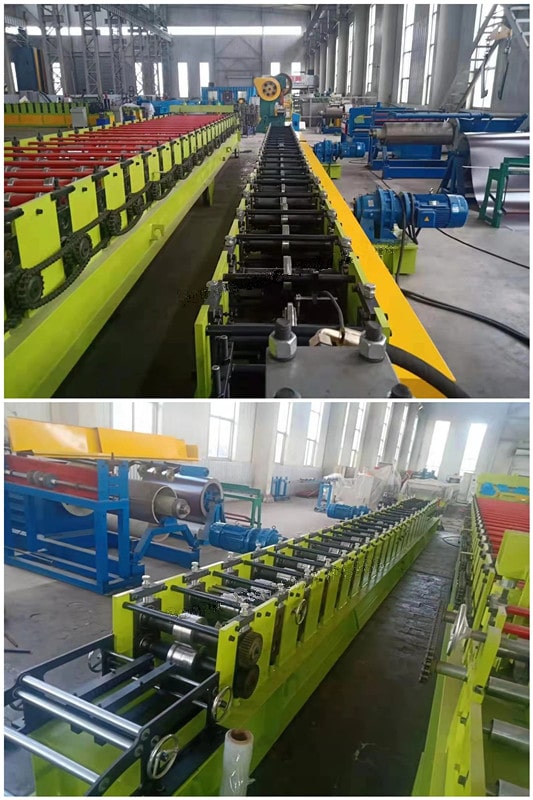

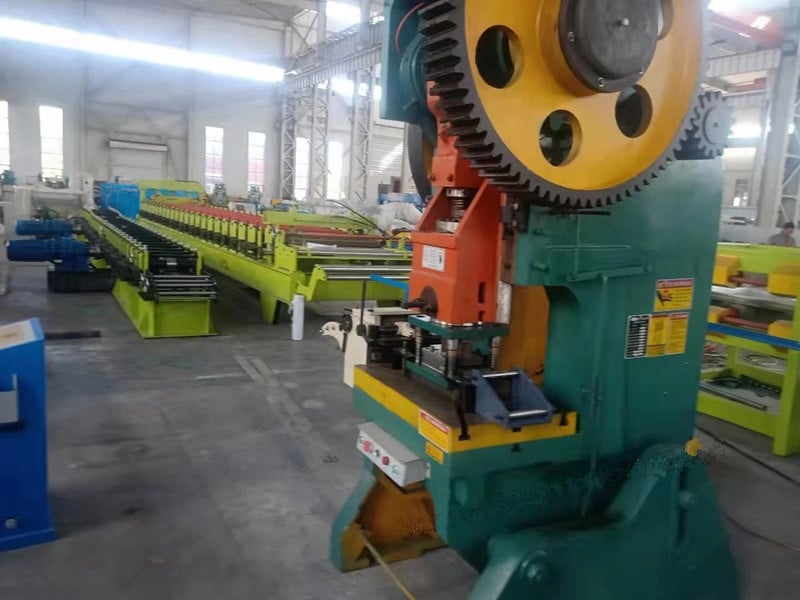

Roll forming machine for Solar Panel Mounting Structure

The GI strut channel can be fastened to the side of the home to allow the solar panel to be placed at the most advantageous angle. For those who would require the GI strut channel machine. we provide affordable options. Purchase today and invest in a better future of your family, community, and the planet as a whole. If you have any questions, please contact us at for further details.











































Technical Parameters of Solar mounting structure strut channel machine

Material thickness range:1.5-2.5mm

feeding width: 90-230mm

Main motor power: 22 k w
Forming speed:8 m/min

Shearing method: Hydraulic shearing.
Hydraulic station power:11 KW

Quantity of rollers:24 rollers

Shaft Material and diameter: 80 mm, material is 45# forge steel
Material Of machine body: 25mm 45# steel
Tolerance: +-1.5mm

Transmission method: By double chains
Material of forming rollers: GCR15 steel, coated with chromed treatment
Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
Voltage: 380V/ 3phase/ 50 Hz (as request)

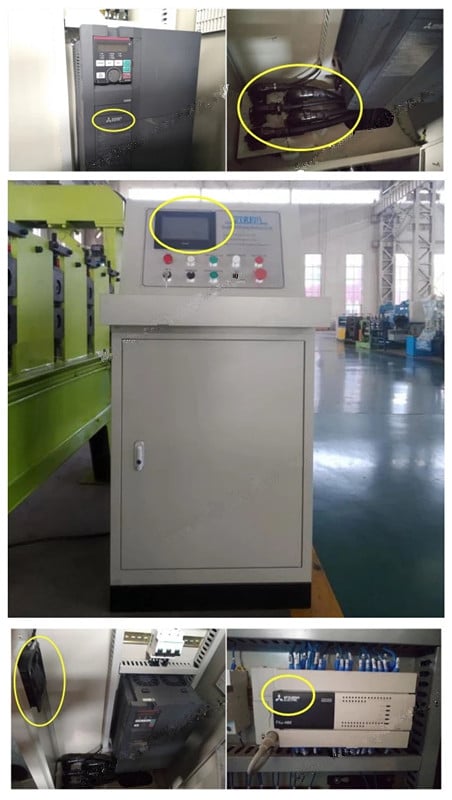

 Control Cabinet

PLC : Delta

Touch Screen:Siemens

Encoder: Schneider/Mitsubishi

Plug: Aviation plug

Botton: Schneider

cooling systerm: Fans

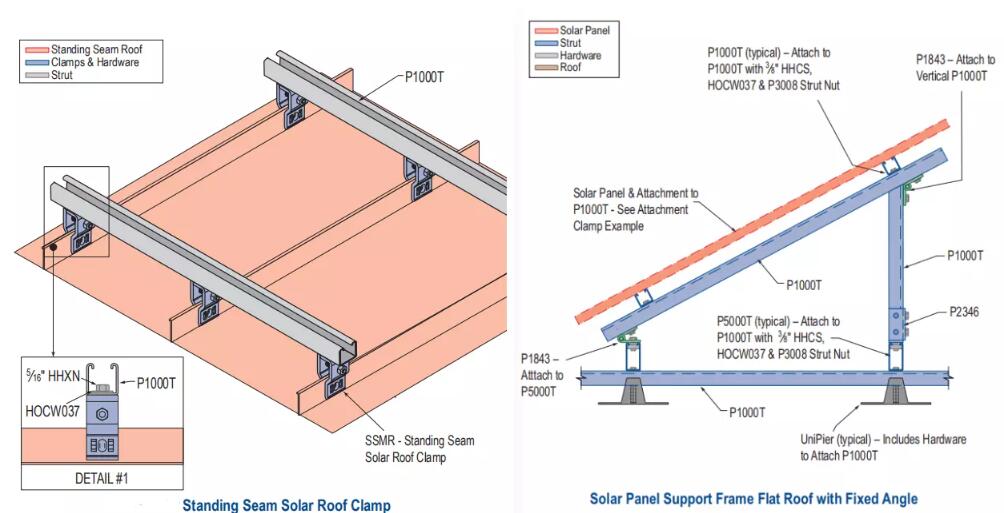

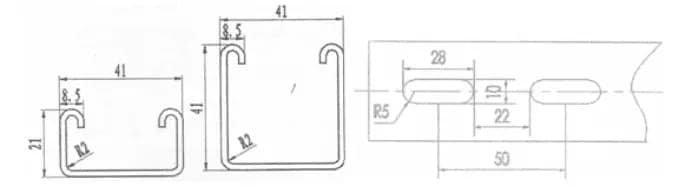

 Solar mounting structure strut channel

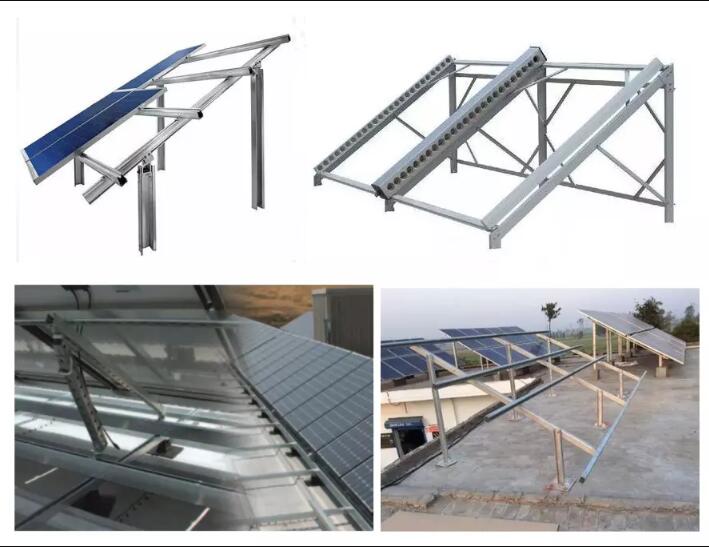

 Installation of Solar mounting structure strut channel
