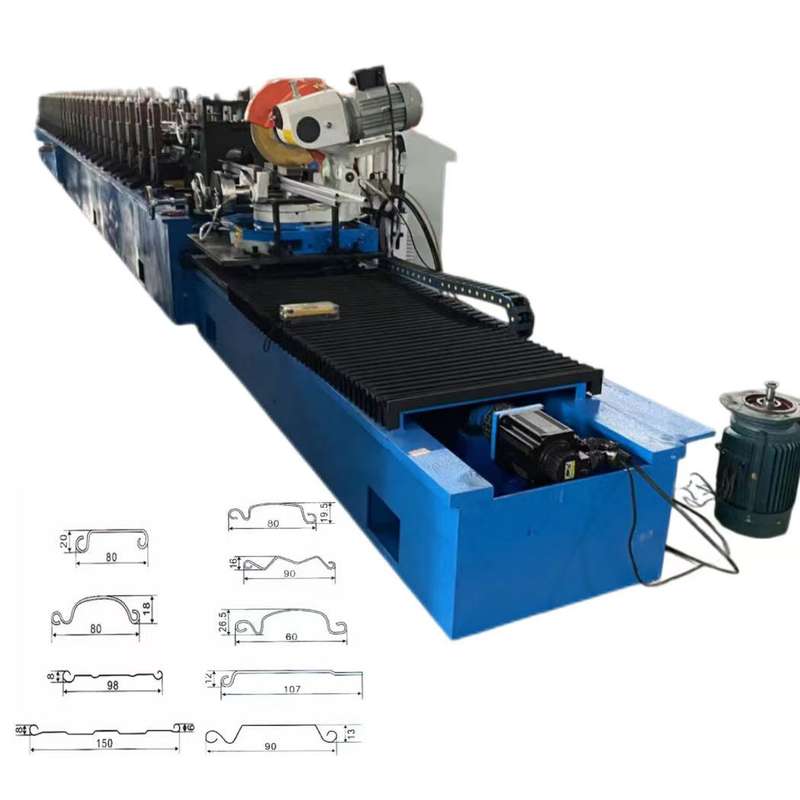

The Roller Shutter Slat Roll Forming Machine(also known as the rolling shutter door cold bending forming machine, rolling shutter machine) is a specialized cold bending equipment for automated production of rolling shutter door curtains. The core uses multiple sets of precision rolling molds to process metal coils such as color steel plates, galvanized plates, aluminum alloy plates, stainless steel plates, etc. through continuous progressive rolling, bending, fixed length cutting and other processes into standard or customized specifications of rolling shutter door panels in one go.

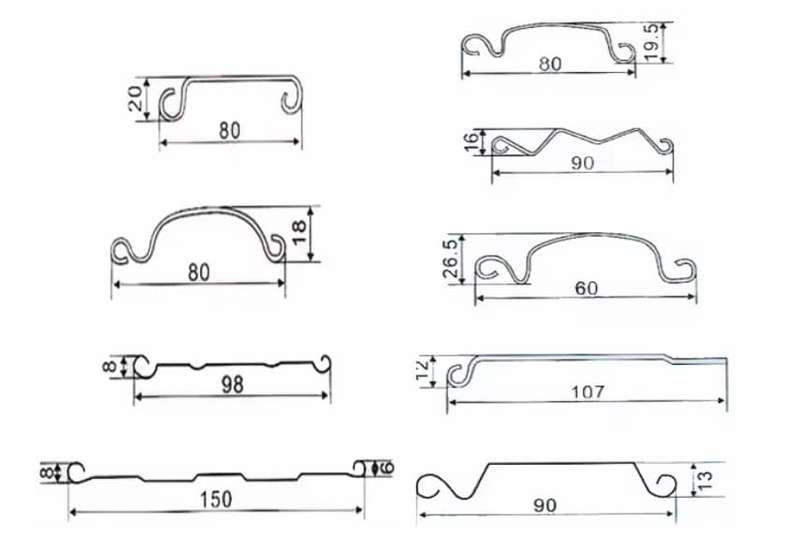

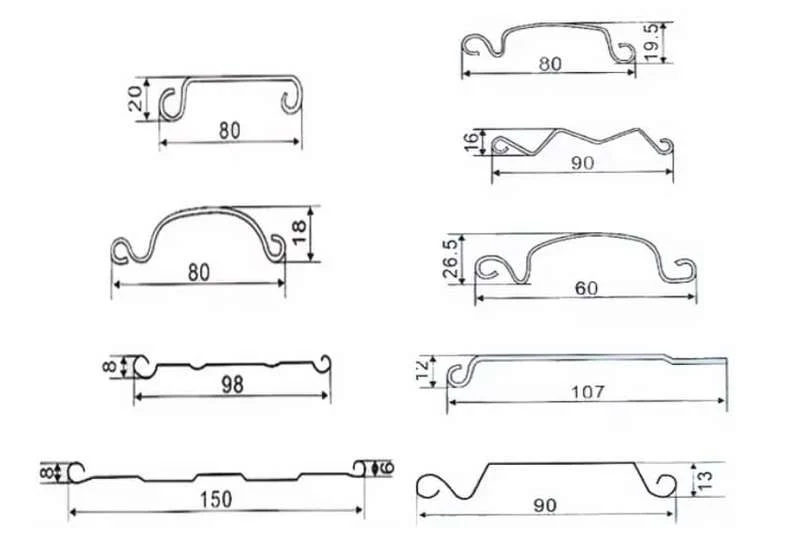

Pattern diagram:

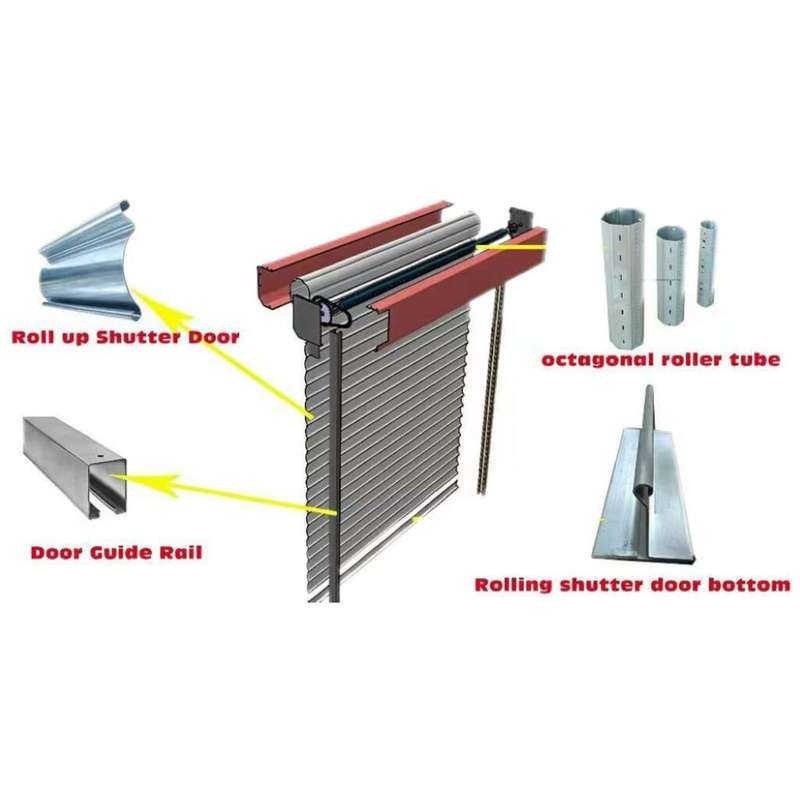

Main application scenarios：
- Industrial construction field
Industrial plants, warehouses, logistics centers, and workshop passages: produce large windproof/wind resistant rolling shutter doors and fireproof rolling shutter door curtains, with high door strength, wind and pressure resistance, and strong durability, meeting the high-frequency opening and closing and safety protection needs of industrial scenes. - Business service field
Shopping malls, supermarkets, shops, storefronts, and garages: produce ordinary curved, aluminum alloy, silent rolling shutter door curtains with beautiful appearance, smooth operation, sound insulation and dust prevention, suitable for commercial storefront decoration and daily anti-theft. - Special firefighting scenarios
Underground garages, large shopping malls, and factory fire compartments: produce fire-resistant rolling shutter door curtains (galvanized sheet+fire-resistant filling) that meet fire safety standards and have fire-resistant, heat-insulating, and fire-resistant functions.
Product Attributes :
| 1.Formed Material | GI | Thickness:0.6-1.2mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 12 rows(As your requirement) | ||
| Diameter of shaft | 50mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Metal steel welded | |||
| Drive | Chain transmission | |||
| Dimension(L*W*H) | 5500*800*1200(customize) | |||
| Weight | About 3T | |||

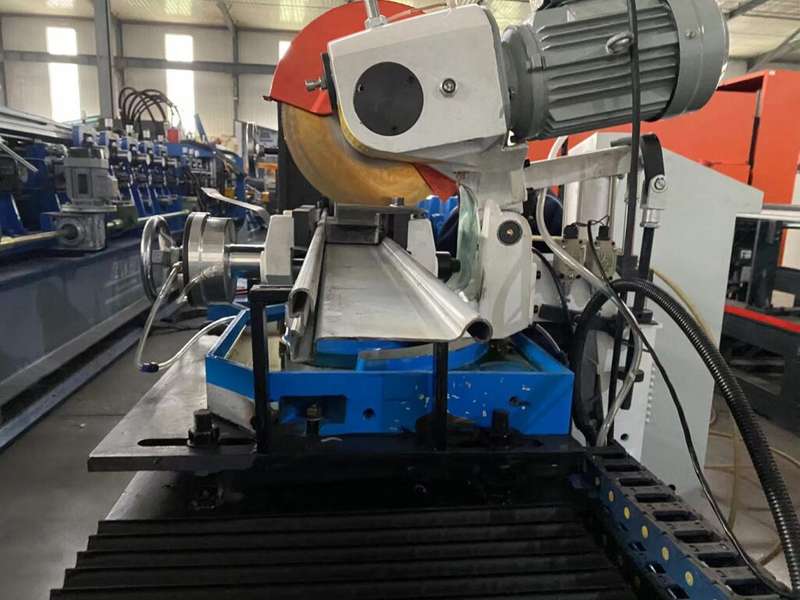

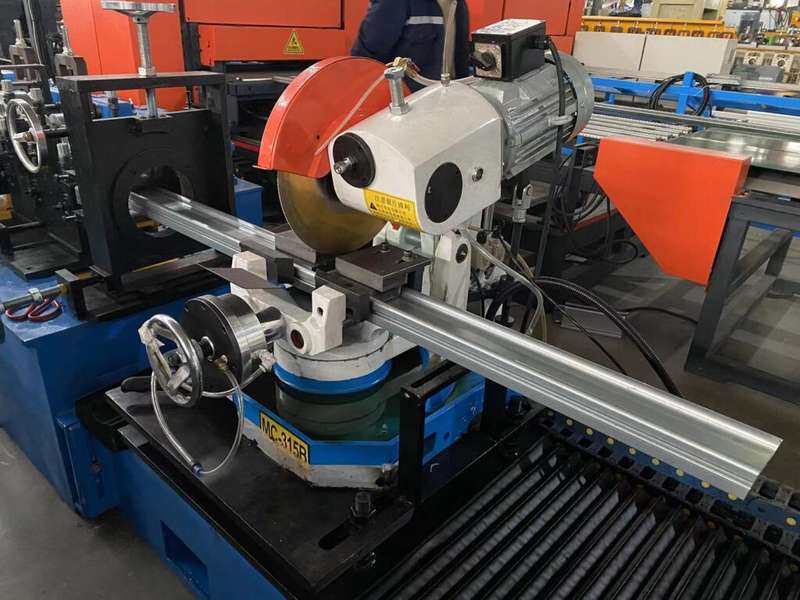

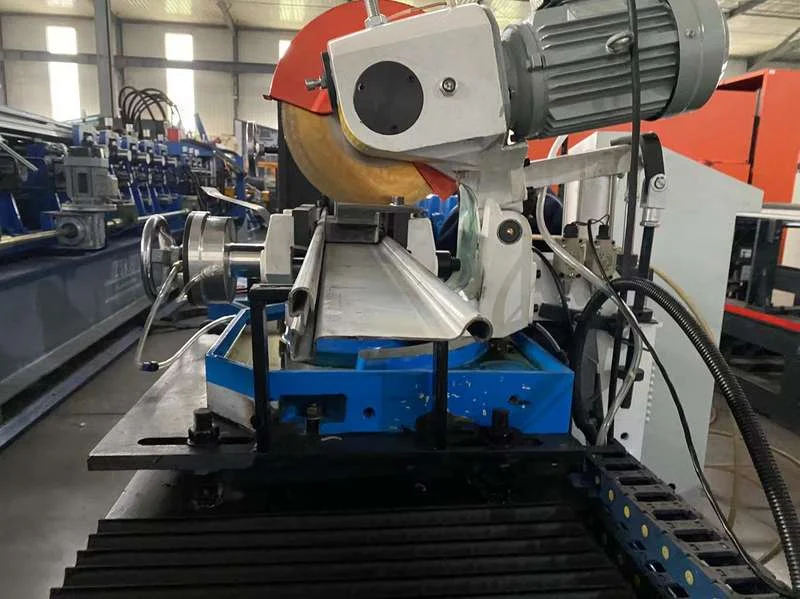

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||
| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 18.Forming Speed | 20-25m/min(customized) | Speed is adjustable according to customer’s request | ||
Core Features：
1.High degree of automation and efficient production
2.High molding accuracy and stable quality
3.Strong compatibility between material and specifications
4.Durable and stable, with low operation and maintenance costs
5.Function integration, flexible customization
